A jet mud mixer is the primary equipment for drilling fluid preparation and weighting in large-scale drilling operations. By operating on the Venturi principle, it draws dry additives—such as barite, bentonite, and polymers—into the circulating fluid stream through high-velocity injection, achieving rapid, uniform mud conditioning. When properly deployed, a jet mud mixer reduces fluid preparation time by up to 40%, eliminates undissolved clumps, maintains consistent mud density across drilling depths from 1,000m to 9,000m, and directly reduces non-productive time caused by wellbore instability or lost circulation.
A Jet Mud Mixer works by applying high pressure (usually between 0.25 and 0.4 MPa) to a tube that forces fluid through it. This creates a small vacuum inside the Venturi hopper, which slowly pulls dry materials from the hopper into the fluid stream. This causes turbulence, which creates strong shear forces that break up solid objects and mix them evenly with the base stream, all without using any mechanical motion.

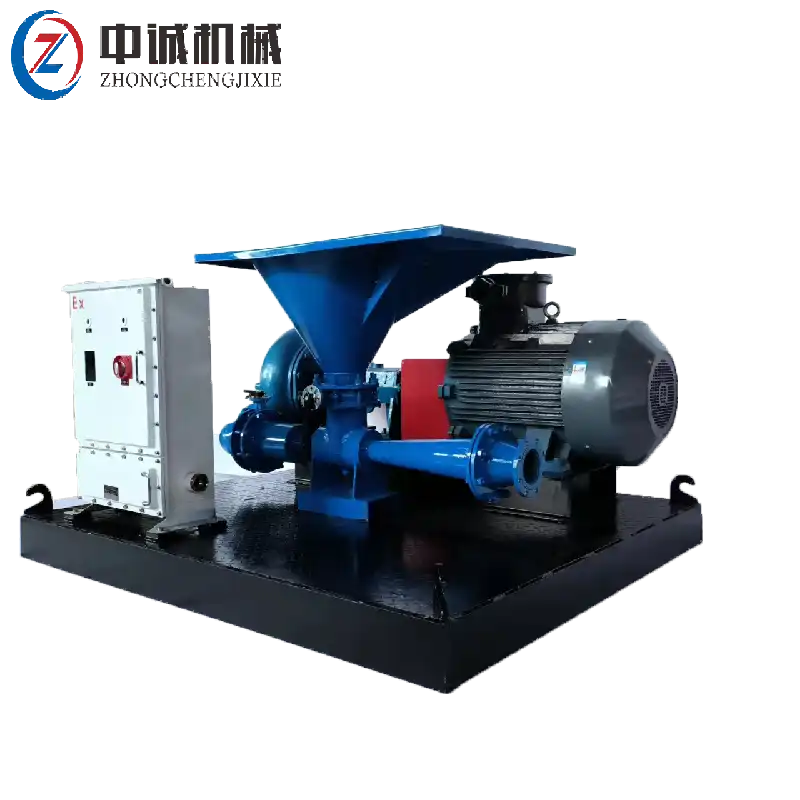

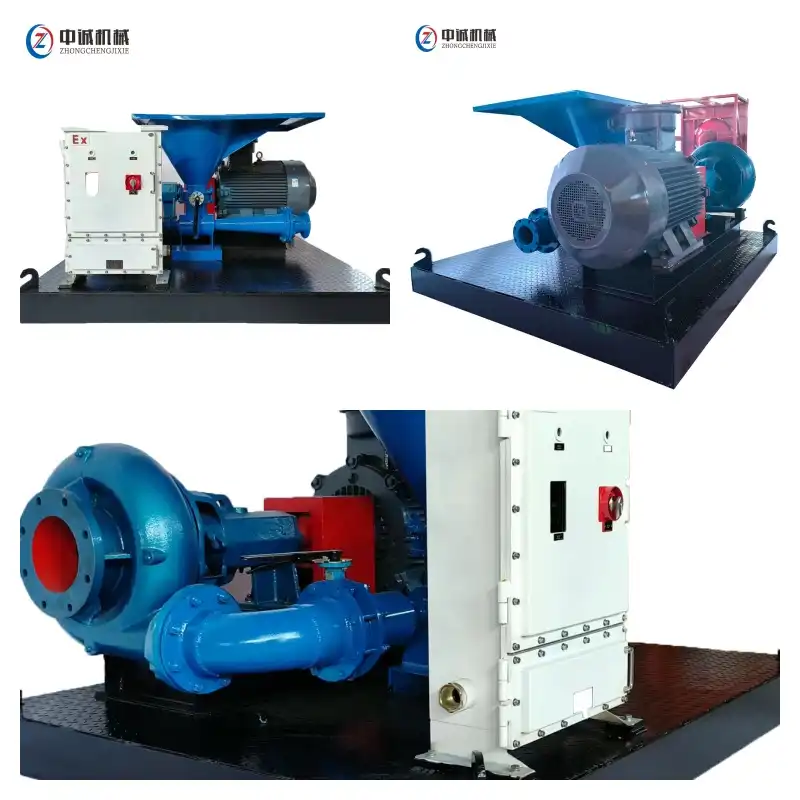

A Venturi hopper, a centrifugal feed pump, high-performance butterfly valves, and an optimized ejector flow passage make up the core structure. Depending on the use, nozzles can be made of metals that don't break down easily or full stainless steel (SS316). The butterfly valves let you precisely control the dose, and the hopper opening's ergonomic shape makes it easier for the operator to work and keeps feeding rates steady throughout the shift.
Uneven mud features, like uneven density, bad viscosity, or "fish-eyes" of undissolved polymer, can cause problems with the wellbore, lost circulation, or pipes getting stuck. If the mixing device is working right, it gets rid of these factors by fully hydrating all the additives in a single pass. With a speed range of 60 to 100 kg/min and motor power levels from 37 to 55 kW, this kind of equipment can keep fluid properties in the right range even when conditions in the formation change quickly.
Barite and other heavy materials are hard for traditional mixing systems that use paddles or impellers. They often leave differences in density across the tank space and need longer processes to prepare. A jet-based system, on the other hand, gives faster and more consistent results.
This is what a new jet mixing gadget does better than other devices:
These benefits directly fix the two biggest problems that come up when managing a lot of mud: chemical additives that don't get spread out well and long downtimes caused by not being able to control the fluid density well enough. Field data repeatedly shows that moving from mechanical mixers to jet-based systems cuts chemical waste by amounts that can be measured and shortens the time it takes to prepare each batch of fluid.
For work in water up to 3,000 meters deep, a single-jet unit with a 37 kW motor is usually enough. A dual-jet setup running at 55 kW is better for deep or ultra-deep wells that reach 7,000 m to 9,000 m. This allows for faster density changes during important drilling gaps and higher material throughput.
The procurement engineers should choose the nozzle material based on how rough the fluid is likely to be. In normal barite-weighted systems, high-chromium metal nozzles last between 1,500 and 2,500 hours of use. For finishing fluids that are salty or bromide-based, the hopper and valve system should be made of SS316 stainless steel to keep them from rusting too quickly.
A Jet Mud Mixer provider that is being seriously considered should have ISO 9001, ISO 14001, and ISO 45001 standards. For both onshore and offshore deployment, you must have HSE compliance, TÜV and BV approvals, and an electrical protection grade of at least IP55. Make sure the warranty covers everything (at least one year on all parts) and that spare parts are readily available in the United States for quick delivery.
Make sure the Jet Mud Mixer centrifugal pump provides the maximum inlet pressure of 0.25 to 0.4 MPa before you start. Most of the time, a weak flow in the hopper is caused by either not enough pump pressure or a partly blocked nozzle. To keep the hopper throat from bridging, feed dry materials into the center of the Venturi vacuum zone at a steady, controlled rate while the machine is running.
Every 500 hours of use, check the nozzle for wear. Every month, check the seats of butterfly valves for wear or damage to the seals. Make sure that there isn't any solid material growth inside the hopper that might stop the vacuum from forming. Having extra nozzles and valve seals on hand reduces the chance of having to shut down for a long time because of a single old part.
Operators should get proper training on how to operate the unit before it goes into service. As standard, ZHONGCHENGJIXIE offers on-site fitting help, full commissioning support, and operation instructions. If you train your animals well, they are less likely to use the wrong feed rates, which is what causes "fish-eye" polymer contamination in the active mud system most of the time.
The next generation of mud mixing equipment is being made with sensor packages that keep track of the vacuum levels in the hopper, the pressure at the pump discharge, and the rate at which the material is fed. These data points are sent to rig management software, which lets drilling experts change the qualities of the fluid from afar without stopping the circulation cycle.
Variable frequency drive (VFD) motors are becoming more popular because they use less power when mixing isn't being done. This directly lowers the cost of running per barrel of prepared fluid, which is a big deal for long drilling projects where energy budgets need to be carefully managed.
Rules for releasing drilling waste are getting stricter in both the US and other countries. Modern mixing systems are being made with enclosed hopper shapes and dust-capture fittings that stop dry additives from spilling out during loading. This lowers the risk of chemical loss and site contamination.
A well-chosen and well-kept Jet Mud Mixer gives measured results in large-scale drilling: faster fluid preparation, constant mud density, less chemical waste, and fewer wellbore incidents caused by fluid properties that aren't right. The Venturi-based design works better and more reliably than traditional mechanical mixing at both output and reliability. It can be used on all types of rigs for digging depths from 1,000m to 9,000m. If procurement teams are looking at solid control system upgrades, this type of equipment is a good buy that will pay off in higher operational efficiency and less time spent on non-productive tasks.
How long a nozzle lasts depends on how rough the media is. A high-chromium metal nozzle usually works well for 1,500 to 2,500 hours before the flow performance goes below what is required. At every planned repair interval, look at the wear patterns.
Yes, units made with hoppers, nozzles, and chemical-resistant butterfly valves made of SS316 stainless steel are perfect for high-salinity areas, fluids based on bromide, and salt spray conditions at sea.
Most of the time, this is because the pump's inlet pressure is below the minimum 0.25 MPa level or the nozzle orifice is partly clogged. First, check the pump's performance. Then, look at the tip for wear from abrasion or material buildup.
As required by ATEX and HSE safety standards, basic units come with motors that won't explode and anti-static parts to meet Zone 1 and Zone 2 hazardous area ratings.
The motor power ranges from 37 to 55 kW, and the dispensing speed ranges from 60 to 100 kg/min to accommodate different operational needs. The system can support drilling programs from 1,000 m to 9,000 m.
ZHONGCHENGJIXIE makes a full line of Jet Mud Mixer items that are tough enough for challenging onshore and offshore drilling projects. We are a direct manufacturer of Jet Mud Mixers and have ISO 9001/14001/45001, TÜV, BV, and HSE certifications. We offer single-jet and dual-jet configurations, full customization by rig class, and units that are ready to ship within 3 days. You can email our technical team at oliver@zcgukong.com or go to zcsolidscontrol.com to get specs, drawings, or a quote that is tailored to your job.
