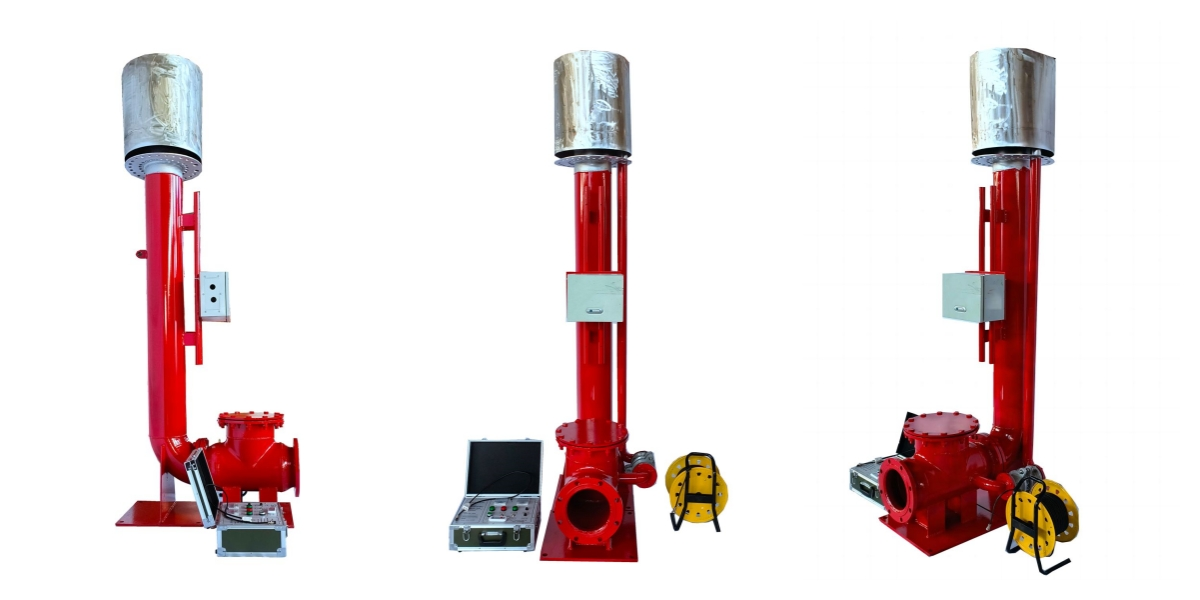

Electronic Flare Ignition Device - Vertical
The Electronic Flare Ignition Device - Vertical is a key supporting equipment in the oil and gas industry, widely used in oil drilling projects. Shaanxi Xixian New District Zhongcheng Machinery Manufacturing Co., Ltd. delivers this critical safety device specially matched with mud gas separators to handle waste gas discharged during drilling operations. Our vertical configuration features torch diameters of 150mm and 200mm with heights of 2.5m and 3m, designed specifically for offshore drilling platforms and compact land rig sites. Certified to ISO 9001/14001/45001, TÜV, and BV standards, each unit maintains an electrical protection grade of IP55 or higher, ensuring reliable performance in harsh environments.
Your operation demands precise technical parameters to ensure safety and efficiency. Our vertical ignition devices are engineered with specifications that meet the stringent requirements of modern drilling operations.
| Model | ZCYD-20/3 |
| Diameter of Torch (mm) | 200 |
| Height of Torch (m) | 3 |
| Ignition Voltage (kV) | 16 |
| Ignition Frequency (times/min) | 100～1000 |
| Ignition Medium | Diesel/LPG/Plasma |
| Theoretical Weight (kg) | 600 |
| Dimension (mm) (L×W×H) | 1600×700×3000 |
The vertical layout features an upward design with a minimal footprint. This configuration is ideal when you're working in space-restricted operational zones in mountainous areas or forest edges.
You'll find the Vertical Electronic Flare Ignition Device performs exceptionally well across multiple challenging environments. The device addresses critical safety requirements where gas combustion must be controlled and reliable.
Offshore Drilling Platforms: When your platform operates in coastal high-wind environments, the vertical configuration maintains flame stability through integrated stainless steel windproof covers. The elevated ignition head keeps flames safely away from deck-level equipment and personnel.
Compact Land Rig Sites: Your space-constrained drilling operations benefit from the device's small footprint design. The vertical structure maximizes operational space while maintaining full safety compliance.
Mountainous & Forest Edge Operations: In environments where terrain limits equipment placement, the vertical tower design adapts to uneven ground conditions. The anchor bolt or weighted base system provides stability even on sloped surfaces.

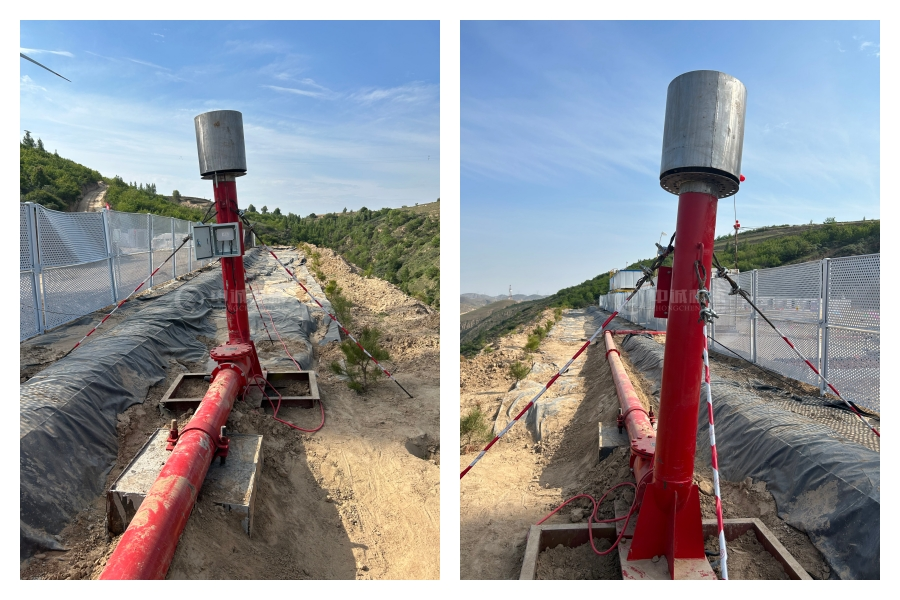

Mud Gas Separator Integration: The device works seamlessly with your degassing equipment. It instantly ignites waste gas streams discharged from separators, preventing hazardous atmospheric release during drilling operations.
Engineering Advantages & Safety Features
Your safety personnel will appreciate the comprehensive design features that make the Electronic Flare Ignition Device - Vertical superior to conventional ignition systems.
Wind and Shock Resistance: During drilling blowouts, airflow impact becomes extremely strong. The vertical tower secured with anchor bolts or weighted base effectively resists vibrations from high-speed airflow and lateral wind forces. This prevents equipment collapse when you need reliability most.
Safety Distance Maintenance: The vertical design raises the ignition head to 2-5 meters above ground level. This keeps flames away from ground-level cables, manifolds, and inspection personnel. Your team experiences significantly reduced risk of ground fires during operations.

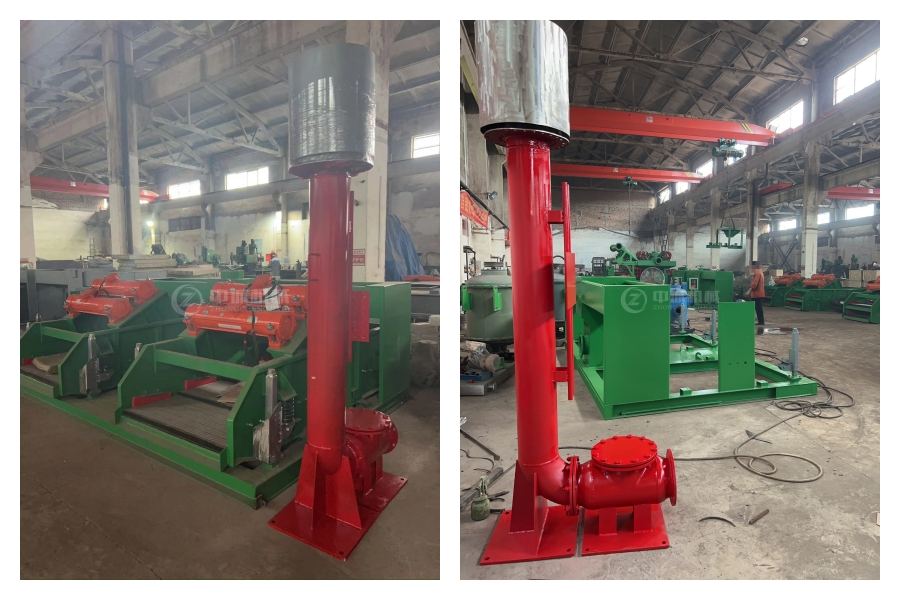

Stainless Steel Windproof System: The top-mounted cylindrical or conical windproof cover serves dual purposes. It protects electrodes from rain and snow corrosion while creating a stable airflow zone around the ignition point. This ensures your arc remains concentrated even under high wind speeds, achieving instant ignition.
Thermal Convection Optimization: The vertical structure utilizes hot air rising principles. This helps combustible gas and combustion air mix thoroughly near the ignition head, improving deflagration efficiency at the moment of ignition.
Modular Maintenance Design: You'll find the controller mounted at an ergonomic height in the lower bracket section. Operators can easily check instruments without climbing. The elevated electrode heads reduce contamination risk from ground mud or debris, minimizing equipment failures caused by environmental factors.
Your operational flexibility increases with integrated remote and manual ignition modes. The remote system allows operators to initiate ignition from safe distances up to 100 meters. Manual controls provide backup capability during electrical system maintenance.

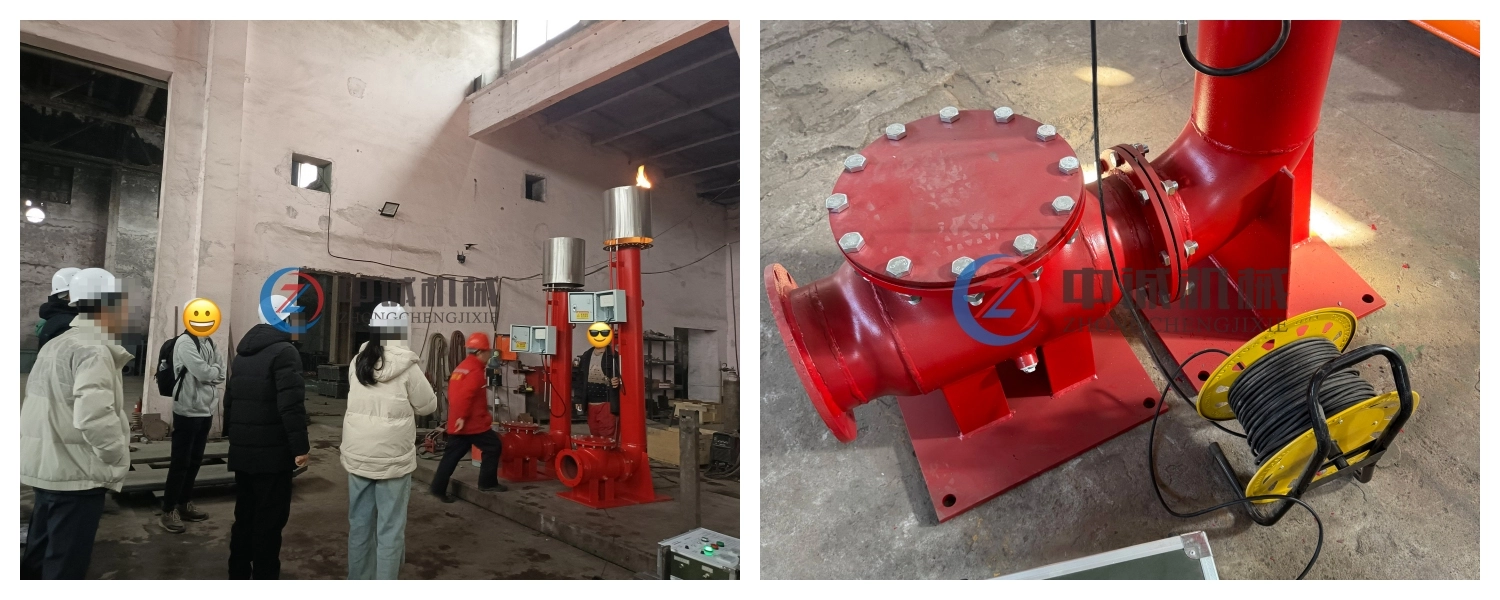

The high-frequency spark technology delivers reliable ignition even in challenging gas composition scenarios. Response time remains under one second from activation signal to flame establishment. This rapid response prevents dangerous gas accumulation during emergency venting situations.
Electronic protection systems monitor electrode condition and spark quality continuously. You receive early warning alerts before component failure occurs, enabling proactive maintenance scheduling.
Zhongcheng Machinery implements rigorous testing protocols for every Electronic Flare Ignition Device - Vertical before shipment. Your investment receives comprehensive quality assurance through multiple inspection stages.
Spark Intensity Verification: Each unit undergoes high-voltage testing to confirm consistent energy output. Our engineers verify spark frequency and penetration capability across the full operational range.
Thermal Resistance Cycling: Ignition tips are subjected to repeated temperature cycles exceeding 800°C. This testing identifies potential material fatigue or ceramic cracking before deployment.
Environmental Durability: Salt spray testing for 480 hours simulates offshore conditions. Units maintain full functionality after exposure to corrosive atmospheres you'll encounter in marine environments.
Electrical Safety: IP55 rating confirms protection against dust ingress and water jets from any direction. Your equipment operates reliably through rain, snow, and pressure washing maintenance.
The manufacturing process follows ISO 9001 quality management standards. ISO 14001 environmental management and ISO 45001 occupational health protocols ensure responsible production. TÜV and BV certifications validate compliance with international safety standards.
You receive comprehensive support throughout the entire deployment process. Zhongcheng Machinery provides detailed engineering drawings, flowcharts, and component diagrams with every order.
Transport-Safe Packaging: Equipment ships protected with plastic film, rainproof tarpaulins, and secure strapping. Pallets or wooden crates are provided based on your equipment requirements and shipping destination.
Installation Guidance: Our technical team provides detailed installation instructions and commissioning support. You'll receive operation and maintenance manuals in English for your personnel training programs.
Delivery Efficiency: In-stock configurations ship within 3 days. Customized specifications for unique torch diameters or height requirements deliver within 15 days. Our logistics partnerships with Tianjin and Shanghai ports ensure efficient international shipping.
Technical Support Package: Installation guidance, commissioning assistance, and comprehensive technical support continue throughout the warranty period. Your team gains access to industry training and professional engineering consultation.
Q: What is the typical lifespan of the ignition electrode in the vertical configuration?
A: Under normal operating conditions, high-quality ceramic-insulated electrodes last 2 to 5 years. Actual lifespan depends on the corrosivity of your specific gas composition and operational frequency.
Q: Can the Electronic Flare Ignition Device operate during heavy rain or snow?
A: Yes, the device is designed with high-insulation ceramic tips and IP55 minimum enclosure protection. Spark integrity remains consistent even during torrential downpours or heavy snowfall conditions.
Q: How is the device powered in remote drilling locations?
A: Standard units operate on AC 220V/110V mains power. For remote locations without grid access, we offer DC 24V configurations compatible with solar power systems and battery backup solutions.
Q: What is the maximum control distance between the panel and the flare tip?
A: Standard systems support 50-100 meters reliably. Your specific site requirements can be accommodated with specialized low-impedance cables extending distances up to 200 meters without energy loss.
Q: Does the vertical device require continuous pilot flame operation?
A: Not necessarily. Many units perform direct ignition of the main flare stream, reducing fuel gas consumption. Pilot burner configurations are available if your safety protocols require redundant ignition sources.
Q: What maintenance schedule should we follow?
A: We recommend quarterly visual inspections and annual electrode condition assessments. The modular design allows quick electrode replacement without specialized tools or extensive downtime.
Q: Can the torch height and diameter be customized?
A: Yes, Zhongcheng Machinery offers flexible customization of dimensions and configurations. Contact our engineering team with your specific requirements for tailored solutions.
Warranty & After-Sales Support
Your investment receives comprehensive protection through our 1-year warranty covering all components and workmanship. Zhongcheng Machinery maintains an experienced technical support team ready to assist with operational questions or troubleshooting needs.
We provide replacement parts inventory and expedited shipping for critical components. Your operational continuity remains our priority throughout the equipment lifecycle. Over 30 years of machinery manufacturing experience backs every device we produce.
Ready to enhance your drilling operation safety with professional vertical flare ignition solutions using Electronic Flare Ignition Device - Vertical? Contact our team at oliver@zcgukong.com for specifications, customization options, and competitive factory-direct pricing.
