Yes — a Vertical Cutting Dryer can significantly improve cuttings processing for offshore drilling projects. By applying high centrifugal force, typically between 300G and 500G, this equipment separates oil-based or synthetic-based drilling fluid from drill cuttings, reducing oil-on-cuttings (OOC) content to 5% or below by weight. For offshore operations where deck space is limited and environmental discharge standards are strict, this level of performance matters. The ZCVCD series from ZHONGCHENGJIXIE processes 30–50 t/h with automatic continuous operation, making it a dependable choice for deepwater and platform drilling environments.
It helps to know how the technology works and why it works best in remote situations before choosing any cuttings control equipment.

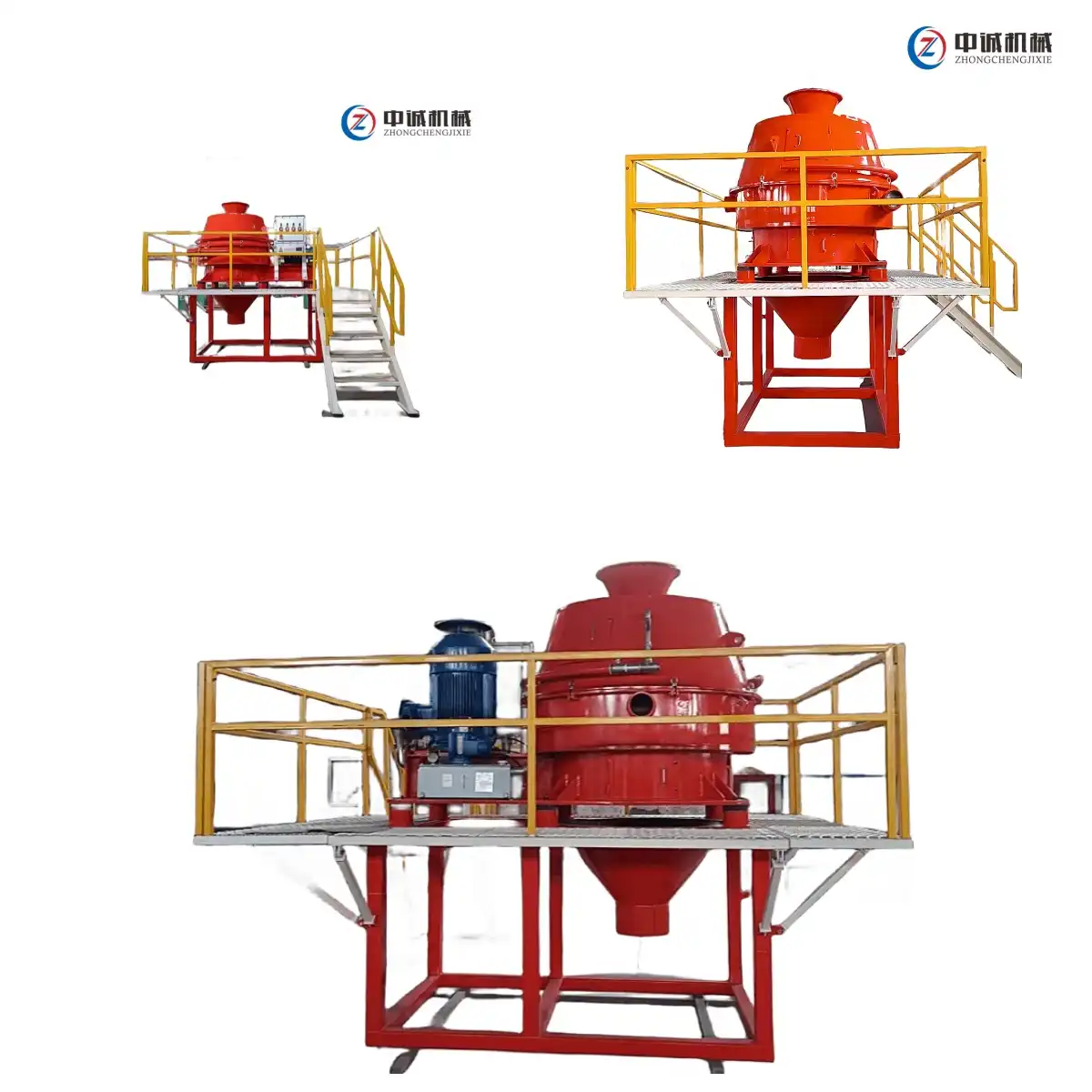

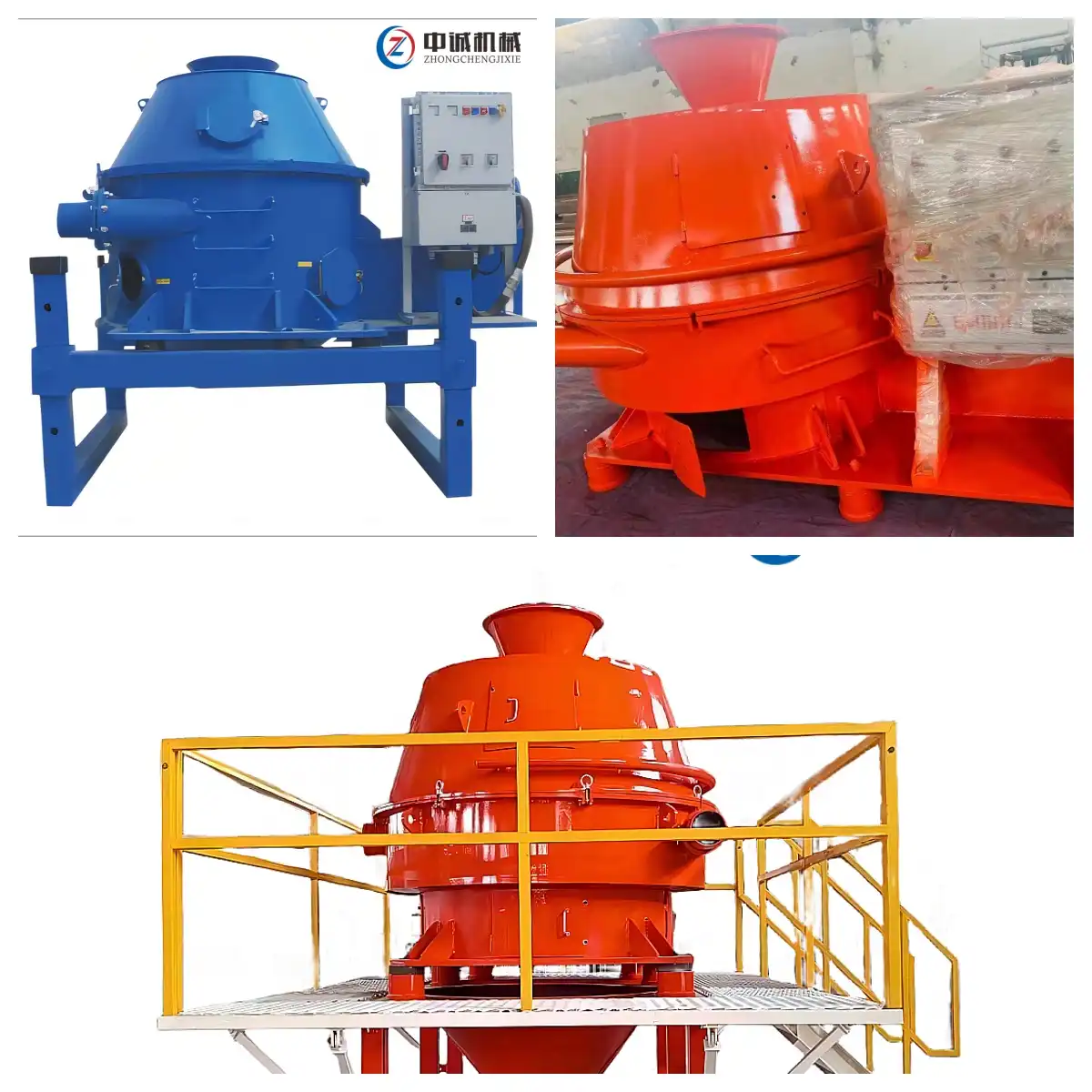

A vertical cuttings dryer spins a screen basket very quickly, usually 800 to 1,200 RPM. This creates centrifugal forces that push drilling fluid through the screen holes (250 to 500 microns) while keeping solid cuttings inside. Flight scrapers with tungsten carbide tiles keep moving the dried solids up and out of the unit. This leaves behind dry cuttings and fluid that is collected and put back into the active mud system.
This equipment has a much smaller footprint than horizontal options because it is positioned vertically. This is important on offshore rigs where every square meter of deck room costs money. The ZCVCD line is made with modular parts that make installation easier within current solid control systems and reduce the need for structural changes to the layout of the rig.
Offshore environments have constant shaking, corrosion from salt air, and the need to keep running. The rotor unit and screen basket of ZHONGCHENGJIXIE's dryer are made of high-wear-resistant and anti-corrosion materials, which lets it work smoothly in these circumstances. Factory Acceptance Testing (FAT) includes a trial run that must last for 4 to 8 hours with no load. During this time, the gearbox oil temperature must be monitored, and vibration displacement must stay below 50 to 70 microns.
Offshore operators can dry cuttings in a number of ways, and knowing the differences between them can help them choose the best one.
Rotary dryers get rid of moisture by tumbling and heating, but they usually take up more floor space and take longer to process. Vertical Cutting Dryer systems use vertical centrifugal separation with shorter cycle times and a smaller physical footprint than thermal separation. This makes them better for offshore applications where throughput speed and deck area are limited.
Fluidized bed dryers work well in controlled industrial settings, but they have trouble with the varying feed makeup that is common in drilling. Conveyor-based systems allow for continuous flow, but they aren't very good at separating oil-based mud cuts. Neither can reduce OOC as well as a properly kept vertical cuttings dryer can, regularly below 5% for both oil- and synthetic-based fluids.
You should know that vertical cuttings dryers work best with oil-based mud (OBM) and synthetic-based mud (SBM) systems. When water-based mud (WBM) has a lot of clay in it, screen blindness can happen, which makes the process less effective. SBM is often used in offshore deepwater drilling because the wellbore needs to be stable, which is exactly the range of conditions where this equipment works best.
Once procurement leaders understand the technology, they can see how it will help operations and measure those benefits.
This equipment is very helpful for managing offshore cuttings because of the following:
These performance characteristics help with the two main problems that come up offshore: keeping the cost of synthetic drilling fluid down and meeting environmental OOC discharge limits. According to studies on industry waste management, offshore operators in the Gulf of Mexico and North Sea say that drying cuttings cuts down on base fluid loss by 40–60% compared to just throwing them away without treating them.
There's more to choosing the right equipment provider than just looking at the specs on a brochure.
When buying Vertical Cutting Dryer systems from outside of the country, approval is a must. The ZCVCD series has been approved by HSE, TÜV, and BV, as well as ISO 9001, ISO 14001, and ISO 45001. A lot of big oil companies and national government bodies in the US and around the world require these skills to make someone qualified.
There are different throughput needs, power source setups, and space limits for each offshore job. ZHONGCHENGJIXIE offers custom sizes, motors from top brands in China and around the world, and changes to the configuration based on the type of rig. All shipments to other countries use standard export packaging. Items that are in stock are shipped within three days, and special orders usually take fifteen days to finish.
Long periods of equipment downtime while waiting for parts are not possible in remote offshore locations. ZHONGCHENGJIXIE offers a warranty that lasts for one year, as well as long-term expert help, operation and maintenance guides, and engineering sketches. Logistics ties with companies that have access to the ports of Tianjin and Shanghai help the business quickly send replacement parts around the world.
Mismatches during offshore missions can be avoided by matching tools to project needs.
Start with how much cuttings you need to remove every hour, the type of mud (OBM or SBM), and the OOC discharge goal that your permit calls for. In most remote places, the maximum is at or below 6.9% OOC by weight. The ZCVCD series gives you ≤5%, which is a compliance buffer when things are working normally.
The stable control system gets slowed down by a dryer that is too small for the rig's entry rate. The 30–50 t/h range of the ZCVCD series can handle high-volume cuttings surges without stopping mud circulation for medium to large rigs drilling long laterals or deepwater sections.
The price of the item bought is one part of the total cost. The value of recovered fluid, regularity of upkeep, wait time for spare parts, and service life of equipment all affect the total cost of ownership.
A vertical cutting dryer has been shown to be a useful and effective way to improve the handling of drilling waste on ocean projects. It gets back expensive base fluid, cuts down on waste, and keeps OOC levels within legal limits, all while working nonstop in rough sea conditions. ZHONGCHENGJIXIE's ZCVCD series has a 30–50 t/h capacity, a ≤5% final OOC performance, and approved build quality to meet the needs of offshore shale drilling activities in deep water, on platforms, and at sea. When procurement teams look at solid control equipment, this type of equipment gives them measured returns in terms of total running cost, fluid recovery, and compliance.
The ZCVCD series lowers the amount of oil on the blades to less than 5% by weight when used normally with oil- or synthetic-based mud. What happens depends on the feed's moisture level, the G-force setting, and the state of the screen.
Vertical cuttings dryers are made to work with OBM and SBM systems in particular. Water-based mud with a lot of clay can block the screen basket, which slows down the process and makes it less effective at separating things. For WBM apps, it is best to use a different division method.
The service life of a basket depends on how rough the formation is and how many hours it is used. Good stainless steel baskets should last between 500 and 1,500 hours of use. ZHONGCHENGJIXIE sells replacement baskets and wear parts, and their lead times are clear.
Uneven solids loading, a blinded screen basket, or worn flight scrapers that create an uneven spinning mass are common reasons. Checking the condition of the scraper and the cleanliness of the screen aperture on a regular basis can stop most vibration problems.
Items that are in stock at ZCVCD ship within 3 days. Within 15 days, customized setups are made and sent out. The equipment comes with all the technical information it needs, like installation drawings and operation manuals.
The ZCVCD series Vertical Cutting Dryer is made by ZHONGCHENGJIXIE. It comes with full technical support, direct factory pricing, and quality that is ISO-certified. We are a reliable provider of Vertical Cutting Dryers for both onshore and offshore projects. We offer flexible designs, quick shipping around the world, and long-term service partnerships. Get in touch with our team right away to talk about your project needs and get a price. You can email us at oliver@zcgukong.com or go to zcsolidscontrol.com.
1. American Petroleum Institute. API Recommended Practice 13C: Drilling Fluids Processing Systems Evaluation. API Publishing Services, 2010.
2. Drilling Waste Management Information System (DWMIS). Drilling Waste Management Technology Descriptions. U.S. Department of Energy, 2004.
3. Society of Petroleum Engineers (SPE). SPE 128249: Cuttings Dryer Technology for Offshore Drilling Waste Management. SPE International, 2010.
4. Bureau of Safety and Environmental Enforcement (BSEE). Offshore Drilling Waste Discharge Standards and Compliance Guidelines. U.S. Department of the Interior, 2016.
5. World Oil Magazine. "Advances in Solids Control and Drilling Waste Management for Deepwater Operations." Gulf Publishing Company, 2018.
6. International Association of Drilling Contractors (IADC). Drilling Waste Management: Technology Review and Field Applications. IADC Technical Publications, 2015.
