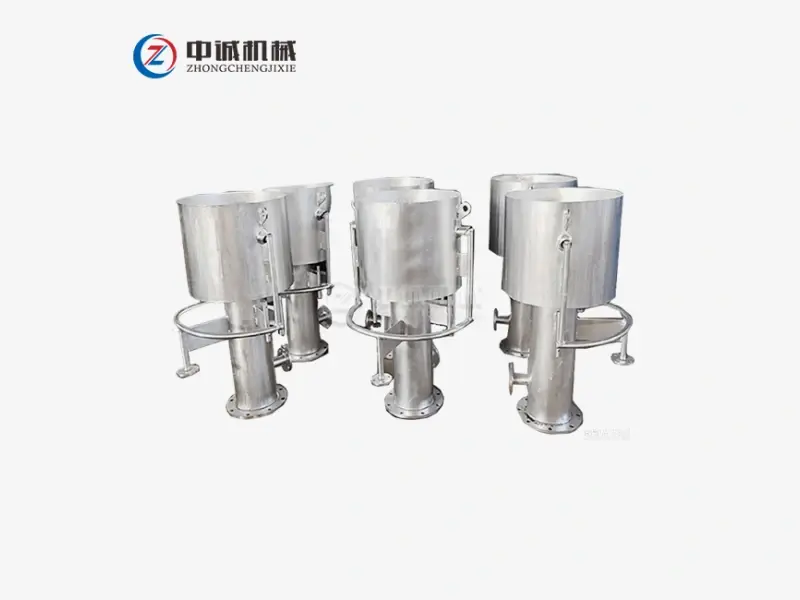

Zhongcheng Machinery's Flare Tip serves as the core terminal component in electronic ignition systems for waste gas incineration across oilfield drilling and petrochemical operations. Our stainless steel construction delivers exceptional high-temperature and corrosion resistance, handling extreme thermal conditions reliably. The layered air distribution design achieves over 95% combustion efficiency through premixed technology, ensuring smokeless operation that meets stringent environmental standards. With standard flange connections enabling rapid installation, our products complies fully with international safety protocols. Backed by complete Ex, IECEx, ATEX, ISO, HSE, TÜV and BV certifications, we support customized sizing and comprehensive after-sales service to match your specific operational requirements.
Your facility's waste gas disposal requires more than just burning—it demands controlled, complete oxidation. Our products mixes combustible vent gas with air at precise ratios for thorough combustion. This eliminates explosion hazards and environmental risks associated with incomplete burning.
The redundant ignition design provides critical reliability. If your primary ignition path fails, the backup system activates within milliseconds. This dual-pathway approach ensures consistent performance even in extreme environments with strong winds or low temperatures.
Intelligent adaptability sets our system apart. The tip exchanges data with electronic ignition systems, automatically adjusting air-fuel ratios based on real-time gas flow and pressure parameters. This responsive technology adapts to varying operating conditions without manual intervention.
| Parameter | Specification |
|---|---|
| Material Construction | Stainless Steel (High-grade alloy) |
| Temperature Resistance | Exceeds 1000°C continuous operation |
| Combustion Efficiency | ≥95% fuel utilization |
| Connection Type | Standard flange (customizable sizes) |
| Ignition System | Redundant dual-path design |
| Response Time | Backup ignition activates within milliseconds |
| Air Distribution | Multi-layered structure for optimal mixing |
| Detection Interfaces | Reserved ports for monitoring equipment |
| Emission Standard | Compliant with EPA Clean Air Act regulations |
| Corrosion Resistance | Suitable for H2S and acidic gas environments |
Your operational environment determines specific Flare Tip configuration requirements. We provide solutions tailored to distinct industrial contexts.
Oilfield Drilling Sites: Drilling operations generate unpredictable gas volumes during well completion and testing phases. Our tips handle variable flow rates while maintaining flame stability in open-field conditions with high wind exposure.
Gas Stations and Distribution Centers: Smaller-scale applications require compact designs with lower thermal radiation profiles. Your facility benefits from reduced noise levels and minimal visual impact during routine venting operations.
Refineries and Chemical Plants: Complex gas compositions containing heavy molecular weight hydrocarbons demand steam-assist or air-blown configurations. Our systems prevent smoke formation during the disposal of challenging waste streams, protecting your environmental compliance record.
Petrochemical Processing Facilities: Continuous operations require maximum uptime reliability. The modular internal components allow maintenance without complete system shutdown, reducing your operational disruptions and maintenance costs.
Material Excellence: We utilize high-grade stainless steel alloys selected specifically for thermal cycling resistance and corrosion protection. Your equipment withstands oxidation and carburization in aggressive chemical environments.
Combustion Optimization: The layered air distribution system creates turbulence zones that promote complete mixing before ignition. This design achieves smokeless combustion without additional steam injection in most applications, reducing your utility consumption.
Safety Integration: Reserved detection interfaces accommodate your flame sensors, thermal monitors, and gas analyzers. Standard mounting provisions simplify the integration of safety instrumentation required by your facility protocols.
Installation Efficiency: Standard flange connections match common piping specifications across the industry. Your maintenance team completes installation using standard bolt patterns without custom fabrication or field modifications.
Operational Intelligence: Data exchange capabilities enable integration with your distributed control systems (DCS) or programmable logic controllers (PLC). Real-time parameter adjustment optimizes combustion under changing process conditions automatically.
Every unit undergoes comprehensive testing before shipment to your facility. We perform Positive Material Identification (PMI) to verify alloy composition matches specifications. Non-Destructive Testing (NDT) including Radiographic Testing (RT) examines all critical welds for structural integrity.
Pilot burner functionality receives validation under simulated wind conditions up to 150 km/h. Hydrostatic testing verifies pressure-retaining components meet design specifications. Dimensional accuracy checks ensure alignment precision for trouble-free installation.
Our manufacturing processes comply with ISO 9001 Quality Management, ISO 14001 Environmental Management, and ISO 45001 Occupational Health and Safety standards. Documentation accompanies each shipment, providing traceability and certification evidence for your regulatory audits.
The complete certification portfolio includes Ex, IECEx, ATEX approvals for hazardous area installations. TÜV, BV, and HSE certifications validate our quality systems and product safety. This comprehensive compliance protects your facility from regulatory risks.
Your specific application may require dimensional modifications or performance adaptations. We provide flexible customization covering flange sizes, tip diameters, and mounting configurations. Material selection adjusts to match your gas composition and temperature requirements.
Technical support includes engineering drawings, flowcharts, and component diagrams for your facility documentation. Operation and maintenance manuals guide your personnel through routine service procedures and troubleshooting protocols.
Our professional team delivers complete project solutions from initial design through commissioning. Industry training ensures your operators understand system capabilities and safety procedures. One-year warranty coverage protects your investment with responsive service support.
Delivery timelines support your project schedules. In-stock standard configurations ship within 3 days. Custom orders complete manufacturing and ship within 15 days. Our established logistics network provides efficient transport to international destinations through Tianjin and Shanghai ports.
Q: What maintenance intervals do Flare Tip systems require?
A: Inspect pilot burners quarterly and verify flame detection sensors annually. Clean air distribution ports every 6 months in dusty environments. Full internal inspection recommended every 2-3 years depending on operating hours and gas composition.
Q: Can your system handle corrosive gases containing hydrogen sulfide?
A: Yes, our stainless steel construction resists H2S corrosion. For extremely aggressive environments, we recommend upgraded alloy specifications. Provide your gas composition data for material compatibility verification.
Q: How does the system prevent flame instability during wind gusts?
A: The aerodynamic tip design incorporates windshield elements that maintain flame positioning. Multiple air injection points create pressure zones that stabilize combustion despite external air movement. Proven performance in offshore platform installations confirms wind resistance.
Q: What documentation supports regulatory compliance reporting?
A: You receive complete material certifications, pressure test reports, and functional test records. All certifications (Ex, ATEX, IECEx) include detailed technical files. Manufacturing Data Book (MDB) provides comprehensive traceability for audits.
Q: Does the intelligent control system integrate with existing DCS platforms?
A: Our control interface supports industry-standard protocols including Modbus RTU, Profibus, and 4-20mA analog signals. Communication specifications customize to match your existing control architecture during engineering phase.
Partner with our experienced team for reliable waste gas combustion solutions. Contact oliver@zcgukong.com to discuss your Flare Tip requirements and receive technical consultation today.
