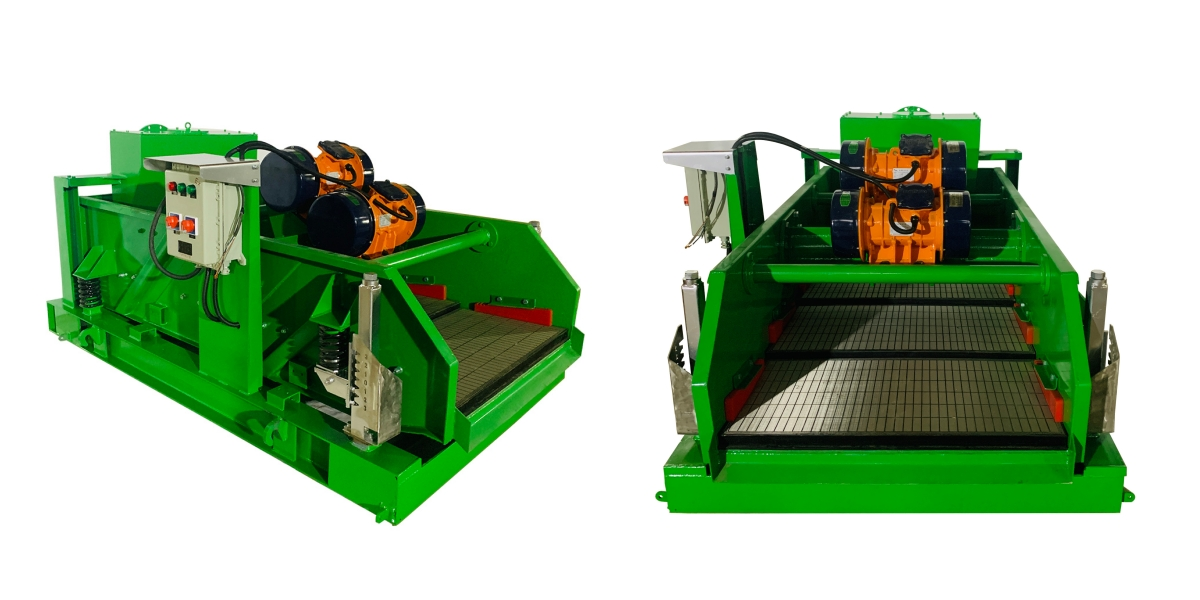

The ZC Single Shale Shaker from Zhongcheng Machinery represents core equipment for oil and gas drilling Solids Control Systems, engineered for superior solid-liquid separation performance. This unit delivers vibration intensity of ≤ 8G with linear vibration trajectory, ensuring rapid removal of cuttings from drilling fluids.
It satisfies the most stringent oilfield requirements with protection level ≥ IP55 and certification under ISO 9001/14001/45001, TÜV, and BV standards. For both onshore and offshore drilling applications, including coal bed methane projects, the integrated single-deck structure provides a small footprint and outstanding operational flexibility.
With a 1-year warranty, transport-safe packaging, and extensive technical support, this solution blends enterprise-grade dependability with economical performance.
| Model | ZCZS/Z585-nP | |
| Motion Type | Single layer | Linear Motion Single Shaker |
| Double layer | ||
| Capacity (m³/h) | Single layer | 160 |
| Double Layer | 200 | |
| Motor Qty *Power (kW) | Single layer | 2×2.2 |
| Double Layer | 2×2.4 | |
| Vibration Strength (g) | Single layer | ≤7.8 |
| Double Layer | ≤6.8 | |
| Screen Dimension *Qty | Single layer | 585mm×1165mm-4 |
| Double Layer | 585mm×1165mm-8 | |
| Deck Angle Range (°) | Single layer | -3～+3 |
| Double Layer | ||
| Theoretical Weight (kg) | Single layer | 1750 |
| Double Layer | 1830 | |
| Dimension (mm) | Single layer | 2800×1970×1400 |
| (L×W×H) | Double Layer | |
| Note | n = total quantity of screen meshes, applicable to single/double layers | |
Your drilling operations demand consistent mud quality. This Shale Shaker rapidly extracts sand, cuttings, and solid impurities from drilling fluids with exceptional purification performance.
The high-efficiency separation provides a clean mud base for downstream processes. You'll notice improved fluid rheology and reduced waste disposal costs immediately.
Oilfield conditions test equipment limits daily. The unit features heavy-duty anti-corrosion coatings and wear-resistant materials engineered specifically for demanding applications.
Outstanding shock resistance ensures stable operation under high-intensity workloads. Your equipment investment remains protected through extended service life, even in corrosive offshore or high-temperature onshore environments.
Space constraints shouldn't limit your solids control capabilities. The streamlined structure occupies minimal footprint while maintaining full processing capacity.
This highly integrated design suits skid-mounted systems perfectly. You gain maximum installation flexibility whether on cramped drilling platforms or in remote land-based operations.
Maintenance downtime directly impacts your project economics. Built on "ease of maintenance" principles, the design features fewer service points with rational component layout.
The fast-change screen system significantly shortens replacement time. You'll minimize unplanned downtime and keep drilling operations running continuously without extended service interruptions.

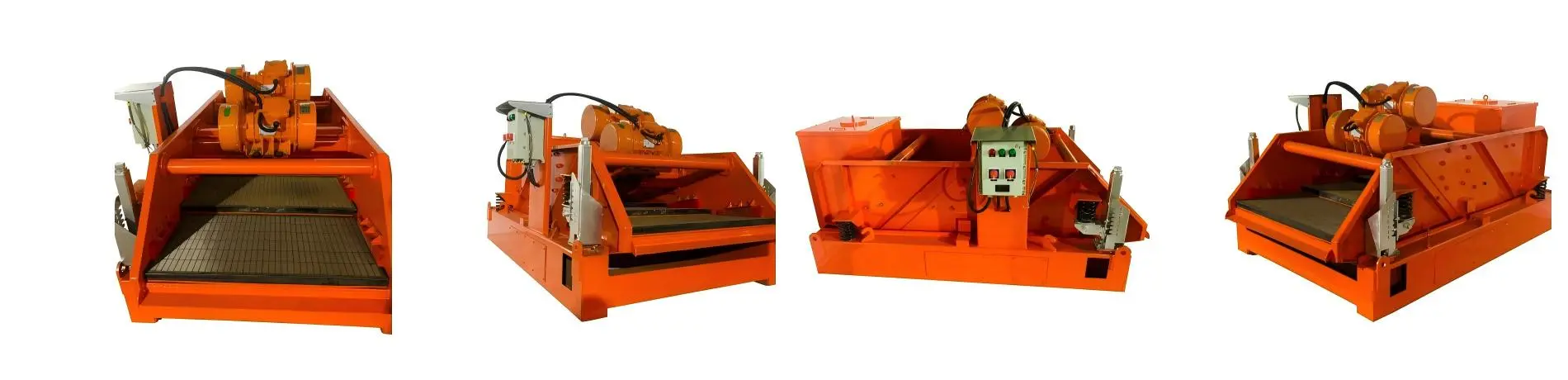

Budget management matters in competitive drilling markets. This solution delivers high-performance output tailored for small-to-medium processing requirements.
You effectively reduce both procurement and operational costs. The equipment provides enterprise-grade reliability without the premium pricing of oversized systems.
Land-based drilling operations face unique challenges with varying geological formations. The ZC Single Shale Shaker handles rapid penetration rates where high solids loading commonly occurs.
Your onshore rigs benefit from reliable primary solids removal. The equipment maintains mud properties crucial for borehole stability in complex drilling environments.
Marine environments demand corrosion-resistant equipment with compact dimensions. This unit combines space-efficient design with high-throughput performance for platform installations.
You receive equipment engineered to withstand salt spray and harsh marine climates. The ≥ IP55 protection class ensures reliable operation in challenging offshore conditions.
CBM projects require specialized fluid management for unconventional gas extraction. The linear motion pattern effectively processes coal fines and formation cuttings.
Your CBM operations maintain optimal mud circulation. The equipment supports efficient wellbore cleaning while protecting downstream solids control equipment from premature wear.
Zhongcheng Machinery operates with full production control at our 6,300-square-meter manufacturing facility in Xingping City. You benefit from factory-direct pricing and quality assurance.
Our annual capacity of 200+ mud circulation systems demonstrates proven production capability. Over 30 years of machinery manufacturing expertise backs every unit we deliver.

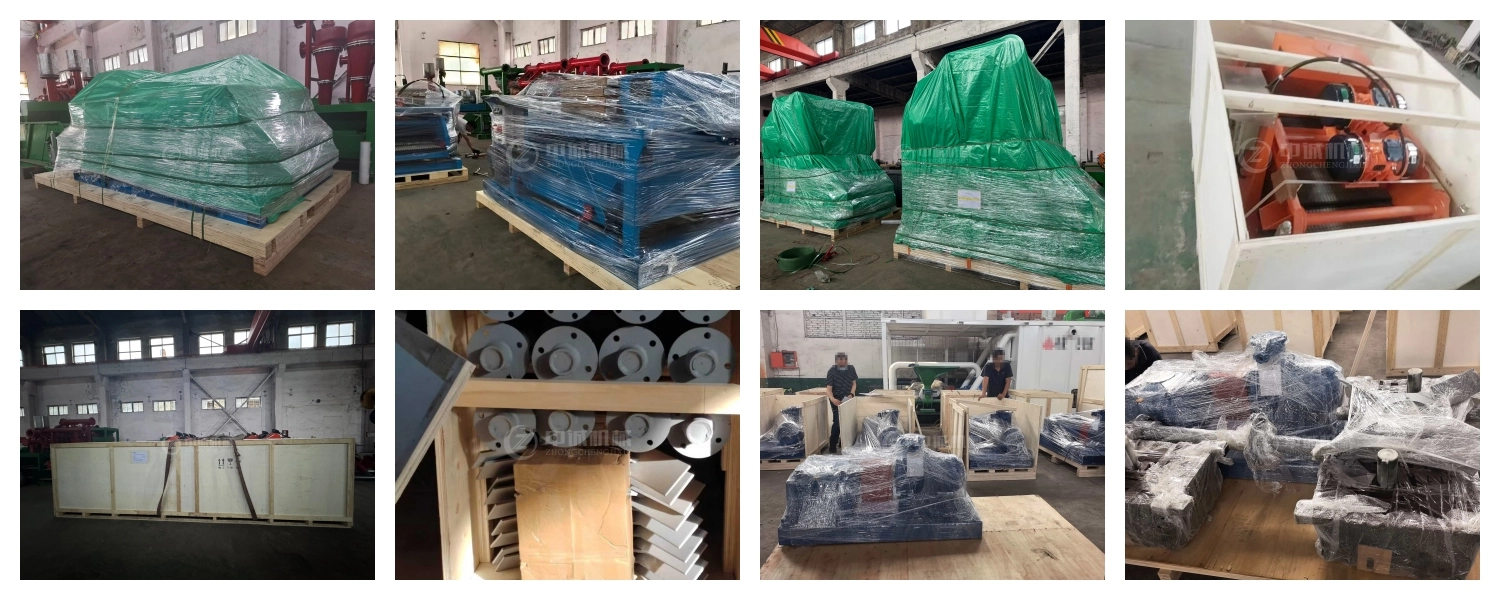

Standard configurations ship within 3 days for in-stock units. Custom specifications tailored to your requirements deliver within 15 days.
You receive flexible customization of dimensions, configurations, and motor brands. Both domestic and international component options suit various project specifications and budget requirements.
Your investment includes complete documentation: engineering drawings, flowcharts, component diagrams, and operation manuals. Professional installation guidance and commissioning support ensure proper startup.
Industry training prepares your operators for optimal equipment utilization. Our technical team provides complete project solutions from initial planning through long-term operation.
Q: What makes this unit suitable for both onshore and offshore applications?
A: The ≥ IP55 protection class provides dust and water ingress resistance suitable for varied environments. Heavy-duty anti-corrosion coatings protect against marine salt spray offshore, while the compact design fits space-constrained platforms and land rigs equally well.
Q: How does the linear motion trajectory benefit drilling fluid processing?
A: Linear motion provides consistent conveyance of cuttings across the screen surface without material pooling. This pattern maximizes screen utilization, extends screen life, and delivers superior liquid recovery compared to circular motion alternatives.
Q: What screen mesh sizes can this unit accommodate?
A: The system accepts standard API RP 13C compliant screens in various mesh sizes. You can select appropriate mesh based on your drilling fluid properties and solids characteristics, from coarse separations to finer particle removal.
Q: How quickly can operators change screens during operations?
A: The fast-change screen design allows replacement in minutes, not hours. Simple mechanical fasteners eliminate complex tensioning procedures, reducing non-productive time and maintaining continuous drilling operations.
Q: What warranty coverage and after-sales support do you provide?
A full one-year guarantee covering manufacturing flaws and component failures is included with every item. Remote troubleshooting, the provision of spare components, and on-site assistance when necessary for serious problems are all included in technical support.
Q: Can this equipment integrate with existing solids control systems?
A: The majority of mud tank configurations and downstream machinery, such as centrifuges, desanders, and desilters, can be integrated with the modular architecture. Our technical staff helps optimize the system layout for your particular configuration.
Q: What certifications validate the equipment quality and safety?
A: The units are certified in ISO 45001 occupational safety, ISO 14001 environmental management, and ISO 9001 quality management. Compliance with international HSE standards is confirmed by third-party validation from TÜV and BV.
Q: How does Zhongcheng ensure consistent manufacturing quality?
A: Our quality control includes vibration analysis, noise level testing, weld integrity inspection, and coating thickness verification. Each unit undergoes factory acceptance testing with continuous operation monitoring before shipment.
Ready to enhance your drilling fluid management with ZC Single Shale Shaker? Contact our team at oliver@zcgukong.com for detailed specifications, customization options, and project consultation. We deliver reliable solutions worldwide.
