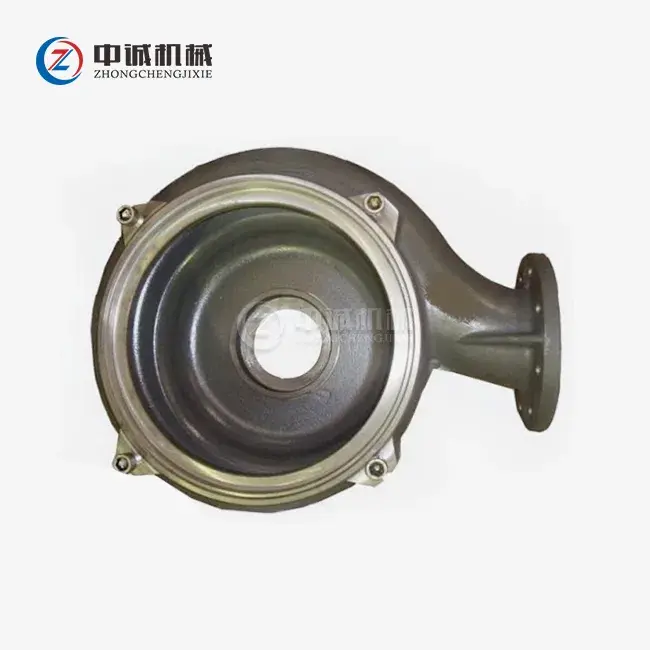

Shaanxi Xixian New District Zhongcheng Machinery Manufacturing Co., Ltd. provides centrifugal sand pumps and oilfield mud pumps with precisely constructed High-Chrome Wear Resistant Pump Casings. Our casings have outstanding bulk hardness of 58 to 67 HRC with carbon levels between 2.0% and 3.6% and chromium contents between 12% and 28%.
Each pump casing is made in accordance with ASTM A532 Class II Type B requirements. Its finely processed inner flow channels minimize resistance while optimizing hydraulic performance. With TÜV and BV approvals in addition to ISO 9001, ISO 14001, and ISO 45001 certifications, you get factory-direct quality supported by more than 30 years of experience in machinery manufacture.
| Parameter | Specification |
|---|---|
| Chromium Content | 12% – 28% |
| Carbon Content | 2.0% – 3.6% |
| Bulk Hardness | 58 – 67 HRC (Rockwell C) |
| Material Standard | ASTM A532 Class II Type B / Class III Type A |
| Matrix Structure | Martensitic with M7C3 carbides |
| Surface Resistance | Optimized for silica, magnetite, and hard minerals |
| pH Tolerance | Effective down to pH 4 (27% Cr standard) |
| Service Life Multiplier | 5–10× vs. standard grey/ductile iron |
| Compatible Pump Models | DN80 ～ DN325 |

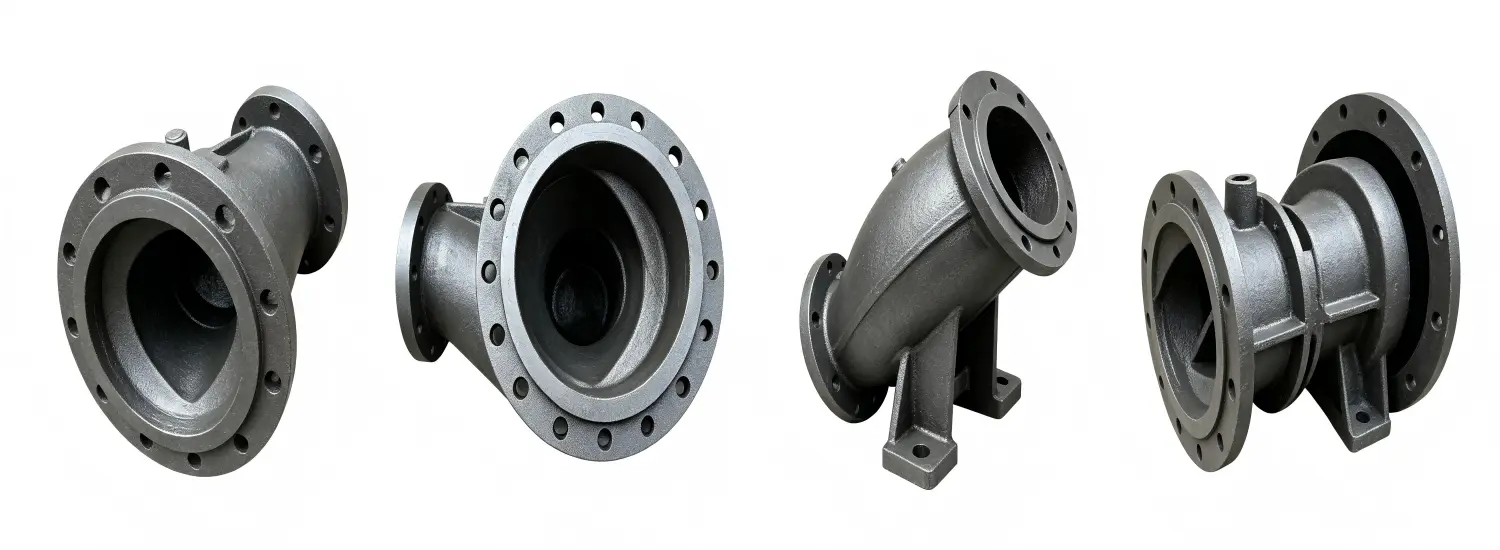

Your operations demand components that survive punishing conditions. Our pump casings utilize high-chromium white cast iron alloys with carefully controlled microstructures.
The martensitic matrix embeds hard M7C3 eutectic carbides throughout. This metallurgical design resists the cutting action of sharp-edged particles common in mining slurries and dredging applications. You won't find pearlite formations in our castings—only refined structures optimized for wear resistance.
Heat treatment protocols further enhance performance. Each casing undergoes controlled cooling cycles that balance hardness with fracture toughness. The result? Dimensional stability under high internal hydraulic pressures without compromising structural integrity.
For acidic environments below pH 4, we incorporate molybdenum additions. This enhances the passive oxide layer, providing dual protection against mechanical wear and chemical attack.
Hard mineral particles constantly bombard pump internals during operation. Our High-Chrome Wear Resistant Pump Casing delivers surface hardness that withstands silica, magnetite, and other aggressive materials.
The high volume fraction of chromium carbides creates a wear-resistant barrier. This microstructure reduces material loss rates dramatically compared to conventional alloys.
Internal geometry matters as much as material composition. We precision-cast flow channels with tight tolerances to minimize turbulence and energy loss.
The smooth internal surfaces reduce friction coefficients. Your pumps maintain optimal flow rates while consuming less energy. Operating closer to the Best Efficiency Point (BEP) extends component life by preventing recirculation wear patterns.
Industry data confirms our casings last 5 to 10 times longer than standard grey or ductile iron alternatives. The exact multiplier depends on your specific slurry characteristics and Miller Number ratings.
Longer replacement intervals translate directly to reduced downtime. You'll schedule fewer maintenance shutdowns while lowering your total cost of ownership.
Copper, gold, and iron ore operations generate some of the most abrasive slurries in industry. Primary mill discharge contains sharp-edged particles that rapidly erode softer pump materials.
Our casings serve as the industry standard for these demanding applications. They transport tailings and concentrate slurries reliably, maintaining structural integrity where alternative materials fail within weeks.
Marine and river sand extraction equipment faces relentless bombardment from gravel and sand suspended in high-velocity water streams. Suction dredgers require casings that prevent hull-breaching leaks under these harsh conditions.
The high-impact kinetic energy in dredging applications demands superior toughness. Our precision engineering delivers the necessary balance between hardness and impact resistance.
Coal-fired power plants utilize Flue Gas Desulfurization systems that circulate limestone slurries. These slurries present dual challenges—mechanical abrasion combined with chemical aggression.
Your environmental control systems require components that resist both wear mechanisms simultaneously. Our casings provide this dual-defense capability, maintaining performance in acidic conditions while handling abrasive limestone particles.
Drilling mud systems circulate fluids containing rock cuttings, barite, and other additives. Mud pumps and centrifugal sand pumps in solid control equipment operate under high pressure with heavy particulate loads.
Our casings match various drilling rig models including ZJ90, ZJ70, ZJ50, and XJ series configurations. They maintain stable operation throughout extended drilling campaigns.
We employ Optical Emission Spectroscopy (OES) to verify chromium, carbon, molybdenum, and nickel levels in every production batch. Precise composition control ensures consistent performance characteristics.
Multi-point Rockwell C testing covers suction and discharge volutes comprehensively. This verification confirms uniform wear properties across all critical surfaces.
Metallurgical examination confirms the absence of undesirable phases. We validate the refined martensitic matrix and proper chromium carbide distribution that defines premium performance.
Dye Penetrant Testing (PT) and Magnetic Particle Inspection (MT) detect surface discontinuities. Ultrasonic Testing (UT) identifies internal casting defects before they compromise field performance.
Coordinate Measuring Machines (CMM) and 3D scanning technology ensure tight tolerances. Impeller clearance specifications directly affect pump efficiency, making this verification critical for your operational success.
Every operation has its own set of difficulties. We offer adaptable customization that includes material specifications, dimensions, and combinations based on your needs.
Comprehensive technical documentation, such as flow charts, component diagrams, and thorough operation manuals, is provided by our engineering staff. The information required for a successful installation and upkeep will be provided to you.
Intermediary costs are eliminated through factory-direct manufacture. With a production capacity of 6,300 square meters and an annual output of over 200 equipment sets, we are able to maintain reasonable price without sacrificing quality.
Delivery commitments you can rely on:
One-year warranty coverage backs every casing. Our professional service team provides industry training, technical guidance, and complete project solutions throughout your equipment lifecycle.
Q: Why choose high-chrome over rubber liners for pump casings?
A: High-chrome excels in high-head applications and environments containing large or sharp particles exceeding 5mm. These conditions would tear or cut rubber liners quickly, while our High-Chrome Wear Resistant Pump Casing maintains structural integrity.
Q: Can damaged high-chrome casings be repaired through welding?
A: Specialized welding is possible despite high carbon equivalents. The process requires pre-heating to 250-300°C, low-hydrogen electrodes, and controlled slow cooling. Proper technique prevents brittle fracture while restoring structural integrity.
Q: How does operating point affect casing wear patterns?
A: Operating too far from your pump's Best Efficiency Point (BEP) creates recirculation and high-velocity turbulence. This accelerates localized "washing" wear, particularly in cutwater areas. Maintaining operation near BEP maximizes casing life.
Q: What pH range can standard high-chrome casings handle?
A: Standard 27% Cr formulations perform effectively down to pH 4. For more acidic process environments, we recommend molybdenum-enhanced variants that strengthen the passive oxide layer against chemical attack.
Q: How significant is the service life improvement over conventional materials?
A: Depending on your slurry's abrasive index and Miller Number, you can expect 5 to 10 times longer service life compared to standard grey or ductile iron. This dramatic improvement reduces replacement frequency and maintenance costs substantially.
Ready to enhance your pump system reliability with our High-Chrome Wear Resistant Pump Casing? Our technical team is prepared to discuss your specific application requirements and recommend optimal configurations.
Email: oliver@zcgukong.com
Request technical specifications, customization quotes, or engineering support today.
