ZC Multi-unit Shale Shaker represents a breakthrough in high-volume drilling fluid purification. This system uses synchronized vibrating devices installed on a single integrated skid to handle extremely high flow rates up to 3000+ GPM. It is designed with a modular parallel operating architecture. Designed for large-scale oil and gas drilling operations, it ensures maximum solids separation efficiency by delivering vibration intensity ≤ 8G with linear or circular trajectories.
Reliable performance in challenging onshore and offshore settings is guaranteed by protection class ≥ IP55. This multi-unit setup is your main purification hub, certified under ISO 9001/14001/45001, HSE requirements, and authorized by TÜV and BV. With autonomous operational control and built-in redundancy, you maintain continuous drilling operations even during maintenance cycles.

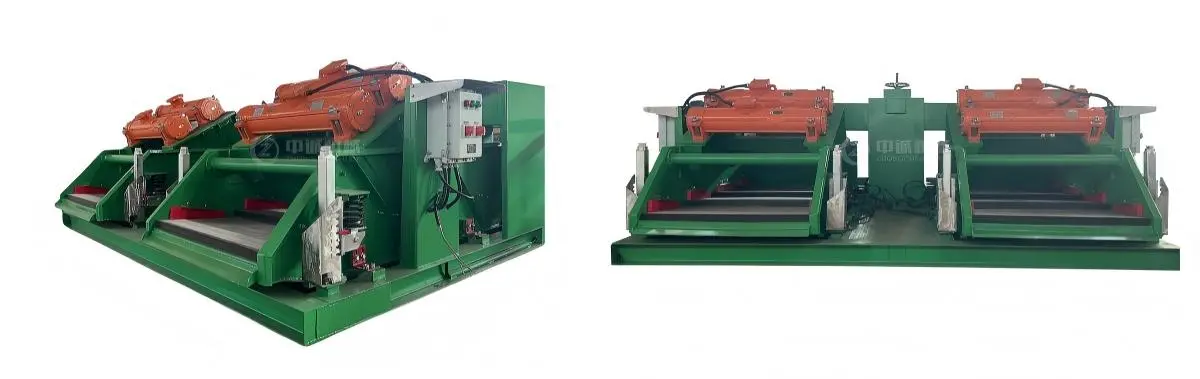

| Model | ZCZS/Z2×585-nP | ZCZS/ZT585-nP | ZCZS/Z3×585-nP | |
| Motion Type | Single Deck | Linear Motion Dual Shaker |
Elliptical Elliptical Dual Shaker | Linear Mition Triple Shaker |
| Double Deck | ||||
| Capacity (m³/h) | Single Deck | 240 | 320 | 400 |
| Double Deck | 320 | |||
| Motor Qty *Power (kW) | Single Deck | 4×2.2 | 2×(2.2+2.5) | 6×2.2 |
| Double Deck | 4×2.4 | |||
| Vibration Strength (g) | Single Deck | ≤7.8 | ≤7.9 | ≤7.8 |
| Double Deck | ≤6.8 | |||
| Screen Dimension *Qty | Single Deck | 585mm×1165mm-8 | 585mm×1165mm-10 | 585mm×1165mm-12 |
| Double Deck | 585mm×1165mm-16 | |||
| Deck Angle Range (°) | Single Deck | -3～+3 | -3～+3 | -3～+3 |
| Double Deck | ||||
| Theoretical Weight (kg) | Single Deck | 4140 | 4650 | 5400 |
| Double Deck | 4300 | |||
| Dimension (mm) (L×W×H) | Single Deck | 4420×2740×1700 | 4420×3400×1700 | 6740×2740×1400 |
| Double Deck | ||||
| Note | n = total quantity of screen meshes, applicable to single/double layers | |||
Your Multi-unit Shale Shaker operates through a precision-engineered distribution manifold that balances incoming drilling fluid across multiple vibrating units. High-frequency vibration motors generate controlled G-forces, creating rapid material conveyance across the screen surface.
The specialized feeding box ensures equal flow distribution to each shaker unit. This prevents localized overloading that causes premature screen failure and mud loss. Solid cuttings are conveyed and discharged while purified drilling fluid passes through mesh openings, returning directly to your active mud system.
Each vibrating basket operates independently yet synchronously. This design eliminates harmonic resonance through advanced vibration damping mounts. You can isolate individual units via independent inlet valves without disrupting overall system performance. The centralized control panel allows single-operator management of all deck angles, motor functions, and operational parameters.

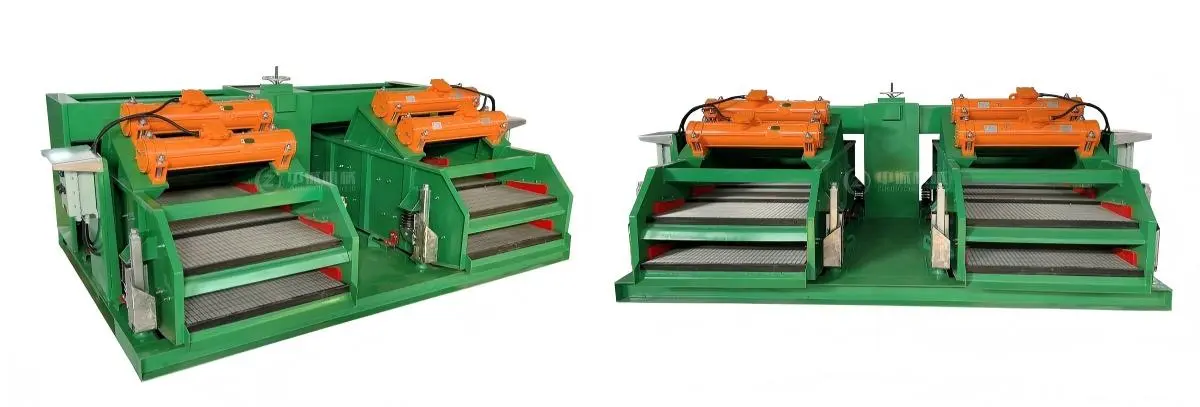

Multiplied Throughput Capacity
Your parallel configuration effortlessly processes ultra-high circulation volumes that would overwhelm single-unit systems. The distribution manifold precisely balances flow, preventing the "mud loss" scenario caused by overloading. This maximizes drilling fluid recovery rates and maintains consistent mud properties throughout extended drilling phases.

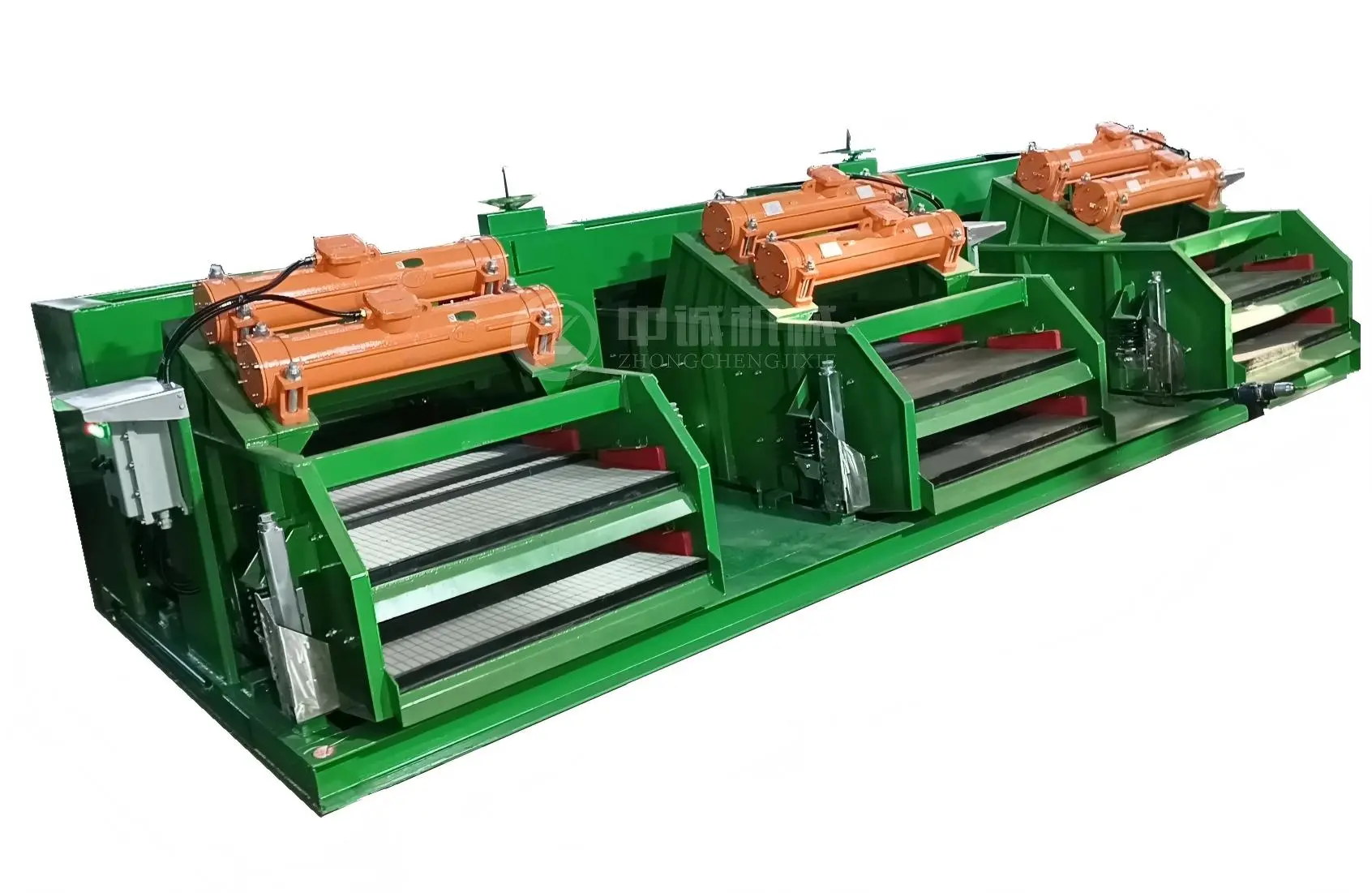

Operational Redundancy & Zero Downtime
Individual shaker units operate simultaneously or independently based on your operational requirements. During screen replacement or maintenance on one unit, remaining units sustain full flow capacity. This critical backup eliminates non-productive time during key drilling phases, ensuring uninterrupted solids control even in 24/7 operations.

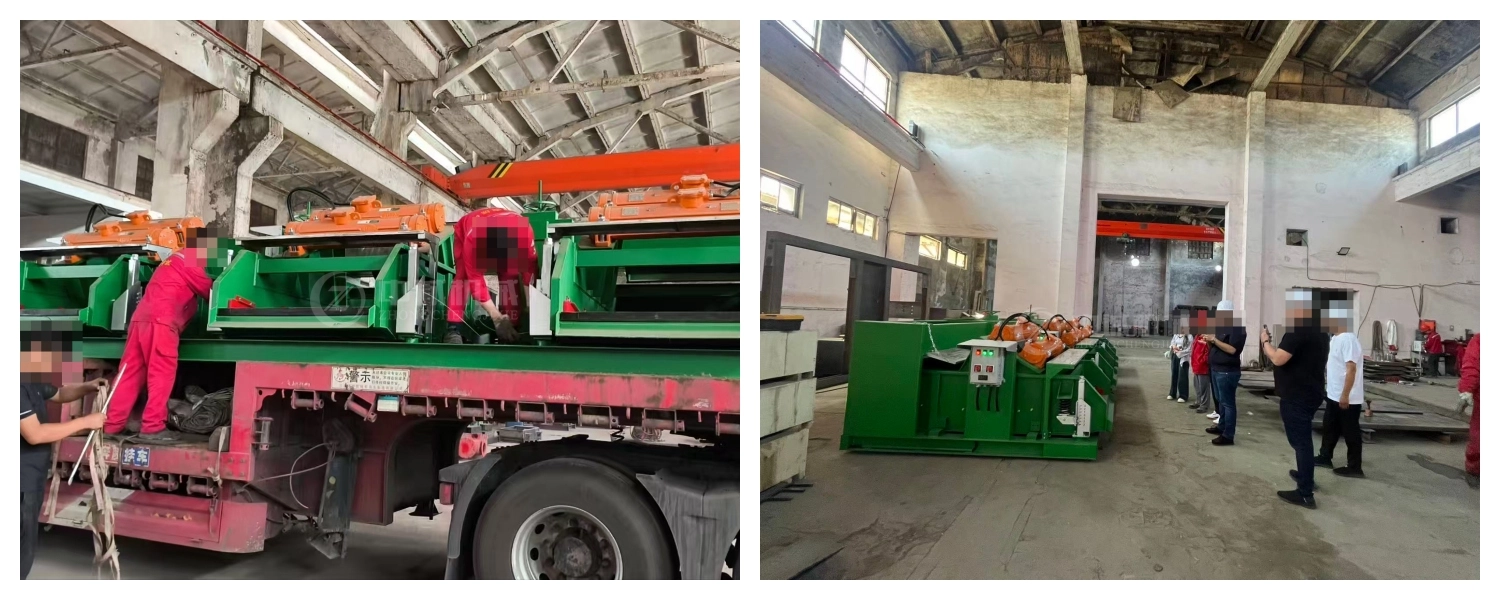

Precision Multi-Stage Separation
The tiered deck design optimizes separation efficiency. Top decks scalp large drill cuttings while bottom decks perform fine purification. This staged approach dramatically reduces fine-mesh screen loading, extending service life by 40-60% compared to single-deck alternatives.
Compact Footprint & Rapid Deployment
Built on a heavy-duty integrated skid, your system delivers maximum screening area within minimal rig floor space. This rugged skid-mounted design ensures easy mobilization between drilling sites. High-strength anti-vibration structures withstand continuous operation in the harshest environments while maintaining structural integrity.
Cost-Optimized Maintenance
Simple structural design reduces maintenance complexity and training requirements. Rapid screen replacement systems and highly interchangeable wear parts minimize downtime. Standardized screen sizes across all units simplify inventory management, reducing your operational costs significantly.
Offshore Deepwater Drilling Operations
Where deck space commands premium value, this system provides maximum screening capacity within constrained footprints. Essential for handling high-volume synthetic-based muds (SBM) in deepwater exploration, it processes massive fluid returns while meeting strict environmental discharge standards.
Large-Diameter HDD Infrastructure Projects
Your Multi-unit Shale Shaker excels in horizontal directional drilling for pipeline installations and river crossings. Processing slurry volumes exceeding 3000 GPM, it rapidly recycles bentonite-based fluids, maintaining optimal viscosity for bore stability and reducing material costs.
Coal Bed Methane Development
In unconventional gas drilling programs, this system handles the unique challenges of fine coal cuttings and high gas content. The multi-unit configuration ensures continuous operation during the extended horizontal sections typical of CBM wells.
HPHT Geothermal Drilling
The parallel design manages rapid returns of large, thermally-stressed cuttings from deep formations. Where single-unit systems fail under thermal load and volume surges, your multi-unit configuration maintains consistent primary solids removal in extreme temperature environments.
Our technical team provides comprehensive installation guidance tailored to your rig configuration. We supply detailed engineering drawings, flowcharts, component diagrams, and operation manuals. Professional commissioning ensures optimal vibration parameters and flow distribution before handover.
You receive industry-standard training covering operational procedures, routine maintenance, and troubleshooting protocols. Our 1-year comprehensive warranty covers manufacturing defects and performance guarantees. Remote technical support and on-site assistance remain available throughout your equipment lifecycle.

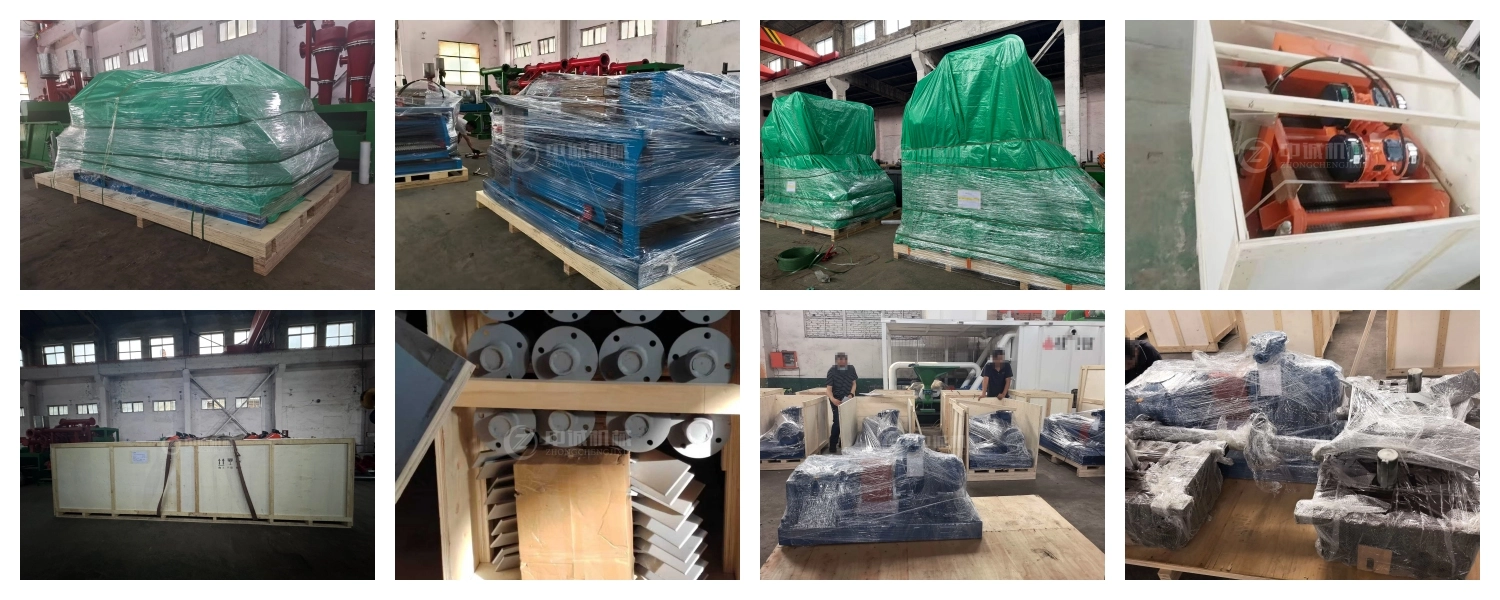

Your equipment ships in transport-safe packaging designed for international logistics. We apply protective plastic film, rainproof tarpaulins, and heavy-duty strapping as standard. Based on equipment dimensions and destination requirements, we provide optional pallet mounting or full wooden crate enclosure.
Strong partnerships with logistics providers ensure efficient routing through Tianjin and Shanghai ports. In-stock configurations ship within 3 days. Customized orders deliver within 15 days, maintaining your project schedules without delays.
Q: Can individual shakers undergo maintenance while others continue operating?
A: Yes, your system features independent inlet valves and isolators for each unit. Simply close the isolation valve, perform screen changes or repairs, then return the unit to service without interrupting fluid processing on remaining shakers.
Q: How does the system prevent vibration interference between units?
A: Engineers utilize vibration damping mounts with >95% isolation efficiency. These specialized mounts prevent harmonic resonance between vibrating baskets, ensuring each unit operates at optimal frequency without mechanical interference.
Q: What advantages does the common distribution manifold provide?
A: The centralized header stabilizes fluid velocity before material contacts screens. This reduces turbulent impact, minimizing screen wear and ensuring even material distribution. Simplified plumbing reduces potential leak points and maintenance complexity.
Q: Are screens standardized across all shaker units?
A: Yes, professional Multi-unit Shale Shaker designs use identical screen dimensions across units. This standardization simplifies spare parts inventory, reduces procurement costs, and allows rapid screen rotation during operations.
Ready to enhance your drilling fluid management system? Our engineering team designs customized multi-unit configurations matching your specific flow requirements and rig constraints. Contact oliver@zcgukong.com for technical consultations, quotations, and project solutions today.
