Shaanxi Xixian New Area Zhongcheng Machinery Manufacturing's Vertical Cutting Dryer delivers industry-leading performance for drilling waste management. Our ZCVCD series achieves an impressive 30-50t/h processing capacity while reducing final cuttings oil content to ≤5%. This core centrifuge technology ensures efficient oil resource recovery and cuttings treatment across onshore and offshore drilling sites. Backed by ISO 9001/14001/45001 certifications and approved by HSE, TÜV, and BV, our solution meets the strictest international compliance standards. With over 30 years of manufacturing expertise, we provide automatic continuous operation that saves costs and minimizes environmental impact.
Drilling waste management poses critical challenges for modern oil and gas operations. You face escalating disposal costs, stringent environmental regulations, and the need to recover expensive drilling fluids.

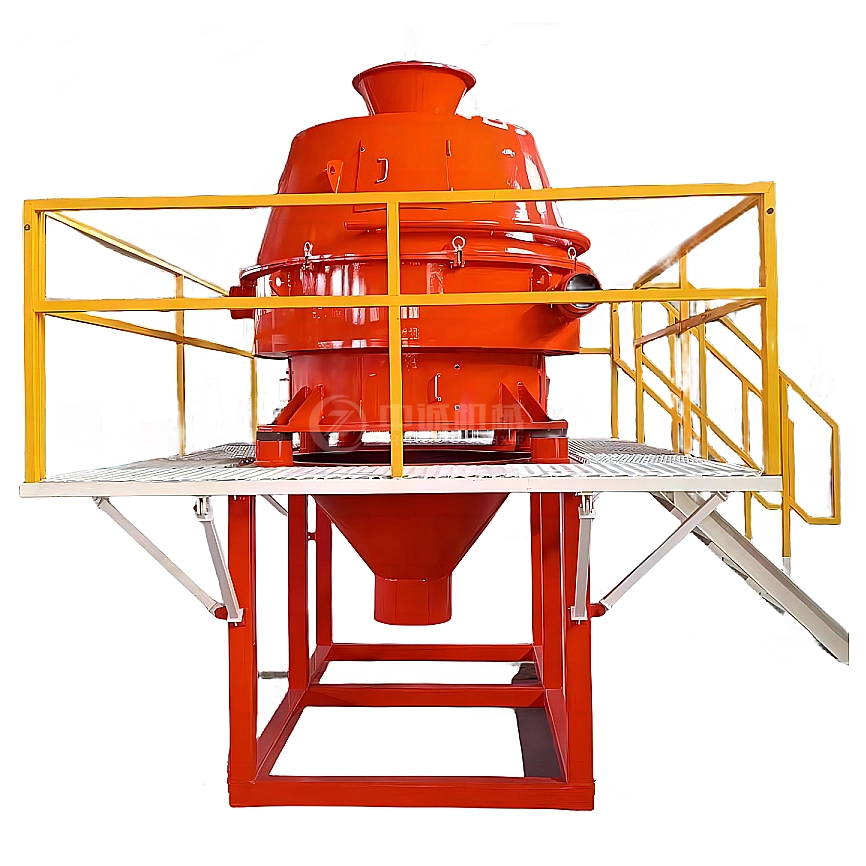

A Vertical Cutting Dryer solves these pain points through specialized centrifugal separation technology. The equipment utilizes high-speed rotation (800-1200 RPM) to generate 300G to 500G centrifugal force. This powerful force separates base oil from drill cuttings generated during Oil-Based Mud (OBM) or Synthetic-Based Mud (SBM) operations.
The result transforms your waste stream. Wet, hazardous cuttings become manageable dry solids. Valuable drilling fluids return directly to your active mud system instead of being hauled away at significant expense.
Your operation gains immediate benefits: reduced waste volumes, recovered fluid resources, and compliance with discharge regulations.
Our ZCVCD series combines robust engineering with precise performance parameters designed for your operational demands.
| Model | ZCVCD930 | ZCVCD930VFD |
| Screen Basket Diameter (mm) | 930 | |
| Screen Basket Gap (mm) | 0.25～0.5 | |
| Basket Speed (rpm) | 900 | 450～900 |
| Air Purge Pressure (MPa) | 0.69～0.8 | |
| Air Flow Rate (m³/min) | >17.3 | |
| Lube Oil Tank Capacity (L) | 60 | |
| Lube Pump Power (kW) | 0.55 | |
| Main Motor Power (kW) | 55 | |
| Capacity (t/h) | 30～50 | |
| ROC (Retained Oil on Cuttings) | ≤5% | |
| Theoretical Weight (kg) | ～5700 | |
| Dimension (mm) (L×W×H) | 750×2150×1800 (Excluding Support Structure) | |

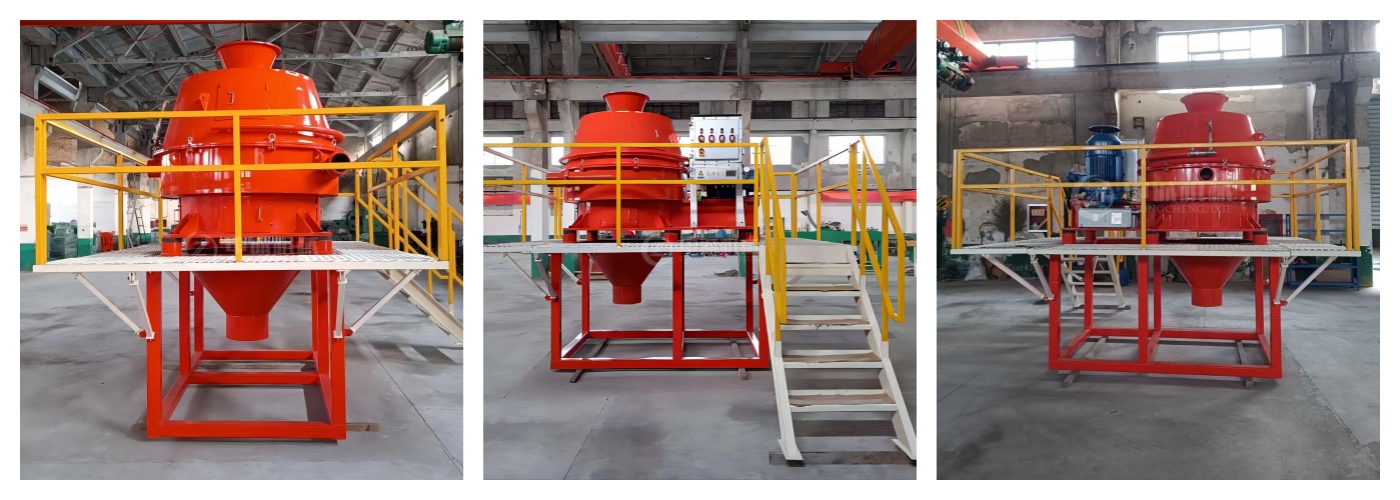

Your drilling fluid recovery reaches maximum efficiency through our advanced centrifugal design. The equipment efficiently separates drilling fluid from cuttings, lowering moisture content below industry benchmarks.
Recovered fluids flow directly back to your active system. This closed-loop process dramatically reduces fluid replacement costs while maintaining mud properties.
Harsh oilfield environments demand exceptional durability. Our dryer employs high wear-resistant and anti-corrosion materials throughout critical components.
Tungsten Carbide-tiled flights (HRC >85 hardness) withstand extreme abrasion from drill solids. Stainless steel screen baskets resist corrosive media erosion during extended operation.
This material selection ensures long-term stable performance even when processing highly abrasive formations. You experience fewer replacement cycles and reduced maintenance downtime.

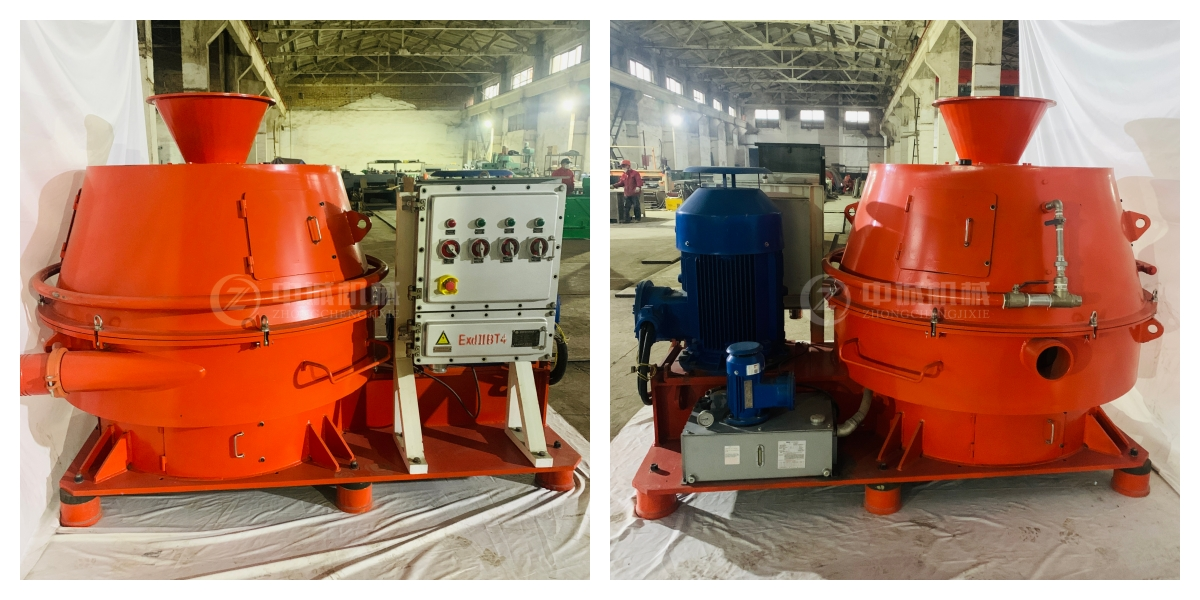

Processing large volumes doesn't require excessive energy consumption. Our system delivers stable low-noise and low-power operation while maintaining high throughput rates.
The design minimizes environmental pollution through reduced noise emissions. Lower power consumption translates directly to operating cost savings across extended campaigns.
Your waste disposal costs decrease significantly as volume reduction improves. Dry cuttings require less transportation and simplified handling procedures.
The dryer perfectly matches existing oilfield solid control systems. Integration with your shale shakers, desanders, desilters, and other equipment occurs smoothly.
This compatibility ensures efficient cuttings treatment across your entire waste management chain. Resource recycling becomes systematic rather than fragmented.
Limited deck space demands compact, high-efficiency solutions. Our Vertical Cutting Dryer minimizes waste volume significantly before disposal, meeting strict 'zero-liquid' environmental mandates.
Your offshore operations benefit from reduced waste transport requirements. Fewer disposal vessels translate to lower logistics costs and improved safety profiles.
High-rate drilling of long lateral sections generates massive cuttings volumes. The equipment handles surge loads efficiently while recovering thousands of barrels of expensive base oil.
Without proper treatment, these valuable fluids would be lost to waste streams. Recovery directly impacts your bottom line through reduced fluid purchasing requirements.
Logistics in remote locations make waste transport prohibitively expensive. Our dryer dries cuttings sufficiently for local stabilization or thermal treatment.
Volume reduction drastically decreases the carbon footprint of waste hauling. Your environmental stewardship improves while operational costs decline.
The solution proves essential where environmental sensitivity requires maximum waste minimization. Compliance becomes achievable even in the most stringent regulatory environments.

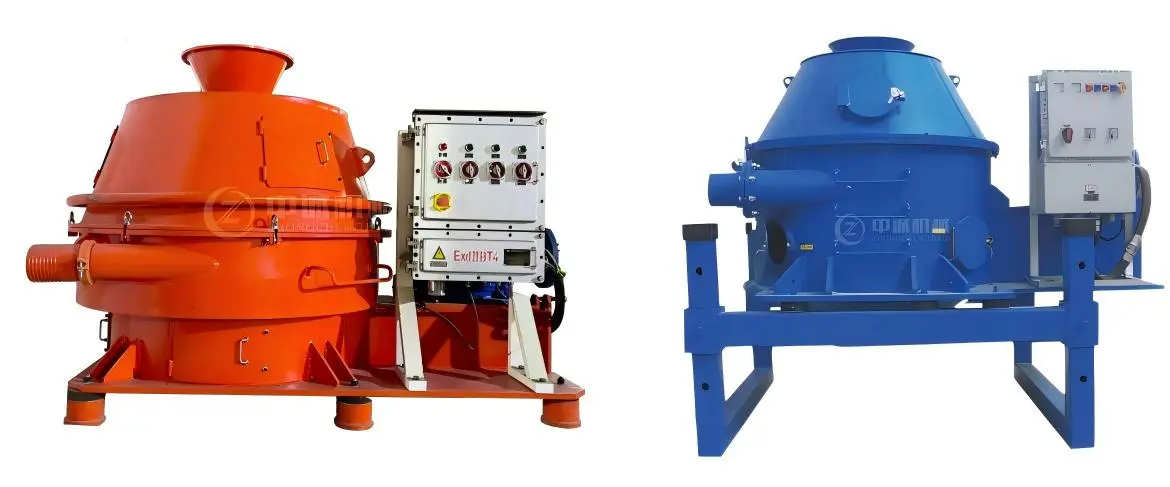

Rigorous inspection protocols ensure every unit meets exacting standards before shipment.
The rotor and screen assembly undergo precision balancing to G2.5 standards. This critical step prevents catastrophic bearing failure during extended operation.
Scraper flights receive hardness testing verification. Tungsten Carbide components must meet HRC >85 specifications to ensure longevity against abrasive sands.
Visual and ultrasonic testing examine wedge-wire screen welds. This prevents bypass issues that would compromise separation efficiency.
Every unit completes a mandatory 4-to-8-hour no-load trial run. We monitor vibration displacement (maintained under 50-70 microns) and gearbox oil temperature stabilization (not exceeding 40°C above ambient).
This comprehensive testing protocol ensures your equipment arrives ready for immediate productive service.
Q: What Oil on Cuttings (OOC) results can I expect after processing?
A: A well-maintained unit typically reduces OOC to between 3% and 5% by weight. Results depend on feed moisture content and G-force settings. Our ZCVCD series consistently achieves ≤5% OOC under standard operating conditions.
Q: Can the equipment handle Water-Based Mud (WBM)?
A: We generally do not recommend processing WBM. High clay content often leads to screen blinding. The system is specifically optimized for oil and synthetic-based fluids where it delivers superior performance.
Q: How often should the screen basket be replaced?
A: Basket life varies based on solids abrasiveness and operating conditions. High-quality stainless steel baskets typically last between 500 to 1,500 operating hours. We provide replacement schedules based on your specific formation characteristics.
Q: What causes excessive vibration issues?
A: Common causes include uneven solids loading, a blinded screen basket, or worn-out flight scrapers creating unbalanced mass. Our operation manuals detail troubleshooting procedures. Technical support remains available throughout your equipment lifecycle.
Q: Does the unit require a dedicated cleaning system?
A: Yes. Most units feature an integrated 'air knife' or fluid flushing system. This prevents screen apertures from clogging with fine particles during operation. The cleaning system operates automatically to maintain consistent performance.
Q: What is your delivery timeline for customized configurations?
A: In-stock standard units ship within 3 days. Customized orders including specific motor brands, dimensions, or configurations deliver within 15 days. Our efficient logistics network ensures prompt arrival at Tianjin or Shanghai ports.
Your operational requirements receive personalized attention. We customize dimensions, configurations, and motor brands to match your specific needs.
Both domestic and international motor options remain available. Material specifications adapt to your formation characteristics and fluid systems.
Professional packaging protects your investment during international transit. Export-standard crating ensures arrival in perfect condition regardless of shipping distance.
Our technical team provides on-site commissioning when required. We ensure proper integration with your existing solid control system and verify performance parameters.
Your partnership with Zhongcheng extends far beyond equipment delivery. We provide:
As the direct manufacturer, we control quality from design through delivery. You benefit from competitive pricing without intermediary markups.
Our 6,300-square-meter production facility in Xingping City maintains inventory for rapid fulfillment. Annual production capacity reaches approximately 200 sets of mud circulation systems and petroleum machinery equipment.
Ready to optimize your drilling waste management with Vertical Cutting Dryer? Contact our technical team at oliver@zcgukong.com for detailed specifications, pricing, and application engineering support tailored to your operation.
