In oilfield drilling operations, maintaining efficient solid control systems is critical to operational success. The Shaker Screen Plugging Block from Shaanxi Xixian New Area Zhongcheng Machinery Manufacturing Co., Ltd. serves as a professional sealing accessory engineered specifically for shale shaker equipment. Our plugging blocks effectively fill sealing dead corners to prevent mud bypass and loss, ensuring your solids control system operates at peak efficiency. Compliant with oilfield HSE standards and backed by ISO 9001 certification, these blocks support full size customization with factory-direct supply. With over 30 years of manufacturing expertise and an annual production capacity of 200 sets, we deliver enterprise-grade sealing solutions that meet the demanding requirements of drilling sites worldwide.

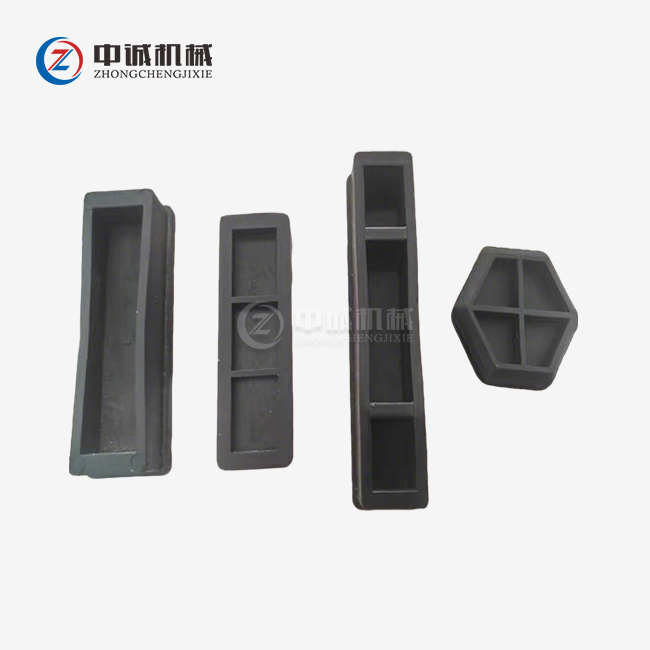

A Shaker Screen Plugging Block is a precision-engineered sealing component designed to bridge gaps between shaker screens and shaker basket frames. These specialized blocks address critical operational challenges in drilling environments.
In oil and gas drilling operations, fluid bypass represents a significant concern. When oversized solids leak into the active mud system, downstream equipment faces excessive load. Our plugging blocks create resilient, compressed seals that force 100% of drilling fluid through the screen mesh.
Screen chatter caused by improper tensioning leads to premature wear of expensive mesh components. By providing consistent tension and secure positioning, these blocks extend screen life significantly. They protect valuable equipment like centrifuges and desilters from solids overload, reducing maintenance costs and operational downtime.
Our products are manufactured to precise standards that ensure reliable performance in demanding field conditions.
| Parameter | Specification |
|---|---|
| Material Type | High-strength, abrasion-resistant compound |
| Shape Options | Triangular, Rectangular, Square |
| Color Coding | Multiple colors for easy classification |
| Temperature Resistance | -20°C to +120°C |
| Dimensional Tolerance | ±0.5mm (CNC precision molding) |
| Hardness Testing | ASTM D2240 compliant |
| Oil Immersion Test | ASTM D471 (72-hour diesel/synthetic oil) |
| Tensile Strength | ASTM D412 certified |
| Vibration Resistance | Up to 7G force tolerance |
| Compliance Standards | ISO 9001, HSE oilfield standards |
Your drilling operations demand flexibility and precision. Our plugging blocks deliver both through thoughtful engineering and quality materials.
Versatile Geometric Shapes: Available in triangular, rectangular, and square configurations, these blocks match the specific structural profiles of different shale shaker models. Whether you operate ZJ90, ZJ70, or XJ series drilling rigs, you'll find a perfect fit.
Color-Coded Management System: Multiple color options enable effortless on-site classification. Your crew can quickly identify the right block for each application, streamlining maintenance procedures and reducing installation errors.
Precision Fit Technology: CNC molds ensure dimensional accuracy within ±0.5mm tolerances. This precision creates snug fits in shaker beds, eliminating gaps where mud could bypass the screening process.
Drilling environments test equipment limits every day. Our plugging blocks are engineered to excel where others fail.
Strong Adhesion and Flexibility: Quick, efficient repairs of broken screens are made possible by the outstanding resilience and superior bonding strength. Even when subjected to forces more than 7G, the material retains its flexibility under high-frequency vibration, preventing cracking or detachment
High Wear Resistance: Made from sophisticated compounds, these blocks resist the erosive effects of drilling mud's solid particles and sand. Because of its resilience, screens last far longer and require fewer expensive replacements.
Oil and Corrosion Resistant: The blocks provide exceptional resistance to oil and chemical corrosion since they are specifically designed for challenging drilling circumstances. After extended immersion in water-based muds, oil-based muds, and synthetic drilling fluids, performance is constant.
ASTM D471 swell tests confirm zero degradation after 72 hours in diesel and synthetic oils. This chemical stability ensures consistent sealing performance throughout extended drilling campaigns.

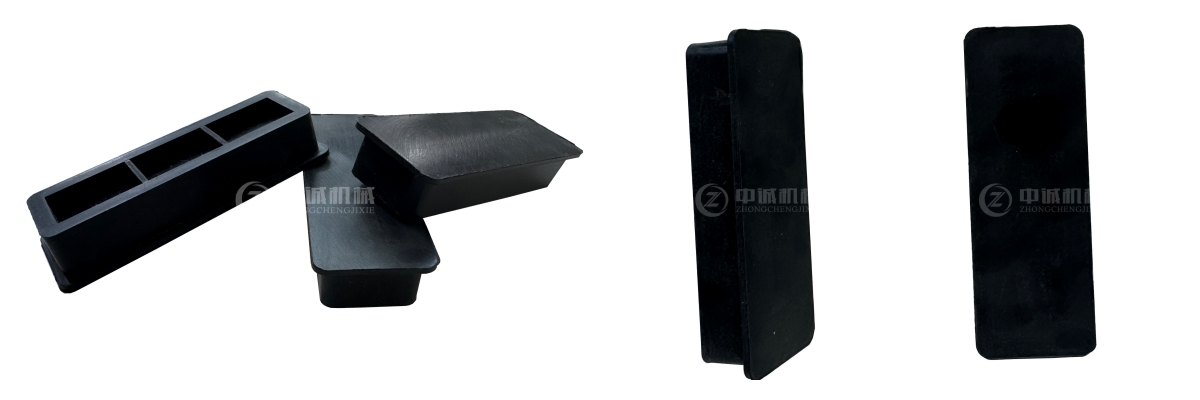

Time is money on drilling sites. Our Shaker Screen Plugging Block saves both through user-friendly design features.
Tool-Free Installation: The ergonomic design requires no specialized equipment for installation. Your crew can firmly seal holes and cracks on screen surfaces by hand, drastically reducing on-site maintenance time.
Quick Screen Repair: Rather than replacing entire screens when localized damage occurs, operators can deploy plugging blocks for immediate repairs. This approach maintains operational continuity and prevents extended shutdowns.
Detachable Clamping Structure: The modular design allows for fast installation and removal. Adjustable clamping force accommodates different screen thicknesses, ensuring proper tension and seal integrity across various equipment types.
From conventional drilling to extreme environments, these sealing solutions deliver consistent performance across diverse operational contexts.
High-Pressure, High-Temperature Wells: Our blocks preserve seal integrity in deep-well exploration where drilling fluids reach extremely high temperatures, where conventional rubber components would weaken and fail. Costly complete mud loss situations are avoided thanks to its dependability.
Offshore Drilling Platforms: High vibration conditions continuously strain equipment on jack-up rigs and floating platforms. By acting as vibration dampers, the plugs blocks prolong component life and lessen mechanical stress on screen frames.
Onshore Drilling Sites: These blocks guarantee efficient solids management throughout all conventional and unconventional resource extraction activities, from coalbed methane drilling to shale gas operations.
Horizontal Directional Drilling: In HDD applications and mining operations, ultra-fine particle separation requirements demand perfect sealing. Even minor seal failures would contaminate recycled process water, making reliable plugging blocks essential.
Your operations depend on component reliability. Our manufacturing processes ensure every block meets exacting standards.
Rigorous Testing Protocols: Each production batch undergoes four primary quality control checks. Dimensional precision testing verifies CNC mold accuracy. Durometer consistency testing ensures proper tensioning force through ASTM D2240 standards.
Material Validation: Oil immersion testing subjects blocks to 72-hour exposures in drilling fluids. Tensile strength and elongation testing confirms the material will not crack under extreme shaker motion.
Production Capacity: Our 6,300-square-meter facility in Xingping City, Xianyang, produces sealing components with the same precision standards applied to our full range of solid control equipment.
Fast Delivery Schedules: In-stock standard sizes ship within 3 days. Custom specifications are manufactured and delivered within 15 days, supported by our efficient logistics network with convenient access to Tianjin and Shanghai ports.
Smart maintenance strategies maximize your bottom line. Plugging blocks deliver measurable economic advantages.
Extended Screen Life: By repairing damaged screens instead of replacing them entirely, you effectively lower consumable costs. A single screen replacement can cost hundreds of dollars, while plugging block repairs cost a fraction of that amount.
Reduced Mud Loss: Perfect sealing prevents solids bypass, which would otherwise increase mud plastic viscosity. Lower viscosity means reduced chemical consumption and decreased wear on expensive pump liners and drill bits.
Minimized Downtime: Quick repairs keep your solids control system operating at peak efficiency. This reliability boosts overall site productivity and prevents costly drilling interruptions.
Equipment Protection: By ensuring proper screen function, plugging blocks protect downstream centrifuges and desilters from excessive solids loading. This protection extends the service life of your entire solid control system.
Q: How often should plugging blocks be replaced?
A: Inspect blocks during every screen change. Replace them when you notice permanent deformation or chemical swelling, typically every 3-6 months depending on mud type and operating conditions.
Q: Are these blocks compatible with all shaker brands?
A: Most blocks are engineered for specific brands including Derrick, Mi-Swaco, and NOV Brandt. Universal profiles are available for standardized wedge-lock systems. Contact our team for compatibility verification with your specific equipment model.
Q: What causes plugging block failure?
A: Over-tightening of wedges represents the primary mechanical failure mode. Chemical incompatibility with aggressive amines in certain mud systems can also cause premature degradation. Proper installation and mud system matching prevent most failures.
Q: How do I select the right plugging block for my application?
A: Consider your screen thickness and clamping range requirements. Evaluate your drilling fluid type—water-based or oil-based—to ensure material compatibility. Match mesh size to your original screen specifications and verify compatibility with your shaker model.
Q: Can color-coded blocks indicate different properties?
A: Yes, our color-coding system helps operators quickly identify the right grade. Different colors may indicate temperature ratings, chemical resistance levels, or hardness specifications depending on your customization requirements.
Q: What happens if a worn block goes unnoticed?
A: Failed blocks allow solids bypass, increasing mud plastic viscosity. This leads to higher chemical consumption, increased pump wear, and greater bit wear. Regular inspection prevents these expensive consequences.

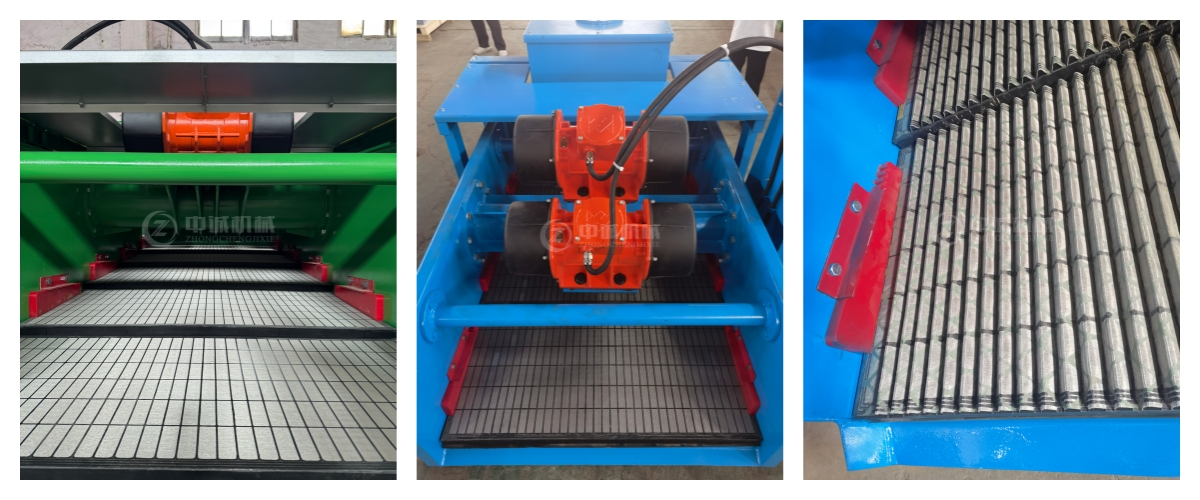

Every drilling operation has unique requirements. Our customization services ensure you receive exactly what your site needs.
Size Customization: We manufacture blocks to your exact specifications, matching your shaker dimensions and screen configurations precisely.
Material Selection: Choose from stainless steel sintered options, 316L acid-resistant varieties, or standard compounds based on your operational environment and drilling fluid chemistry.
Technical Documentation: Receive comprehensive engineering drawings, component diagrams, and operation manuals with every order. Our professional service team provides complete project solutions from initial consultation through ongoing support.
Training and Guidance: Industry training programs ensure your crew understands proper installation techniques and maintenance procedures. This Knowledge transfer maximizes the value of your investment.
Warranty and Support: One-year warranty coverage backs every purchase. Our technical team provides 24-hour troubleshooting support to address field issues promptly.
Ready to improve your shaker screen efficiency with premium Shaker Screen Plugging Block? Contact our team today at oliver@zcgukong.com for customized solutions, technical specifications, or immediate order placement. Factory-direct pricing available now.
