Sep 15, 2026

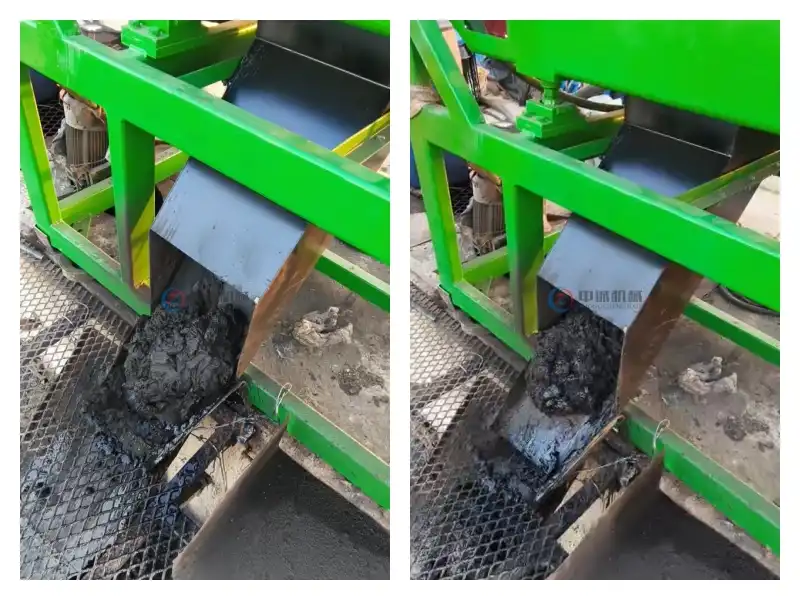

Decanter centrifuges improve drilling mud separation efficiency by applying high centrifugal force—often exceeding 3,000 G—to continuously separate ultra-fine solids from drilling fluid at the particle level. Unlike conventional settling tanks or shaker screens, these machines target particles as small as 2–5 microns, recovering valuable barite and base fluid while discharging dry solids. The result is cleaner, reusable mud, lower fluid consumption, and reduced waste disposal costs. For drilling contractors managing demanding onshore or offshore operations, this level of separation precision directly translates to fewer fluid losses, better wellbore stability, and measurable cost savings per drilling cycle.
Centrifugal settling is what makes a horizontal Decanter Centrifuge work. A fast-moving bowl creates a gravitational force that speeds up the settling of solid particles, and an internal screw conveyor keeps moving the solids that have been separated toward the outlet holes. The clear liquid phase comes out of the other end and is ready to be pumped back into the active mud system.

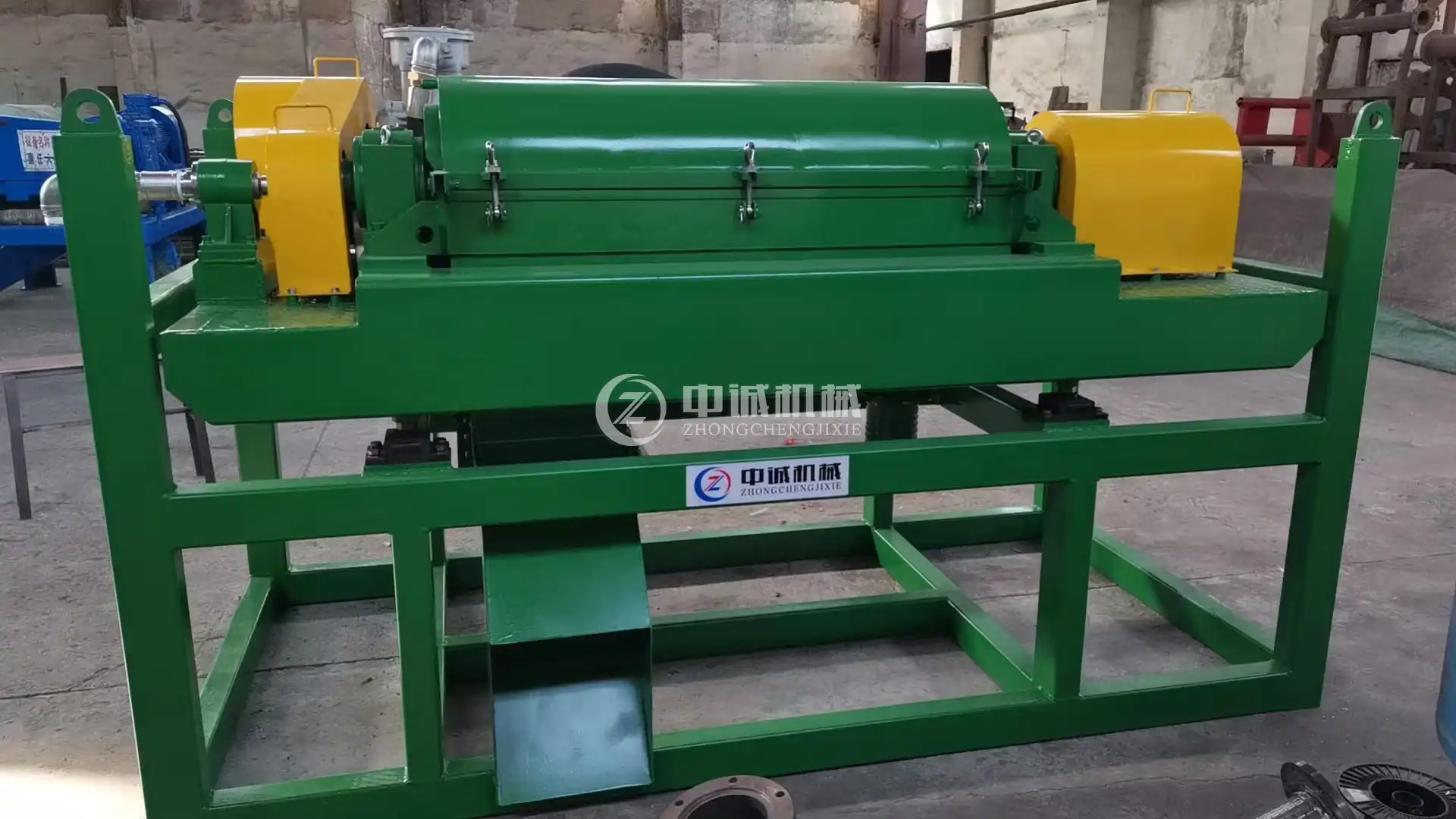

Zhongcheng Machinery's ZC Series Decanter Centrifuge is the fifth-stage solids control equipment in a full mud circulation system. It comes after shale shakers, vacuum degassers, desanders, and desilters. This unit can handle the smallest solids that equipment further upstream can't remove. Its bowls have inside sizes of 356 mm and 450 mm and effective bowl lengths of 1,000 mm and 1,257 mm. It can be used right away for oil and gas drilling, tunneling without digging trenches, managing drilling waste, and industrial solid-liquid separation tasks.
The separation strength needs to be different for each drilling job. When it comes to cost-effective workhorses, middle-speed Decanter Centrifuges are perfect for getting rid of harmful solids or recovering barite from weighted mud. Their simple mechanical design makes it easy to maintain them in the field. High-speed units that work faster than 3,000 rpm can pick up very small bits between 2 and 5 microns. These are necessary for cleaning deep wells, keeping mud density low, and being an important part of systems that handle drilling trash.
In the United States, drilling sites in the Permian Basin, the Marcellus Shale, and the deepwater Gulf of Mexico all have to deal with the same problem: keeping the quality of the drilling fluid high while it is constantly being pumped around. In traditional settling tanks, solids are thrown away along with valuable barite. Particles smaller than 74 microns can't be seen by vibrating screens. When batch processing is done by hand, there is downtime and errors. These wasteful practices quickly add up to higher mud costs, more waste, and a possible risk of EPA compliance.
The batch cycle is not needed at all when continuous Decanter Centrifuge separation is used. The ZC Series keeps going and handles changing feed concentrations in real time without stopping. Automated torque control systems change the speed of the screw conveyor based on the real solid load. This keeps the inside from getting clogged, even if the density of the mud changes as the formation changes. This stability keeps the mud properties and the rig schedule safe, which are two things that procurement managers and drilling operations teams keep a close eye on when they figure out the total cost of ownership.
The separation quality of Decanter Centrifuges is primarily influenced by two interconnected factors: bowl rotational speed and the differential speed between the bowl and the screw conveyor. Higher bowl speeds generate greater centrifugal force, allowing Decanter Centrifuges to separate smaller particles from the suspension more effectively. The differential speed determines how quickly solids are transported toward the discharge end. A slower differential speed increases residence time, helping Decanter Centrifuges produce a drier solids cake, while a faster differential speed increases processing capacity at the expense of higher moisture content in the discharged solids. By balancing bowl speed and differential speed, operators can optimize Decanter Centrifuges for the required separation efficiency, solids dryness, and throughput.
Here are the main ways that the high-speed VFD setup improves the performance of busy drilling projects:
When maintenance and service managers look at the long-term value of their equipment, these benefits directly lead to shorter repair intervals, lower energy costs per barrel handled, and less unplanned downtime.
In the ZC Series, high-strength stainless steel is used to make the drum and screw conveyor. Critical wear areas, like the scroll flight edges and discharge ports, have tungsten carbide tiles that can be replaced. These tiles are much better at resisting rough materials than regular hardened steel. This method is in line with what the industry has found: tungsten carbide-reinforced parts can increase the service life of a conveyor three to five times compared to sections that are not covered and work in drilling fluids that are full of sand.
About 40 to 50 percent of the solids by weight can be recovered by settling tanks. Filter presses can handle higher solids loads, but they need to be cycled in batches and take up a lot of floor space. Disk stack centrifuges are great at separating liquids, but they have trouble with weighted drilling mud's high solids content. Horizontal decanter units have a small footprint, work all the time, and can handle solids concentrations ranging from almost nothing to a heavily loaded slurry without having to change their configuration.
Drilling engineers should consider how much their mud program may vary when choosing between fixed-frequency and VFD-equipped Decanter Centrifuges. Fixed-frequency Decanter Centrifuges can often provide reliable performance at a lower initial capital cost when operations use relatively consistent mud weights and drill through predictable formations. In contrast, VFD-equipped Decanter Centrifuges offer greater operational flexibility for projects that must handle different mud systems, changing fluid densities, or strict requirements for cuttings dryness. By allowing operators to adjust operating speeds according to changing conditions, VFD-equipped Decanter Centrifuges can provide more precise control over separation performance and overall solids management.
Structured working habits are needed for consistent success. Before each shift, check the feed pump pressure, use high-temperature synthetic grease to lubricate the bearings, and make sure that the vibration readings are within the baseline ranges that were set during setup. During operation, keep an eye on the torque numbers to see if the solids are getting too heavy. If they are, change the feed rate before a blockage happens instead of after.
Material loss is caught before it gets to the bowl wall by checking the tungsten carbide wear tiles and ceramic discharge plugs on a regular basis. Regular ultrasonic testing of the bowl weld's integrity is helpful to make sure that the structure is strong enough to withstand sustained G-loads. This is especially important for high-speed units that run at speeds above 3,000 rpm. To help field teams keep things running smoothly, Zhongcheng Machinery gives them detailed operation and maintenance manuals, help with commissioning, and a one-year warranty that covers all major parts.
Decanter Centrifuges play an essential role in modern solids control because they remove dry solids that meet stricter environmental dumping standards, as well as drilling fluid that settling and screening equipment cannot recover. The ZC Series has medium-speed, high-speed, and VFD-equipped models that can handle all kinds of drilling needs, from recovering barite in regular weighted mud to removing ultra-fine particles in deep wells. This drilling equipment meets the needs of drilling companies for separation performance and operational reliability. It has ISO 9001/14001/45001 certification, TÜV and BV approval, and HSE compliance.
The machine returns the mud's density and viscosity to their previous levels by getting rid of solids as small as 2–5 microns. This cuts down on the amount of new fluid and chemical additives that are needed to keep the mud's qualities at a good level. This makes the cost of fluid per well much lower.
Usually, it's because the differential speed is wrong or there isn't enough G-force. By changing the VFD settings to lower the differential speed, the solids stay in the bowl longer, which makes the output cake drier without having to shut down the equipment.
Yes. The scroll flights are made with replaceable tungsten carbide tiles, and the discharge ports have ceramic inserts that are designed to handle rough use. They keep the separation geometry and protect the base conveyor material over long periods of time.
When mud recovery quality is the most important thing, a bigger length-to-diameter ratio gives you a longer clarity zone that makes the liquid phase cleaner. A lower ratio makes the unit smaller, which makes it better for simple draining tasks.
Standard parts that are in stock will be shipped within three days. According to Zhongcheng Machinery's written delivery schedule, customized parts and configurations are made within fifteen days.

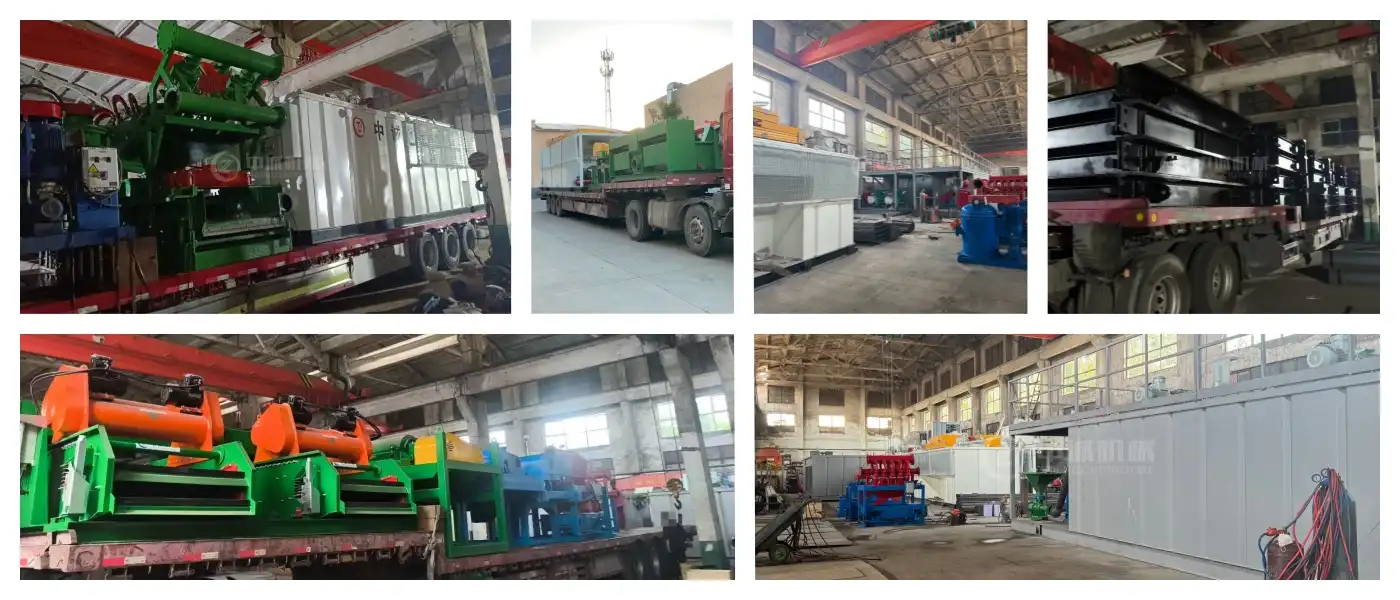

ZHONGCHENGJIXIE, which is part of Zhongcheng Machinery—Shaanxi Xixian New Area Zhongcheng Machinery Manufacturing Co., Ltd.—has more than 30 years of experience in solids control. They use that Knowledge in every ZC Series unit they build. As a qualified decanter centrifuge manufacturer with our own patents and ISO/TÜV/BV approvals, we offer custom configurations, full technical paperwork, and quick help after the sale. To get a custom solution and price quote for your drilling project, email our team at oliver@zcgukong.com or visit zcsolidscontrol.com to request a tailored solution and quotation for your drilling operation.
1. Journal of Petroleum Technology — SPE, 2021
2. Drilling Engineering — IADC Technical Publications, 2020
3. Solids Control in Drilling Operations — Gulf Publishing Company, 2018
4. International Journal of Mining, Reclamation and Environment — Taylor & Francis, 2022
5. Separation Science and Technology — Taylor & Francis, 2021
6. API Recommended Practice 13C: Drilling Fluids Processing Equipment — American Petroleum Institute, 2019
