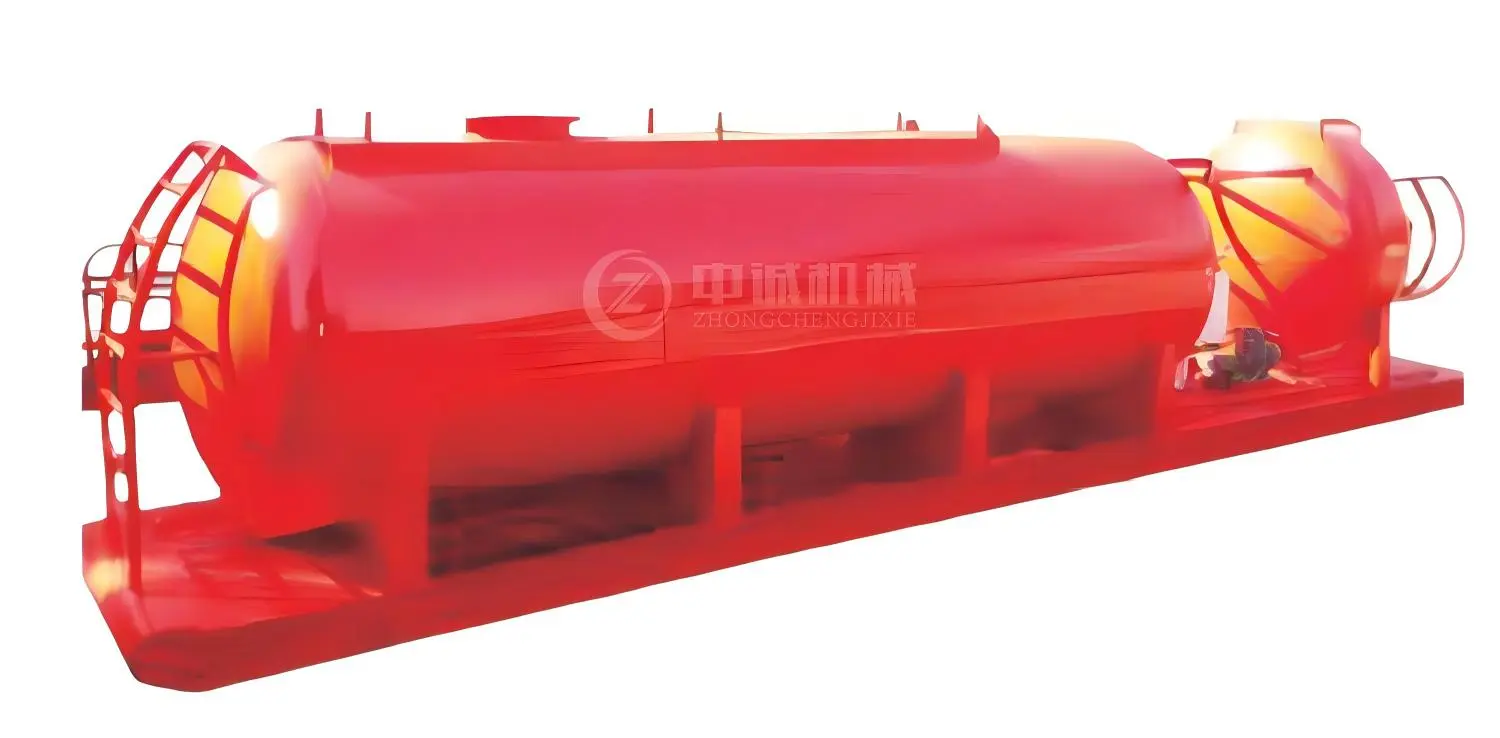

Zhongcheng Machinery's Diesel Tank is a professional-grade skid-mounted fuel storage and monitoring system designed for continuous field operations in demanding environments. In order to satisfy strict safety regulations, this integrated system has fully explosion-proof configuration and optional double-wall construction, with customisable volumes ranging from 5 to 100 m³. Our tank guarantees dependable performance in oilfields, mining sites, distant construction zones, and emergency power applications. It is certified under ISO 9001/14001/45001, HSE, TÜV, and BV. Supported by more than 30 years of Zhongcheng's machinery production experience, it is designed for longevity and compliance and combines intelligent monitoring, corrosion resistance, and easy relocation capabilities.
Under difficult circumstances, your operations require a steady supply of fuel. Our tank eliminates downtime risks by providing large-capacity storage with cutting-edge safety features.
Oil leaks and environmental contamination are avoided by the hermetically sealed construction. Over decades of service life, corrosion-resistant materials endure physical impacts and oil degradation.
Easy installation processes and smooth compatibility with current solid control systems are advantages. Low maintenance needs drastically lower operating expenses.
| Parameter | Specification |
|---|---|
| Capacity Range | 5 – 100 m³ (customizable) |
| Construction Type | Single-wall or double-wall (110% containment) |
| Material | Carbon steel Q235B / S235JR or stainless steel |
| Wall Thickness | 5 – 10 mm (capacity-dependent) |
| Coating | Epoxy phenolic interior, C5-M exterior |
| Explosion-Proof Rating | Full Ex-proof configuration available |
| Operating Temp Range | -40°C to +60°C |
| Leak Detection | Electronic interstitial monitoring (double-wall) |
| Pressure Testing | 3-5 psi hydrostatic/pneumatic certification |
| Compliance Standards | ISO 9001/14001/45001, UL 142, BS 799, AS 1692 |
| Certifications | TÜV, BV, HSE approved |
| Delivery Time | In-stock: 3 days / Custom: 15 days |
| Model | Capacity (m³) | Dimensions (mm) (L×W×H) | Weight (kg) |
|---|---|---|---|
| YG30 | 30 | 8500×2800×2800 | 5300 |
| YG50 | 50 | 10000×2800×2800 | 7200 |
You work in hazardous situations where fuel ignition could be disastrous. To stop leaks before they contaminate the earth, our diesel tank has double-wall containment and full explosion-proof components.
Weld integrity passes ultrasonic and X-ray examination. To ensure that there is no leakage under operational stress, each unit passes stringent hydrostatic pressure testing.
Fuel levels are monitored and interstitial leaks between wall layers are found by real-time electronic sensors. This proactive method warns you of any issues before they become more serious.
Fuel transmission is stopped at safe thresholds by automated overfill prevention valves. You safeguard your investment while adhering to environmental standards.
Internal epoxy phenolic linings avoid microbiological corrosion from diesel breakdown. In desert and coastal regions, external C5-M coatings are resistant to air exposure.
Your tank provides 20–30 years of dependable service—much longer than the lifespans of typical equipment—with the right sludge removal and vent maintenance.
Our units move swiftly between drilling sites since they are pre-assembled on solid steel skids. Complex foundation requirements are eliminated with forklift-compatible bases.
Compared to fixed storage systems, you save 60% on installation time. This adaptability facilitates multi-site operations and changeable project timeframes.

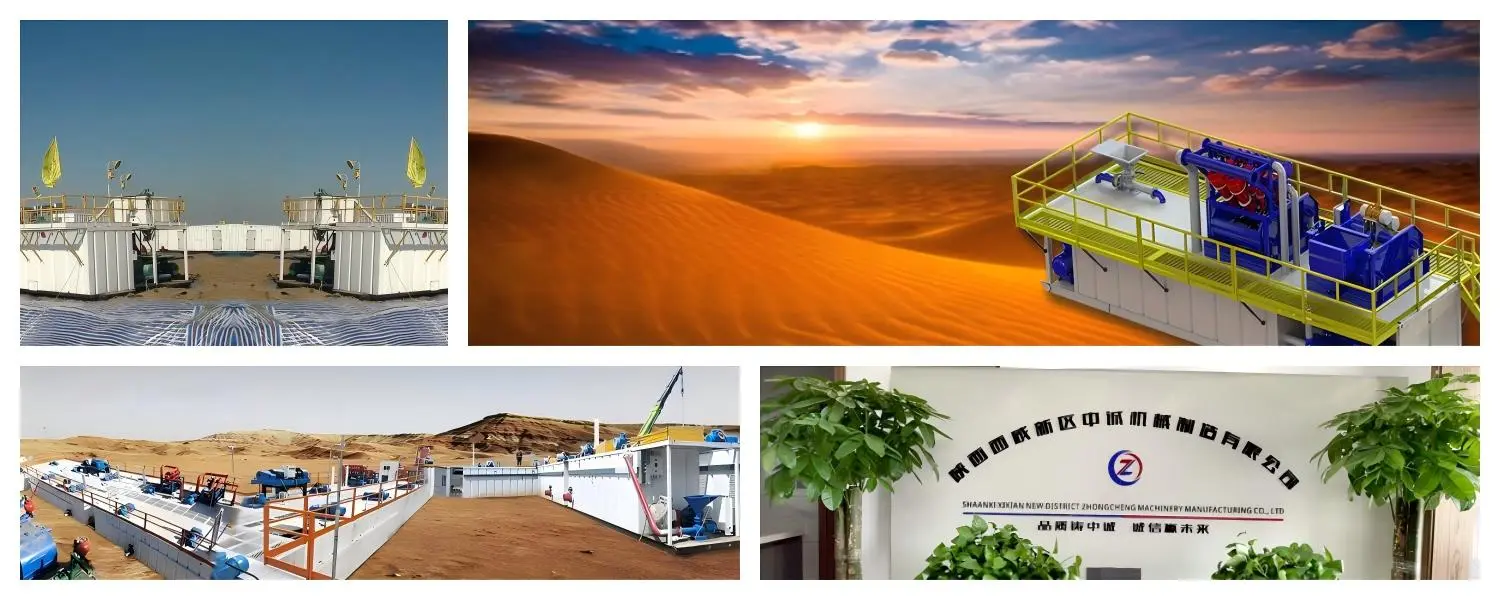

Constant fuel supply for generator sets and drilling rigs (ZJ90, ZJ70, ZJ50, and ZJ40 types). Large capacities enable activities around-the-clock without the need for frequent refills.
autonomous electricity production in remote areas. For delicate ecological zones, double-wall protection complies with environmental regulations.
temporary fuel storage facilities for fleets of large machinery. Tight project schedules are compatible with rapid deployment capabilities.
vital fuel supplies for municipal buildings, data centers, and hospitals. In metropolitan environments, safety is guaranteed by explosion-proof ratings.
We understand your specifications vary by site conditions and regulatory requirements. Our engineering team adapts tank dimensions, wall configurations, and accessory packages to your exact needs.
Choose from domestic or international motor brands for pumping systems. Select vent configurations, ladder placements, and grounding options per local codes.
You receive comprehensive engineering drawings with component diagrams. Operation and maintenance manuals ensure your team handles routine tasks confidently.
Every tank includes Mill Test Certificates for steel traceability. Coating thickness verification (DFT testing) confirms corrosion protection standards.
Pre-shipment inspections cover weld quality, pressure testing, and leak detection functionality. Third-party certifications from TÜV and BV validate compliance.
Factory-direct pricing eliminates middleman markups. Our logistics partnerships with Tianjin and Shanghai ports streamline international shipping.
In-stock standard models ship within 3 days. Custom configurations complete production and quality checks in 15 days.

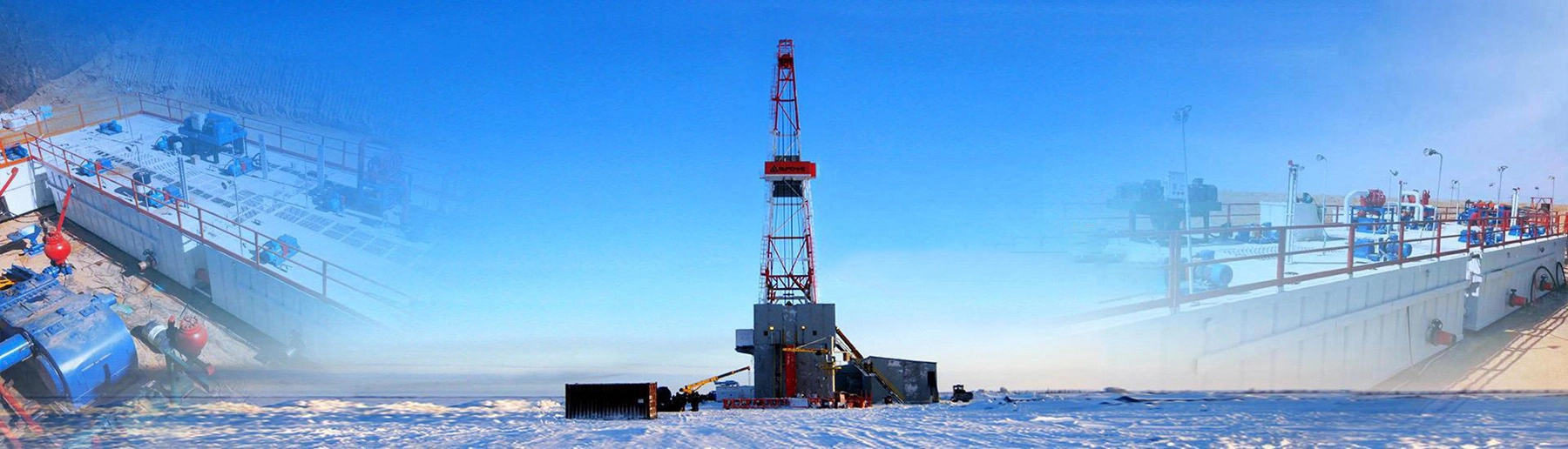

On-site installation guidance and technical training ensure safe commissioning. One-year warranty coverage protects against manufacturing defects.
Q1: Why should I choose a double-walled Diesel Tank?
Double-wall construction provides 110% secondary containment. If the primary tank develops a leak, the outer shell captures fuel before it reaches soil or groundwater. This design meets strict environmental regulations in most jurisdictions.
Q2: How do I prevent water accumulation inside the tank?
Condensation occurs when temperature fluctuates between day and night. Install desiccant breathers on vent lines to absorb moisture. Drain the sludge sump quarterly to remove accumulated water and sediment.
Q3: Can your tanks handle biodiesel blends?
Standard seals and gaskets work with conventional diesel. For B20 or higher biodiesel content, specify Viton or fluorocarbon materials during ordering. We verify chemical compatibility for your specific fuel type.
Q4: What maintenance schedule do you recommend?
Inspect external coatings annually for chips or rust. Check vent caps and overfill valves quarterly. Perform internal cleaning every 3-5 years depending on fuel quality. We provide detailed maintenance schedules in your operation manual.
Q5: How is the tank tested before delivery?
Each unit undergoes hydrostatic pressure testing at 3-5 psi for 24 hours. Welds receive ultrasonic inspection. Coating thickness measurements confirm corrosion protection. You receive test certificates with your shipment documentation.
Q6: Can the tank be elevated for gravity-fed dispensing?
Yes, we design elevated configurations on structural steel stands (2-6 meters height). This eliminates electric pumps in areas with unreliable power. Head pressure ensures consistent flow rates to machinery.
Ready to secure your fuel supply with proven industrial Diesel Tank storage? Reach out to our engineering team at oliver@zcgukong.com for technical consultations and quotations today.
