Can Horizontal Electronic Flare Ignition Device Optimize Gas Disposal in Large-Scale Drilling Areas?

Yes, the horizontal electronic flare ignition device can significantly improve gas disposal in large-scale drilling areas. Designed to work alongside mud gas separators, this device provides controlled, immediate combustion of waste gases released during drilling operations. Its horizontal configuration delivers a lower center of gravity and superior wind resistance compared to vertical units, making it especially effective at open-land drilling sites and during long-cycle venting tests for high-yield gas wells. For operations managing high gas volumes, this technology addresses both safety and environmental compliance demands with precision.

Understanding the Electronic Flare Ignition Device - Horizontal

What It Is and How It Works

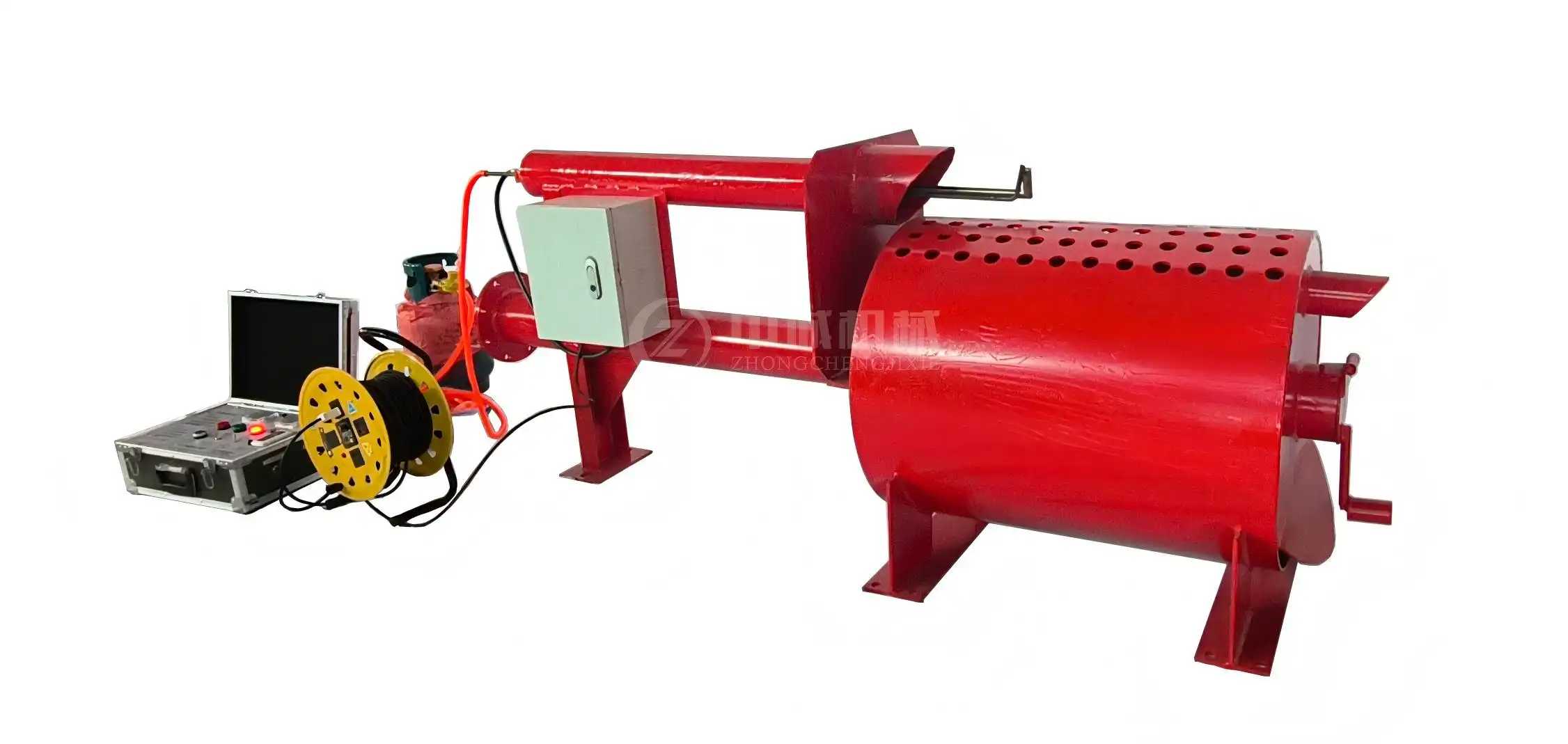

An electronic flare ignition device - horizontal is an important piece of support equipment for oil and gas drilling. It works best when paired with mud gas separators to handle the release of waste gas. It makes a high-voltage spark that ignites toxic or flammable gases, like H2S, on fire before they build up at the well site. There are both remote and manual ignition modes on the device, so operators can use it in both normal situations and emergencies.

Core Specifications That Matter

It comes with an horizontal electronic flare ignition device and torch diameters of 150mm and 200mm, as well as torch lengths of 2.5m and 3m. Different types of rigs, from ZJ30 to ZJ90, can use these designs to handle different gas flow rates. The level of electrical protection is at least IP55, which means it is strong against dust and water jets in the field.

Key Advantages Over Traditional Methods

Manual firing with flare guns is dangerous, doesn't always work, and is becoming more and more in violation of HSE rules. The electronic flare ignition device - horizontal gets rid of this risk by using a spark system that can be set off from a distance and works every time. The low-profile design also lowers the stress that wind loads put on the torch structure. This is very important on open fields where gusts can make vertical placements unstable.

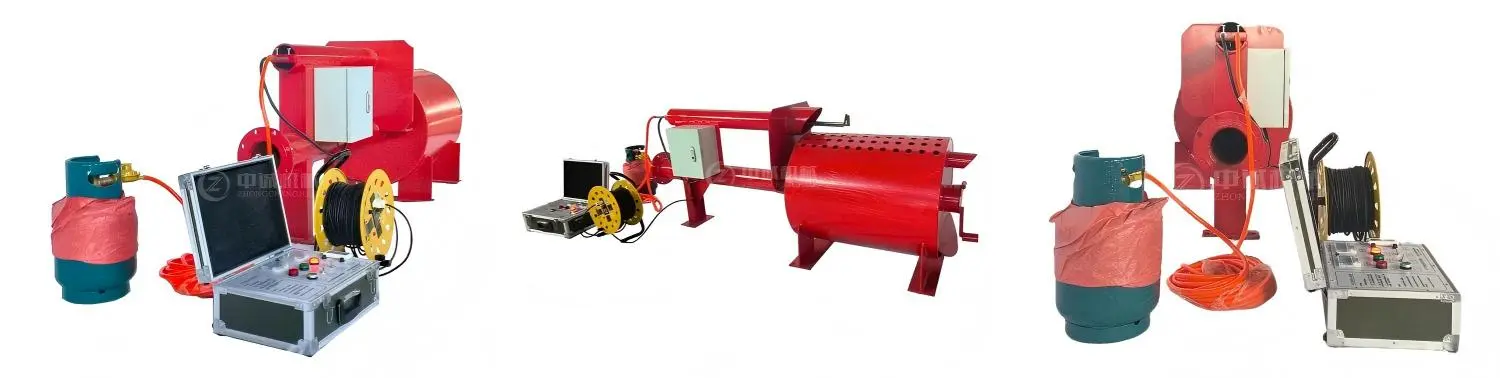

Installation and Maintenance Guide for Horizontal Electronic Flare Ignition Devices

Site Preparation and System Integration

Before starting the installation, the site team should make sure that the gas splitter release point and the direction of the flare line are correct. The horizontal electronic flare ignition device is connected directly to the separator's vent outlet, so it needs to be mounted on a stable base and properly connected to the wellsite's grounding system. ZHONGCHENGJIXIE provides installation instructions, commissioning help, and full technical documents so that field teams can set up the unit properly the first time.

Routine Maintenance Protocols

The part that is most likely to be damaged by heat and chemicals is the ignition spark. In places where there is a lot of H2S, it is best to check for sulfur rusting once a year. Check the insulation on the high-voltage wire, make sure the ignition transformer output is correct, and make sure the control signal path from the remote panel to the ignition tip is correct. Keeping these checks on a regular schedule lowers the chance that they will fail during important activities without warning.

Recognizing Early Warning Signs

Here are some signs that the unit needs your attention: a slow ignition response, sparking that comes and goes, or visible electrode erosion. By paying attention to these early warning signs, a small repair job can be stopped before it becomes a production slowdown. ZHONGCHENGJIXIE offers a 1-year warranty that covers all manufacturing defects. The company also keeps spare parts on hand for support after the warranty period is over.

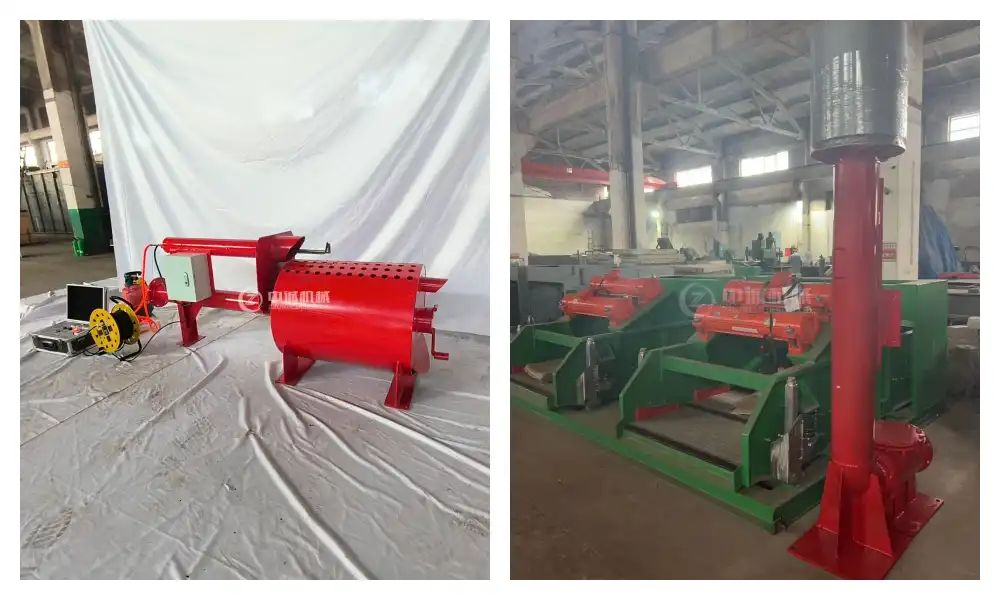

Horizontal vs Vertical and Electronic Flare Ignition Devices: A Comparative Analysis

Design Philosophy and Spatial Requirements

Vertical flare explosion stacks are popular in places where there is room above and not much space on the ground. Electronic flare ignition device - horizontals are made for drilling sites in open land and plains where wind resistance, transport frequency, and low-profile deployment are more important than height. Moving the horizontal model doesn't require heavy-duty lifting equipment, which cuts down on the cost of mobilization.

Performance Under Field Conditions

Here is a practical comparison across three key criteria:

• Wind Resistance: When there are strong crosswinds on open fields, the low center of gravity of the horizontal unit keeps the torch assembly stable. When the wind is the same, vertical units are more likely to experience structural stress, which can change how consistently they light.
• Transport and Deployment: The horizontal unit can be loaded onto regular vehicles without the need for cranes or other special equipment because it lies flat while being moved. It can be quickly moved from one well site to another by field teams, which is useful for workers who are in charge of more than one place at the same time.
• Maintenance Complexity: Air engines, solenoid valves, and air lines are all parts of pneumatic systems that could break. Electronic horizontal igniters have fewer moving parts, which makes upkeep easier in the field and lowers the cost of keeping the system running.

These three factors together make the horizontal electronic design perfect for large-scale, multi-well drilling projects that need to be quick to respond and reliable in the field.

Procurement Considerations for Horizontal Electronic Flare Ignition Devices

Evaluating Durability and Compliance

An electronic flare ignition device - horizontal should meet the quality and environmental management standards set by ISO 9001, ISO 14001, and ISO 45001 before being bought. The units made by ZHONGCHENGJIXIE have been approved by TÜV and BV, and they also meet HSE standards. This meets the certification needs of most foreign oilfield operators and EPC companies. For dusty and wet field environments, the electrical protection grade must be at least IP55.

Logistics, Packaging, and Delivery

A real risk of procurement is that equipment will get damaged on the way to remote sites. horizontal electronic flare ignition device are shipped by ZHONGCHENGJIXIE in safe packages made of plastic film, rainproof tarpaulins, and strapping. Based on the needs of the order, pallets or wooden boxes can be provided. In-stock units are sent out within three days, and unique versions are made and sent out within fifteen days. The company can easily move goods between countries because it has access to ports in Tianjin and Shanghai.

Supplier Qualification and After-Sales Support

When buying oilfield equipment, the long procurement cycles mean that you need to be sure of the supplier's production capabilities and support after delivery. ZHONGCHENGJIXIE is a direct producer, not a trade middleman. They have more than 30 years of experience in the field, more than a dozen patents, and the ability to make 200 mud circulation system sets every year. This means that technical questions can be answered faster and that users can get direct help from engineers for as long as the equipment is in use.

Optimizing Gas Disposal Efficiency with Horizontal Electronic Flare Ignition Device

Addressing Bottlenecks in Gas Combustion Systems

It's usual for ignition to fail or take too long to start during pressure surges in the field, especially when the gas composition changes quickly during the testing steps of a well. This is taken care of by the electronic flare ignition device - horizontal, which keeps a steady high-voltage spark discharge set up to light even in bad weather. When high-yield gas wells are put through long-cycle venting tests, they must have continuous and reliable ignition. This is for safety and environmental reasons.

Practical Implementation at Scale

Standardizing on a single horizontal ignition model is helpful for big drilling projects that use many rigs on open fields. Standardization makes it easier to keep track of extra parts, trains crews more quickly, and fixes problems more easily. This method is backed up by ZHONGCHENGJIXIE, which offers consistent specs across all rig classes and full technical documentation such as engineering drawings, flowcharts, and operation instructions.

Regulatory Compliance and Environmental Protection

EPA rules and state environmental agencies in the US govern gas flaring laws. These rules say that flare combustion efficiency must stay high during all release events. Electronic ignition that is controlled directly helps with compliance by stopping the release of unburned gas. For formations that contain H2S, the risks are even higher. This device neutralizes the toxic gas before it enters the air, keeping workers and people nearby safe.

Conclusion

The horizontal electronic flare ignition device is a useful and tried-and-true way to handle gas disposal in large drilling sites. Open-land oilfield operations are a good fit for its low-profile design, two ignition modes, and ability to work with mud gas separators. It is safer and easier to keep operations going when procurement teams choose a unit with valid certifications, a track record of good performance in the field, and support from a manufacturer with direct engineering capabilities.

FAQ

How does a horizontal flare igniter differ from a vertical unit?

The horizontal model is flat on the ground, which makes it lighter and better at blocking wind on wide plains. It's easier to load onto regular trucks without cranes, and it sets up more quickly than vertical stack setups.

What maintenance frequency is recommended in harsh environments?

For places with a lot of H2S, the starting spark should be checked once a year. In normal situations, checking the high-voltage wire shielding and transformer output every six months is enough to keep them working well.

Can the device handle continuous operation during long-cycle gas venting tests?

Yes. The machine is made to do long-cycle venting tests on high-yield gas wells, and it keeps working as well as the first time even after long venting periods.

What customization options are available?

There are 150mm and 200mm torch sizes and 2.5m and 3m torch lengths. Within 15 days, custom setups can be made based on the type of rig and the amount of gas flow.

Is the equipment certified for international oilfield projects?

Yes, the units are certified by ISO 9001, 14001, 45001, TÜV, and BV, and they follow all health and safety rules. This means they meet the standards of the world's biggest oilfield operators and EPC companies.

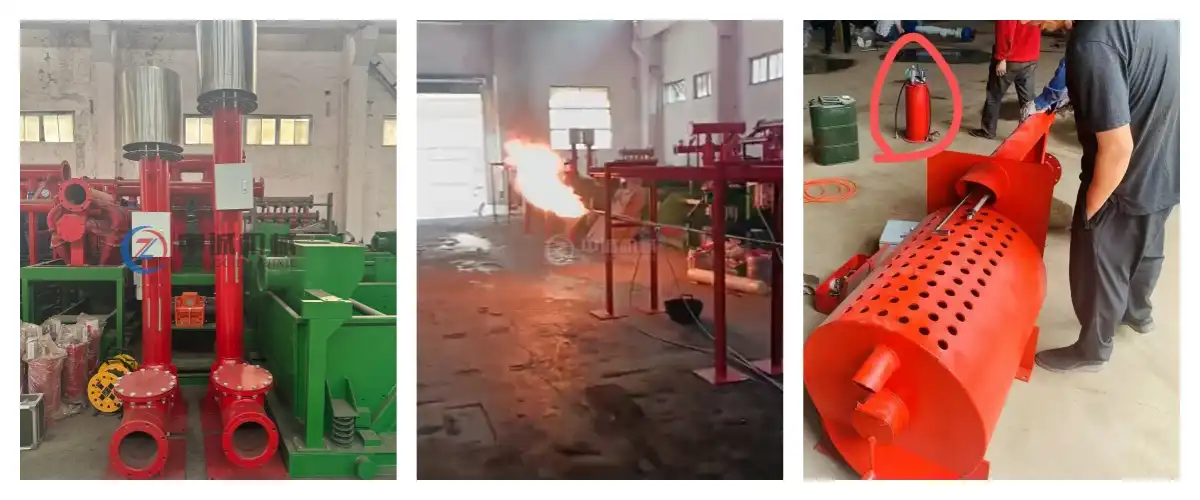

Partner with ZHONGCHENGJIXIE for Your Next Horizontal Flare Ignition Project

ZHONGCHENGJIXIE sells certified electronic flare ignition device - horizontals and has more than 30 years of experience making them and offers direct engineering support. Our team is a qualified electronic flare ignition device - horizontal supplier that can help you with a single unit or a large order. We offer competitive pricing, 3-day shipping on in-stock items, and full technical documentation. To get a quote right away, email us at oliver@zcgukong.com or go to zcsolidscontrol.com.

References

1. American Petroleum Institute. API Standard 537: Flare Details for General Refinery and Petrochemical Service. API Publishing Services, 2017.

2. U.S. Environmental Protection Agency. Control of Air Pollution from Oil and Natural Gas: Final Rules. EPA Office of Air Quality Planning and Standards, 2016.

3. Society of Petroleum Engineers. HSE Management in Drilling Operations: Field Practices and Case Studies. SPE International, 2019.

4. International Organization for Standardization. ISO 45001: Occupational Health and Safety Management Systems — Requirements. ISO, 2018.

5. Energy Institute. Guidelines for the Flaring of Petroleum Gases in Upstream Operations. Energy Institute, 2014.

6. World Bank Group. Zero Routine Flaring by 2030: Technical and Regulatory Framework for Reducing Gas Flaring. World Bank Publications, 2020.
