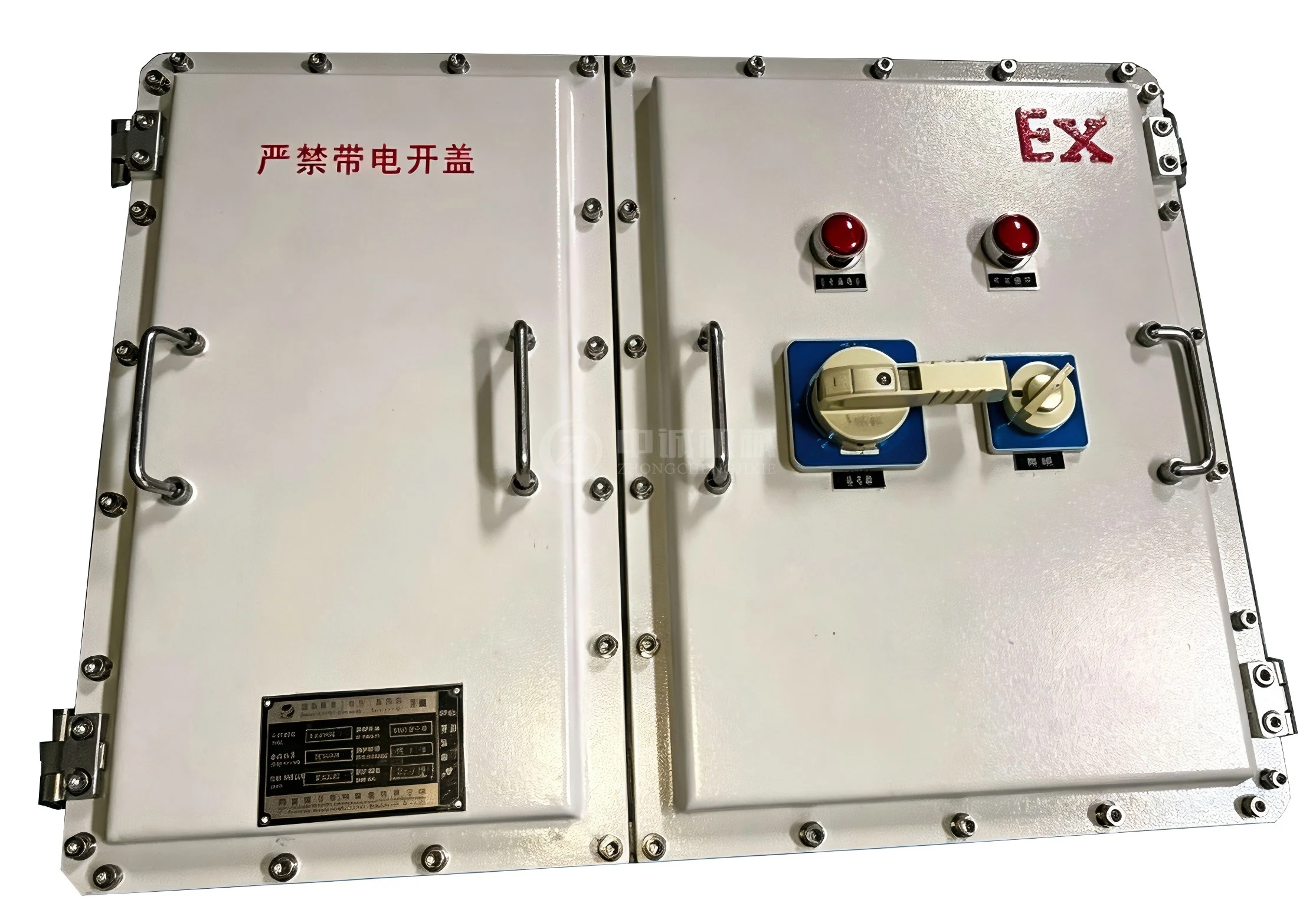

When electrical safety meets explosive risk, specialized protection becomes non-negotiable. The Explosion-proof Distribution Box from Zhongcheng Machinery represents core terminal equipment engineered for power distribution in flammable and explosive hazardous environments. Our solution achieves Ex d IIB T4 Gb certification with IP65+ protection rating, supporting both AC220V and AC380V voltage configurations with customizable current capacity.
Built with integral flameproof structure, this distribution box isolates internal arcs and sparks through precision-engineered shells. It prevents field explosion risks while ensuring stable circuit switching control. Backed by CCC, IECEx, ATEX, ISO, HSE, TÜV and BV certifications, our explosion-proof enclosures serve petrochemical facilities, coal mines, offshore drilling platforms and other high-risk industrial scenarios where reliable power distribution is mission-critical.
Understanding the technical backbone of explosion protection helps you make informed equipment decisions. Our distribution boxes combine multiple protection mechanisms into a single robust unit.
| Parameter | Specification |
|---|---|
| Explosion-Proof Grade | Ex d IIB T4 Gb / Ex tD A21 |
| Protection Level | IP65 (Standard) / IP66 (Optional) |
| Voltage Compatibility | AC220V / AC380V |
| Rated Current | 20A–250A; Branches: 2–12 circuits |
| Housing Material | Carbon Steel / Stainless Steel / Cast Aluminum Alloy |
| Operating Temperature | -25°C to +55°C |
| Ambient Humidity | ≤95% RH (Non-condensing) |
| Flameproof Joint Precision | Sub-millimeter tolerance per IEC 60079 |
| Internal Pressure Resistance | 1.5x explosive force capacity |
| Surface Treatment | Epoxy resin powder coating |
| Cable Entry Options | Factory-certified threaded/flanged entries |
| Cable Entry & Exit | G1/2"–G4", top inlet & bottom outlet available |
The flameproof joint surfaces utilize high-precision flange paths that cool escaping gases during fault conditions. This engineering detail prevents flame propagation to external atmospheres.
Your operational safety depends on multiple layers of engineered protection working in harmony. We've integrated fail-safe systems throughout the design.
Integral Explosion-Proof Architecture
The flameproof shell contains internal explosions triggered by electrical sparks or arcs. Pressure relief devices activate automatically during fault conditions. They release internal pressure rapidly while blocking flame spread through specialized joints.
Advanced Electrical Safeguards
High-quality circuit breakers provide overload, short-circuit and leakage protection simultaneously. Real-time monitoring systems track voltage, current and temperature parameters continuously. Automatic alarm and power disconnection occur when readings exceed safe thresholds.
Environmental Resistance Engineering
Anti-corrosion treatment protects against salt spray, chemical exposure and moisture ingress. The cabinet body withstands mechanical impacts and vibration typical of drilling operations. Dust-tight sealing prevents particulate contamination of internal components.
Door interlocking devices ensure you cannot open enclosures while circuits remain energized. This humanized safety feature prevents accidental exposure to live electrical components.
Different hazardous environments demand specific protection approaches. Our Explosion-proof Distribution Box adapts to your operational context through customizable configurations.
Petrochemical and Oil Refineries
Zone 1 and Zone 2 areas where hydrocarbon vapors intermittently accumulate require continuous power distribution. Our enclosures control pumps, compressors and lighting systems while preventing ignition sources. The stainless steel variant resists corrosive process chemicals.
Offshore Drilling Platforms
Salt-spray environments accelerate equipment degradation on marine installations. IP66-rated boxes with 316L stainless steel construction survive harsh offshore conditions. They power solid control systems, mud pumps and drilling equipment in explosive gas zones.
Coal Mining Operations
Underground coal mines present both methane gas and combustible coal dust hazards. Our dual-certified boxes (gas and dust) meet Ex tD A21 standards for Zone 21/22 dust environments. They distribute power to conveyor systems and ventilation fans safely.
Pharmaceutical Manufacturing
Fine combustible powders during medication processing create flash-fire risks in confined spaces. Increased safety (Ex e) variants prevent spark generation entirely through enhanced component spacing and thermal management.
Certification marks only tell part of the quality story. Behind each approval lies rigorous testing that validates real-world performance.
Hydrostatic Pressure Testing
We subject every enclosure to internal pressure 1.5 times higher than potential explosive force. This destructive test ensures structural integrity without permanent deformation. Only units passing this examination enter production batches.
Flameproof Path Measurement
Precision gauges verify gap tolerances between covers and bodies meet IEC 60079 requirements. Deviations of even 0.1mm compromise explosion containment. Our quality control rejects any unit failing dimensional inspection.
Ingress Protection Verification
IP testing chambers simulate water jets, dust storms and submersion conditions. We verify sealing effectiveness before applying IP65/IP66 ratings. Temperature cycling tests confirm gasket performance across -25°C to +55°C ranges.
Electrical Continuity Validation
Grounding system resistance must remain below 0.1 ohms to prevent static buildup. We test every bonding point and external connection terminal for proper earthing continuity.
These quality controls link directly to our ISO 9001, ISO 14001 and ISO 45001 certifications. They ensure consistent manufacturing standards across production batches.
Standard solutions rarely fit unique operational requirements perfectly. We offer flexible customization while maintaining certification integrity.
You can specify housing dimensions to fit space constraints at installation locations. Current capacity scales from lighting circuits to heavy motor loads. Internal component layout adapts to your switchgear brand preferences, whether Siemens, Schneider or domestic alternatives.
Cable entry configurations match your wiring approach—top entry, bottom entry or side entry patterns. Mounting arrangements include wall-mounted, floor-standing or pole-mounted options. Control panel layouts incorporate your preferred switch types and indicator lights.
Material selection balances budget and environment. Carbon steel suits general industrial zones. Stainless steel handles corrosive atmospheres. Cast aluminum reduces weight for portable applications.
All customization maintains original explosion-proof certification through factory-controlled modifications. We provide updated certification documentation reflecting your specific configuration.
What distinguishes Ex d from Ex e protection methods?
Ex d (Flameproof) enclosures contain internal explosions through robust construction and flame-cooling joints. Ex e (Increased Safety) prevents ignition sources through enhanced component spacing and current limitation. Choose Ex d for higher-risk zones with frequent explosive atmosphere presence.
Can I modify cable entries after installation?
Never attempt unauthorized modifications. Drilling additional holes compromises flameproof integrity and voids certifications. All cable entries must be factory-installed or added by certified technicians following strict procedures.
How do I select between aluminum and stainless steel construction?
Aluminum alloy offers cost-effectiveness and reduced weight for most gas hazard zones. Choose 316L stainless steel for marine environments, acidic chemical exposure or zones requiring superior corrosion resistance.
What maintenance schedule should I follow?
Inspect flameproof joint surfaces quarterly for corrosion, damage or contamination. Verify all enclosure bolts maintain specified torque values—loose fasteners create explosion paths. Clean sealing surfaces and apply anti-seize compound annually.
Does high IP rating guarantee explosion protection?
No. IP ratings address only dust and water ingress. Explosion-proof ratings (Ex) specifically certify the enclosure's ability to contain internal explosions and prevent external atmosphere ignition. You need both ratings for hazardous location applications.
Ready to specify your hazardous area distribution requirements for our Explosion-proof Distribution Box?Our technical team provides complete project solutions from design through commissioning. Contact oliver@zcgukong.com for customized quotations and engineering support today.
