Maintaining fluid integrity while eliminating harmful particulates is essential for both equipment longevity and operational cost control in contemporary drilling operations. One essential secondary purification element of Solids Control Systems is the Desander Hydrocyclone from ZC. Our solutions provide effective centrifugal purification that minimizes equipment wear and your operating expenses by expertly separating 47–76 μm sand particles without sacrificing mud characteristics. Our hydrocyclones are factory-direct solutions for both onshore and offshore drilling applications, certified to ISO 9001/14001/45001 standards and approved by HSE, TÜV, and BV. With more than 30 years of manufacturing experience, we offer tailored specifications and thorough post-purchase assistance to guarantee optimal performance in your solid-liquid separation procedures.

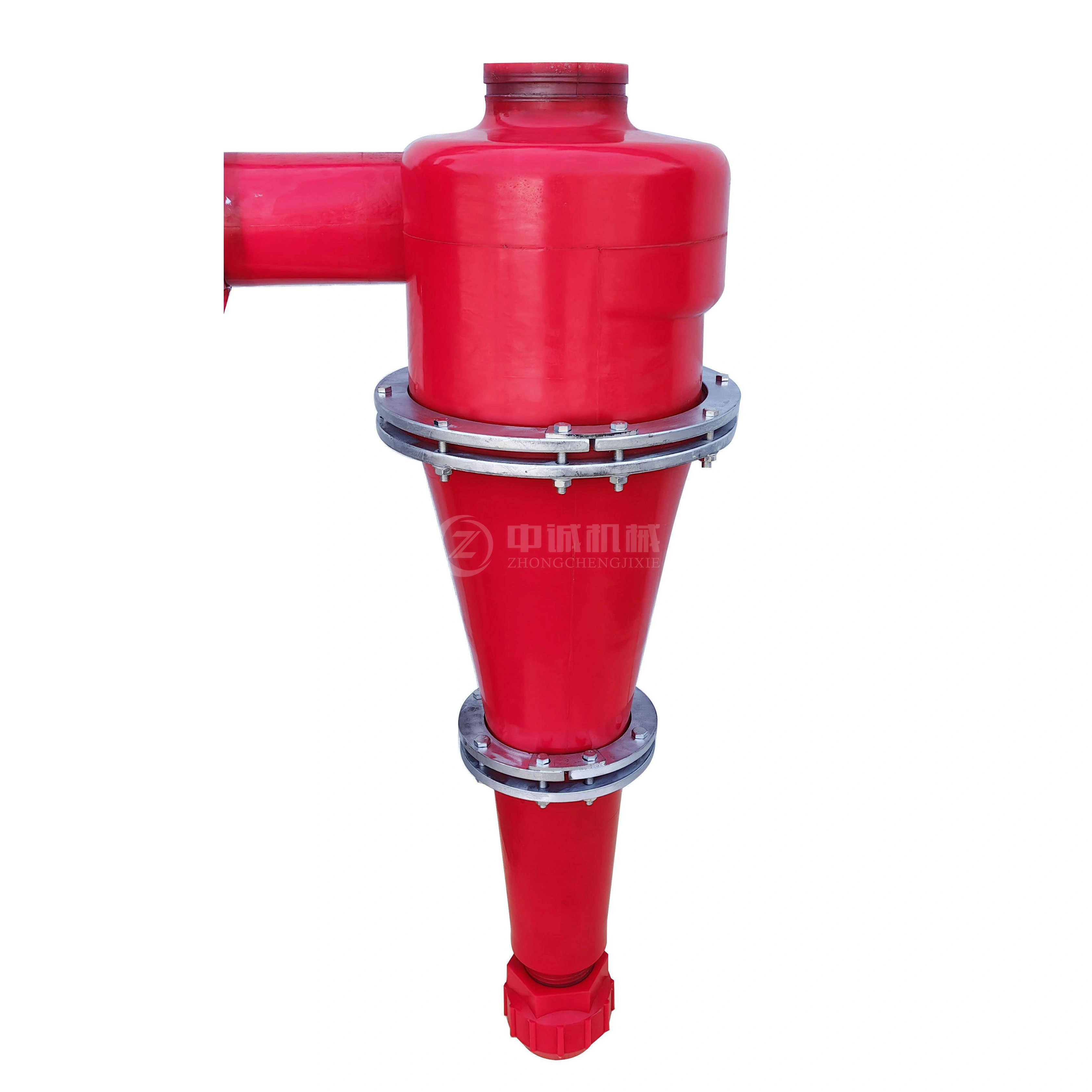

You can increase separation efficiency by comprehending the operating principle. A Desander Hydrocyclone uses static separation technology and centrifugal force to extract sand-sized particles from drilling fluids.
A strong rotating vortex is produced when drilling mud enters the hydrocyclone tangentially at controlled pressure. Heavy sand particles spiral downward to the underflow discharge after being pushed against the cone wall. In the meantime, the cleaned fluid returns to the active mud system after ascending through the vortex finder.
Particles missed by shale shakers are captured by this second-stage purification procedure. It shields downstream machinery from accelerated wear, such as centrifuges and desilters. Your mud's characteristics stay constant, avoiding density variations that could jeopardize the integrity of your wellbore.
Sustaining ideal feed pressure is essential for efficient functioning. Consistent cut points without early component wear are ensured by our devices' effective operation at 25–40 PSI.
Our engineering team has optimized every dimension for maximum efficiency. Here's what sets our hydrocyclones apart:
| Parameter | Specification |
|---|---|
| Separation Range | 47-76 μm (microns) |
| Cone Diameter | 10-12 inches (standard) |
| Feed Pressure | 25-40 PSI (0.17-0.27 MPa) |
| Processing Capacity | 500-1,100 GPM per cone |
| Inlet Design | Tangential/Involute configuration |
| Cone Material | High-grade Polyurethane (PU) |
| Optional Liner | Ceramic for high-abrasion formations |
| Underflow Control | Replaceable apex tips |
| Connection Type | Quick-clamp sectional assembly |
| Compliance Standards | API RP 13C, ISO certified |
| Operating Temperature | -20°C to 80°C |
| Weight (per cone unit) | Approximately 45-65 kg |
| Specifications | Diameter (mm) | Inlet Pressure (MPa) | Capacity (m3/h) | Cut Size (μm) |
|---|---|---|---|---|
| FX500 | 500 | 0.04-0.2 | 140-240 | 74-200 |
| FX400 | 400 | 0.04-0.2 | 100-170 | 74-150 |
| FX350 | 350 | 0.04-0.2 | 70-160 | 50-150 |
| FX300 | 300 | 0.04-0.2 | 45-90 | 50-150 |
| FX250 | 250 | 0.04-0.3 | 40-80 | 40-100 |
| FX200 | 200 | 0.04-0.3 | 25-40 | 40-100 |
| FX150 | 150 | 0.04-0.3 | 14-35 | 20-74 |
These specifications ensure your system handles varying solids loads without efficiency loss. Our modular design integrates seamlessly with existing mud circulation systems.
Our tangential and involute feed entry designs minimize inlet turbulence. This engineering approach ensures maximum separation efficiency with precise cut points. You'll notice cleaner discharge and more consistent mud properties across drilling phases.
The vortex stability we've achieved through CFD testing translates to reliable performance. Even in challenging formations with variable sand content, your system maintains optimal separation.

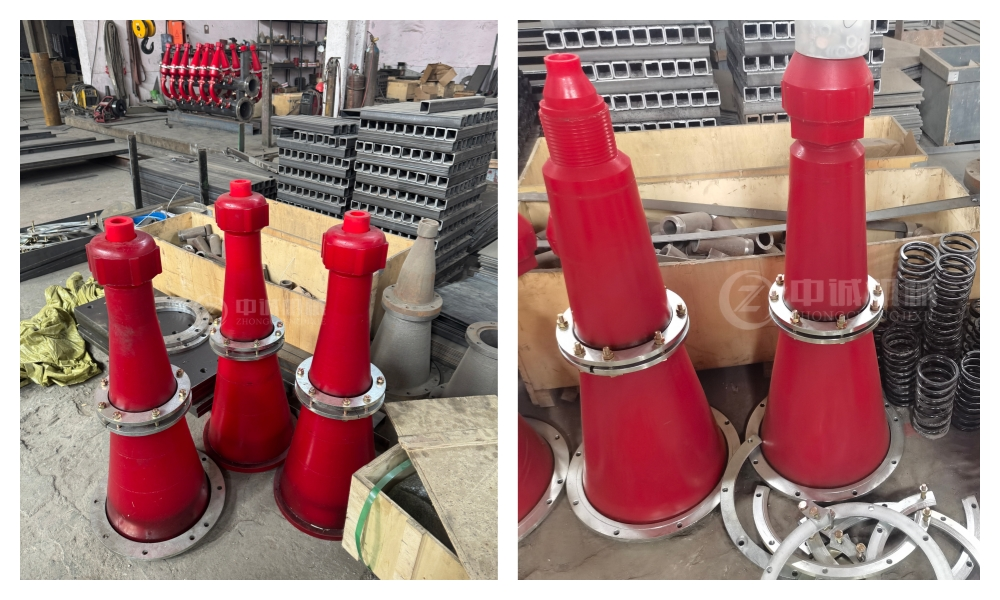

We use premium Polyurethane (PU) with outstanding abrasion resistance to cast our cyclone bodies. The material is resistant to mechanical stress, oils, and abrasive particles.
For highly abrasive formations, optional Ceramic Liners provide extended service life. Your maintenance intervals increase significantly, reducing downtime and replacement costs.
Material hardness testing (Shore A 90+) guarantees durability. Every unit undergoes rigorous quality control before leaving our 6,300-square-meter manufacturing facility.
Replaceable Underflow Tips (Apexes) give you control over discharge characteristics. You can adjust moisture content based on real-time solids loading without system shutdown.
When you notice the underflow discharge pattern changing from spray to rope, it's time for apex replacement. This simple adjustment restores optimal performance instantly.

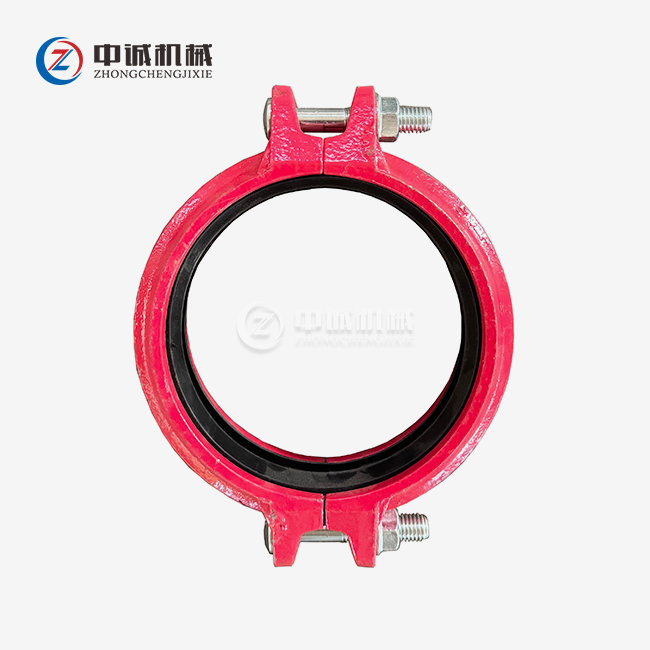

Our quick-clamp connections enable apex changes without specialized tools. Your crew can perform adjustments in minutes, not hours.
The sectional design philosophy drives down your maintenance costs. Quick-clamp connections allow complete disassembly for internal inspection without welding or complex procedures.
You can access internal components for cleaning or liner replacement quickly. This design reduces your operational downtime drastically compared to traditional welded units.
We provide detailed component diagrams and operation manuals with every order. Your maintenance team receives the Knowledge needed for confident field servicing.
Your operational environment determines specific configuration requirements. Here's where our Desander Hydrocyclone delivers measurable value:

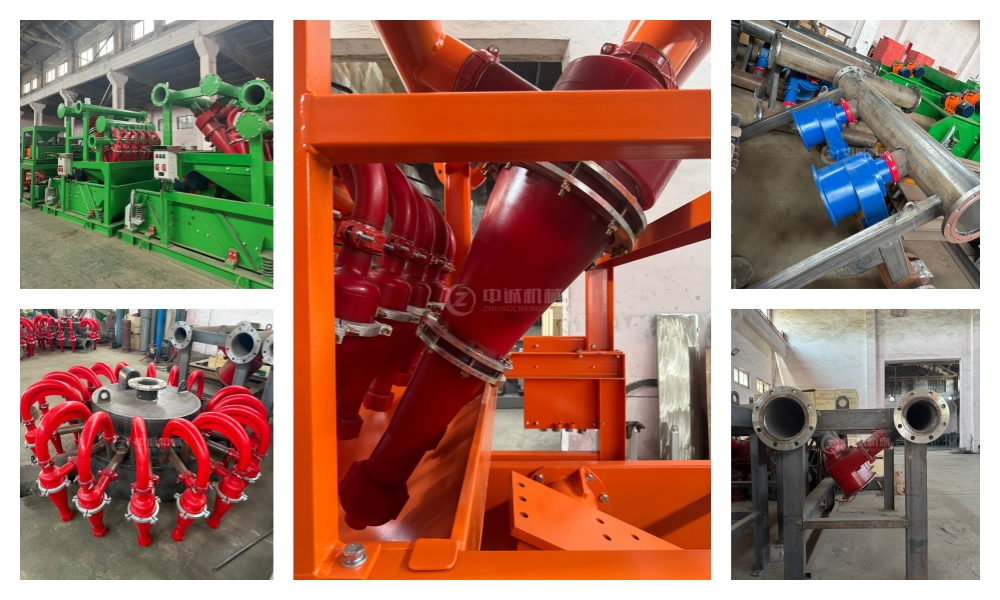

Oil & Gas Drilling Operations
In both onshore and offshore drilling, you face constant challenges with solids management. Our hydrocyclones handle weighted and unweighted mud systems effectively in HPHT (High Pressure High Temperature) wells. You'll prevent formation damage while maintaining wellbore stability.
Horizontal Directional Drilling (HDD)
Urban construction projects demand efficient slurry recirculation. High sand content in HDD operations threatens expensive mud pumps. Our units provide immediate particle removal, protecting your pumping equipment investment.
Micro-Tunneling Projects
When precision matters and equipment downtime equals project delays, reliable solids control is non-negotiable. Our hydrocyclones maintain consistent slurry properties throughout extended tunneling operations.
Mining and Mineral Processing
De-sliming and classification of ore slurries require precise particle size distribution. Our equipment performs reliably even in highly corrosive chemical environments where other units fail.

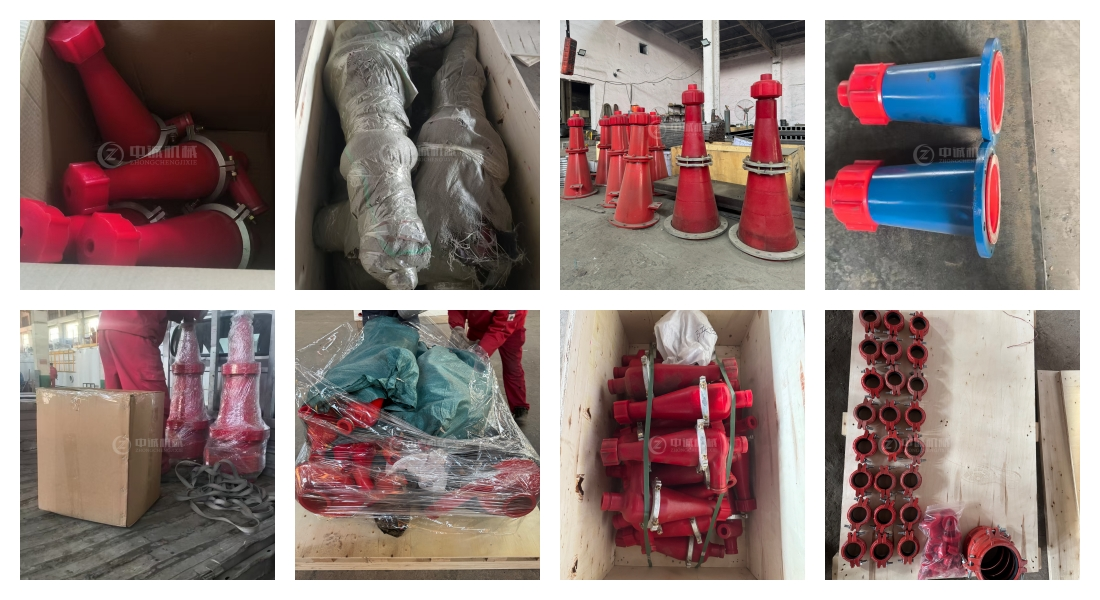

We understand that standard solutions don't fit every application. That's why we offer comprehensive customization services backed by our manufacturing capabilities.
Flexible Configuration Options
Choose from various cone quantities, manifold designs, and mounting configurations. We accommodate both domestic and international motor brand preferences. Dimensions adapt to your existing tank systems and space constraints.
Fast Delivery Schedules
In-stock products ship within 3 days of order confirmation. Customized orders deliver within 15 days, minimizing your project lead times. Our proximity to Tianjin and Shanghai ports ensures efficient international logistics.
Comprehensive Technical Support
Every purchase includes engineering drawings, flowcharts, and component diagrams. You receive complete operation and maintenance manuals translated into your preferred language. Our one-year warranty covers manufacturing defects and material failures.
Industry training and technical guidance come standard. Our professional service team develops complete project solutions tailored to your specific drilling parameters.
Factory-Direct Pricing
As the manufacturer, we eliminate distributor markups. You benefit from cost advantages without sacrificing quality or service. Our annual production capacity of 200 mud circulation systems ensures consistent availability.
Frequently Asked Questions
Q: What is the optimal feed pressure for consistent performance?
A: The ideal range is 30 to 35 PSI for 10-12 inch cones. Lower pressure results in poor separation (visible as "roping" in underflow). Higher pressure causes premature liner wear and increased energy costs.
Q: How do I identify when the apex needs replacement?
A: Monitor the underflow discharge pattern. A healthy apex produces a spray or fan pattern. When it changes to a rope or sausage shape, the apex has enlarged and requires replacement for restored efficiency.
Q: Can your hydrocyclones handle oil-based mud (OBM)?
A: Absolutely. We use oil-resistant grade polyurethane that prevents swelling and degradation in OBM applications. Specify your mud type when ordering for proper material selection.
Q: What differentiates a Desander from a Desilter?
A: The primary difference is cone size and target particle range. Desanders use 10-12 inch cones for particles above 45 microns. Desilters employ 4-inch cones for 15-45 micron particles. Your system typically needs both for complete solids control.
Q: Does the hydrocyclone require electrical power?
A: No. The Desander Hydrocyclone is a static device requiring only hydraulic pressure from your existing feed pump. This simplicity reduces installation complexity and operational costs.
Q: What maintenance schedule do you recommend?
A: Inspect apex condition daily during active drilling. Check liner wear weekly in abrasive formations. Perform complete internal inspection every 500 operating hours or quarterly, whichever comes first.
Q: Are replacement parts readily available?
A: Yes. We maintain inventory of all wear components including apexes, liners, and seals. Parts ship within 24 hours for standard configurations. Our global logistics network ensures timely delivery to your location.
Your investment deserves guaranteed performance. We implement rigorous quality control throughout manufacturing:
Hydrostatic Testing: Every manifold and cone undergoes testing at 1.5x working pressure to ensure zero leakage under operational conditions.
Material Verification: Durometer testing confirms polyurethane hardness meets Shore A 90+ specifications. We provide Material Test Reports (MTRs) for all steel components and casting certificates for cones.
Dimensional Precision: CMM (Coordinate Measuring Machine) inspection verifies internal cone angles and apex diameters. These dimensions directly impact your separation efficiency and cut point accuracy.
Flow Dynamics Validation: CFD (Computational Fluid Dynamics) testing validates vortex finder performance against theoretical D50 cut points before production approval.
Our certifications reflect commitment to international standards:
These credentials ensure your equipment meets regulatory requirements across global drilling operations.
Contact Us for Custom Solutions
Ready to improve your solids control efficiency and reduce operational costs with our Desander Hydrocyclone? Our engineering team is prepared to discuss your specific application requirements and develop customized solutions. Contact oliver@zcgukong.com today for technical specifications, quotations, and delivery schedules.
