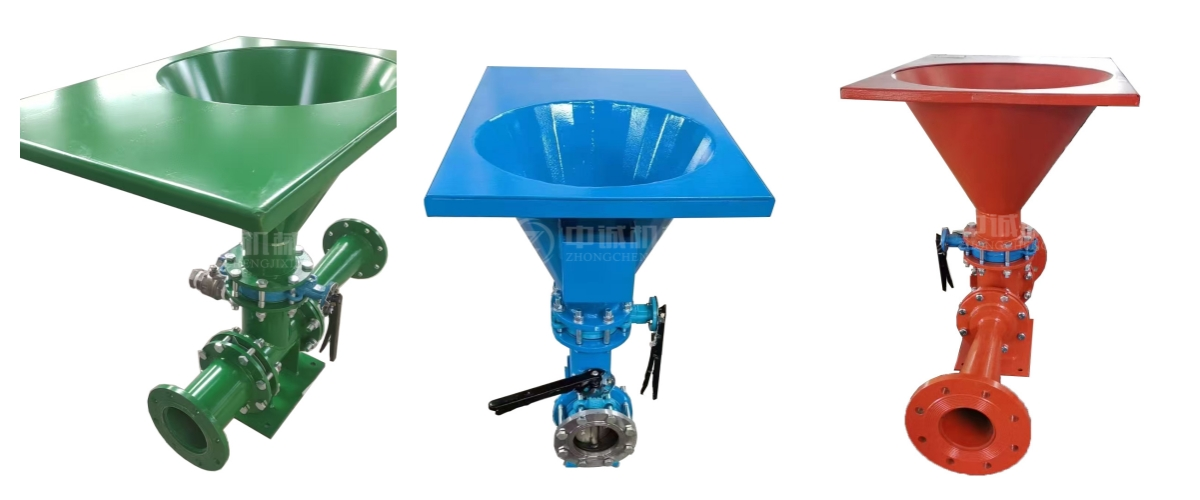

Shaanxi Xixian New District Zhongcheng Machinery Manufacturing Co., Ltd. presents its enterprise-grade Mud Mixing Hopper, engineered for rapid feeding and blending of drilling fluid and additives in demanding oilfield environments. Our equipment features precision-engineered nozzle diameters ranging from 30-50mm, inlet/outlet diameters of 600-700mm, and matching power configurations of 37-45kW. Built from high-strength carbon steel with streamlined flow channels, our mixing hoppers deliver smooth material passing, minimal residue accumulation, and stable long-term operation. Fully compliant with ISO 9001, ISO 14001, ISO 45001, HSE, TÜV, and BV standards, our units ensure reliable performance across oilfield solid control and drilling mud preparation systems worldwide.
Your drilling operations demand equipment that withstands harsh conditions. Our Mud Mixing Hopper is fabricated from high-strength carbon steel or optional stainless steel materials.
The integral thickened plate structure provides excellent rigidity and impact resistance. This design effectively resists long-term scouring from high-flow drilling mud and solid particles.
You'll experience minimal maintenance downtime. The robust construction ensures your equipment operates reliably in the most challenging drilling environments.
Material blockage can halt your entire operation. We've eliminated this risk through streamlined curved inner walls and large-caliber through-flow structures.
Dead corners and material deposition areas are completely removed. Your mud mixing and feeding processes run smoothly without interruption.
The anti-blockage design prevents overflow and material accumulation during continuous preparation. You maintain consistent operation throughout extended drilling cycles.
Uniform blending of drilling fluid and chemical additives is critical for wellbore stability. Our scientific structural design achieves this consistently.
The system maintains stable flow rates without material stratification. You get consistent mud performance that meets your precise specifications every time.
This efficiency translates directly to reduced chemical consumption. Your operational costs decrease while drilling performance improves.
| Parameter | Specification |
|---|---|
| Nozzle Diameter | 30-50mm |
| Inlet/Outlet Diameter | 600-700mm |
| Matching Power | 37-45kW |
| Material Options | High-strength carbon steel / Stainless steel |
| Flow Channel Design | Streamlined curved inner wall |
| Through-Flow Structure | Large-caliber design |
| Operational Stability | Long service life with minimal residue |
| Compliance Standards | ISO 9001, ISO 14001, ISO 45001, HSE, TÜV, BV |
| Model | ZCHHQ/P150×150-50 | ZCHHQ/P125×150-40 | ZCHHQ/P100×125-30 |
|---|---|---|---|
| Nozzle Diameter (mm) | 50/40 | 40/30 | 30 |
| Hopper Spec | φ700 | φ700 | φ600 |
| Hopper Outlet Size | 150 | 150 | 125 |

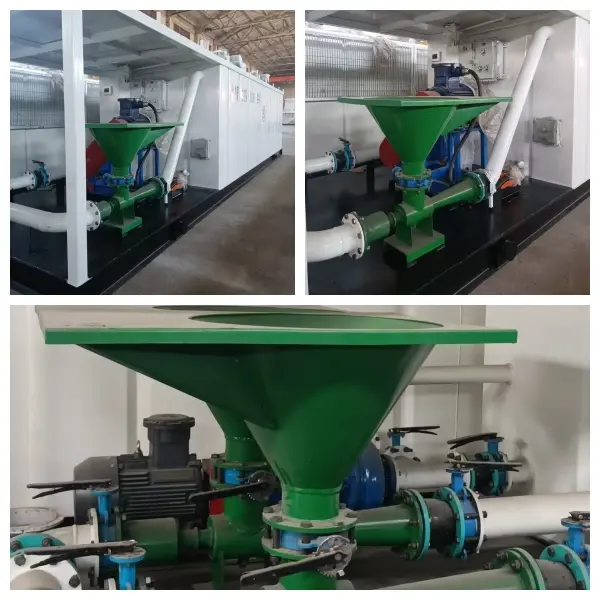

Your solid control system is the backbone of drilling operations. Our Mud Mixing Hopper integrates seamlessly with conventional mud tanks and circulation equipment.
It handles both onshore and offshore applications effectively. Whether you're operating drilling rigs like ZJ90, ZJ70, ZJ50, or smaller configurations, our equipment adapts to your requirements.
The hopper works continuously with shale shakers, desanders, desilters, and centrifuges. You maintain optimal drilling fluid properties throughout the entire circulation system.
Rapid mud preparation is essential when you encounter unexpected downhole conditions. Our mixing hopper accelerates the blending process significantly.
You can quickly adjust mud weight by adding barite or increase viscosity with bentonite. The high-velocity flow ensures complete dispersion of powdered additives.
This capability prevents the formation of undissolved clumps that compromise mud performance. Your drilling fluid maintains homogeneous properties that protect wellbore integrity.
Beyond traditional drilling, our equipment serves construction piling sand removal systems and tunneling operations. The compact footprint fits restricted job sites.
You maintain high-throughput mixing even in space-constrained environments. The system delivers consistent slurry properties required for horizontal directional drilling projects.
Every drilling project presents unique challenges. We offer multiple specifications and customized design options to match your exact requirements.
Our engineering team works directly with you to determine optimal nozzle sizes, inlet/outlet dimensions, and power configurations. You receive equipment precisely matched to your flow rates and tank systems.
Optional stainless steel construction is available for highly corrosive environments. Dual-port manifold configurations enable simultaneous introduction of liquid and dry additives when your operations require it.
Your investment includes comprehensive support beyond equipment delivery. We provide detailed engineering drawings, flowcharts, and component diagrams for your reference.
Operation and maintenance manuals ensure your team uses the equipment correctly. Our one-year warranty covers manufacturing defects and workmanship issues.
You also receive industry training and technical guidance from our experienced engineers. Our professional service team delivers complete project solutions tailored to your drilling scenarios.
As a direct manufacturer established in 2015, we control every aspect of production. Our 6,300-square-meter facility in Xingping City, Xianyang, maintains strict quality standards.
We perform non-destructive testing on critical welds to ensure structural integrity. Hydrostatic pressure testing at 1.5 times working pressure verifies leak-proof performance.
Material traceability reports document the quality of every component. You receive equipment that meets international standards for durability and safety.
Our facility produces approximately 200 sets of mud circulation systems and petroleum machinery equipment annually. This volume reflects our strong manufacturing experience and technical capabilities.
Each Mud Mixing Hopper undergoes rigorous inspection before shipment. Coating thickness measurements ensure protection against corrosive chemical additives in your drilling fluids.

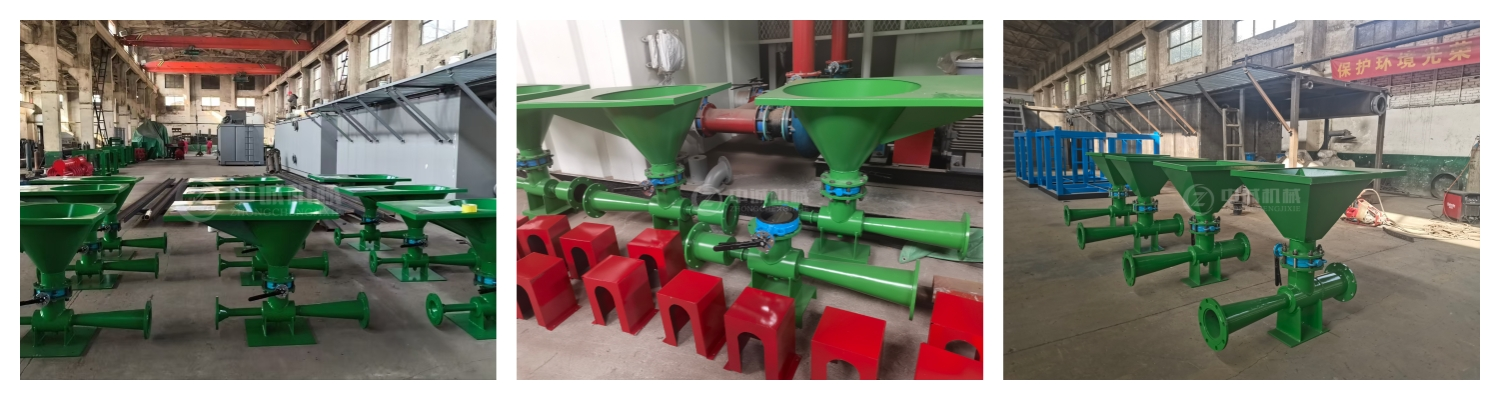

Time to market matters in the oil and gas industry. We maintain in-stock products ready for shipping within 3 days of order confirmation.
Customized orders are completed and delivered within 15 days. Our efficient production scheduling minimizes your equipment procurement timeline.
We've established strong partnerships with reliable logistics providers. Convenient access to Tianjin and Shanghai ports facilitates international shipping.
You receive equipment on schedule regardless of your global location. Our logistics coordination ensures safe transport and timely arrival at your drilling site.
Q: Why might suction force decrease over time?
A: Decreased suction typically results from partially clogged nozzles or insufficient inlet pressure. Check that your centrifugal pump head matches the minimum requirements. Regular nozzle inspections prevent this issue.
Q: How does your hopper prevent undissolved chemical clumps?
A: Our design creates high turbulence at the point of contact. Each particle is individually wetted before entering the tank, ensuring complete dispersion of polymers and other powdered additives.
Q: Can the equipment handle both liquid and dry additives?
A: Yes. While optimized for dry powders, our hopper can be fitted with a dual-port manifold. This configuration allows simultaneous or independent introduction of liquid chemicals based on your needs.
Q: What is the typical lifespan of the mixing nozzle?
A: With hardened alloy construction, nozzles typically last 12-24 months depending on additive abrasiveness. We recommend quarterly inspections for throat erosion to maintain optimal performance.
Q: Is the hopper compatible with automated systems?
A: Absolutely. Modern units can be equipped with pneumatic butterfly valves and weight-scale sensors. These integrate seamlessly with PLC-based automated dosing systems for precise control.
Q: What customization options are available?
A: We customize dimensions, configurations, motor brands, and material specifications. Both domestic and international motor options are available to match your power supply standards and preferences.
Ready to enhance your drilling fluid preparation efficiency with our Mud Mixing Hopper? Contact our team at oliver@zcgukong.com for customized solutions and competitive factory-direct pricing today.
