Shaanxi Xixian New District Zhongcheng Machinery Manufacturing Co., Ltd., with over 30 years of machinery expertise and ISO 9001/14001/45001 certification, manufactures precision parts specifically engineered for oilfield solid control applications. Our ZC Cyclone Inlet Elbow serves as a critical connecting component between mud cleaner manifolds and hydrocyclone circulation systems. Available in 90°, 45°, and custom configurations, these precision-engineered fittings feature optimized anti-wear curvature design that reduces turbulence by up to 40% compared to standard elbows. Our elbows provide stable feeding pressure and guarantee separation consistency across ZJ and XJ series drilling rigs thanks to their heavy-duty polyurethane or ceramic lining construction. Our 6,300-square-meter Xingping production facility's factory-direct supply ensures reasonable price and dependable delivery.
When you integrate our cyclone inlet components into your solid control system, you're investing in optimized flow performance.

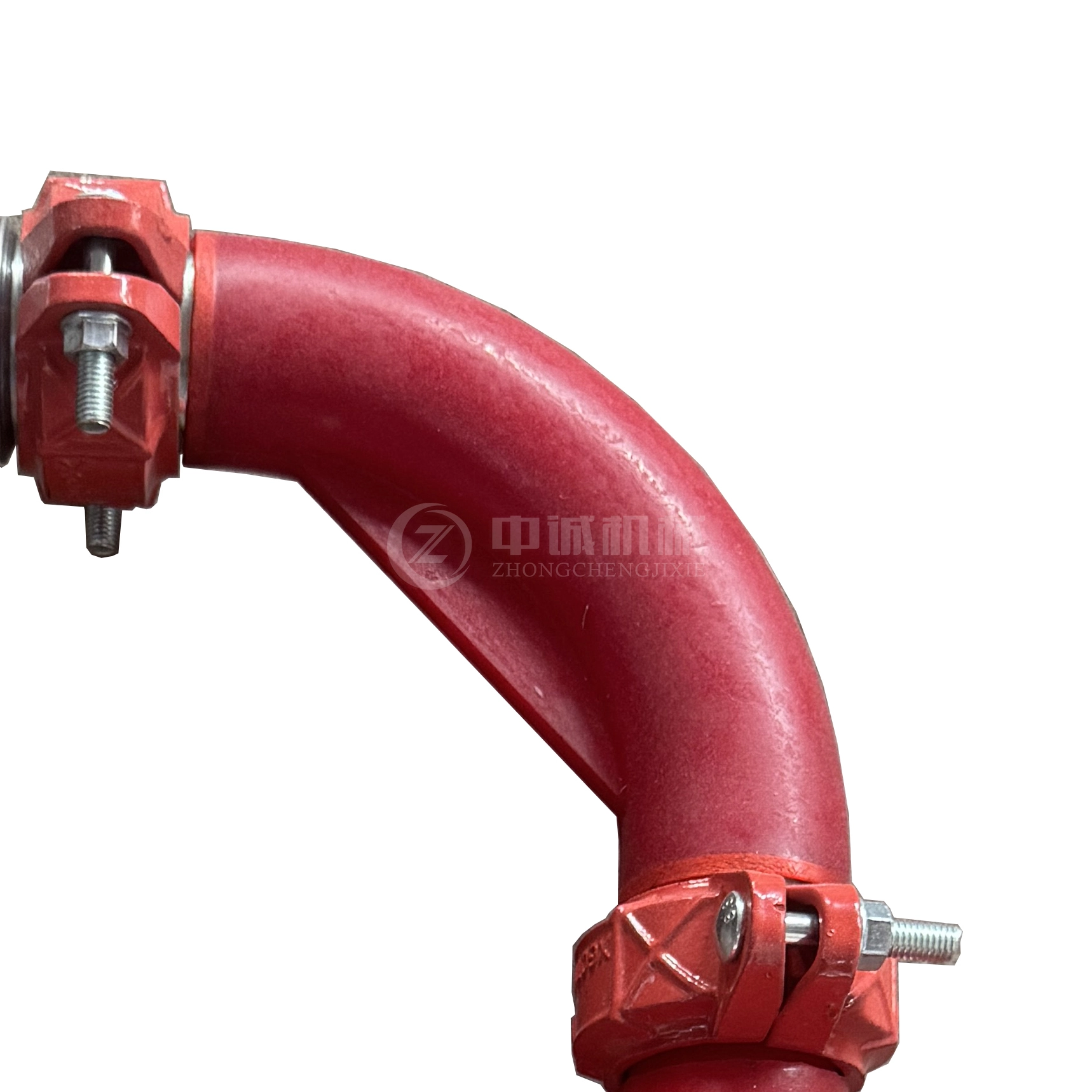

Our long-radius design minimizes pressure drop during flow redirection. This engineering approach ensures that drilling mud enters the cyclone at the ideal velocity and angle for maximum separation efficiency.
The precisely calculated curvature reduces flow resistance significantly. Your system maintains consistent operating pressure, which directly translates to improved desanding and desilting performance.
Every fitting is inspected using a Coordinate Measuring Machine (CMM). We ensure smooth connection with your current manifold infrastructure by maintaining dimensional correctness within micron-level tolerances.
Rigid Surface Roughness Measurement (Ra) is used to manage internal surface roughness. Smooth internal bores reduce friction loss and avoid the buildup of particulates that could reduce flow efficiency.
Abrasive drilling mud containing sand, shale, and other solids creates harsh operating conditions. Standard metallic fittings fail prematurely under constant scouring.

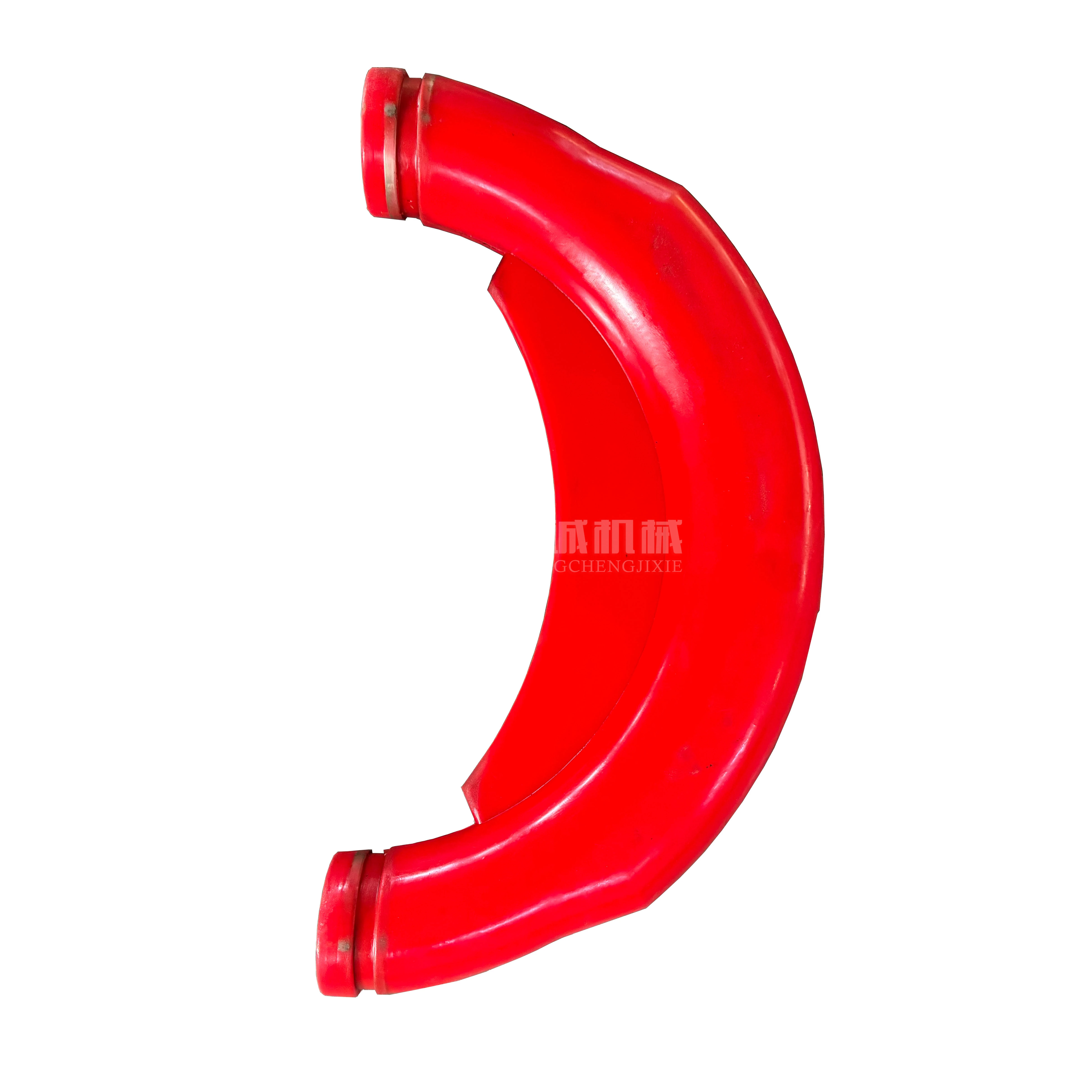

Our Inlet Elbow components feature specialized construction materials. We manufacture using heavy-duty polyurethane or incorporate ceramic linings depending on your application requirements.
Polyurethane options deliver exceptional impact resistance. The material absorbs shock loads while maintaining structural integrity even when processing highly abrasive fluids.
Ceramic-lined versions provide the ultimate wear protection. These fittings withstand extreme abrasion, extending service life by 300-500% compared to conventional steel elbows.
This specialized construction reduces your maintenance frequency. You'll experience less downtime for component replacement, which improves overall drilling operation efficiency and reduces operational costs.
| Parameter | Specification |
|---|---|
| Product Name | ZC Cyclone Inlet Elbow |
| Elbow Angles | 90°, 45°, Custom configurations |
| Compatible Cyclone Sizes | 4", 5", 10", 12" |
| Material Options | Heavy-duty Polyurethane, Ceramic-lined, Stainless Steel 304/316 |
| Connection Type | Victaulic-style couplings, Flanged ends |
| Pressure Rating | PN16 to PN100 (150-1500 PSI) |
| Temperature Range | -40°C to 250°C |
| Design Standard | ASME B16.9, ISO 9001:2015 |
| Curvature Type | Long-radius optimized design |
| Surface Treatment | Anti-corrosion coating, Smooth internal finish |
| Quality Testing | Hydrostatic pressure (1.5x rated), Ultrasonic testing |
| Warranty Period | 12 months |
| Customization | Dimensions, configurations, material grades |
System integration challenges often cause project delays. Mismatched connections lead to leakage, pressure loss, and unplanned maintenance shutdowns.
Standard interfaces are used in the design of our intake components. Leak-proof connections with leading international cyclone brands are ensured by victaulic-style couplings and flanged ends.

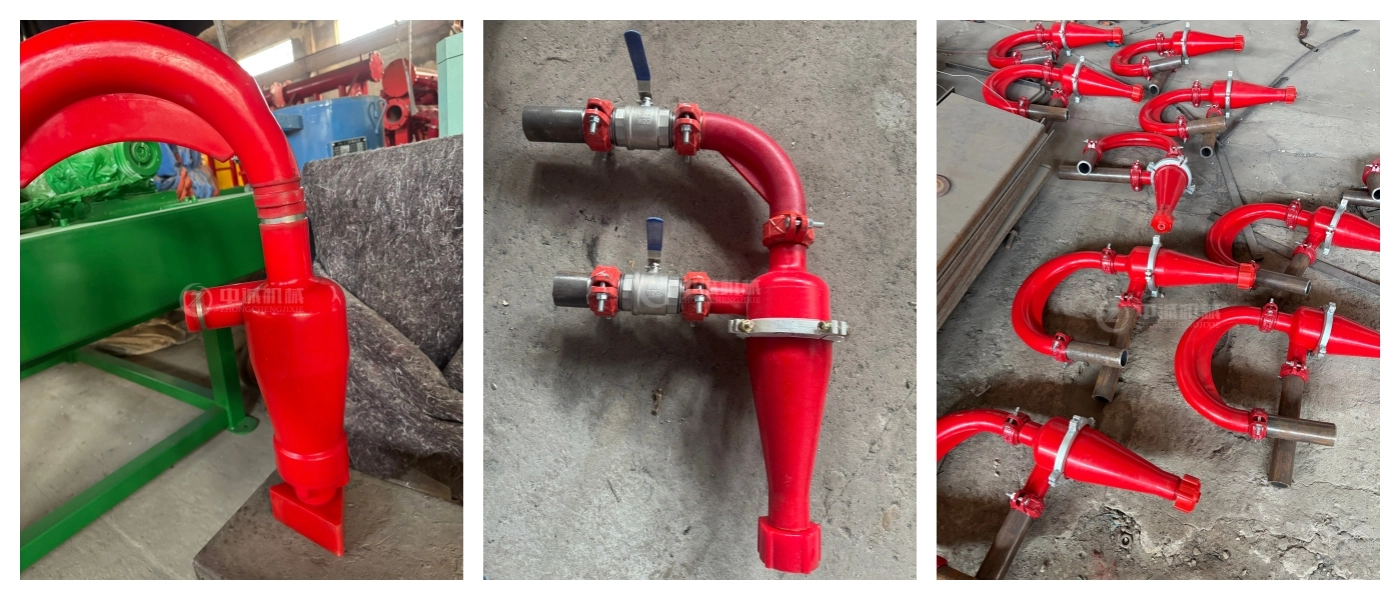

These fittings may be easily attached to hydrocyclones that are 4", 5", 10", or 12". This universal compatibility lowers the complexity of procurement and streamlines inventory management.
Hydrostatic pressure testing is performed on the precisely machined sealing surfaces at 1.5 times the rated pressure. Before shipment, zero-leakage performance is checked, guaranteeing dependable functioning right away.
The chemical makeup of our alloy components is confirmed by spectroscopic research. Your fittings will fulfill the required material standards and performance characteristics thanks to this quality control procedure.
Industrial components operating in oilfield environments face extreme conditions. Premature failure can result in costly downtime and safety hazards.
We implement rigorous quality control protocols throughout manufacturing. Every Inlet Elbow undergoes multiple inspection stages before approval for shipment.
Ultrasonic Testing (UT) detects internal casting defects or wall thinning. This non-destructive testing method identifies potential failure points that could cause catastrophic breakdown under surge conditions.
Our CMM inspection verifies geometric accuracy. Critical dimensions are measured and documented to ensure each fitting meets your exact specifications.
Material certification documents accompany each shipment. You receive complete traceability for alloy composition, heat treatment records, and mechanical property test results.
This comprehensive quality approach has earned us ISO 9001, ISO 14001, and ISO 45001 certifications. Additionally, our products carry HSE, TÜV, and BV approvals, demonstrating compliance with international standards.

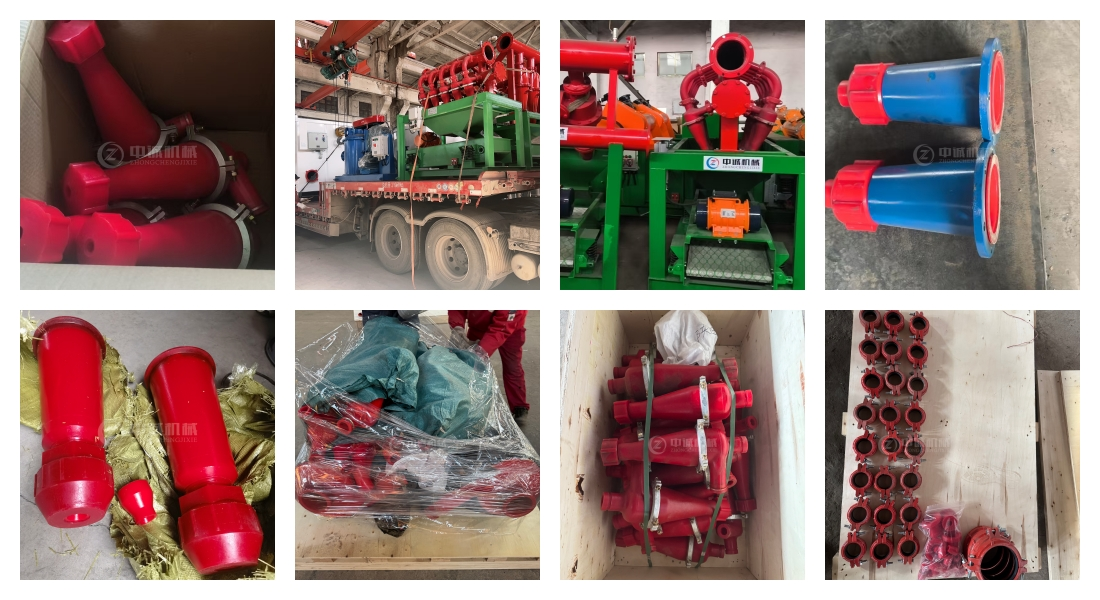

Standard components don't always fit specialized drilling applications. Your unique manifold configurations may require custom solutions.
We offer personalized customization services for dimensions, configurations, and material specifications. Our engineering team collaborates with you to design fittings that perfectly match your system requirements.
You can select from domestic or international motor brands for integrated equipment. This flexibility allows you to balance performance requirements with budget constraints.
Our 6,300-square-meter production facility in Xingping City maintains manufacturing capacity for approximately 200 sets of mud circulation systems annually. This robust production capability supports both standard and custom orders.
Delivery timelines are exceptionally competitive. In-stock products ship within 3 days, while customized orders are completed within 15 days from specification approval.
We maintain strong partnerships with logistics providers. Our convenient access to Tianjin and Shanghai ports facilitates efficient international shipping to your drilling sites worldwide.
Our cyclone inlet components serve diverse solid control applications across the oil and gas drilling industry.
They integrate seamlessly with various oilfield solids control manifold systems. Whether you operate ZJ90, ZJ70, ZJ50, ZJ40, ZJ30, ZJ20 drilling rigs or XJ750, XJ650, XJ550, XJ450, XJ350 workover rigs, these fittings provide reliable performance.
Construction piling projects benefit from our sand removal system components. The wear-resistant construction withstands abrasive slurries encountered in foundation drilling applications.
Fracturing return liquid treatment systems rely on efficient solids separation. Our fittings maintain consistent flow characteristics even when processing fluids with variable solids content and viscosity.
Sludge dewatering treatment systems require components that resist chemical attack. Our material options include corrosion-resistant grades suitable for aggressive fluid environments.
Mud non-landing systems demand zero-leakage performance. Our precision-engineered fittings meet the stringent sealing requirements of closed-loop circulation systems.
Q: How does the elbow radius affect separation efficiency in hydrocyclone systems?
A: The long-radius design significantly impacts performance. Reduced turbulence maintains the flow velocity profile needed for optimal cyclone separation. Short-radius elbows create secondary flow patterns that reduce separation efficiency by 15-25%. Our optimized curvature design preserves the laminar flow characteristics essential for consistent desanding and desilting performance.
Q: What causes premature wear in cyclone inlet connections?
A: Abrasive particle impact and turbulent flow patterns are the primary failure mechanisms. When drilling mud changes direction sharply, particles strike the inner wall at high velocity. Our polyurethane and ceramic-lined options absorb this impact energy, distributing wear across a larger surface area. Properly selected materials can extend service life from weeks to months in high-solids applications.
Q: Can I retrofit your elbows to existing manifold systems?
A: Yes, absolutely. Our standard interface designs ensure compatibility with existing infrastructure. We provide Victaulic-style couplings and flanged options that match industry-standard dimensions. If you're working with older equipment, our engineering team can create custom adapter solutions. Send us your manifold specifications and we'll confirm compatibility or design a retrofit solution.
Q: How do I choose between polyurethane and ceramic-lined options?
A: Your selection depends on operating conditions. Polyurethane excels in applications with moderate abrasion and where impact resistance is important. It handles thermal cycling better and costs less. Ceramic linings are ideal for extreme abrasion environments with high solids concentration. They offer superior hardness but are more brittle. Consider your mud properties, flow rates, and budget when selecting material specifications.
Q: What documentation do you provide for quality verification?
A: Every shipment includes comprehensive documentation. You receive material certificates with spectroscopic analysis results, hydrostatic test reports showing pressure ratings, dimensional inspection records from CMM verification, and ultrasonic testing results confirming structural integrity. We also provide ISO certification copies and compliance statements for relevant industry standards. This complete documentation package supports your quality assurance requirements.
Ready to improve your solid control system performance with premium Inlet Elbow? Our engineering team is available to discuss your specific requirements.
Contact Us today at oliver@zcgukong.com for technical specifications, pricing, and delivery information.
