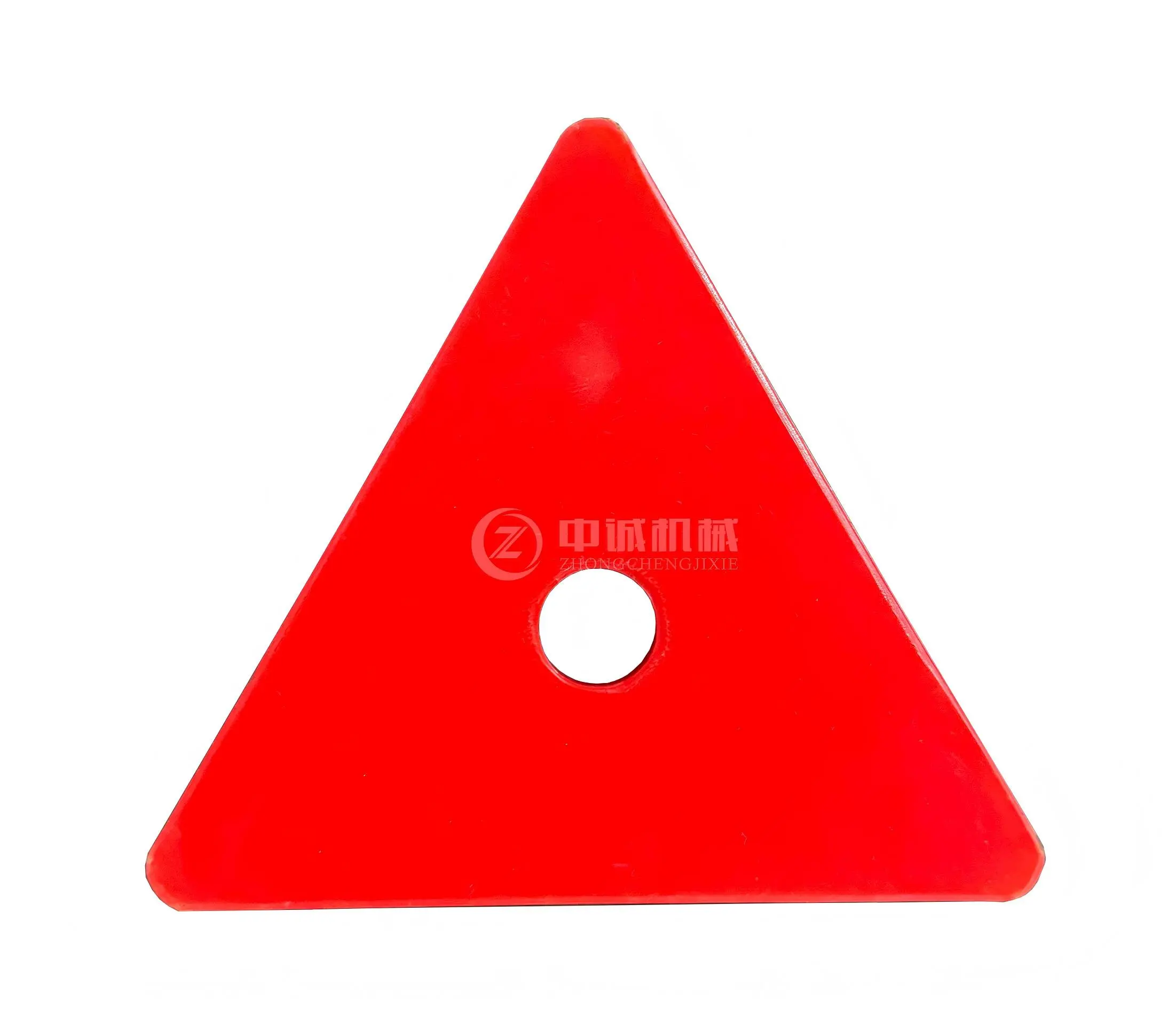

Zhongcheng Machinery Manufacturing delivers precision-engineered Triangular Underflow Nozzle (Apex) solutions specifically designed for oilfield hydrocyclone solid control systems. Our high-performance nozzles feature proprietary triangular outer geometry that enables tool-free installation and anti-loosening performance. Manufactured from high-durometer polyurethane or ceramic-lined materials with Mohs hardness rating of 9.0+, these components achieve 25% superior abrasion resistance compared to conventional cylindrical designs. The innovative umbrella discharge pattern eliminates material accumulation while maintaining continuous separation efficiency at solid concentrations up to 70%. Certified under ISO 9001/14001/45001 and validated by HSE, TÜV, and BV, our nozzles reduce downtime by up to 40% across all shale shaker hydrocyclone models in demanding drilling environments.
Your drilling operations face relentless challenges from abrasive slurries and corrosive drilling fluids. Our Triangular Underflow Nozzle (Apex) addresses these demands through material science breakthroughs.
We utilize high-hardness polyurethane formulations with Shore D ratings exceeding industry standards. For extreme applications, ceramic-lined variants incorporate reaction-bonded silicon carbide (RBSiC) or alumina inserts.
These materials deliver exceptional performance metrics. Tensile strength ranges from 45-60 MPa for polymer bases. Ceramic inserts withstand temperatures up to 1300°C while maintaining structural integrity.
The density spectrum of 2.5 to 3.2 g/cm³ ensures optimal balance between wear resistance and operational flexibility. Temperature resistance reaches 150°C for polymer configurations, accommodating thermal cycling in high-pressure drilling circuits.
Internal surface finishing achieves Ra < 1.6 μm roughness. This precision polishing minimizes friction losses and prevents premature wear initiation points that compromise component longevity.

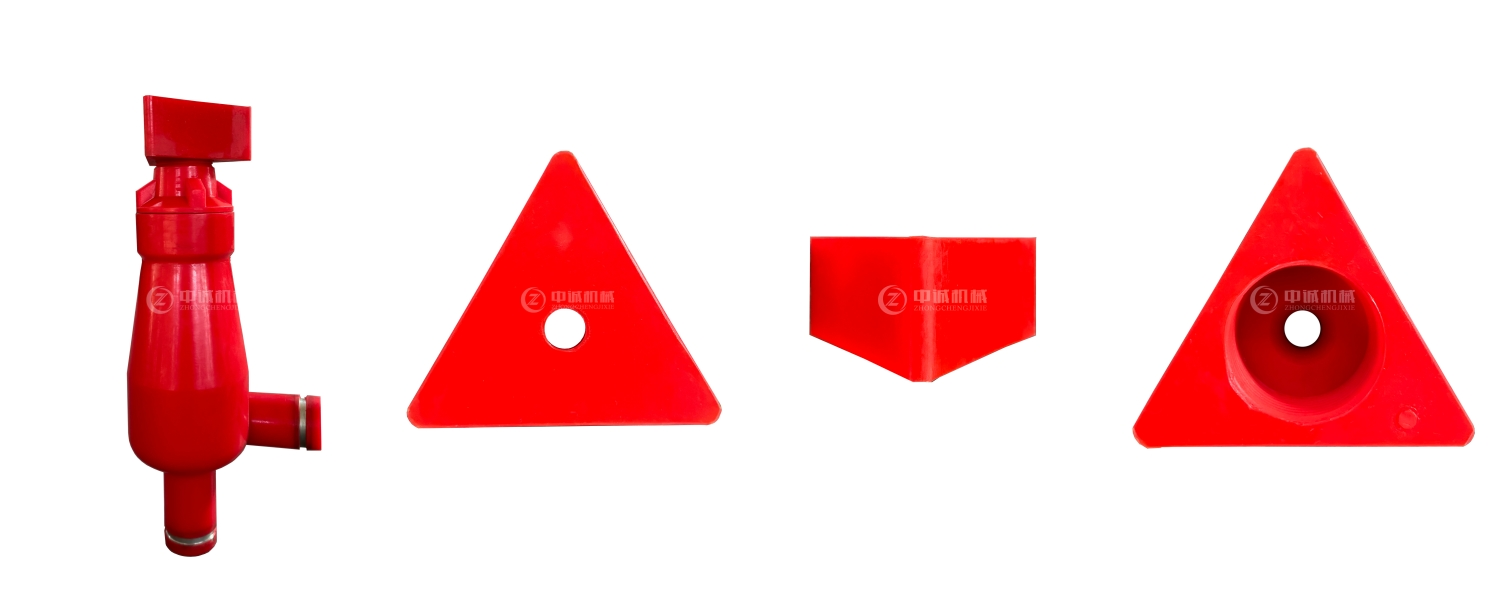

Conventional cylindrical nozzles require specialized wrenches and cause costly production delays during replacement. Our triangular profile transforms maintenance workflows.
The three-sided external structure provides natural gripping surfaces for hand tightening. Operators achieve secure installation without hydraulic torque tools or custom fixtures.
This geometric innovation incorporates anti-rotation features. Once positioned, the triangular engagement prevents loosening under vibration and pulsating flow conditions typical in cyclone operations.
Field replacements now complete in under 3 minutes. Your maintenance teams eliminate downtime previously spent locating specialized equipment or waiting for technicians with proper tools.
The design also improves inventory management. Standardized triangular connections across multiple cyclone models reduce the variety of installation Accessories you need to stock at remote drilling sites.
| Technical Specification | Value |
|---|---|
| Material Options | Polyurethane (PU) / Ceramic (RBSiC, Alumina) |
| Hardness Rating | Shore D 70-85 (PU) / Mohs 9.0+ (Ceramic) |
| Tensile Strength | 45-60 MPa (PU) / 350+ MPa (Ceramic) |
| Temperature Resistance | 150°C (PU) / 1300°C (Ceramic) |
| Density Range | 2.5-3.2 g/cm³ |
| Surface Roughness | Ra < 1.6 μm |
| Dimensional Tolerance | ±0.05 mm |
| pH Resistance | 0-14 (Ceramic variants) |
| Pressure Rating | Up to 0.6 MPa |
| Service Life | 6-12 months (continuous operation) |
| No. | Item | Specification |
|---|---|---|
| 1 | Orifice Size | 15mm–40mm (standard range, varies by cyclone model) |
| 2 | Material | Polyurethane composite, high-strength SiC ceramic, wear-resistant ceramic |
Your hydrocyclone efficiency depends entirely on maintaining proper underflow discharge patterns. Plugging and roping represent critical failure modes that disrupt solids removal.
Our internal flow path engineering addresses these challenges through computational fluid dynamics optimization. The triangular structure supports a streamlined hydraulic profile that reduces turbulent energy loss by up to 18%.
The geometry breaks surface tension and boundary layer effects that cause conventional nozzles to transition from spray to rope discharge. This remains effective even when handling sticky clay particles common in drilling mud systems.
Available orifice sizes from 6mm to 25mm allow precise discharge control. You can fine-tune underflow moisture content based on real-time sand loading and changing formation characteristics.
The standard umbrella discharge pattern creates a stable cone-shaped flow. This prevents accumulation around the nozzle outlet and maintains consistent separation cut-points throughout extended operating cycles.
Performance remains stable at solid-to-liquid ratios up to 70%. While conventional designs fail under these concentrated conditions, our Triangular Underflow Nozzle (Apex) maintains separation efficiency across the full process envelope.

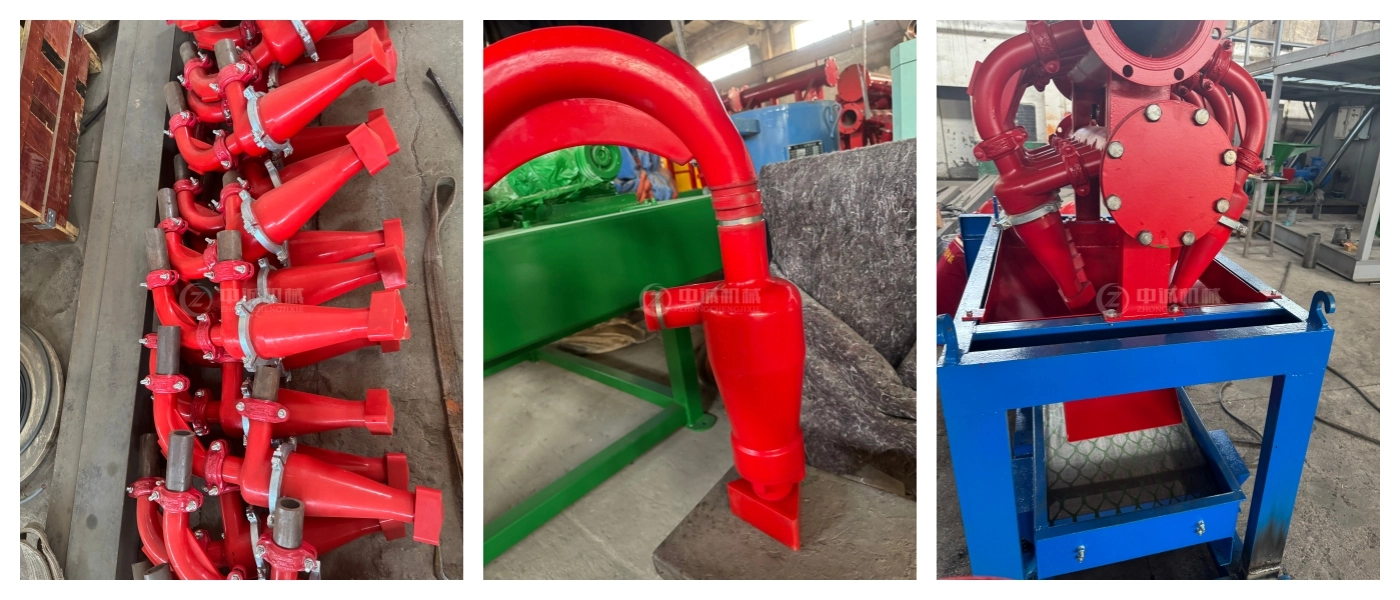

Your solid control system investments need components that adapt to diverse operational requirements. Our nozzles deliver universal compatibility across multiple drilling scenarios.
Onshore Drilling Platforms: In high-volume land rigs processing 1000+ GPM circulation rates, the nozzles handle coarse sand separation in desander units while maintaining pressure drop within system specifications.
Offshore Platform Operations: Compact desilter configurations benefit from the triangular design's resistance to motion-induced vibration. The anti-loosening geometry prevents connection failures during platform movement in rough seas.
Horizontal Directional Drilling: Extended reach applications generate fine cuttings that challenge conventional separation equipment. The anti-clogging flow path maintains performance when processing high-plasticity bentonite slurries.
Workover and Completion Operations: During well interventions, the nozzles process variable solids loading without adjustment. This operational flexibility reduces the technical oversight required during complex procedures.
Mining Slurry Processing: Beyond petroleum applications, the nozzles excel in mineral tailing circuits and coal washing operations where maintaining precise cut-points determines product quality and recovery rates.
Compatibility extends across hydrocyclone manufacturers. Modular design accommodates standard mounting flanges from leading equipment brands including ZJ-series, XJ-series, and international equivalents through adapter configurations.
Your operations cannot tolerate component failures that compromise well control or environmental compliance. Our quality protocols ensure every nozzle meets exacting performance standards.
Dimensional Verification: Coordinate measuring machines validate orifice diameter and triangular geometry within ±0.05mm tolerance bands. This precision ensures consistent flow rates across production batches.
Concentricity Testing: Optical alignment systems verify apex centerline positioning relative to mounting threads. Perfect axial alignment prevents lopsided wear patterns that reduce service life.
Material Hardness Validation: Shore D durometer testing confirms polyurethane specifications while Rockwell C and Vickers testing verify ceramic insert properties against published values.
Hydrostatic Pressure Testing: Each unit undergoes pressure cycling to 1.5x rated working pressure. This validates housing integrity and liner bonding under centrifugal forces experienced during 24/7 industrial operations.
Surface Finish Inspection: Profilometer measurements document internal wall roughness. Only components achieving Ra < 1.6 μm specifications proceed to final packaging.
Our quality management system operates under ISO 9001:2015 certification. Manufacturing processes incorporate ASTM C1161 standards for ceramic component flexural strength testing.
Traceability documentation accompanies every shipment. Material certificates, dimensional reports, and test results provide the verification your procurement and quality teams require for equipment qualification.
Q: Why choose triangular geometry over traditional circular designs?
A: The triangular shape breaks boundary layer effects that cause rope discharge. This geometric advantage maintains spray patterns at solid concentrations where circular nozzles fail, preserving your cyclone separation efficiency under demanding conditions.
Q: What service life should I expect from a Triangular Underflow Nozzle?
A: Silicon carbide-lined variants typically deliver 6-12 months in continuous operation with abrasive slurries. Polyurethane versions serve 3-6 months depending on particle hardness. Actual longevity varies with specific drilling fluid characteristics and operating pressures.
Q: How do I identify when replacement is necessary?
A: Monitor your underflow discharge pattern. Transition from umbrella spray to solid stream indicates wear beyond acceptable limits. Measure the orifice diameter—replacement is recommended when erosion exceeds 10-15% of original dimension to maintain separation performance.
Q: Are these nozzles compatible with my existing hydrocyclone equipment?
A: Yes, our modular design fits standard cyclone housings through direct mounting or specialized adapter flanges. We provide dimensional drawings for pre-installation verification and can manufacture custom connection configurations for non-standard equipment.
Q: What orifice size should I select for my application?
A: Orifice sizing depends on your cyclone cone angle, operating pressure, and desired underflow density. Our technical team provides selection guidance based on your circulation rate and solids loading. We maintain stock in common sizes from 8-20mm with custom options available.
Q: Do you offer sample units for performance testing?
A: Yes, qualified drilling contractors and OEM partners receive sample units for field evaluation. Contact Us to discuss your testing requirements and qualification procedures.
Ready to reduce your maintenance costs and improve cyclone performance with our Triangular Underflow Nozzle (Apex)? Reach out to our technical team today for application-specific recommendations and competitive quotations.
