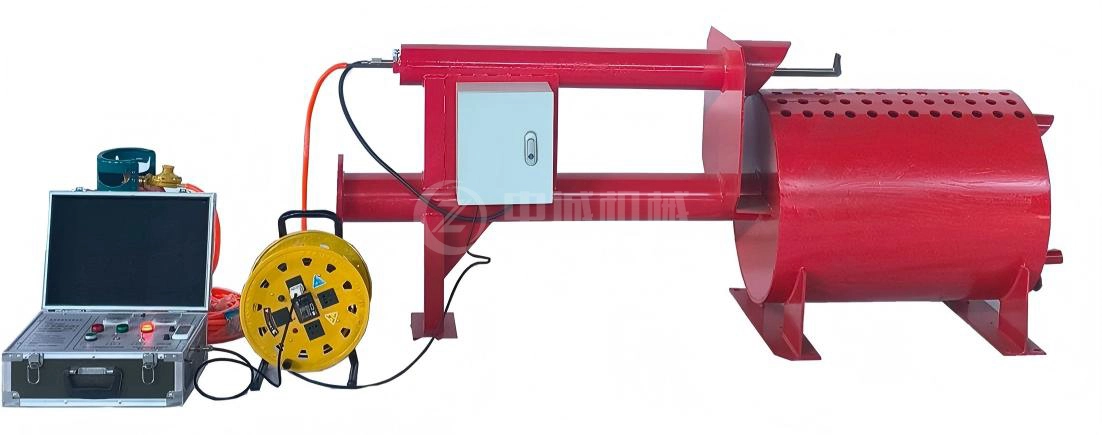

The Electronic Flare Ignition Device - Horizontal manufactured by Shaanxi Xixian New Area Zhongcheng Machinery Manufacturing Co., Ltd. serves as essential safety equipment for oil and gas drilling operations. Engineered to work seamlessly with mud gas separators, this device handles waste gas combustion at drilling sites across open land and plain areas. Our horizontal model features torch diameters of 150mm and 200mm with lengths spanning 2.5m to 3m. The integrated dual ignition system offers both remote and manual operation modes. Its low-profile horizontal design ensures superior wind resistance and simplified transport logistics. Certified to ISO 9001/14001/45001 standards and approved by TÜV and BV, the device maintains an electrical protection grade of IP55 or higher, backed by comprehensive one-year warranty coverage.

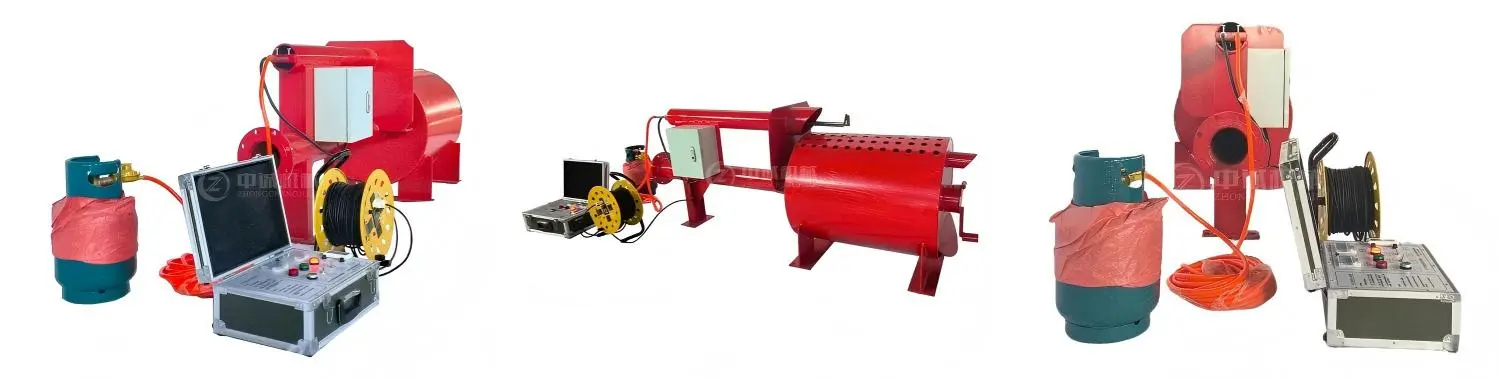

Unlike traditional vertical stack igniters, your horizontal configuration addresses specific field challenges. The low center of gravity design enables rapid vehicular loading without requiring heavy-duty lifting equipment. This becomes critical when your drilling teams need frequent relocation or operate in space-constrained environments.
Your operations benefit from immediate deployment capabilities. The horizontal structure eliminates complex installation procedures that delay project timelines. You can position the device quickly and begin operations without specialized crane services.
The system integrates seamlessly with your existing mud gas separator infrastructure. During pressure surges or well testing phases, it provides controlled combustion of flare gases including hydrogen sulfide (H₂S). This prevents atmospheric accumulation of toxic compounds while ensuring compliance with environmental regulations governing VOC emissions.
| Model | ZCYDW-15/2.5 (Horizontal) |
| Diameter of Torch (mm) | 150 |
| Height of Torch (m) | length: 2.5 |
| Ignition Voltage (kV) | 17 |
| Ignition Frequency (times/min) | 100～1000 |
| Ignition Medium | Diesel/LPG/Plasma |
| Theoretical Weight (kg) | 520 |
| Dimension (mm) (L×W×H) | 2500×700×1600 |
Your horizontal flare ignition device addresses three critical operational environments. Each scenario presents unique challenges that our engineering team has solved through targeted design improvements.

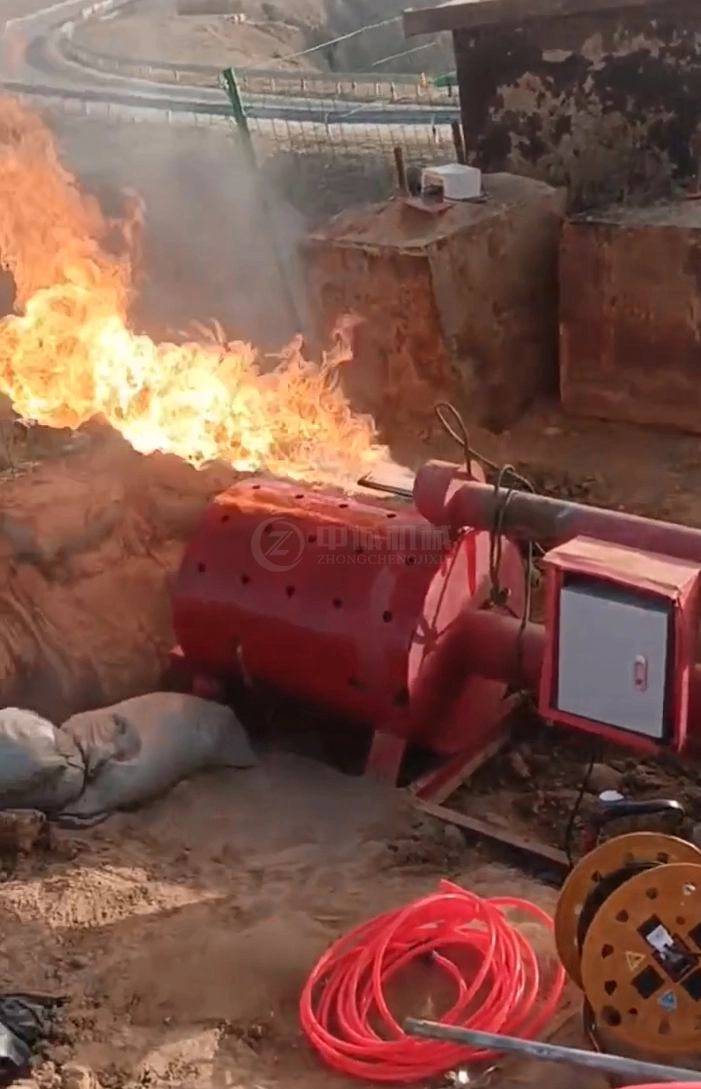

Shale Gas Drilling Operations: When high-pressure gas surges emerge from your mud gas separator, instantaneous ignition becomes non-negotiable. The horizontal discharge configuration prevents localized gas cloud formation at ground level. Your safety personnel can maintain safe distances while monitoring combustion efficiency.
Natural Gas Processing Plants: Emergency depressurization events require reliable ignition during adverse weather. Our horizontal flare pits maintain operational integrity during heavy rainfall and high-velocity wind conditions. The device continues functioning when vertical stacks would fail due to downdrafts or moisture infiltration.
Offshore Drilling Platforms: Deck-level space limitations make horizontal flaring the only viable option. The corrosion-resistant stainless steel construction withstands continuous salt-spray exposure. Integration with your platform's Central Control System (CCS) enables coordinated safety responses during emergency venting operations.
Superior Stability Architecture: The horizontal mounting configuration provides exceptional wind resistance through optimized weight distribution. You won't experience the tipping concerns associated with tall vertical units during severe weather events.
Dual Ignition Flexibility: Remote electronic ignition serves as your primary method, controllable from safe distances exceeding 100 meters. The manual backup system ensures operational continuity if electrical systems experience temporary failures. This redundancy protects your operations during critical well control situations.
Advanced Material Engineering: Our stainless steel construction (SS304/SS316 grade) delivers proven corrosion resistance in H₂S-rich environments. The high-voltage transformer maintains consistent arc discharge without internal breakdown across thousands of ignition cycles. Heat-resistant alloy ignition tips withstand continuous exposure to combustion temperatures.
Integrated Transport Efficiency: The low-profile design fits standard flatbed trucks without height clearance issues. Your logistics team can relocate equipment between drilling sites using conventional vehicles rather than specialized heavy haulers. This reduces mobilization costs by 30-40% compared to vertical alternatives.
Environmental Compliance Built-In: By ensuring complete combustion of waste gases, you prevent methane emissions and eliminate unburned hydrocarbons. This directly supports your HSE (Health, Safety, and Environment) compliance objectives while protecting surrounding communities from toxic gas exposure.
Every Electronic Flare Ignition Device - Horizontal undergoes rigorous multi-stage inspection aligned with international standards including ATEX, IECEx, and API requirements. You receive equipment that has passed five critical validation tests.
Our high-voltage stability testing verifies that ignition transformers maintain consistent arc discharge across 10,000+ cycles. Explosion-proof integrity checks confirm shell thickness and flamepath tolerances meet GB3836 specifications. Environmental endurance testing includes salt spray exposure and thermal shock cycling from -30°C to +60°C.
Remote trigger latency measurements ensure signal response times between control cabinets and ignition tips remain under 0.5 seconds. Insulation resistance testing validates that high-voltage leads prevent leakage risks during both automated and manual operation modes.
Your equipment arrives ready for immediate deployment through our comprehensive packaging system. We apply protective plastic film as the primary moisture barrier, followed by heavy-duty rainproof tarpaulins. Industrial-grade strapping secures all components during transit.
Optional pallets or custom wooden crates accommodate specific equipment dimensions and shipping route requirements. Our logistics partnerships provide efficient access to Tianjin and Shanghai ports for international deliveries. In-stock units ship within 3 days, while customized configurations deliver within 15 days.
Your technical team receives complete installation guidance including engineering drawings, flowcharts, and component diagrams. Our operation and maintenance manuals provide step-by-step commissioning procedures specific to your site conditions.
We offer comprehensive technical support throughout the installation phase. Your personnel gain access to industry training programs covering safety protocols, routine maintenance schedules, and troubleshooting procedures. Our professional service team delivers complete project solutions tailored to your operational requirements.
What is the effective ignition distance for the horizontal model?
The device projects a high-energy spark across the gas flow path at the discharge outlet. The effective ignition gap ranges from 100mm to 300mm depending on your specific electrode configuration and gas flow velocity.
Can the device operate in continuous rain conditions?
Yes, absolutely. The ignition head and transformer feature IP66-rated sealing. The high-energy spark penetrates moisture effectively, ensuring reliable ignition during heavy rainfall or high-humidity environments.
How often should ignition electrodes be replaced?
Under normal testing conditions, electrodes maintain optimal performance for 2-3 years. However, if your operations involve high-H₂S concentrations, we recommend annual inspections to check for sulfur-induced corrosion and electrode wear.
Does the system support solar power operation?
Modern horizontal units include solar charging interfaces with deep-cycle battery backup systems. This configuration proves ideal for remote drilling sites without reliable grid power access, ensuring continuous operational readiness.
Is the device compliant with HSE requirements?
The Electronic Flare Ignition Device - Horizontal represents a primary HSE compliance tool. It replaces hazardous manual flare-gun ignition methods with safe, remote electronic operation. This eliminates personnel exposure risks while ensuring consistent waste gas combustion efficiency.
What certifications validate the explosion-proof rating?
Our devices carry ISO 9001/14001/45001 certifications along with TÜV and BV approvals. The explosion-proof grade (ExdIIBT4 or ExdIICT4) complies with international ATEX and IECEx standards for hazardous area equipment.
