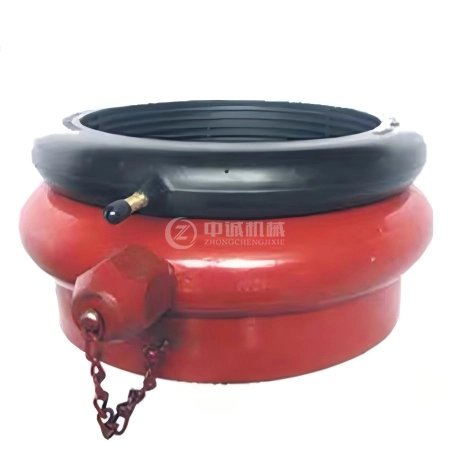

Effective pipeline connections are essential for sustaining constant mud circulation in solid control and petroleum drilling operations. Shaanxi Xixian New Area Zhongcheng Machinery Manufacturing Co., Ltd.'s Air Grip Union is a unique quick-connect fitting designed with a high-strength alloy body and an inflating rubber sealing structure. It provides leak-free sealing capability at pressures up to 0.4 MPa and functions dependably in extreme temperatures between -45°C and 50°C. It was created for high-pressure mud conveying systems. For both onshore and offshore drilling fluid circulation systems, our products offers better misalignment tolerance, wear-resistant durability, and quick installation in 1-3 seconds thanks to ISO 9001/14001/45001 certifications and clearances from HSE, TÜV, and BV.
A pneumatic flexible coupling made especially for low-pressure fluid transmission in oilfield settings features a heavy-duty inflating rubber bladder to establish a tight, leak-proof seal around joining pipes, in contrast to conventional hammer unions that need to be manually tightened with wrenches.This design tackles a number of important industry issues. You no longer have to cope with equipment vibration fatigue or laborious hand assembly. When your pipes are not precisely aligned, the system is ideal because it can accommodate up to 7 degrees of angular misalignment.
By using compressed air for rapid connection and disconnection, you can significantly reduce rig downtime. Your crew will spend less time on pipe transitions and more time on productive operations. This not only cuts labor costs but also enhances safety in hazardous drilling environments.
Proper system design requires an understanding of your coupling system's technological capabilities. The essential requirements are listed below:
| Parameter | Specification |
|---|---|
| Working Pressure | Up to 0.4 MPa (58 PSI) |
| Inflation Pressure | 80-120 PSI for full seal activation |
| Temperature Range | -45°C to 50°C (-49°F to 122°F) |
| Product Structure | Stell shell, air bladder |
| Angular Misalignment Tolerance | 7-10 degrees (varies by size) |
| Size Range | 4" to 36" diameter |
| Body Material | ASTM A105 carbon steel / 316L stainless steel |
| Bladder Material | Natural Rubber (NR) / Nitrile (NBR) / Neoprene |
| Sealing Response Time | 1-3 seconds inflation/deflation |
| Certifications | ISO 9001/14001/45001, HSE, TÜV, BV |

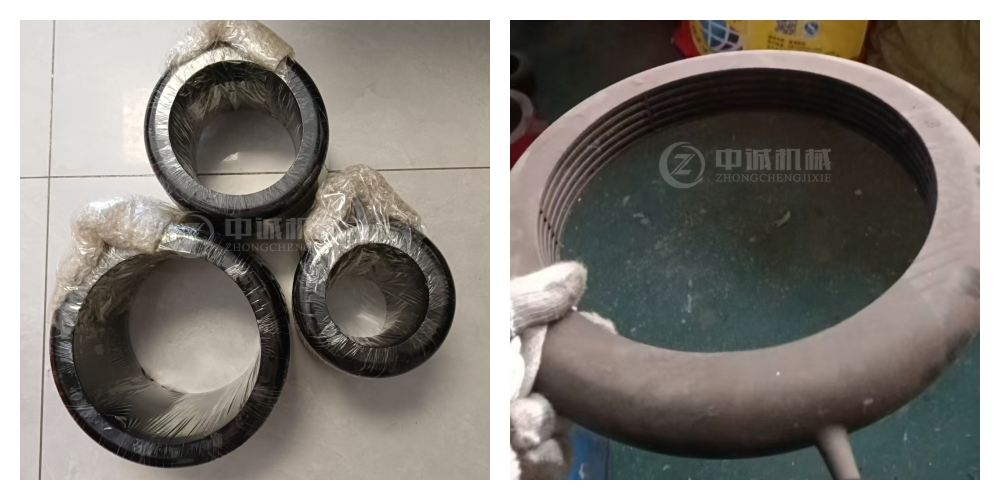

The dual-component architecture combines a ruggedized metal housing with a high-elasticity internal bladder. This construction ensures both structural integrity and flexible sealing performance under mechanical stress.
Your operations demand efficiency. This fitting achieves a secure seal through simple inflation and releases within seconds upon deflation. No special tools like wrenches or hammers are required. This capability dramatically reduces downtime during pipe transitions, allowing your crew to reconfigure systems quickly.
On drilling sites, pipeline alignment issues are frequent. This connection is designed to account for both angular and axial misalignment. Flexible hoses or fiber-reinforced polymer (FRP) pipes are an effective way to compensate for placement faults that could lead to the failure or leakage of standard fittings when working between mud tanks.
Even in large-diameter pipeline applications, the premium rubber bladder offers dependable, leak-proof sealing. You can rely on the seal to hold at working pressures, avoiding expensive fluid loss and environmental pollution, whether you are utilizing Natural Rubber or NBR alternatives.
Drilling operations occur in diverse climates. This union maintains structural integrity and elasticity across a wide operational range. From arctic conditions to desert heat, your pipeline connections remain secure and functional.
Aggressive chemicals included in drilling fluids deteriorate common sealing materials. In tough drilling fluid settings where corrosion would typically be an issue, the Nitrile (NBR) bladder choice offers exceptional resistance to oils and chemicals, guaranteeing a long service life.
Your crew can easily maintain it thanks to the simple yet sturdy design. You can replace the inflatable bladder without taking out the entire housing once the steel shell is welded in place. This modular strategy lowers inventory costs for replacement parts and decreases maintenance downtime.
In drilling operations, you need reliable connections for mud suction and return lines where frequent reconfiguration is necessary. Pipes are often non-parallel due to equipment placement constraints. The vibration-dampening properties prevent seal failure during high-volume pumping operations, maintaining system integrity when it matters most.
Marine drilling platforms face unique challenges. Wave action, thermal expansion, and equipment movement create constant stress on pipeline connections. This fitting's flexibility accommodates these environmental factors while maintaining a secure seal in both platform-mounted and subsea applications.
In construction piling sand removal systems and sludge dewatering operations, you're dealing with abrasive slurries and complex piping layouts. The quick-release interface simplifies maintenance of pumps and filtration units while the wear-resistant design extends service intervals.
Marine terminals require rapid connection between shore-based manifolds and barge tanks. Environmental movement from waves and tides demands a flexible, high-tolerance seal. This union provides the "forgiving" seal characteristics needed to compensate for movement while maintaining leak-free operation.
Quality assurance focuses on both pneumatic seal integrity and metallurgical durability. Every Air Grip Union unit undergoes rigorous inspection protocols:
Hydrostatic Pressure Testing: To guarantee there is no leakage and no structural deformation under stress, each assembled unit is tested at 1.5 times the rated working pressure
Bladder Inflation Cycle Testing: To find early-stage fatigue or material flaws prior to shipment, the rubber element is repeatedly inflated and deflated.
Material Traceability: Every metal component has EN 10204 3.1 certification, which confirms its chemical makeup and mechanical characteristics for reliable operation.
Dimensional Verification: Accurate measurement guarantees that standard schedule 40/80 piping is compatible, allowing for a smooth integration into your current systems.
Our manufacturing facility runs under ISO 9001 quality management norms. When combined with ISO 45001 occupational safety and ISO 14001 environmental certifications, you get fully traceable items made in accordance with international standards.
Every drilling operation has unique requirements. We offer comprehensive customization services to match your specific application needs:
Size Customization: Available in diameters from 4" to 36", with custom sizing available for special applications.
Material Selection: Choose from carbon steel for standard applications or 316L stainless steel for corrosive environments. Bladder materials include Natural Rubber, NBR, Neoprene, or Viton for extreme chemical exposure.
Integration Options: Can be integrated with high-pressure unions, hammer unions, or flanged connections to meet various system requirements.
Fast Delivery Schedule:
Technical Support Package: You receive engineering drawings, flowcharts, component diagrams, and comprehensive operation manuals. Our one-year warranty is backed by industry training, technical guidance, and complete project solutions from our experienced engineering team.
Q: What is the maximum pipe misalignment an AGU can handle?
A: The union accommodates 7-10 degrees of angular misalignment, depending on the pipe size and series. This tolerance is sufficient for most drilling mud tank configurations where perfect alignment isn't practical.
Q: Can the internal bladder be replaced without replacing the entire union?
A: Yes, absolutely. The inflatable tube is a modular component designed for rapid in-situ replacement. Your maintenance team can swap out the bladder in minutes, minimizing downtime and reducing long-term operating costs.
Q: Is this union suitable for high-pressure discharge lines?
A: No, the AGU is specifically engineered for low-pressure suction and return systems up to 0.4 MPa. For high-pressure discharge applications, we recommend our hammer unions or API-flanged connections designed for those conditions.
Q: How does the bladder react to oil-based muds?
A: Standard bladders use Nitrile (NBR), which offers excellent resistance to petroleum hydrocarbons. For extreme chemical exposure or synthetic-based fluids, we offer Viton or specialized Neoprene options with superior chemical resistance.
Q: What air pressure is required to actuate the seal?
A: Most models require between 80 to 120 PSI of compressed air to achieve a full, airtight seal around the pipe. This pressure range is readily available on most drilling rigs from existing compressed air systems.
Q: How long does the rubber bladder typically last?
A: Service life varies with operating conditions, but typical bladder life ranges from 2-5 years in standard drilling mud applications. Proper maintenance and operating within specified temperature and pressure ranges maximizes longevity.
Ready to improve your mud circulation system efficiency with Air Grip Union ？Contact our team at oliver@zcgukong.com for customized solutions, technical specifications, and competitive factory-direct pricing for your next project.
