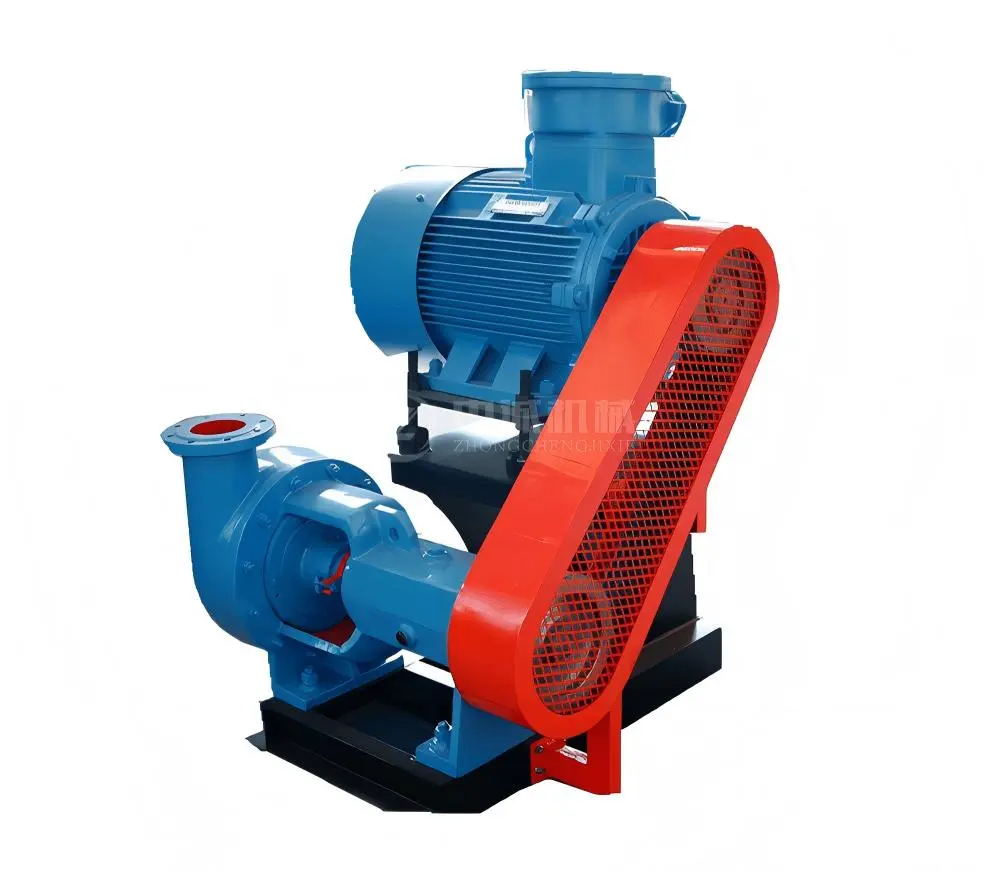

ZC Shear Pump serves as core equipment for drilling fluid preparation, engineered to deliver high-efficiency polymer dissolution and mud performance optimization in demanding oilfield operations. Our pump systems handle capacities ranging from 28 to 320 m³/h with head specifications of 21 to 40 meters, powered by robust motors from 5.5 to 75 kW. Featuring high-quality mechanical seals and wear-resistant wet parts, each unit is purpose-built for harsh petroleum environments. Certified under ISO 9001/14001/45001, HSE standards, and approved by TÜV and BV, our shear mixing equipment offers complete technical support with installation guidance, commissioning services, and a comprehensive 1-year warranty—delivering enterprise-grade reliability for your drilling operations.

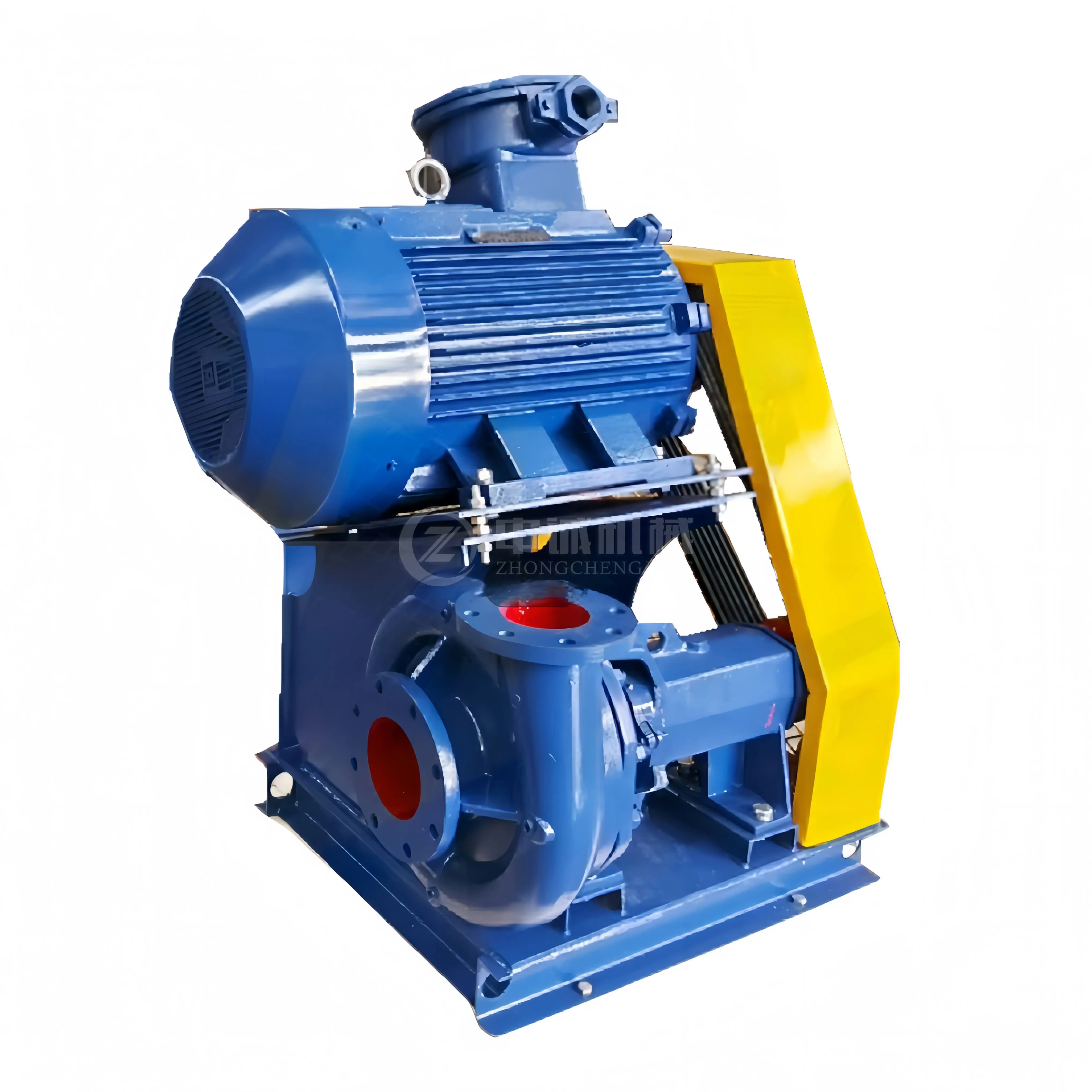

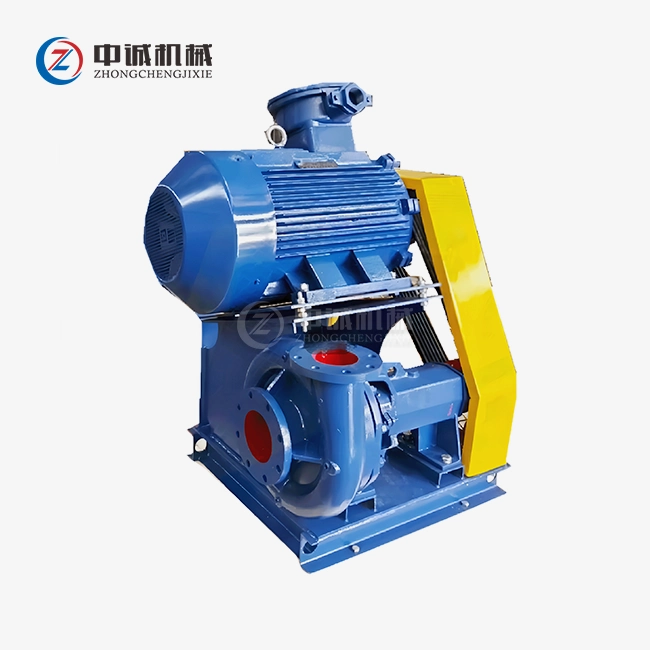

A Shear Pump is specialized centrifugal equipment designed specifically for rapid hydration and homogenization of chemical additives in drilling fluid systems. Unlike standard centrifugal pumps, this equipment utilizes a high-speed impeller and stator configuration to generate intense mechanical shear forces.
The primary challenge it solves is the 'fish-eye' phenomenon. These are clumps of undissolved polymers or bentonite that remain dry in the center. By breaking down particles at the molecular level, the pump ensures complete additive utilization.
You'll experience reduced chemical waste by 15-20%. Mixing time decreases significantly. This directly addresses inefficient fluid property management and high operational costs in oil and gas operations.
The equipment operates through a sawtooth or perforated impeller structure. This design maximizes turbulence and mechanical impingement. Rotation speeds typically range from 1450 to 2900 RPM, creating the shearing action needed for complete polymer hydration.
Our shear mixing equipment delivers consistent performance across various drilling applications. Below are the core specifications:
| Model | Capacity (m³/h) | Head (m) | Matched Motor Power (kW) | Speed (rpm) | Efficiency (%) | Theoretical Weight (kg) | Dimension (mm) (L×W×H) |
|---|---|---|---|---|---|---|---|
| ZCJQB150×125J-250 | 150 | 33 | 55 | 2100 | 63 | 1120 | 1170×1032×1580 |
| ZCJQB150×125J-225 | 130 | 34 | 45 | 2100 | 61 | 995 | 1170×1032×1434 |
| ZCJQB150×125J-200 | 110 | 31 | 37 | 2100 | 58 | 815 | 1170×1032×1325 |
| ZCJQB200×150J-280 | 180 | 34 | 75 | 2100 | 61 | 1290 | 1210×1152×1575 |
| ZCJQB200×150J-250 | 160 | 33 | 55 | 2100 | 59 | 1150 | 1210×1152×1515 |
| ZCJQB200×150J-225 | 140 | 32 | 45 | 2100 | 57 | 1075 | 1210×1152×1385 |
The high-speed impeller design features sawtooth structures. These maximize the shearing effect on drilling fluid additives. You'll achieve superior hydration rates compared to standard mixing equipment.
Motor configurations are flexible. You can select domestic or international motor brands based on your operational requirements and budget considerations.

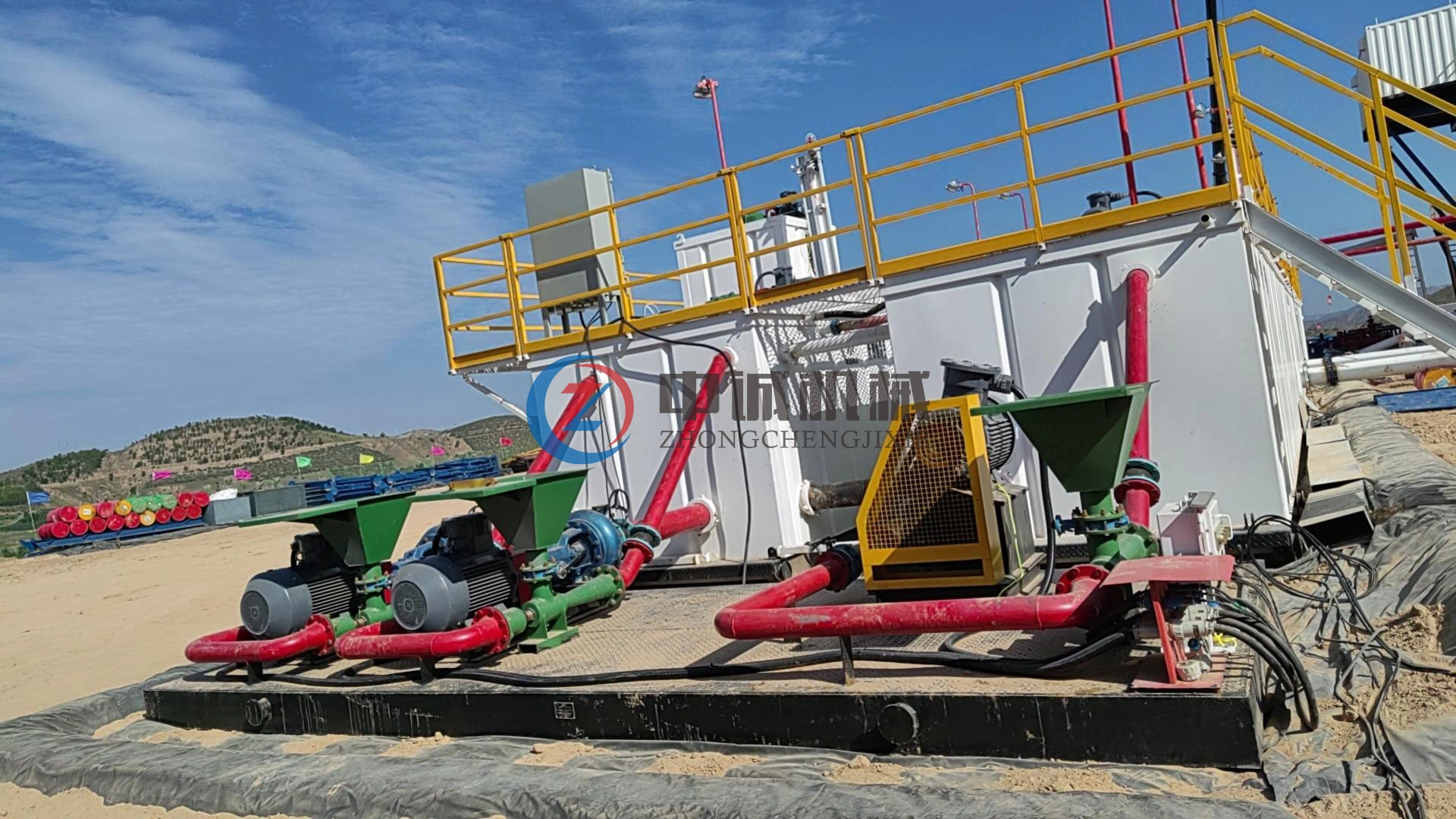

In drilling fluid preparation, the equipment excels at mixing bentonite and polymers into the mud system. You'll achieve precise rheological properties even in high-pressure, high-temperature (HPHT) wells.
The pump ensures uniform dispersion of additives. This consistency translates to stable mud properties throughout your drilling operation.
For mud system optimization, the Shear Pump delivers continuous conditioning. It maintains fluid stability by preventing additive settling and separation.
Your drilling fluid maintains consistent viscosity. Gel strength remains within specification. These factors directly impact wellbore stability and drilling efficiency.
In polymer flooding EOR applications, the equipment provides exact shear rates. You'll hydrate viscous polymers without excessive molecular chain damage. This maintains optimal viscosity for reservoir displacement operations.
Construction projects requiring slurry walls benefit from this technology. The pump blends flocculants and bentonite slurries uniformly. Your mixture withstands complex subterranean pressures and high soil-to-fluid ratios.
The pump's design delivers excellent shearing capability. Drilling fluid additives are fully dispersed and sheared. You'll notice improved uniformity, stability, and overall mud performance.
Complete chemical hydration means you use 100% of your additives. No waste from undissolved 'fish-eyes.' Your chemical costs decrease by up to 20%.
High wear-resistant and anti-corrosion materials form the pump's construction. High-chrome cast iron handles abrasive slurries. Tungsten carbide coatings on wet parts extend service life.
You'll operate reliably in harsh oilfield environments. Reduced downtime. Lower maintenance frequency. These factors contribute to your bottom line.
The equipment runs with minimal vibration. Noise levels remain low. Energy consumption is optimized through efficient impeller design.
Daily maintenance requirements are simple. Your operations team handles routine inspections without specialized training. This operational simplicity reduces your labor costs.

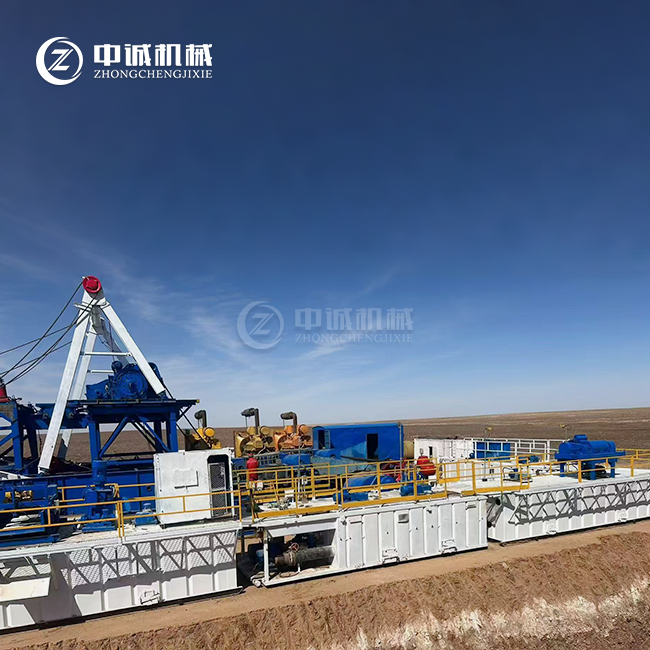

Our shear mixing equipment integrates seamlessly with oilfield solid control systems. You'll experience efficient and sustainable drilling operations.
The pump matches well with shale shakers, mud cleaners, and centrifuges. This compatibility ensures smooth workflow in your complete solids control setup.

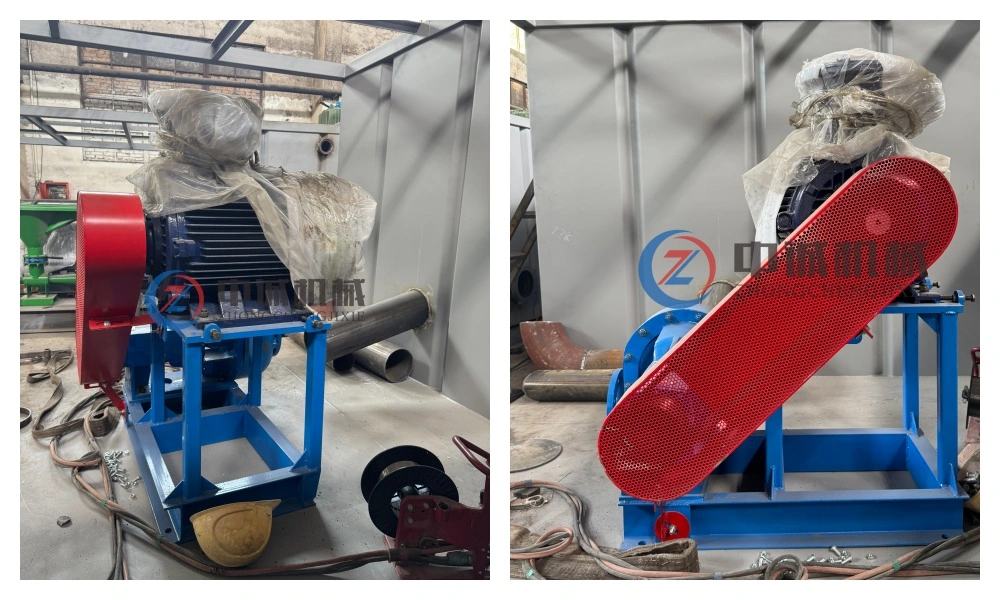

Zhongcheng Machinery implements rigorous quality inspection protocols. Every unit undergoes comprehensive testing before dispatch.
Dynamic Balancing: Impellers achieve G2.5 level dynamic balancing. This prevents vibration-induced mechanical seal failure during operation.
Hydrostatic Testing: Pump casings withstand 1.5 times maximum working pressure. You're guaranteed zero leakage and structural soundness.
Material Verification: Spectrometry testing confirms chemical composition of high-chrome alloys. Wear resistance meets specified standards.
Clearance Calibration: Precision measurement ensures optimal gap between impeller and stator. This directly affects your shearing efficiency.
Performance Validation: Trial runs include vibration and noise analysis. Units operate within industry-standard limits, confirming proper drive-train alignment.
Our certifications include ISO 9001, ISO 14001, and ISO 45001. TÜV and BV approvals validate our quality management systems. HSE standards compliance ensures safety in petroleum operations.
Your equipment arrives protected by multiple layers. Plastic film provides moisture barrier. Rainproof tarpaulins offer additional weather protection. Heavy-duty strapping secures all components.
Pallets or wooden crates are available based on your requirements. International shipping specifications are met for container or break-bulk transport.
We maintain strong partnerships with logistics providers. Access to Tianjin and Shanghai ports ensures flexible shipping routes. In-stock units ship within 3 days. Custom configurations deliver within 15 days.
Our technical team provides installation guidance. You'll receive detailed engineering drawings and flowcharts. Component diagrams clarify assembly procedures.
Commissioning support ensures proper startup. We verify all operational parameters meet specifications. Your team receives hands-on training during the installation process.
Complete operation and maintenance manuals accompany each unit. These guides cover routine maintenance procedures, troubleshooting protocols, and parts replacement schedules.
You'll have access to our engineering team for ongoing technical consultation. Project solutions are available from our professional service team.
Q: Why should I choose a shear mixing pump over a standard mixing hopper?
A: While a hopper introduces solids, only specialized shearing equipment provides the mechanical energy required to break down 'fish-eyes.' You'll achieve full chemical hydration and complete additive utilization.
Q: How often should the mechanical seal be inspected?
A: In high-solids applications, inspect seals every 500-800 operating hours. Specialized tungsten carbide seals last longer when you maintain the cooling system properly.
Q: Does the pump affect mud viscosity?
A: Yes, by fully hydrating additives, it typically increases effective viscosity compared to conventional mixing. Proper operation avoids over-shearing of specific polymers.
Q: What is the maximum slurry density the equipment can handle?
A: Professional-grade units handle mud densities up to 2.4 g/cm³. Ensure your motor is sized correctly for the fluid's specific gravity.
Q: Can shearing intensity be adjusted?
A: You can adjust shearing intensity by changing impeller speed via VFD. Alternatively, modify impeller-to-stator clearance settings during maintenance for different shearing levels.
Q: What maintenance schedule should I follow?
A: Conduct daily visual inspections. Check mechanical seal condition weekly. Perform comprehensive maintenance every 500 hours. Replace wear parts based on inspection findings rather than fixed intervals.
