What Role Does a Mud Circulation Tank Play in Continuous Drilling Operations?

A Mud Circulation Tank sits at the center of every drilling fluid management system. It stores, conditions, and recirculates drilling mud continuously while the drill bit advances downhole. Without a properly designed circulation tank, drill cuttings would accumulate in the fluid, mud weight would become inconsistent, and pump life would shorten dramatically. In practice, a well-configured mud tank system keeps fluid properties stable, protects downstream solids control equipment, and allows crews to drill longer sections without stopping to rebuild the mud system from scratch.

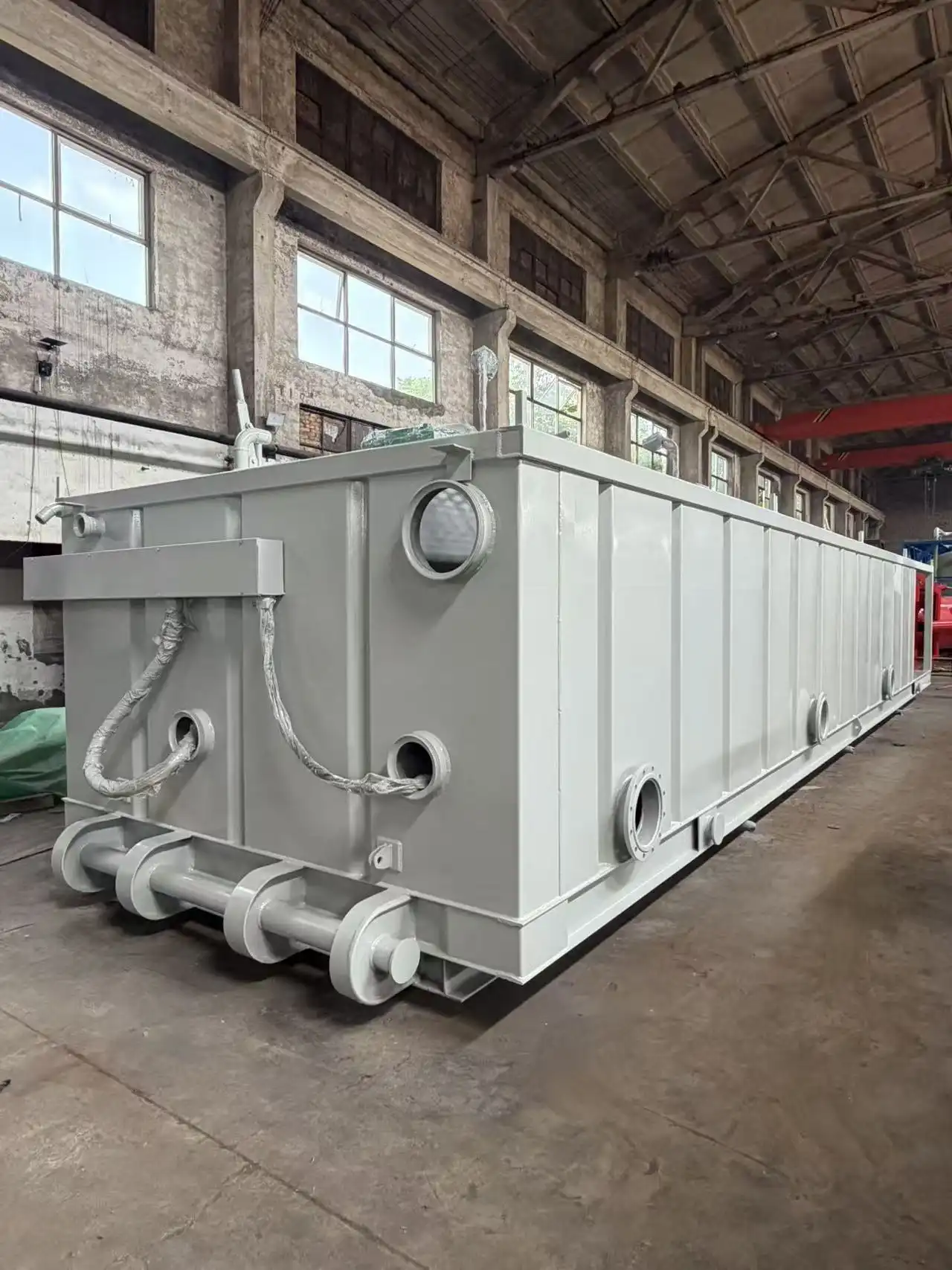

Understanding Mud Circulation Tanks: Purpose and Design Principles

What a Mud Circulation Tank Actually Does

The tank has walls inside that split the drilling fluid circuit into different working areas: mixing, settling, circulation, and storing. Agitators, mud guns, and rotary sand pumps work together to move mud from one area to another. This delayed movement gives each zone time to do its job, like getting rid of solids in one area and changing the chemical properties in another.

Material Selection and Structural Design

The standard in the industry is still steel-welded construction, which can handle the mechanical vibrations from fixed shale crushers and centrifuges. Anti-corrosion coatings, which are usually put on to a dry film thickness of 250–300 microns for use offshore, keep the base metal safe from muds that are rough and chemically harmful. The ZC Mud Tank from ZHONGCHENGJIXIE is made of high-quality anti-corrosion materials and is put together in a modular way with zoning design. This way, each part has a clear job, and there is no wasted floor space.

Calculating Optimal Tank Capacity

The active fluid amount should be 1.5 to 2 times the total wellbore volume, according to standard practice in the industry. This reserve window gives the surface system enough time to treat the mud, remove gases, and clean the water before it goes back into the drill string. The tank volume needed for rigs from ZJ20 to ZJ90 is very different. That's why ZHONGCHENGJIXIE lets you set the number of compartments and layout dimensions so that they fit each rig class.

Role and Benefits of Mud Circulation Tanks in Continuous Drilling Operations

Maintaining Stable Fluid Properties

During the whole run, drilling mud has to stay within a certain range of densities and viscosities. Inside each section, agitators keep the solids in suspension, which stops the stratification that leads to density spikes and clogged pump lines. Sedimentation is a problem that directly increases dilution costs and disposal volumes. The ZC Mud Tank has professional stirring devices built in to deal with this issue.

Here are the main practical benefits that this equipment brings to a digging site:

• Continuous fluid conditioning — The multi-compartment layout lets cuttings settle, and chemicals mix simultaneously, so the rig never stops circulating while treatment occurs.
• Environmental protection — The fully sealed tank structure eliminates surface spills. This directly reduces HSE incident risk and helps operators meet increasingly strict EPA and state-level discharge standards.
• Reduced mud consumption — Stable fluid properties mean less fresh mud is needed to compensate for contamination, cutting material costs on long-interval wells.

These benefits directly address the two problems that procurement managers bring up most often: downtime that wasn't planned for and the high costs of fluid waste. Having a Mud Circulation Tank that is well sealed and stirred up stops both problems before they happen.

Operational Safety and Compliance

In the United States, modern oilfield activities are regulated by OSHA, the EPA, and local environmental agencies. The standard features on ZHONGCHENGJIXIE tanks are non-slip walkways, safety railings, and enclosed ladders. These features keep rig workers safe during routine chemical additions and sampling. Along with HSE, TÜV, and BV approvals, ISO 9001, ISO 14001, and ISO 45001 certifications make sure that the equipment meets the documentation needs of most EPC workers and users before it comes on site.

Comparing Mud Circulation Tanks: Types, Materials, and Market Options

Circulation Tanks vs. Standard Mud Tanks

A normal mud tank is mostly used for storage. On the other hand, a circulation tank is a working machine. On its top deck, it has shale shakers, desanders, desilters, centrifuges, and agitators. Below, it controls the flow of fluids between sections. The structural load requirements are very different, and it is normal for tanks meant for storage to fail early from wear in the field when they are used as circulation tanks.

Steel vs. Alternative Materials

For large-scale drilling operations, steel is still the only practical choice. Mounted solids control equipment puts a dynamic load on it, but it can handle it. It can also withstand being hit by dropped tools and accept field repair welding when damage happens. In small test operations or geotechnical digging, plastic or fiberglass tanks are sometimes used, but they can't handle the mechanical loads that come from centrifuges and shaker decks used in factories.

New vs. Used Equipment Procurement

When you buy a used tank, you don't know how the coating is, how well the welds are held together, or how the compartments are shaped. Before putting a used ship into service, it must go through at least non-destructive testing, such as an ultrasonic or radiographic study of load-bearing joints. For purchasing managers who care more about the total cost of ownership than the lowest initial bill, buying new equipment from a certified manufacturer with a one-year warranty and inspection records is the safer option for a project that will last three to five years.

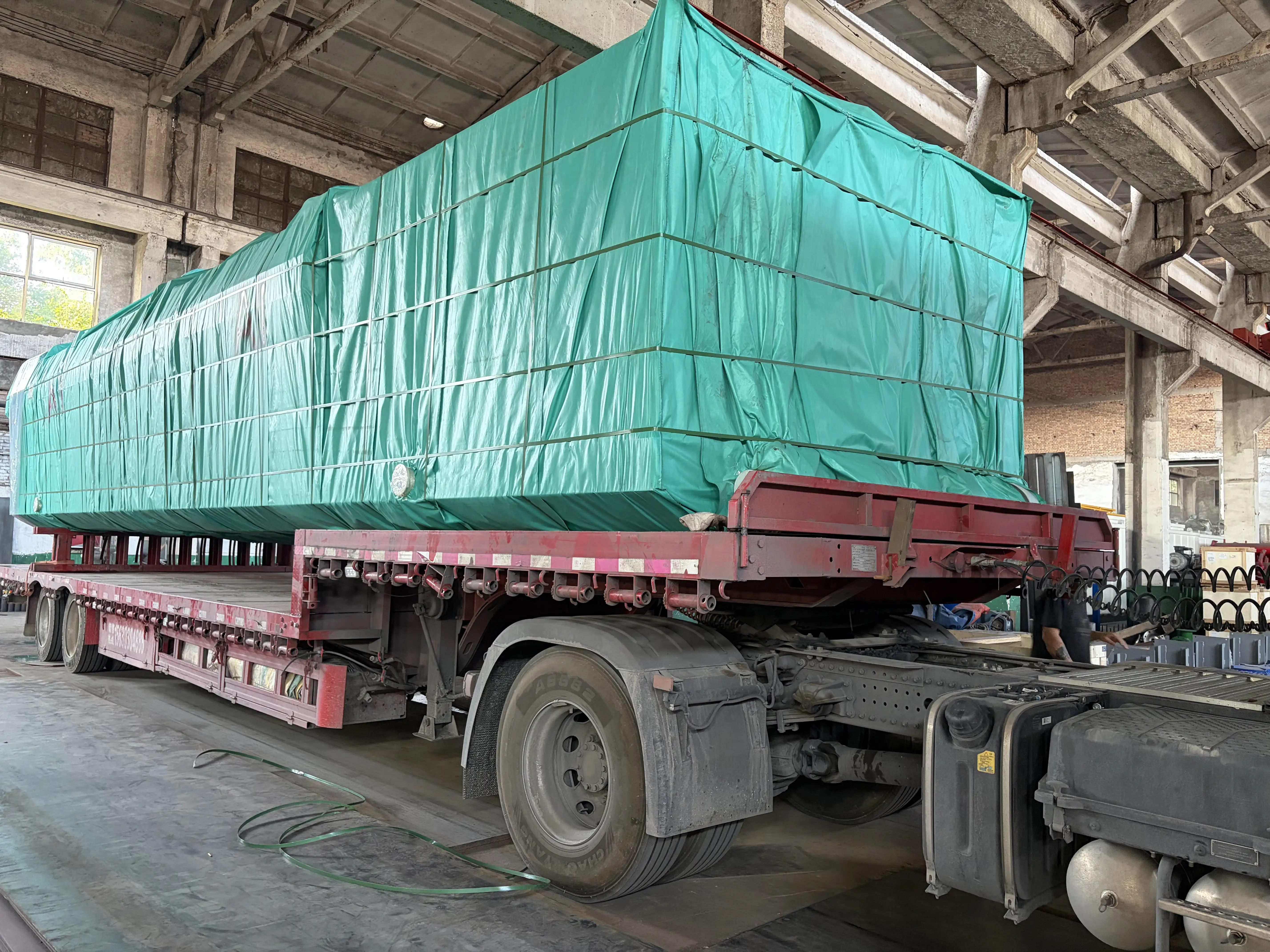

Maintenance, Troubleshooting, and Safety Tips for Mud Circulation Tanks

Routine Maintenance Schedule

Quality of the layer inside the Mud Circulation Tank determines how long it will last. Once a year, an eye check can find early delamination before it damages the base. Depending on how rough the mud is, a full layer touch-up every three to five years makes the service life last much longer than ten years. Before every planned rig move, you should check the valve seats, flange gaskets, and agitator shaft seals. This is because transport vibration can loosen fittings that seem tight when the rig is not moving.

Troubleshooting Common Problems

Three problems show up over and over in field repair logs:

• Sediment accumulation — Increase agitator speed or add mud gun sweep patterns across the affected compartment floor. Sloped compartment floors, a design feature on ZC Mud Tanks, reduce dead zones where cuttings settle.
• Weld leakage — Identify the defect under load using a water tightness test, then repair with certified welding procedures. The ZC tank's zero-leakage design standard minimizes this risk from the start.
• Pipeline blockage — Flush the affected line and inspect the upstream valve for wear. Routine valve rotation prevents debris from locking actuators in one position.

Safety Protocols for Field Teams

Before their shift starts, everyone who works on the tank deck should do a checkup that checks the integrity of the agitator guard, the safety of the handrails, and the marking of chemical injection points. Every month, you should check the emergency shutoffs for each pump circuit. These steps are easy to follow, but a lot of events that can be recorded on live rigs happen because people skip them.

Procurement Guide: How to Choose and Buy the Right Mud Circulation Tank?

Evaluating Tank Specifications Against Project Requirements

Before calling a provider, make a list of the project's details, such as the desired well depth, the amount of mud that will be used, the type of rig (ZJ20 to ZJ90 for most onshore operations), the space that can be used on the rig pad, and the solids control equipment that will be mounted on the tank deck. These inputs control the number of compartments, the overall size, the size of the agitator motor, and the shape of the pump's suction.

Comparing Suppliers and Procurement Options

Aside from price, the three most important things to look at when choosing a Mud Circulation Tank provider are the certification paperwork, how reliable the shipping plan is, and how easy it is to get replacement parts. In-stock configurations are shipped by ZHONGCHENGJIXIE within three days, and customized units are delivered within fifteen days. This lead time works for most project managers' schedules. International buyers can plan ahead for transportation costs because the company is close to the ports of Tianjin and Shanghai and uses standard export packing.

Negotiating with Manufacturers

Before you sign off on a purchase order, make sure you have all the technical information you need, such as engineering drawings, flow diagrams, and operation and maintenance manuals. If a manufacturer doesn't want to give this material, it could mean that there is a support gap. As standard, ZHONGCHENGJIXIE gives you all the paperwork you need, as well as help with installation and training for operators.

Conclusion

A Mud Circulation Tank is not just a container; it is the center of the whole drilling fluid system for handling and moving fluids. It guards the quality of the drilling fluid, keeps equipment further down the line going, and lowers the total cost of each drilled interval when it is built to specifications and kept on time.

FAQ

How do I calculate the right tank volume for my well?

Size the active fluid volume at 1.5 to 2 times the total wellbore volume. This gives the surface system adequate residence time for solids removal and chemical treatment without interrupting circulation.

Can mud tanks be configured for Arctic or high-temperature environments?

Yes. Steam heating coils and thermal insulation layers address sub-zero conditions, while specialized internal liners handle high-temperature geothermal fluids.

How often should the internal anti-corrosion coating be inspected?

Conduct a visual inspection annually. Plan a full coating touch-up every three to five years, depending on how abrasive the drilling fluid is.

What certifications should I require from a supplier?

At minimum, request ISO 9001, ISO 14001, and ISO 45001 certificates. For offshore or export projects, BV and TÜV approvals add an extra layer of verified compliance.

Are custom dimensions available for non-standard rig pads?

Yes. ZHONGCHENGJIXIE configures compartment count, overall dimensions, and equipment mounting layouts to fit specific rig models from ZJ20 to ZJ90.

Partner with ZHONGCHENGJIXIE for Your Next Mud Circulation Tank Project

ZHONGCHENGJIXIE has been making mud circulation systems for oil and gas drilling companies in both domestic and foreign markets since 2015. They have more than 30 years of experience in the field and hold more than 12 patents. Our ZC Mud Tank line is certified by TÜV and BV and has ISO 9001/14001/45001 certification. It can be used as a Mud Circulation Tank supplier and can be delivered in three days for in-stock items and fifteen days for custom designs. You can email our engineering team at oliver@zcgukong.com or go to zcsolidscontrol.com to get specs, drawings, and a quote that is tailored to your job.

References

1. Bourgoyne, A. T., Millheim, K. K., Chenevert, M. E., & Young, F. S. — Applied Drilling Engineering, Society of Petroleum Engineers, 1986.

2. Darley, H. C. H., & Gray, G. R. — Composition and Properties of Drilling and Completion Fluids, Gulf Professional Publishing, 1988.

3. American Petroleum Institute — API RP 13C: Drilling Fluids Processing Equipment, API Publishing Services, 2010.

4. Rabia, H. — Well Engineering and Construction, Entrac Consulting, 2002.

5. Nguyen, J. P. — Drilling: The Manual of Methods, Applications and Management, Editions Technip, 1993.

6. Mitchell, R. F., & Miska, S. Z. — Fundamentals of Drilling Engineering, Society of Petroleum Engineers, 2011.
