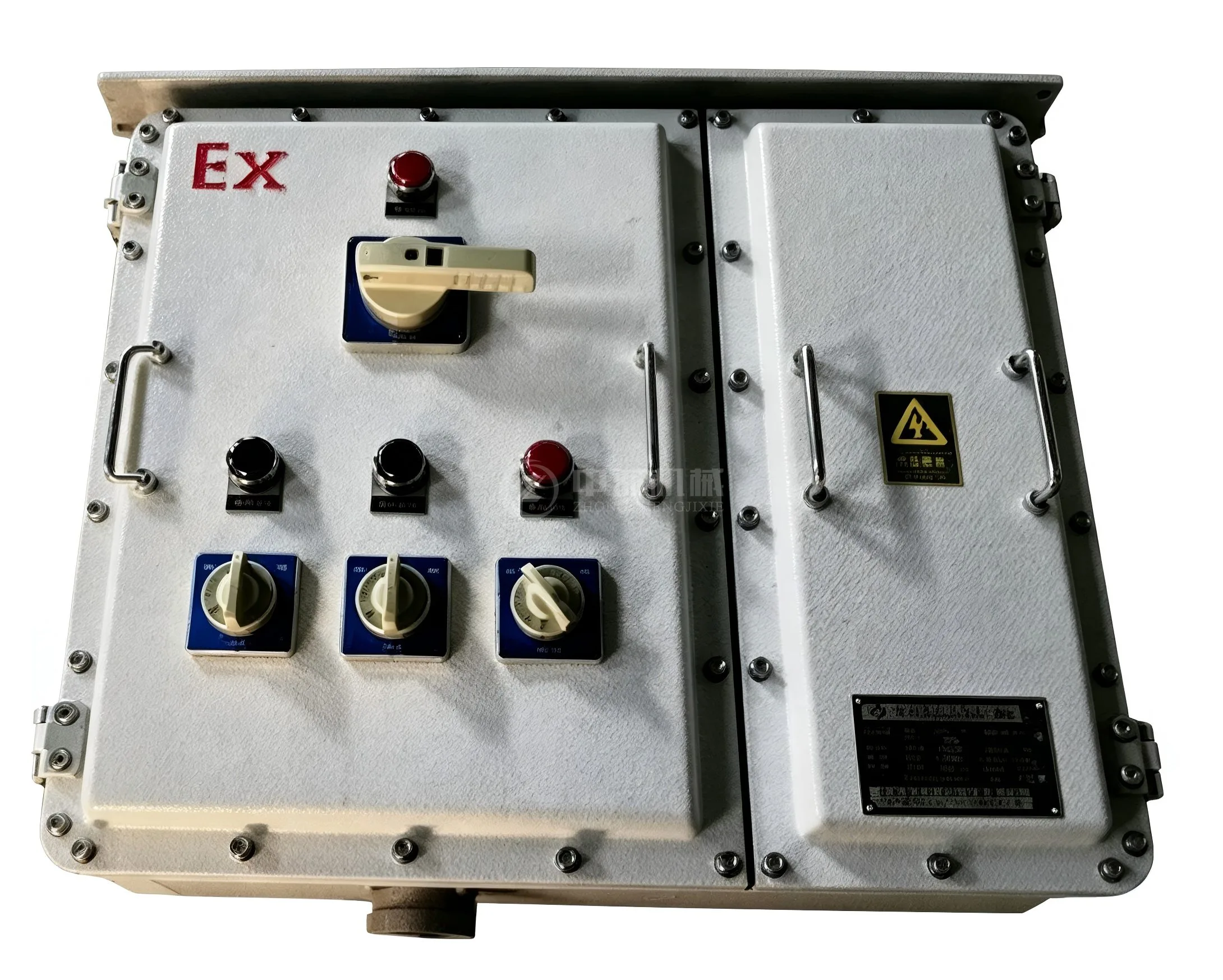

Shaanxi Xixian New Area Zhongcheng Machinery Manufacturing Co., Ltd. delivers industry-grade Explosion-proof Starter units engineered specifically for flammable and dusty hazardous locations. Our starters feature Ex d IIB T4 Gb certification with IP65+ protection rating, ensuring reliable motor start-stop control in petrochemical, coal mining, and oil drilling sites.
These units use flameproof casings that isolate internal sparks and reduce the possibility of an on-site explosion. They are compatible with both 220V and 380V power systems. With several housing materials available—including copper-free aluminum alloy and 316L stainless steel—you have flexible customisation backed by extensive certifications: CCC, IECEx, ATEX, ISO, HSE, TÜV, and BV. Fast delivery within three to fifteen days and competitive factory pricing are guaranteed by our direct production facilities in Xingping.
This professional electrical control unit enables safe motor operation in sites with flammable vapors, toxic fumes and combustible dust. Equipped with robust Ex d-certified flameproof housings, it can contain internal sparks and explosions, a key advantage over ordinary control devices.
This containment technique keeps nearby hazardous atmospheres from igniting. You avoid catastrophic facility fires while gaining compliance with strict safety regulations.
The device solves critical operational challenges. Standard electrical components pose severe ignition risks in high-hazard zones. Our explosion-proof units eliminate downtime caused by electrical failures in Zone 1 and Zone 2 classified areas.
| Parameter | Specification |
|---|---|
| Explosion-proof Rating | Ex d IIB T4 Gb / Ex tD A21 |
| Ingress Protection | IP65 / IP66 / IP67 |
| Corrosion Resistance Grade | WF1/WF2 |
| Voltage Compatibility | 220V / 380V (customizable) |
| Enclosure Material | Copper-free aluminum alloy, 316L stainless steel, carbon steel |
| Operating Temperature | -20°C to +55°C |
| Flameproof Joint | High-precision machined surfaces for flame quenching |
| Protection Functions | Overload, short-circuit, phase failure, under-voltage |
| Certifications | CCC, IECEx, ATEX, ISO 9001, HSE, TÜV, BV |
| Suitable Zones | Zone 1, Zone 2 (gas); Zone 21, Zone 22 (dust) |
| Customization Options | Current rating, motor power, control features, enclosure dimensions |

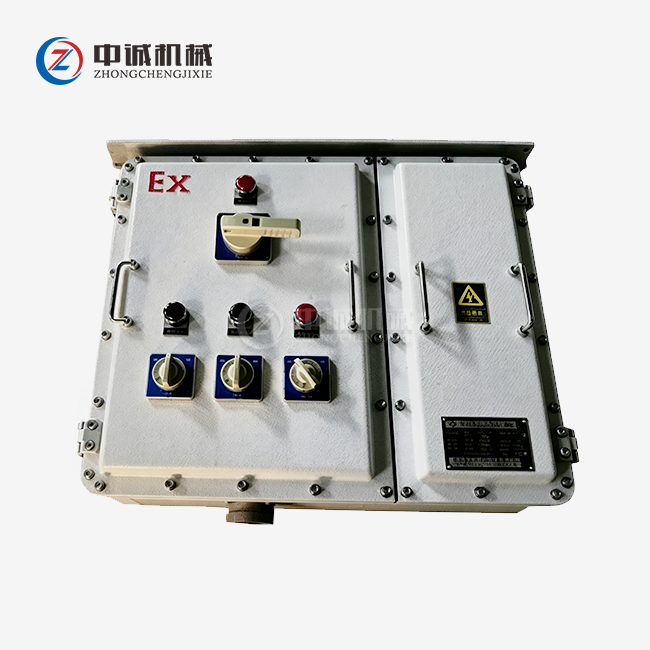

Our Explosion-proof Starter employs integral explosion-proof construction complying with Ex d IIB T4 Gb standards. The flameproof shell effectively isolates electric sparks and arcs during motor startup sequences. This design suits demanding environments like drilling rigs, mud circulation systems, and petrochemical facilities.
High-precision flameproof joints block flame propagation. Pressure relief devices quickly release internal pressure during fault conditions. You avoid starter explosions while maintaining continuous operation in hazardous areas.
Soft start functionality reduces inrush current impact on drilling rig motors and mud pump drives. Overload protection prevents motor burnout and extends equipment service life.
High-quality explosion-proof electrical components ensure stable contact performance. You achieve reliable motor startup, stop, and speed regulation for uninterrupted drilling operations.
316L stainless steel and heavy-duty aluminum alloy housings resist corrosion in salt spray, acidic, and alkaline environments. IP65/IP66/IP67 ratings provide complete dust and water ingress protection.
Multi-layer coating systems withstand temperature extremes and mechanical impact. Your equipment maintains electrical integrity during demanding offshore and onshore operations.

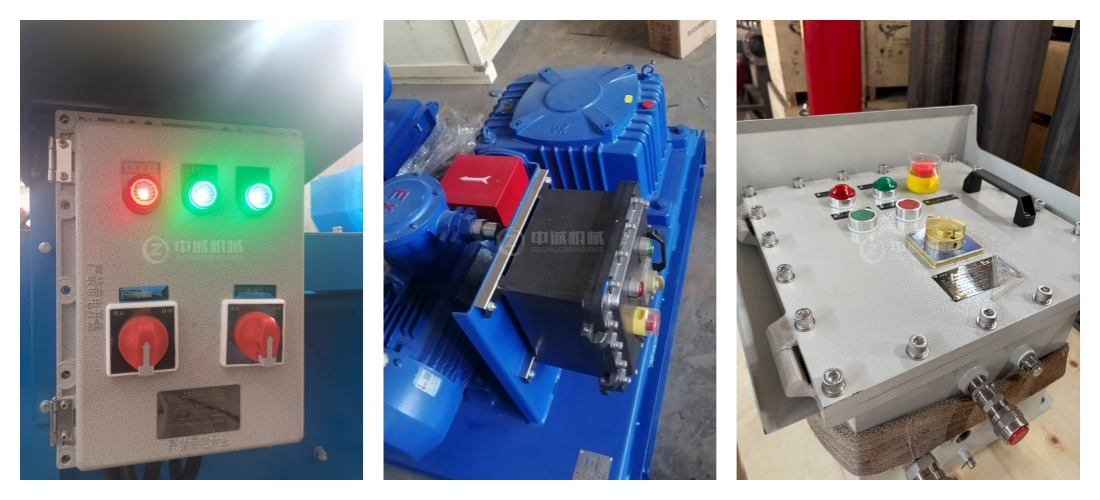

Explosion-proof buttons and indicator lights simplify control panel operation. Visual status monitoring enables quick response to operational changes.
Door interlocking devices ensure safe access only when power is disconnected. This design prevents misoperation and protects maintenance personnel during service intervals.
Oil and Gas Drilling: Control mud pumps, shale shakers, and centrifuges on drilling platforms and wellsites. Our starters handle frequent start-stop cycles while meeting Zone 1 classification requirements.
Petrochemical Processing: Run ventilation systems, agitators, and pumps in chemical industries and refineries where flammable fumes are common.
Coal mining operations: include the use of conveyor systems, ventilation equipment, and combustible dust and methane gas in underground mines.
Grain and Food Processing: In establishments where there is a risk of flammable dust, oversee grain elevators, dust collection systems, and material handling equipment.
Pharmaceutical Manufacturing: Manage HVAC systems and mixing equipment in sections handling organic chemicals and flammable solvents.
It integrates seamlessly with your existing solid control systems, including our mud circulation equipment, degassers, and centrifuge units.
Before each device leaves our 6,300-square-meter manufacturing facility, it is thoroughly inspected. Under internal explosion conditions, hydrostatic pressure testing confirms the integrity of the enclosure without causing irreversible deformation.
Precision feeler gauges are used in flameproof path measurements to verify that gap widths satisfy IECEx and ATEX flame-quenching requirements. Temperature rise tests guarantee that during continuous load operation, surface temperatures stay under specified T-ratings.
We have ISO 9001, ISO 14001, and ISO 45001 certifications for our quality management system. Products conform with IEC 60079 international explosion-protection standards.
Our production methods are verified by independent certifying authorities such as BV and TÜV. Complete documentation, such as test results, certification copies, and compliance declarations, is sent to you.
Salt spray testing confirms the lifetime of anti-corrosion coatings for use in chemical plants and maritime environments. Testing for insulation resistance and dielectric strength verifies electrical safety at high voltages.
Q: What is the difference between Ex d and Ex e?
A: Ex d (Flameproof) contains internal explosions within the enclosure, while Ex e (Increased Safety) prevents sparks from occurring. Starters typically use Ex d construction because contactors inherently generate arcing during switching operations.
Q: Can your unit be used in Zone 0 areas?
A: No. Standard units are certified for Zone 1 and Zone 2 classifications. Zone 0 requires intrinsically safe (Ex i) equipment with fundamentally different protection principles.
Q: How can I choose the right T-code for my application?
A: The autoignition temperature of the gases in your surroundings must be higher than the T-code (T1 through T6). T6 has the greatest application range for gas groups and has the lowest surface temperature (85°C).
Q: What upkeep is necessary for flameproof joints?
A: Joints need to be kept clean and gently greased with lubricant that does not harden. This prevents corrosion while retaining the essential flame-quenching gap. During the yearly maintenance intervals, check the joints.
Q: What happens if the enclosure sustains damage while in use?
A: Flameproof integrity may be jeopardized by any dents, scratches, or structural damage. Before being put back into service, the unit must undergo hydrostatic testing or re-certification to ensure it still satisfies safety requirements.
Q: Do you support requirements for international projects?
A: Yes. ATEX (European Union), IECEx (international), and CNEX (China) are among our certifications. Products satisfy regional regulatory standards for cross-border installations and offshore platforms.
Q: Can you integrate soft starters or variable frequency drives?
A: Absolutely. We customize units with integrated VFDs or PLCs based on your control requirements. Our engineering team designs complete power cabinets that fit your available space and operational needs.
Our technical team analyzes your site conditions including gas classification (IIA/IIB/IIC) and zone designation. We recommend optimal enclosure materials and protection levels for your specific hazardous location.
You receive detailed electrical wiring diagrams and explosion-proof surface protection guidelines. This documentation ensures installation complies with international safety standards from the start.
In-stock standard models ship within 3 days of order confirmation. Customized specifications including non-standard dimensions and power ratings deliver within 15 days.
Our 200-unit annual production capacity supports both small orders and large project requirements. Direct manufacturing eliminates middleman delays and reduces costs.
We provide complete operation and maintenance manuals with every order. One-year warranty coverage includes free replacement of defective components.
Regular follow-up schedules remind you to apply anti-rust protection and replace seals. Our customer equipment files track service intervals to prevent potential safety hazards.
Schneider and ABB contactor spare parts remain readily available. Quick replacement minimizes downtime when unexpected failures occur.
Ready to enhance safety in your hazardous operations? Our engineering team stands ready to design the optimal Explosion-proof Starter configuration for your application.
Contact oliver@zcgukong.com today for technical specifications, certification documentation, and competitive factory-direct pricing.
