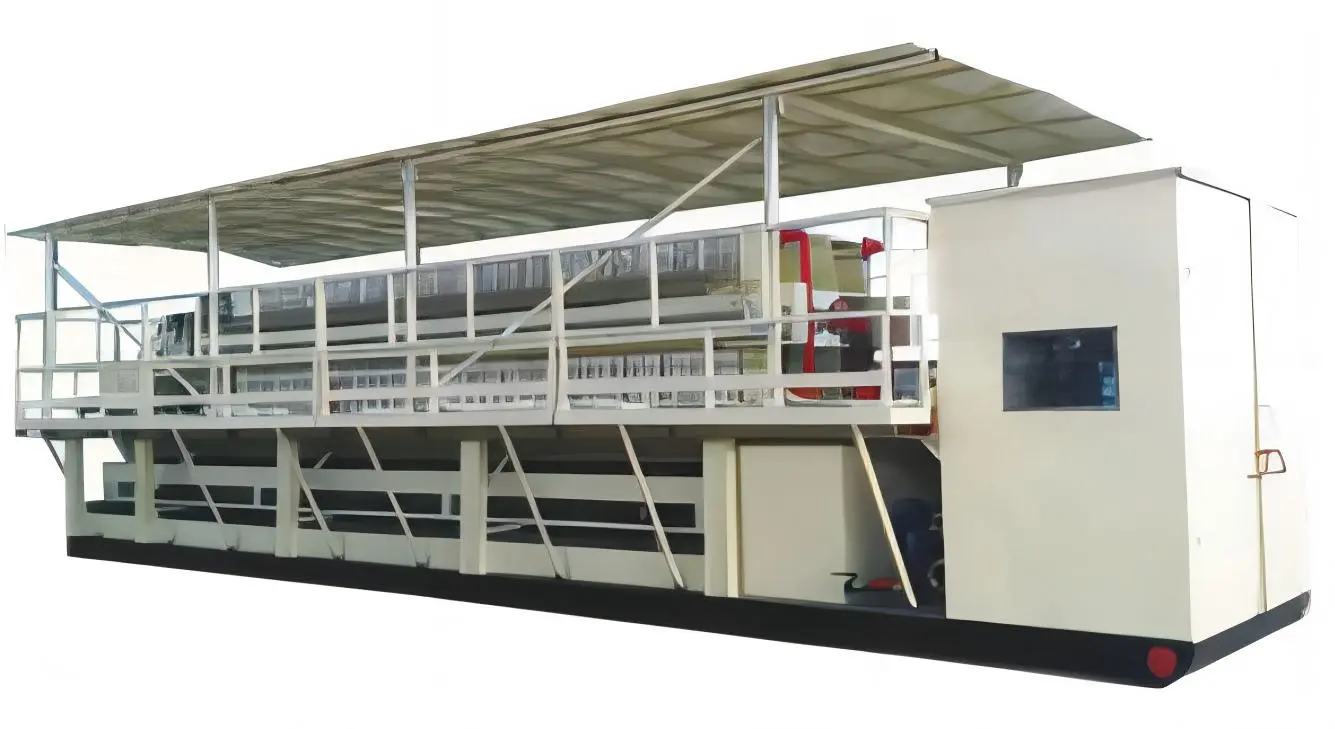

Zhongcheng Machinery's Chamber Filter Press is engineered as core equipment for drilling waste treatment and mud recovery in demanding oil and gas environments. Built with a robust plate and frame structure, our ZC Filter Press features filter plates sized at 1250×1250mm and operates with motor power ranging from 37-45kW.
The compact structure delivers strong filtering force and stable dehydration performance, even when processing complex materials with varying solid content. Your operations benefit from enterprise-grade reliability backed by ISO 9001/14001/45001 certifications, along with HSE, TÜV, and BV approvals.
Whether you're managing onshore or offshore drilling waste disposal, this equipment provides the volume reduction and solid-liquid separation efficiency your projects demand.

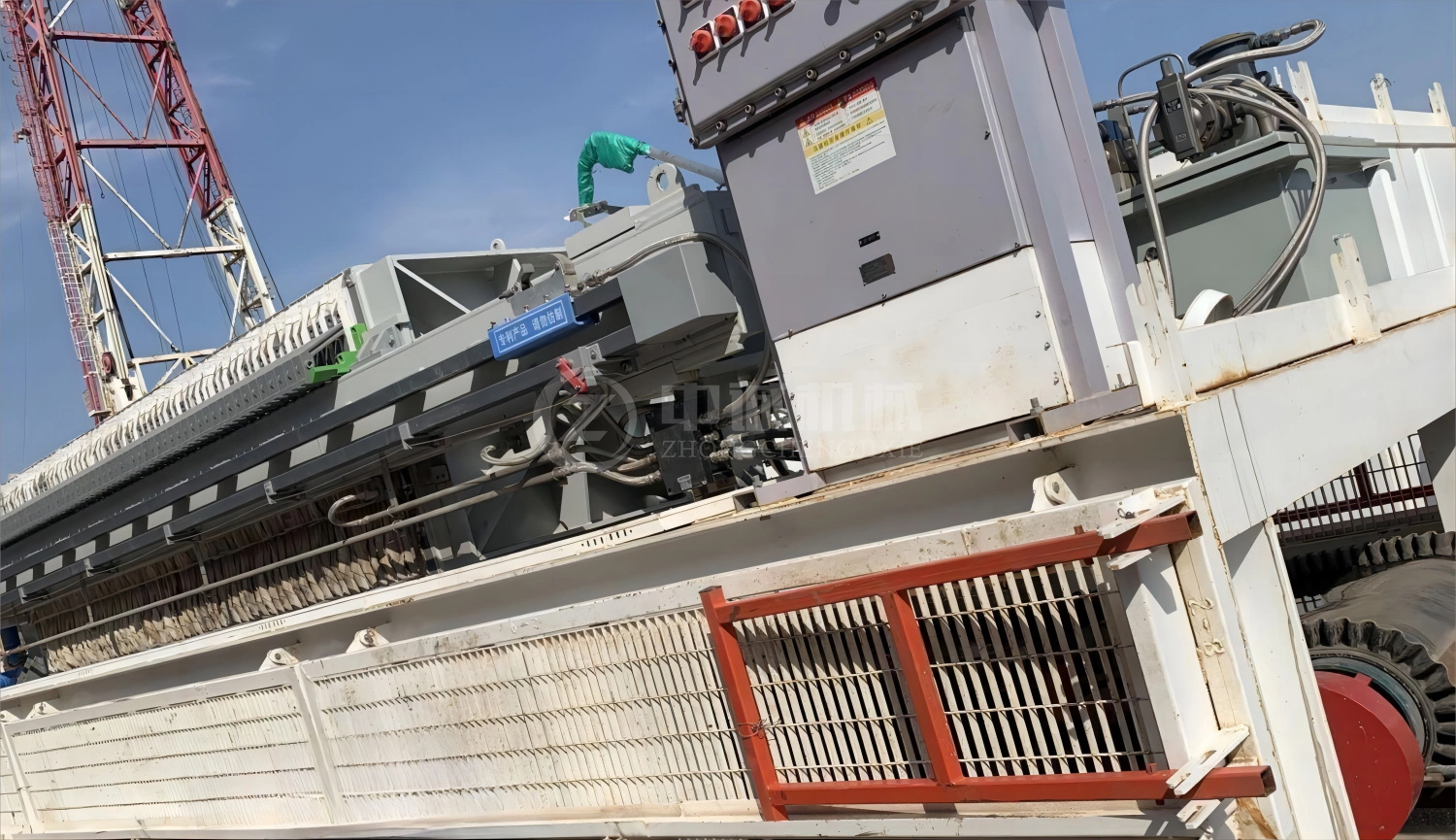

The Chamber Filter Press excels at removing solid particles from drilling fluids through advanced separation mechanisms. You'll achieve significantly reduced solid content in your recovered mud. This keeps your drilling fluid clean and operationally stable throughout extended cycles.
The recessed filter plate design creates multiple chambers under controlled hydraulic pressure. Each chamber functions independently to maximize contact time between slurry and filter media. This architecture ensures thorough dewatering across the entire filtration surface.
Your operations gain from high throughput capability that accelerates impurity separation. The system processes large volumes of drilling waste without compromising filtration quality. Fast cycle times translate directly to improved overall solid control efficiency on your site.
The equipment maintains consistent performance even when handling high-concentration slurries. Variable particle sizes and compositions don't significantly impact separation effectiveness. This reliability reduces downtime and keeps your waste management workflow predictable.
High-strength anti-corrosion materials form the foundation of this filter press. The reinforced polypropylene plates withstand aggressive chemical exposure common in drilling operations. Thermal stability extends to 90°C, accommodating heated slurries without material degradation.
Tensile strength engineered into each component prevents deformation under sustained hydraulic closing pressures. You won't experience plate warping or seal failure during normal operation. The structural integrity supports years of reliable service in abrasive, corrosive conditions.
Harsh oilfield environments demand equipment that performs continuously without frequent intervention. The corrosion-resistant design ensures long-term stable operation where standard materials would fail. Salt water, drilling chemicals, and mineral content don't compromise structural components.
The hydraulic system maintains consistent closing pressure throughout each cycle. This hermetic seal prevents slurry leakage between plates. Your team benefits from cleaner operation and reduced material loss.
| Model | ZCXMYZ100/1250-30U | ZCXMYZ200/1250-35U | ZCXMYZ250/1250-35U |
|---|---|---|---|
| Filtration Area (m2) | 100 | 200 | 250 |
| Filter Plate Size (mm×mm) | 1250×1250 | 1250×1250 | 1250×1250 |
| Chamber Depth (mm) | 30 | 35 | 35 |
| Chamber Volume (L) | 1350 | 3150 | 3586 |
| Plate Qty (piece) | 36 | 72 | 90 |
| Filtration Pressure (MPa) | 0.6～1.4 | ||
| Motor Power (kW) | 37～45 | ||
| Theoretical Weight (kg) | ～15000 | ～23500 | ～28650 |
| Dimension (mm) (L×W×H) | 10000×2300×2700 | 12500×2300×2700 | 13000×2300×2700 |

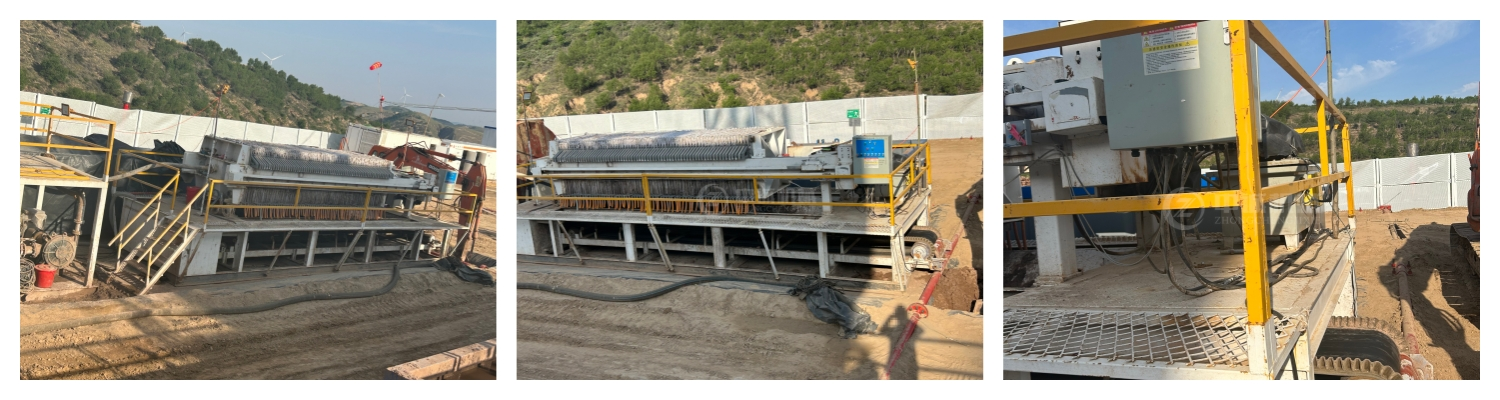

Your land-based drilling sites require efficient waste volume reduction to minimize disposal costs. The Chamber Filter Press processes drilling cuttings and waste mud to produce stackable dry cake. This significantly reduces transportation and landfill expenses.
The compact footprint fits within existing site layouts without requiring extensive modifications. Quick installation means faster project mobilization. The system integrates seamlessly with your current solid control equipment.
Space constraints on offshore platforms demand high-efficiency equipment with minimal footprint. This filter press delivers maximum dewatering performance within limited deck space. Reduced waste volume directly lowers costly offshore-to-onshore waste transfer requirements.
The robust construction withstands marine environments including salt spray and constant vibration. Reliable operation in these conditions minimizes maintenance calls that require specialized offshore technicians. Your platform operations maintain continuous drilling capability.

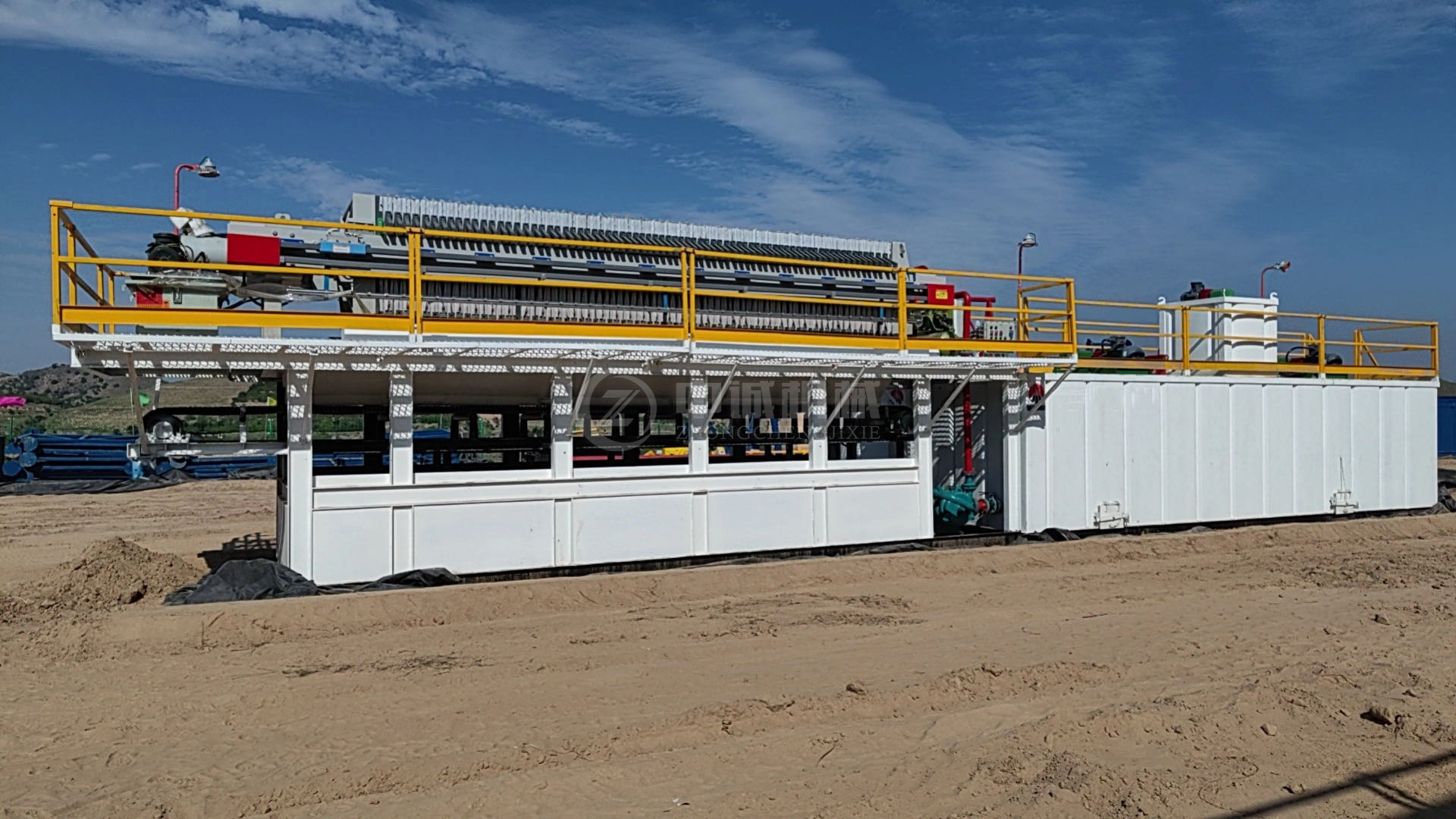

Drilling fluid represents significant operational investment. Recovering and reconditioning mud reduces material costs substantially. The chamber filtration process removes fine solids while preserving the liquid phase for reuse in active drilling systems.
High recovery rates maintain drilling fluid properties within specification. You'll extend the useful life of your mud system and reduce freshwater makeup requirements. This closed-loop approach supports environmental compliance and cost control simultaneously.
Easy Integration and MaintenanceSimple Installation Process
The filter press arrives with comprehensive engineering drawings and installation flowcharts. Your team can complete setup quickly using standard rigging equipment. All connection points follow industry-standard configurations for compatibility with existing piping and electrical systems.
Professional commissioning support ensures optimal initial performance. Our technical team provides on-site guidance during startup. This hands-on approach accelerates your learning curve and prevents common setup errors.
Routine maintenance requires minimal specialized tools or training. Filter cloth replacement follows straightforward procedures your operators can master quickly. The plate shifting system features accessible components that simplify inspection and adjustment.
Component diagrams and maintenance manuals detail every service point. Predictable wear items stock easily for planned maintenance windows. This accessibility reduces mean time to repair and keeps your equipment availability high.
The equipment integrates perfectly with comprehensive oilfield solid control systems. Standard interface dimensions and pressure ratings match common shale shakers, mud cleaners, and centrifuges. You can retrofit the filter press into existing installations without custom fabrication.
Electrical controls accommodate various automation levels from manual to fully automatic operation. The modular design allows capacity expansion by adding filter press units as project scale increases. This flexibility protects your equipment investment across changing operational demands.

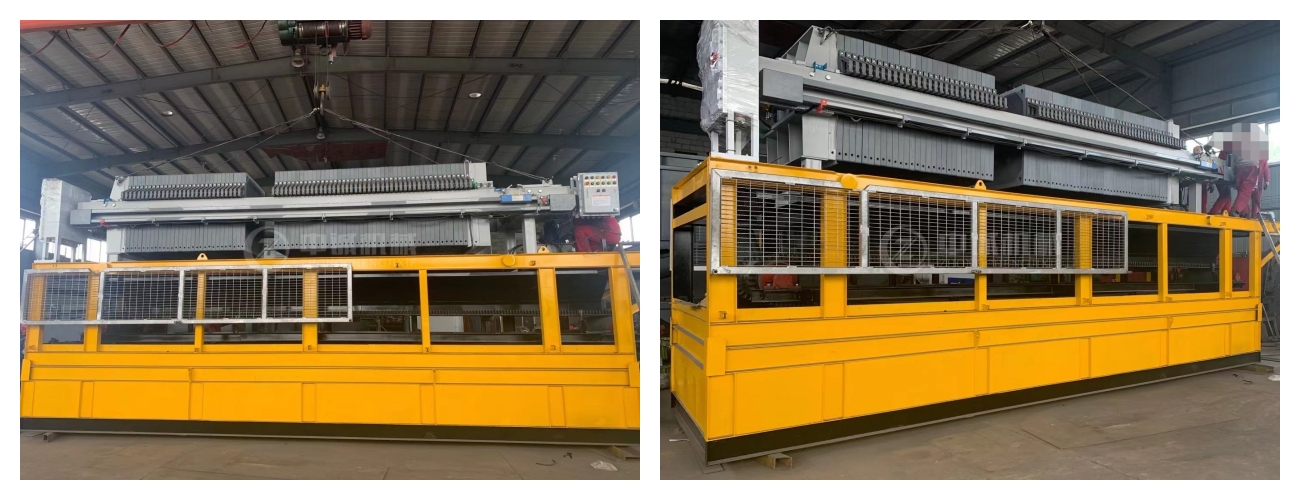

Every drilling operation presents unique solid characteristics and volume requirements. We customize filter plate quantities, hydraulic station capacities, and frame dimensions to match your specifications. Motor brands accommodate your preference for domestic or international manufacturers.
Material composition adjustments address specific chemical exposure in your drilling fluids. Specialized coatings or upgraded alloys provide enhanced protection where standard materials face accelerated wear. These options ensure the equipment performs optimally in your exact application.
Your purchase includes full operation and maintenance manuals in English. Detailed component diagrams identify every part with ordering numbers for simplified spare parts procurement. This documentation supports your maintenance team and reduces equipment downtime.
Engineering flowcharts illustrate integration points with surrounding equipment. You'll understand exactly how the filter press fits within your complete solids control workflow. This clarity prevents operational conflicts and optimizes overall system performance.
One-year warranty coverage protects your investment during the critical early operational period. Beyond warranty, our professional service team remains available for technical guidance and troubleshooting support. Industry training programs help your operators maximize equipment capability and efficiency.
Project solution development draws on our 30+ years of machinery manufacturing experience. We provide insights into optimizing your entire waste treatment workflow, not just the filtration step. This consultative approach delivers value beyond the equipment itself.
Q: How does the filter press achieve such low moisture content in the filter cake?
A: The recessed chamber design maximizes pressure distribution across the entire filtration surface. Hydraulic closing pressures between 20-25 MPa force liquid through filter media while compacting solids. This mechanical pressure application produces cakes with moisture content 30-40% lower than gravity-based methods. The extended dwell time in closed chambers allows complete drainage before discharge.
Q: What maintenance intervals should I expect for the filter cloth?
A: Filter cloth lifespan depends heavily on your slurry abrasiveness and chemical composition. In typical drilling waste applications, expect 3-6 months of service before replacement becomes necessary. Air permeability testing provides early warning of cloth degradation. Budget for cloth replacement as a consumable item similar to shaker screen purchases. Proper cake discharge procedures and regular cleaning extend cloth life significantly.
Q: Can the system handle variations in drilling waste composition?
A: Yes, the equipment accommodates significant variations in particle size distribution and solid concentration. The robust plate structure and adjustable pressure settings let you optimize performance as waste characteristics change between formations. Feed pump pressure adjustment compensates for viscosity differences. This flexibility eliminates the need for multiple specialized units across your drilling program.
Q: How does this compare to centrifuge-based dewatering?
A: Filter presses produce substantially drier cake than centrifuges, often achieving 50-60% solids versus 30-40% for centrifuges. Operating costs run lower due to reduced power consumption and simpler maintenance. However, centrifuges offer continuous rather than batch operation. For applications where maximum dewatering justifies batch cycles, filter presses deliver superior results and lower disposal costs.
Q: What support do you provide for international installations?
A: We supply complete technical documentation in English including AutoCAD drawings. Standard export packaging protects equipment during international shipping to any port worldwide. Our technical team provides remote commissioning support via video conference. For major projects, on-site commissioning and operator training can be arranged. Spare parts ship globally with established logistics partnerships ensuring rapid delivery.
Contact Us for Your Drilling Waste Solution
Ready to improve your solid control efficiency and reduce waste disposal costs with Chamber Filter Press?? Contact our team at oliver@zcgukong.com for customized solutions and technical specifications tailored to your operation.
