In demanding mud circulation and solid control systems, Zhongcheng Machinery's Centrifugal Sand Pump Shaft Coupling is the essential transmission link between motors and pump shafts. For heavy-duty applications, our ZC Coupling, which is made of high-strength alloy components, offers remarkable load capacity exceeding 100,000 Nm torque density.
With ISO 9001/14001/45001 certifications and more than 30 years of manufacturing experience, we design couplings that offer excellent deviation compensation, shock absorption, and steady power transfer. Our 6,300-square-meter factory can produce more than 200 system sets annually. In onshore and offshore drilling settings, the coupling's wear-resistant and corrosion-resistant qualities guarantee dependable operation. You benefit from factory-direct pricing, bespoke specifications, and extensive technical support supported by BV, TÜV, and HSE certifications.
A precision-engineered mechanical component connects your motor or diesel engine drive shaft to the driven shaft of centrifugal sand pumps. Its primary function goes beyond simple torque transmission.
This crucial part allows for inevitable axial, radial, or angular misalignments between shafts. It acts as a sacrificial safety link and vibration dampener in heavy-duty abrasive pumping operations.
Your primary operational issues are resolved by the coupling. It stops excessive bearing wear brought on by shaft deflection. When big debris gets within the pump casing during abrupt torque spikes, it shields your drive system from catastrophic failure.
It drastically lowers downtime costs for operations in remote mining or dredging sites. Knowing that your equipment is safeguarded under the most trying circumstances gives you peace of mind.
Our Centrifugal Sand Pump Shaft Coupling is engineered for extreme durability in high-solid environments. The technical specifications reflect industry-leading performance standards.
| Parameter | Specification |
|---|---|
| Torque Range | 100 Nm to 100,000+ Nm |
| Rotational Speed Capacity | Up to 3,600+ RPM |
| Hub Material | Forged Carbon Steel (AISI 1045) / Ductile Iron |
| Elastomeric Insert | Polyurethane / NBR (Nitrile Butadiene Rubber) |
| Dynamic Balancing | ISO 1940-1 (G2.5 or G6.3 grades) |
| Bore Tolerance | H7/js6 fit precision |
| Shore Hardness | Customized per application |
| Misalignment Tolerance (Parallel) | 0.2mm to 0.5mm |
| Design Type | Split-in-half / Spacer type for back pull-out maintenance |
| Common Models | Elastic sleeve pin, Plum-blossom (jaw), Diaphragm type |
| Applicable Working Conditions | Transmission components with medium-to-low torque and stable rotational speeds |
| Material | Cast iron / Carbon steel body; Rubber / Polyurethane elastomer |
| Medium/Environment: | Suitable for drilling mud and dusty working conditions |
Your connection has unique elastomeric inserts and premium forged carbon steel hubs. This combination preserves torsional stiffness while providing outstanding shock absorption.
The materials are resistant to corrosion in challenging conditions, such as exposure to chemical media and salt spray. You are given a product that will remain dimensionally stable for the duration of its useful life.
Accurate load ratings and dimensional correctness are guaranteed by our adherence to AGMA standards. Strict dynamic balancing is applied to each coupling to remove vibrations that lead to early seal failure.
Made of high-strength alloy and wear-resistant materials, your coupling features outstanding load capacity and impact resistance. It realizes efficient power transmission between motors and solid control equipment including pumps and shale shakers.
The forged construction withstands peak torque without deformation. You can operate confidently even when encountering solid clogs or large sand aggregates that cause sudden torque spikes.
With superior buffering and damping performance, the coupling relieves vibration impact on your transmission system. It effectively protects motors and key components from damage caused by hydraulic turbulence.
The elastomeric elements provide torsional flexibility vital for your operation. This design significantly extends the service life of expensive motor and pump components.
Our compact and reasonable structure allows quick installation, disassembly, and on-site replacement. The split-in-half or spacer design enables back pull-out maintenance without moving the motor.
You greatly simplify daily maintenance work. This design feature reduces your downtime costs, especially critical in remote operational sites where service access is limited.
The coupling delivers excellent corrosion resistance to adapt to harsh conditions such as high humidity and chemical media. It ensures long-term stable and reliable service across demanding applications.
Your investment is protected through materials specifically selected for abrasive dust exposure and salt-spray environments common in dredging and offshore operations.

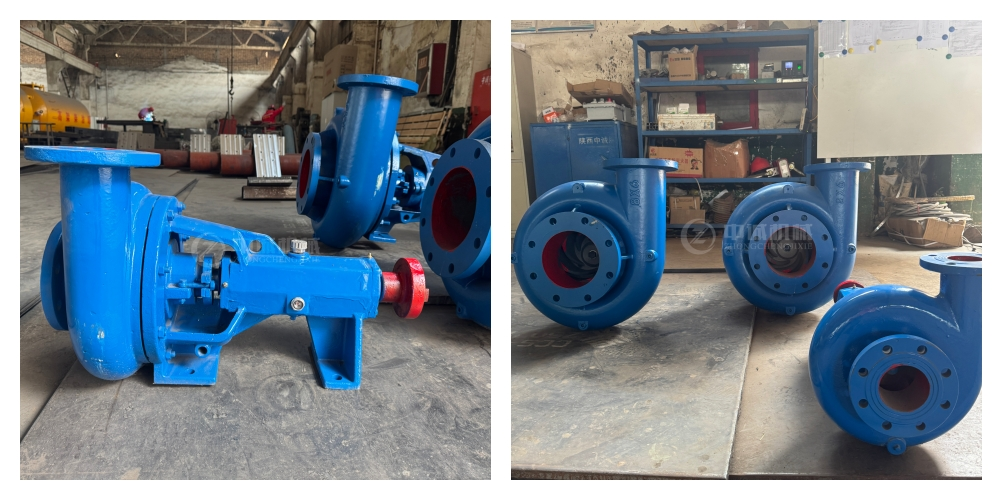

In dredging operations, your Centrifugal Sand Pump Shaft Coupling must withstand massive shock loads when pumping sand-water mixtures at high flow rates. Our coupling resists salt-spray corrosion while maintaining precise torque transmission.
The elastomeric design isolates the motor from irregular hydraulic forces. You achieve continuous operation in marine environments where equipment reliability is paramount.
In tailings management, our coupling ensures continuous operation despite high-frequency vibrations inherent in transporting dense mineral ores. The shock-absorption properties protect your expensive motor investments.
You benefit from reduced maintenance intervals. The coupling handles abrasive slurries that would quickly degrade lesser components.
Suitable for onshore and offshore drilling mud circulation and solid control systems, our coupling is a core component for ZJ90, ZJ70, ZJ50, and other drilling rig models. It links motors to sand pumps, shear pumps, and agitators within the mud circulation tank system.
In hydraulic fracturing blender units, the coupling handles rapid variable-speed operations while moving proppant (sand) into high-pressure streams. You maintain system longevity through the coupling's ability to isolate the motor from pump turbulence.
For construction piling applications, the coupling provides reliable connection in sand removal systems where intermittent loads and variable speeds are common. You receive consistent performance across diverse construction environments.
Every Centrifugal Sand Pump Shaft Coupling undergoes comprehensive quality verification before shipment. Our quality control focuses on mechanical integrity and precision fit.
Dynamic Balancing Test: Conducted per ISO 1940-1 standards to eliminate vibrations that cause premature seal failure. You receive a coupling balanced to G2.5 or G6.3 grades depending on your application.
Material Verification: We perform spectrographic analysis and Brinell Hardness Testing to ensure coupling hubs withstand peak torque without deformation. Your specifications are guaranteed.
Dimensional Tolerance Check: Utilizing CMM (Coordinate Measuring Machine) technology, we verify bore and keyway tolerances to prevent fretting corrosion. The H7/js6 fit precision ensures proper shaft engagement.
Non-Destructive Testing (NDT): Magnetic Particle Inspection (MPI) or Dye Penetrant Testing detects surface cracks in forged components before they reach your facility.
Torsional Stiffness Testing: We verify the elastomeric element's shore hardness to ensure it meets specified dampening coefficients for your specific operational requirements.
Our manufacturing facility maintains ISO 9001 Quality Management, ISO 14001 Environmental Management, and ISO 45001 Occupational Health and Safety certifications. Products are HSE, TÜV, and BV approved.
You receive documentation including engineering drawings, component diagrams, and operation manuals. Our one-year warranty backs every coupling with complete technical support.
We support customized specifications tailored to your exact requirements. You can specify bore dimensions, keyway configurations, and elastomeric hardness based on your torque and speed parameters.
Motor brand compatibility is available for both domestic and international manufacturers. Whether you use Siemens, ABB, WEG, or Chinese motors, we match the coupling to your drive system.

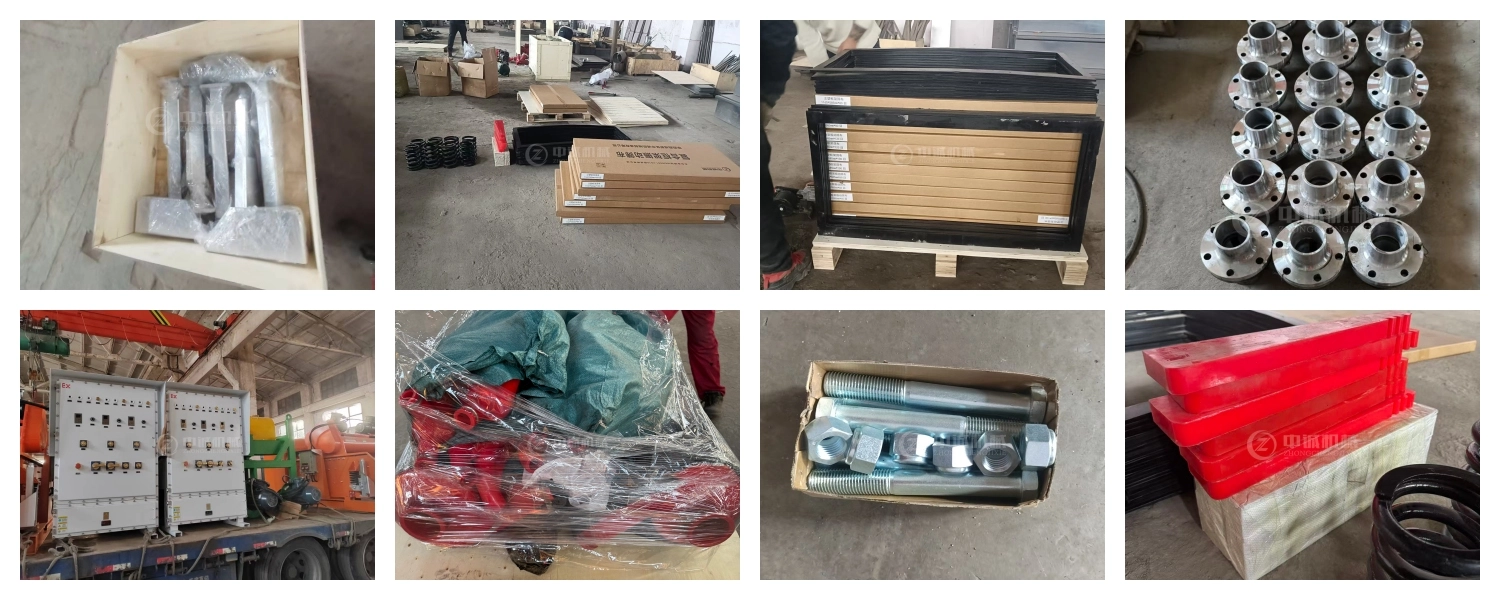

As a direct manufacturer with independent production capabilities, we control design and quality throughout the process. You benefit from competitive factory pricing without intermediary markups.
Our 6,300 square meter production facility in Xingping City, Xianyang, houses complete machining and assembly capabilities. Multiple proprietary patents ensure you receive innovative designs unavailable elsewhere.
In-stock products: Shipping within 3 days for standard configurations.
Customized orders: Delivery within 15 days with complete documentation.
We maintain strong partnerships with logistics providers and convenient access to Tianjin and Shanghai ports. Your international shipments are handled efficiently with full tracking capability.
You receive complete project solutions from our professional service team:
Q: Why do we prefer elastomeric couplings over rigid couplings?
A: Elastomeric couplings provide torsional flexibility and shock absorption, which is vital when your pump encounters solid clogs or large sand aggregates that cause sudden torque spikes. Rigid couplings transmit these shocks directly to motor bearings, significantly reducing equipment life.
Q: How often should the coupling be inspected?
A: Visual inspections for elastomeric wear and bolt tightness should occur every 500 operating hours. A full laser alignment check should be performed every 2,000 hours to maintain optimal performance and prevent premature seal wear.
Q: What are the signs of a failing coupling?
A: Increased audible noise (clacking sounds), abnormal radial vibration, and the presence of black dust (elastomer particles) near the coupling guard are primary indicators. Address these symptoms immediately to prevent costly motor or pump damage.
Q: Can the coupling handle parallel misalignment?
A: Yes, but within limits. Typical designs allow for 0.2mm to 0.5mm of parallel offset. Exceeding this range drastically reduces the life of your pump's mechanical seals and increases bearing loads.
Q: Does the coupling require lubrication?
A: Most modern elastomeric designs are lubrication-free, significantly reducing maintenance requirements in abrasive sand-pumping environments compared to gear-type couplings. This feature is especially valuable in remote operational sites.
