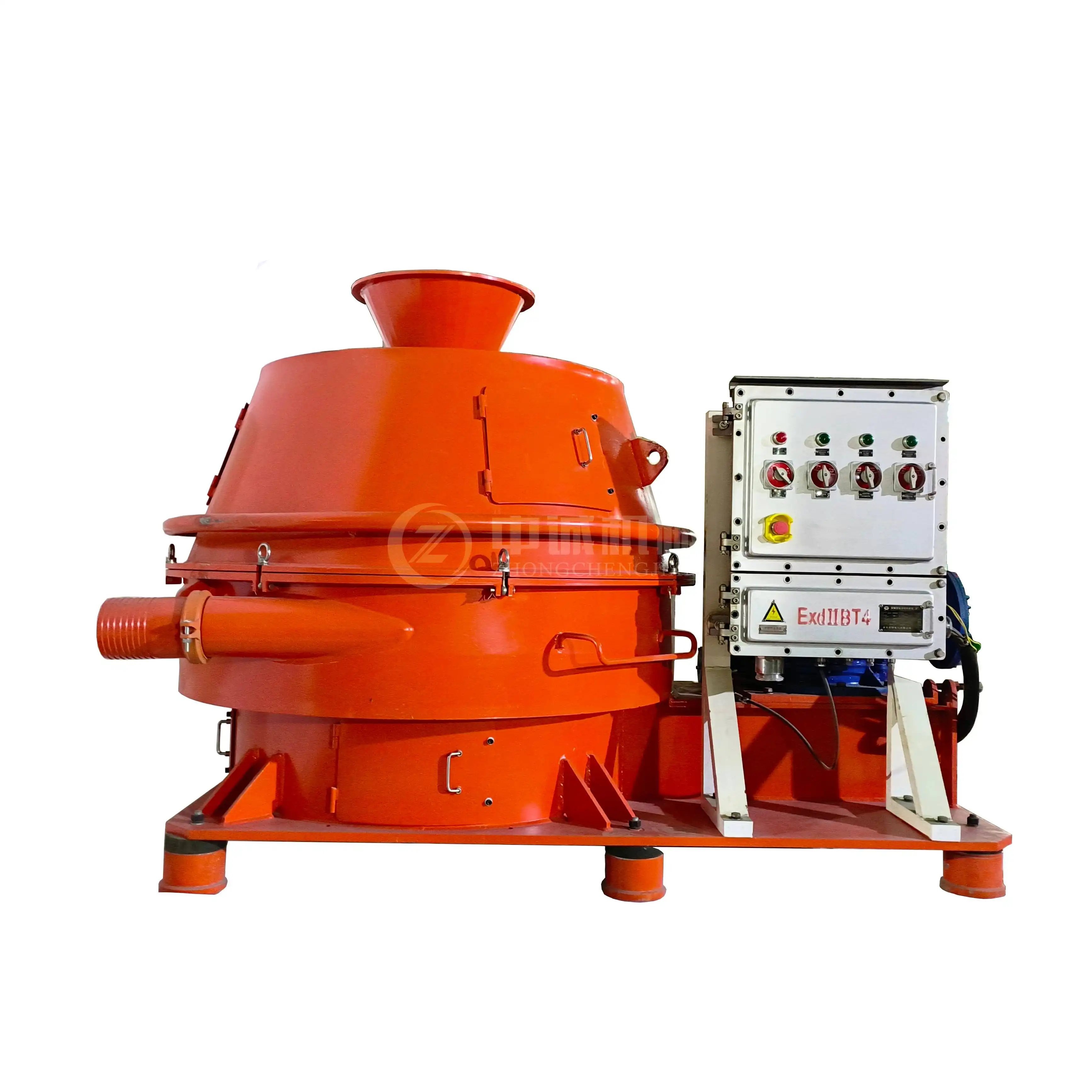

Managing oil-contaminated drill cuttings at remote well sites is one of the most persistent operational headaches in the oil and gas industry. A vertical cutting dryer offers a direct, field-proven answer. By applying high centrifugal force — typically between 300G and 500G — this equipment separates base oil from cuttings and reduces oil-on-cuttings (OOC) content to 5% or below by weight. For procurement managers, drilling engineers, and EPC contractors working far from waste disposal infrastructure, this technology translates directly into lower logistics costs, regulatory compliance, and recovered drilling fluid value.
When you put wet, oil-covered drill solids into a vertical centrifugal cuttings dryer, the solids spin around in the box. The rotor spins at 800 to 1,200 RPM, creating centrifugal force that pushes free liquid through the screen holes, which are usually 250 to 500 microns in size. Solids are scraped up and out by tungsten carbide-tiled flights. The fluid that is collected goes straight back into the active mud system. This cuts down on base oil losses, which can cost thousands of dollars per barrel.
The machine's heart is the screen basket. Before they are shipped, high-quality stainless steel wedge-wire baskets are tested for ultrasonic welds and looked over visually. The tungsten carbide scraper flights, which have been tested and found to be harder than 85 HRC, can withstand 500 to 1,500 hours of drilling objects that are high in silica. A built-in air-knife or fluid flushing system keeps the throughput stable without any manual intervention and stops the screen aperture from becoming blind during continuous runs.
In order to work, both rotary dryers and vacuum dryers need a lot more energy and take up more space. When processing 30 to 50 tons per hour, the ZHONGCHENGJIXIE ZCVCD line constantly runs a vertical cuttings dryer that is stable, quiet, and uses little power. Fluidized bed systems have trouble with oil-based mud that has variable feed moisture. The vertical centrifugal design, on the other hand, works well with OBM and SBM cuttings, which is why it is the best choice for treating large amounts of drilling waste.
One big problem that both offshore platforms and remote onshore shale gas pads have in common is that it costs a lot to get trash that is heavy in liquids to an approved disposal site. In places like the Arctic or those that care about the environment, moving wet cuttings can cost more than the drilling fluid itself. Drying cuttings on-site to OOC ≤5% cuts down on waste volume by a large amount, which also cuts down on transportation and the carbon footprint that comes with it. Using on-site rotary drying equipment, operators running long lateral sections in shale plays have said they have recovered thousands of barrels of synthetic base oil per well.
The U.S. EPA's zero-discharge rules for offshore activities and state-level OOC limits for onshore dumping need proof that the waste has been treated. Oilfield workers need proof of compliance in the form of ISO 9001, ISO 14001, ISO 45001, TÜV, BV, and HSE-certified Vertical Cutting Dryer equipment in order to pass governmental audits. All of these approvals are on ZHONGCHENGJIXIE's ZCVCD line, which gives purchasing teams peace of mind that the equipment meets both national and foreign environmental standards.
Unplanned downtime at a remote site costs a lot more than it does at a central location. The ZCVCD line is made of materials that don't wear down or corrode and were chosen because they work well in tough oilfield conditions like dust, vibration, temperature changes, and constant use. Before being sent out, every unit has to go through a 4- to 8-hour factory acceptance test (FAT), during which the temperature of the engine oil and the amount of shaking must stay below 50 to 70 microns. This pre-delivery validation cuts down on early-life failures in the field by a large amount.
Rotary dryers are used a lot in mining and processing bulk materials, but they take up a lot of space and need a lot of heat. For treating drill cuttings, steam drying could also change the chemical makeup of the base oil that is retrieved. The vertical centrifugal design recovers fluid at room temperature, keeping the fluid's quality so it can be used directly in the mud system. This saves a lot of money when synthetic base oil costs more than $500 per barrel.
Vacuum dryers get rid of very little moisture, but they need complicated sealing systems and take longer to cycle, which means they aren't as good for big drilling programs that use constant, high-volume cuttings streams. An automatic vertical cuttings dryer can handle up to 50 t/h of material without stopping for any reason. This is the same speed as active drilling, where cuttings are always being made and waiting for batch processing is not an option.
The vertical centrifugal design really works well in three situations: deepwater operations at sea where zero-liquid-discharge rules apply, shale gas exploration on land with lots of cuttings, and places that are too far away or too sensitive for waste transport to be practical. In all of these situations, this technology is the most useful one because it can work continuously, has a high G-force, and is compatible with OBM and SBM fluids.
The cost of buying a Vertical Cutting Dryer is just the beginning. Buyers should think about how easy it is to get replacement parts, like screen baskets and tungsten carbide flights, as well as the costs of shipping, installation help, and getting the machine up and running. ZHONGCHENGJIXIE sends in-stock items within three days and completes custom orders within fifteen days. They use standard export packing and are close to both Tianjin and Shanghai ports to make international shipping quick and easy.
To find a reliable Vertical Cutting Dryer manufacturer, you should look at their certifications (ISO 9001/14001/45001, TÜV, BV, HSE), see if they have any private rights, and make sure they can do OEM customization. ZHONGCHENGJIXIE has more than a dozen separate inventions and more than 30 years of experience in the field. The business gives full technical information, like engineering drawings, flowcharts, operation and maintenance instructions, and a one-year warranty with ongoing technical help after the sale.
Different drilling programs need different sets of tools. People who want to buy ZJ90, ZJ70, ZJ50, or smaller rigs have different needs when it comes to room, power, and speed. The ZCVCD series can be made to fit your needs and comes with motor configurations from top brands in the United States and other countries. It can also be integrated with solid control layouts that are already in place. Because of this, procurement teams can choose equipment that works best for their site instead of having to change their plans to fit a fixed product.
The only thing that can be changed that affects OOC output is the feed rate. When the screen bin is overloaded, the objects are spread out unevenly, which causes vibrations and speeds up flight wear. Operators should keep an eye on the accuracy of the feed and check the screen openings on a regular basis. There is a built-in flushing system that helps keep the screen permeable between maintenance windows.
It's important to run the rotor at the right speed for the material type. For solids that are coarser and less abrasive, higher RPM may not cause too much screen wear, but for high-silica formations, slower speeds are needed to protect the basket. When you match the G-force output to the real feed composition, you can keep the OOC results below 5% while also saving the mechanical parts.
In the ZCVCD line, low-power operation was a big part of the planning process. Stable, low-noise running cuts down on noise pollution at the site and lowers the cost of energy used per ton handled. When recovered drilling fluid is put back into the active mud system, it directly lowers the amount of new base oil that needs to be bought for each well. This cuts down on both operational costs and the damage that fluid disposal does to the environment. The HSE standards that most big operators now want from their equipment suppliers are in line with these actions.
At rural well sites, being able to clean oil-contaminated drill cuttings on-site is both necessary for operations and a financial plus. A Vertical Cutting Dryer lowers OOC to 5%, recovers expensive base oil for reuse, and keeps waste volumes low enough that they can be managed without frequent off-site transportation. The ZCVCD series is a practical and well-documented choice for procurement managers and drilling engineers who are looking at different pieces of equipment. It has certified performance, the ability to run continuously, and customization support. The important thing is to find a manufacturer that has the right certifications, production capacity, and expert help to keep the tools working well throughout the whole project.
A properly maintained unit processing OBM or SBM cuttings reduces oil-on-cuttings to 3%–5% by weight, depending on feed moisture and applied G-force. The ZCVCD series targets ≤5% OOC under standard operating conditions.
Vertical cutting dryers are specifically engineered for oil-based and synthetic-based fluids. High clay content in water-based mud tends to blind the screen basket quickly, reducing efficiency and increasing maintenance frequency. For WBM applications, a shale shaker or decanting centrifuge is generally more appropriate.
Basket service life depends on the abrasiveness of the formation solids. High-quality stainless steel baskets typically last 500–1,500 operating hours. Tungsten carbide flights last considerably longer under standard oilfield conditions.
Common causes include uneven solids loading, a partially blinded screen, or worn scraper flights creating an imbalanced rotating mass. The ZCVCD series undergoes dynamic balancing to G2.5 standards before shipment, which minimizes vibration-related failures during initial operation.
Yes. The company provides commissioning assistance, complete technical documentation, and long-term after-sales technical support. Spare parts are available through established supply channels, and the engineering team can assist with troubleshooting remotely.

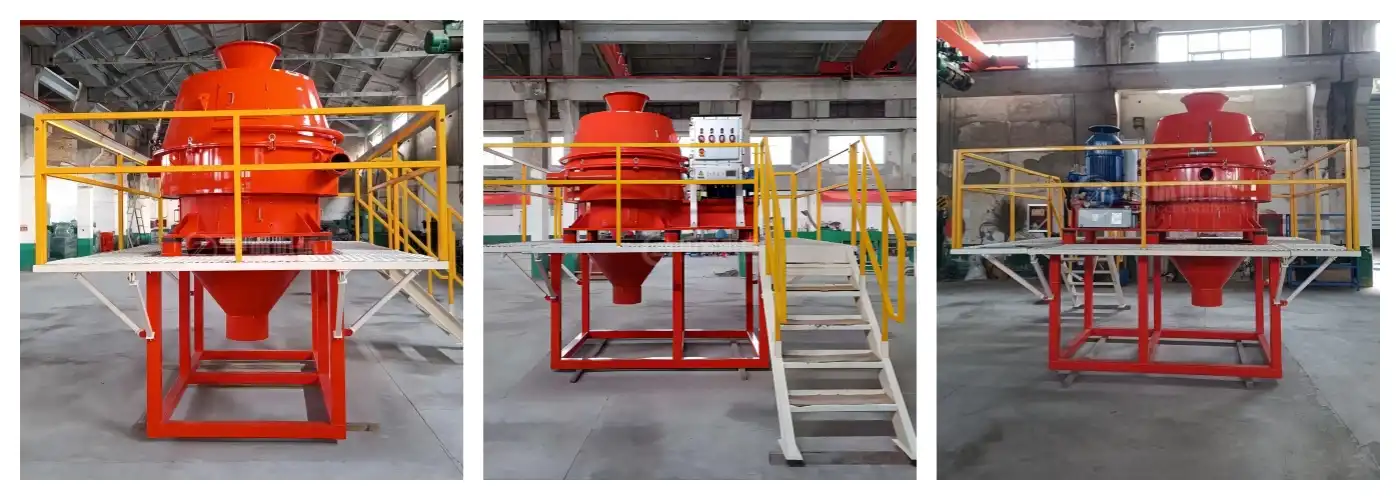

The ZCVCD series Vertical Cutting Dryer is made by ZHONGCHENGJIXIE for drilling operators, oilfield service companies, and EPC projects all over the world. We are a reliable Vertical Cutting Dryer supplier with ISO 9001/14001/45001 certifications, our own patents, and in-stock units that can be shipped within 3 days. You can count on us for both standard and custom configurations. You can email our team at oliver@zcgukong.com or go to zcsolidscontrol.com to get a price or technical advice.
1. SPE Drilling & Completion — Society of Petroleum Engineers, 2021
2. Journal of Petroleum Technology — Society of Petroleum Engineers, 2020
3. API Recommended Practice 13C: Drilling Fluids Processing Systems Evaluation — American Petroleum Institute, 2019
4. Drilling Waste Management: Technology Review — U.S. Department of Energy, Office of Fossil Energy, 2018
5. Environmental Science & Technology: Oilfield Waste Treatment Advances — American Chemical Society, 2022
6. Offshore Technology Conference Proceedings: Cuttings Treatment Solutions for Deepwater Operations — OTC, 2021
