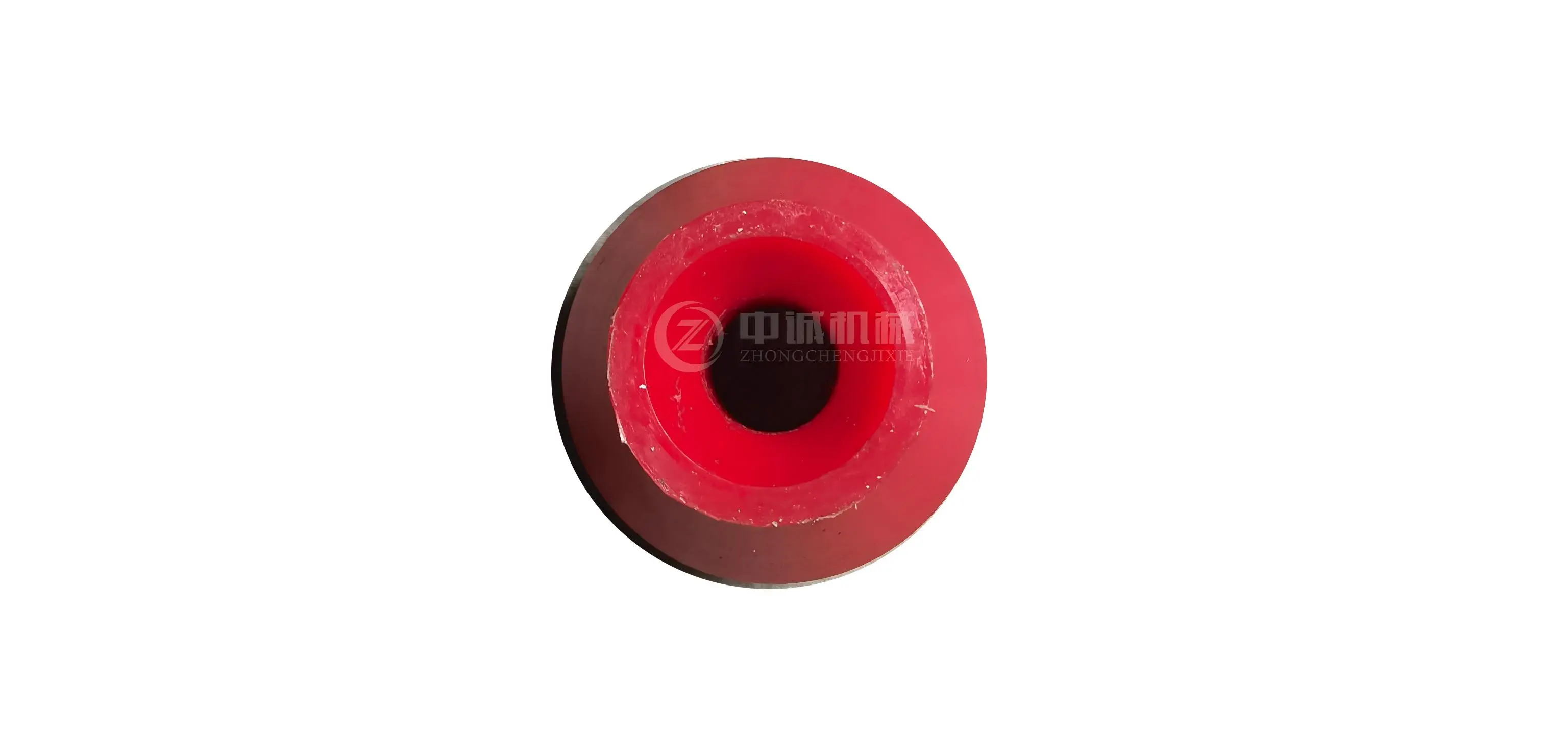

ZC Underflow Nozzle serves as a critical discharge component engineered specifically for hydrocyclone solid-liquid separation in oilfield drilling operations. Manufactured by Zhongcheng Machinery with over 30 years of industry expertise, this precision-engineered nozzle directly determines your cyclone's cut point and liquid recovery efficiency.
Our plant makes high-grade polyurethane (PU) nozzles with remarkable tear strength, engineered to handle high-pressure, high-sand-content slurries in harsh drilling situations. Every unit has HSE, TÜV, and BV approval and is subject to stringent quality control under ISO 9001/14001/45001 certifications. Our 6,300-square-meter production facility allows us to maintain an annual capacity of 200 full mud circulation systems while providing nozzle specifications that are tailored to your precise operational needs.
Your drilling operations demand components that endure harsh conditions without frequent replacement. Our Underflow Nozzle utilizes high-grade, high-durometer Polyurethane (PU) construction that delivers exceptional abrasion resistance.
When compared to conventional rubber substitutes, the material composition offers better tear strength. The PU formulation is resistant to scouring damage when your hydrocyclone processes slurries that comprise abrasive materials and sharp sand particles. This longer wear life directly results in lower maintenance expenses and fewer disruptions to operations.
Field testing shows our nozzles maintain dimensional integrity 25% longer than conventional designs. The material hardness prevents rapid bore enlargement, which is the primary cause of declining separation performance.
The internal chamber design directly impacts your separation efficiency. Our nozzles feature precision-engineered geometry that promotes the ideal "umbrella" spray pattern during discharge.
This spray configuration ensures dry solids rejection while retaining maximum drilling fluid. Poor nozzle design causes "roping" discharge, where solids and liquids exit together in a solid stream. That wastes valuable drilling mud and reduces cut point accuracy.
Our geometric structure maintains consistent underflow density across varying feed concentrations. You'll notice stable separation performance even when solids loading fluctuates during drilling operations. The precision manufacturing tolerances prevent blockages that typically occur with inconsistent internal profiles.

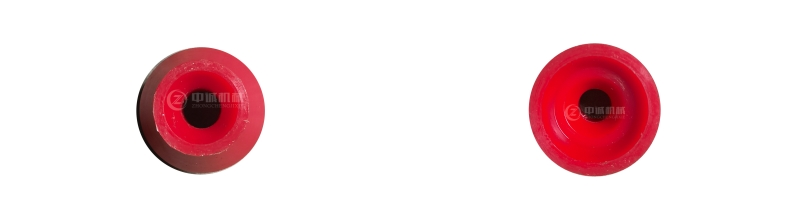

You need components that integrate seamlessly with existing equipment. Our product line covers complete size ranges for standard 4-inch, 5-inch, 10-inch, and 12-inch hydrocyclones.
Multiple orifice diameter options allow real-time performance tuning. When your desander encounters varying particle size distributions, you can swap nozzles to adjust underflow moisture content. Larger apertures handle higher solids loading without plugging, while smaller diameters increase underflow density.
The standardized threading and clamp interfaces ensure compatibility with major cyclone manufacturers. This universal design approach eliminates costly custom fabrication when you need replacement parts urgently at remote drilling sites.
| Parameter | Specification |
|---|---|
| Material | High-durometer Polyurethane (PU) |
| Hardness Rating | High-grade abrasion-resistant formulation |
| Temperature Resistance | Up to 150°C continuous operation |
| Compatible Cyclone Sizes | 4", 5", 10", 12" standard configurations |
| Orifice Diameter Range | Multiple sizes from 6mm to 25mm |
| Pressure Rating | Exceeds 300 kPa operating pressure |
| Interface Type | Threaded or clamp-style mounting |
| Density Range | 2.5 to 3.2 g/cm³ material density |
| Surface Finish | Smooth internal bore (Ra < 0.8μm) |
| Service Life | Extended wear resistance in abrasive slurries |
| Quality Standards | ISO 9001 manufacturing tolerances |
| Certifications | ISO 9001/14001/45001, HSE, TÜV, BV approved |
Downtime costs you money during drilling operations. Our nozzles feature streamlined replacement procedures that minimize equipment idle time.
The robust threading interface allows tool-free hand installation for quick swaps. When you need faster changeovers, the clamp-style variants enable replacement in under five minutes with basic tools. No specialized equipment or technician expertise required.
The durable connection points resist loosening from cyclone vibration and hydraulic pulsation. You won't experience unexpected nozzle detachment during operation. Pre-installation inspection takes seconds—simply verify thread condition and orifice diameter before mounting.
Your mud circulation system relies on effective solids removal to maintain drilling fluid properties. The Underflow Nozzle performs critical functions across multiple solid control stages.
In desander cyclones, it removes coarse sand particles (45-74 microns) while preserving barite weighting material. The precise discharge control prevents valuable drilling mud loss. For desilter applications, smaller orifice configurations target fine silt removal (15-44 microns) without excessive liquid discharge.
The nozzles withstand chemically aggressive oil-based muds and synthetic drilling fluids. Whether you're drilling in conventional formations or challenging shale environments, the PU material resists chemical degradation. Temperature stability ensures consistent performance from arctic to desert conditions.

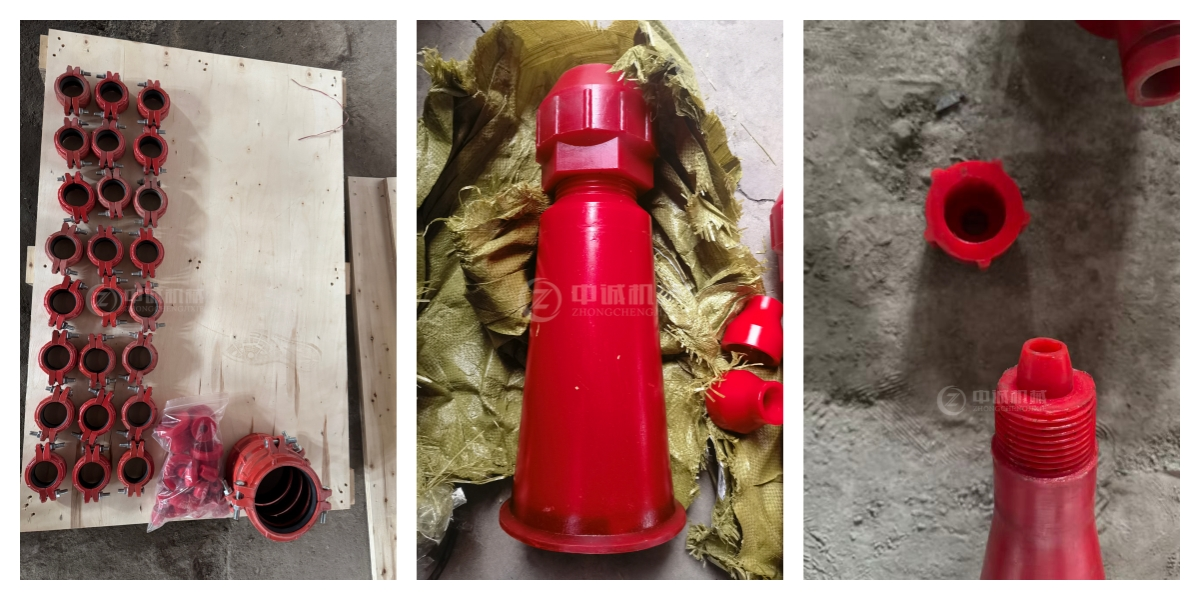

Every drilling operation presents unique challenges. We provide customized nozzle specifications tailored to your exact separation requirements.
Our engineering team analyzes your cyclone configuration, feed characteristics, and desired cut point. We then manufacture nozzles with optimized orifice diameters and chamber geometries. Custom threading matches non-standard cyclone models when needed.
As a direct manufacturer, we eliminate distributor markups. You receive factory pricing with full technical support. Our production facility stocks common sizes for immediate shipment—in-stock orders ship within 3 days. Custom specifications complete manufacturing within 15 days from order confirmation.
Q: How do I identify when nozzle replacement is necessary?
A: Monitor the discharge pattern during operation. When you observe "roping" instead of the umbrella spray, the internal bore has worn beyond acceptable limits. Typically, replacement occurs when diameter increases by 10-15% from original specifications. Decreased underflow density also signals wear progression.
Q: Can I increase underflow density by installing a smaller nozzle?
A: Yes, reducing the orifice diameter raises underflow concentration. However, excessively small nozzles risk frequent plugging when solids loading spikes. You'll also force more particles into the overflow, reducing separation efficiency. Consult our technical team for optimal sizing based on your feed characteristics.
Q: Which nozzle material performs best in acidic drilling fluids?
A: Our high-grade polyurethane formulation resists chemical attack across pH ranges from 6 to 12. For extreme acidic conditions below pH 6, we recommend ceramic-lined variants. Contact our engineering department to discuss your specific fluid chemistry requirements.
Q: Why does my nozzle clog repeatedly during operations?
A: Frequent plugging typically results from oversized tramp material in the cyclone feed. Install pre-screening upstream or increase nozzle diameter slightly. Also verify proper cyclone feed pressure—insufficient pressure fails to generate the hydraulic forces needed to clear the discharge opening.
Q: How does nozzle size affect overall cyclone pressure drop?
A: The apex diameter secondarily influences total pressure differential. Smaller nozzles create higher backpressure, increasing overall system pressure drop. The primary effect is on split ratio—the proportion of feed reporting to underflow versus overflow. Proper sizing balances separation efficiency with acceptable pressure requirements.
Q: What causes the discharge pattern to spray unevenly?
A: Uneven spray indicates internal chamber damage or manufacturing defects. Inspect for chips, cracks, or deformation around the orifice. Even minor damage disrupts hydraulic flow patterns. Replace damaged nozzles immediately to restore separation performance.
Ready to optimize your hydrocyclone performance with our Underflow Nozzle? Our engineering team provides complete technical assistance for nozzle selection and customization. Contact oliver@zcgukong.com for product specifications, pricing, and delivery schedules today.
