A jet mud mixer is the primary piece of equipment used for drilling fluid preparation and weighting in oilfield Solids Control Systems. By applying the Venturi principle, it draws dry additives—such as barite, bentonite, and polymers—into a high-velocity fluid stream, producing rapid, homogeneous blending. When drilling fluid density or rheology shifts unexpectedly due to formation pressure changes, a reliable jet mud mixer allows crews to correct mud properties within minutes rather than hours, directly protecting wellbore stability and reducing the risk of lost circulation or kicks during active drilling.
It's easy to understand how a Jet Mud Mixer works: a centrifugal pump sends high-pressure fluid through a Venturi nozzle, creating a vacuum that pulls dry solids from a hopper into the flow. The shear power that comes from this quickly breaks up clumps, making a smooth slurry. This mechanism gets rid of the "fish-eye" problem, which is caused by polymer lumps that haven't been dissolved and can damage the formation if they're moved around inside the well.

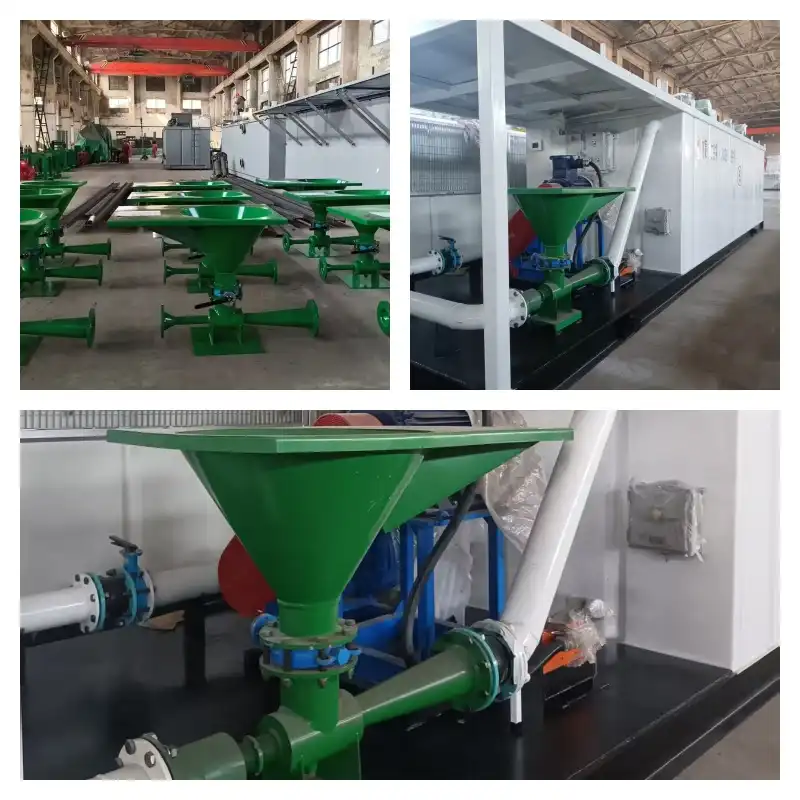

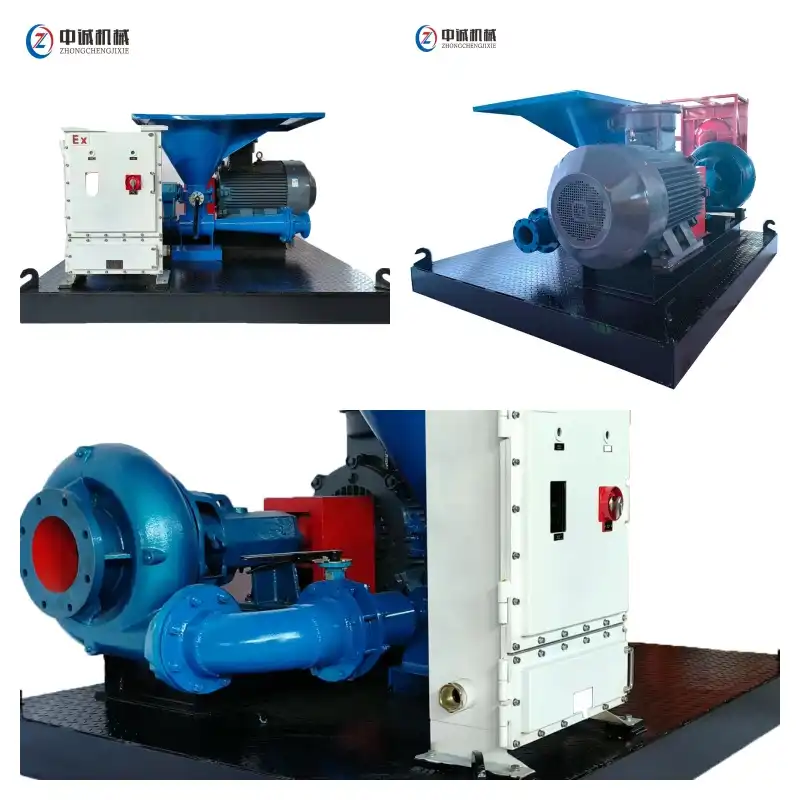

A centrifugal pump, butterfly valves, a mixing nozzle, and connecting manifolds are some of the most important parts. ZHONGCHENGJIXIE makes both Single-Jet configurations (one hopper with one pump) and Dual-Jet configurations (two hoppers with two pumps) so they can be used for digging from 1,000 m to 9,000 m deep. The hopper and pump set can be placed on a skid as a single unit or linked by pipes so that they can be installed separately. This gives rig teams options when there isn't much room on top of the tank.
The rate of drilling, the handling of wellbore pressure, and the wear on tools are all directly affected by how dense the mud is. If the mud mixing unit works properly, the fluid mass stays the same throughout the circulation loop. This means that fewer expensive additives are lost because they don't mix well. The motor power on ZHONGCHENGJIXIE's units ranges from 37 to 55 kW, and the speed ranges from 60 to 100 kg/min. This meets the needs of current high-speed drilling activities without putting too much stress on the rig's power system.
Mud agitators mix the solids that are already in the tank without adding or mixing in new things. They use less power and are good for basic suspension work, but they can't do chemical cleaning or fast weighting. This is where a Venturi-based mud mixing unit comes in. It actively draws in and spreads dry additives in a single pass, which is something an agitator can't do no matter how long it runs.
Centrifugal mixing pumps in the Jet Mud Mixer mix things by recirculating fluid, but when working with heavy materials like barite, they often need more than one pass to get the percentage to be the same. The high-shear Venturi tip in jet-type units makes it possible to homogenize everything in one pass. This cuts down on both mixing time and chemical waste. This single-pass efficiency is a big help for operations that need to be done quickly, like quickly increasing the weight of the mud before entering a high-pressure zone.
The choice is based on three things: the type of additive, the speed at which it needs to be mixed, and the pressure of the pump. A jet mixing device with an inlet pressure of 0.25 to 0.4 MPa always works better than other options for making new drilling fluid and chemical drilling fluid in certain rocks. When high-salinity or acidic muds are present, chemical-resistant butterfly valves and hoppers made of full stainless steel (SS316) are required features rather than extras.
Make sure the centrifugal pump provides the maximum inlet pressure (usually 0.3 MPa) before turning on the unit. Most of the time, weak hopper suction and insufficient mixing are caused by not enough input pressure. Feed additives into the Venturi vacuum opening at a steady, controlled rate. If you don't do this, the mixture will surge, and the nozzle could wear out. The ZHONGCHENGJIXIE's hopper opening is the right size for constant manual or automatic filling without bridging.
In places with a lot of sand and mud, check the mixing tip every 500 hours of use. A high-chromium alloy nozzle can usually be used for 1,500 to 2,500 hours before its performance starts to get worse. If the butterfly valve seats are being used all the time, check them for wear once a week, and change the seals as soon as you notice a leak. Even though the electrical system has a protection grade of at least IP55, the terminals should still be checked once a month in dusty onshore or offshore settings.
Weak suction in a Jet Mud Mixer is usually caused by a partially clogged nozzle or a pump that isn't running at its recommended speed. Clear the nozzle path and check the pump's RPM before taking the problem to a higher level of analysis. If the clumping doesn't go away after checking the valve, the additive feed rate is probably too high for the current fluid motion. Slow down the feed speed by 15 to 20% and check the discharge to make sure it's even. ZHONGCHENGJIXIE gives workers thorough operation and maintenance manuals, flowcharts, and on-site commissioning instructions to help them fix these problems quickly and without having to shut down for long periods of time.
Teams in charge of buying things should look at four main factors: the rig's processing capacity (usually between 120 and 240 m³/h), its motor power and how well it matches the rig's power source, the tip material grade and how rough the mud is, and the rig's ability to be set up in different ways. For rigs in the ZJ30 to ZJ90 class, ZHONGCHENGJIXIE has units that can be put together in a way that fits the rig's hydraulic needs and available space.
Before placing an order, buyers should make sure of the following main features and certifications:
These checkpoints make sure that the equipment meets both the safety standards for the place and the long-term performance goals. This lowers the risk of failure before its time or not following the rules set by the government.
It is just as important to check the equipment specifications as it is to check the manufacturer's credentials, production capacity, and availability of spare parts. ZHONGCHENGJIXIE is certified by ISO 9001, ISO 14001, and ISO 45001, and it is also approved by TÜV and BV. Each year, the company can make 200 mud circulation system sets. Custom orders take 15 days to finish, while in-stock items ship within 3 days. All units come with a one-year warranty, and as standard support, the company provides engineering drawings, installation instructions, and technical training.
Transport-safe packaging for the Jet Mud Mixer includes steel strapping, plastic film wrapping, and tarps that don't get wet. Depending on the size of the goods and the needs of the target port, pallets or wooden crates can be used. ZHONGCHENGJIXIE has direct access to the ports of Tianjin and Shanghai and has established logistics partnerships that allow for fast delivery around the world for both single units and full solids control system packages.
More and more, drilling activities use automated fluid tracking systems that change the properties of the mud in real time. Newer mixing tools are being made that will have sensor ports and be compatible with variable-speed drives. This will let the mixing unit react instantly to density data from the active mud system, without any help from a person.
Tungsten carbide nozzle plugs are becoming more popular in ultra-abrasive settings because they last longer than 3,000 hours, which means they don't need to be replaced as often during a well's drilling cycle. With modular manifold designs, worn parts can be swapped out on the rig site instead of sending the whole unit back to the workshop. This cuts down on maintenance downtime by a large amount.
North America and remote zones have stricter rules about the environment, which is pushing operators toward closed-loop mud systems. These systems use precise mixing control to lower the amount of fluid waste and chemical release. A high-efficiency Venturi mixing device that evenly spreads additives in a single pass naturally helps reach this goal by cutting down on the extra chemicals needed for multiple mixing passes.
Maintaining the quality of the drilling fluid in the field requires Jet Mud Mixer equipment that works reliably at all stages, from preparing the fluid at the start to making quick changes to the density while the drilling is going on. ZHONGCHENGJIXIE's mud mixing units are a reliable choice for contractors working at a wide range of drilling depths and formation conditions because they are made of materials that don't wear down easily, can be configured in either a single jet or two jets, and meet ISO, TÜV, BV, and HSE standards. Picking the right mixing tools guards the properties of the fluid, cuts down on waste from additives, and keeps the rig going on time.
Weak suction most often results from insufficient inlet pressure or a partially blocked nozzle. Confirm that the centrifugal pump is delivering the rated 0.3 MPa. If pressure is correct, inspect and clear the nozzle passage.
Feed the polymer at a steady, controlled rate into the center of the Venturi vacuum. The high-shear nozzle breaks up particles on contact; inconsistent feeding is the primary cause of residual lumps.
Yes. Specify a full stainless steel (SS316) hopper and chemical-resistant butterfly valves when ordering. ZHONGCHENGJIXIE offers this configuration as a standard option.
A high-chromium alloy nozzle typically delivers 1,500 to 2,500 operating hours in abrasive conditions. Tungsten carbide inserts are available for extended service life in ultra-abrasive applications.
Standard units are fitted with explosion-proof motors and anti-static components to meet Zone 1 or Zone 2 safety requirements, consistent with ATEX and related international standards.
Some of the Venturi-based Jet Mud Mixer units made by ZHONGCHENGJIXIE have ISO 9001/14001/45001, TÜV, BV, and HSE certifications to back them up. We offer reliable equipment that is matched to your rig class and formation conditions. We have over 30 years of experience in the field, our own patents, and the ability to ship full units within 3 days. You can email our engineering team at oliver@zcgukong.com or go to zcsolidscontrol.com to get specifications, engineering drawings, or a custom quote.
1. American Petroleum Institute. API RP 13C: Recommended Practice on Drilling Fluids Processing Systems Evaluation. API, 2010.
2. Bourgoyne, A.T. et al. Applied Drilling Engineering. Society of Petroleum Engineers, 1986.
3. Caenn, R., Darley, H.C.H., and Gray, G.R. Composition and Properties of Drilling and Completion Fluids. Gulf Professional Publishing, 2011.
4. International Association of Drilling Contractors. IADC Drilling Manual, 12th Edition. IADC, 2015.
5. Mitchell, R.F., and Miska, S.Z. Fundamentals of Drilling Engineering. Society of Petroleum Engineers, 2011.
6. Rabia, H. Well Engineering and Construction. Entrac Consulting, 2002.
