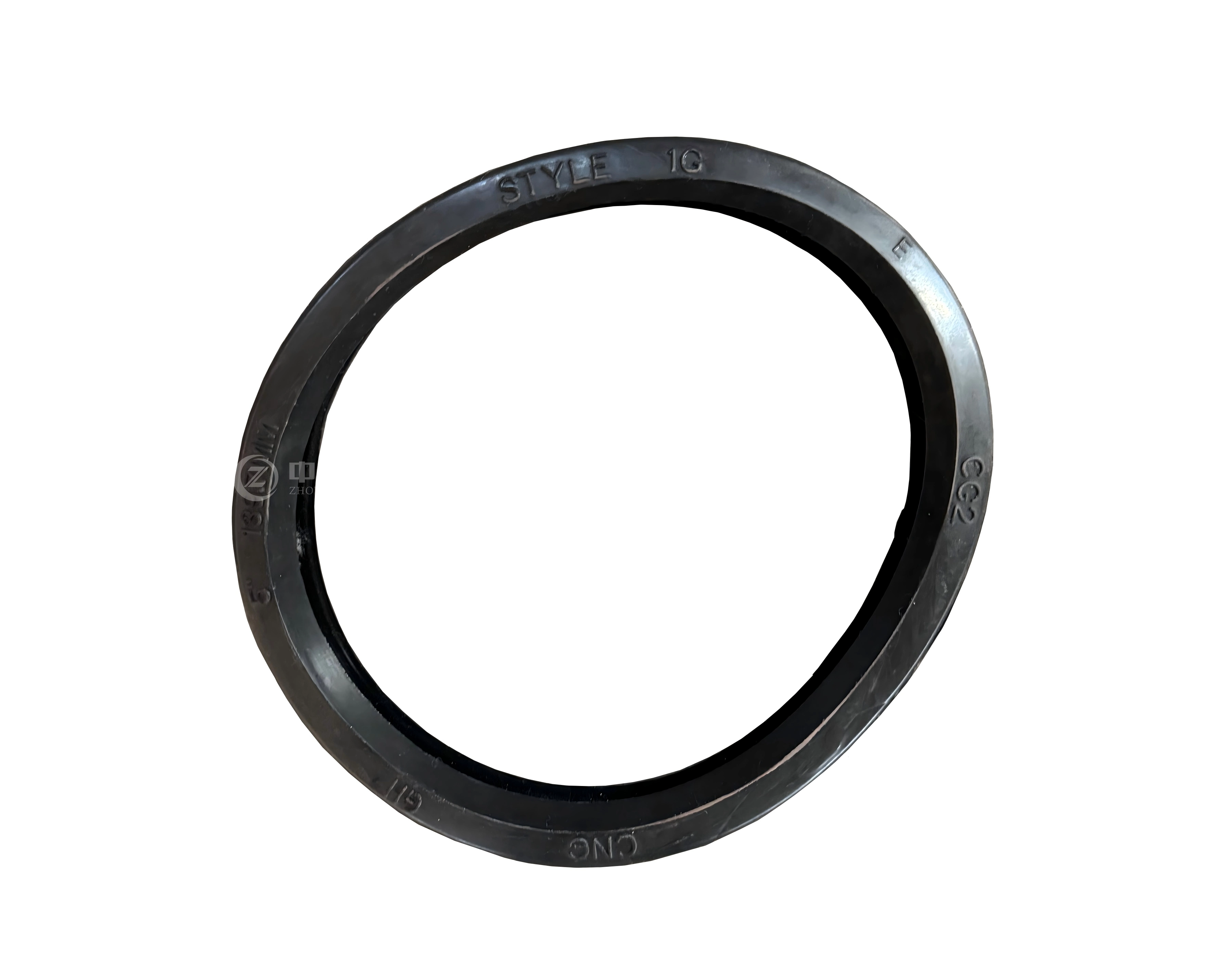

Shaanxi Xixian New Area Zhongcheng Machinery Manufacturing Co., Ltd., established in 2015 with a 6,300-square-meter production base, specializes in manufacturing Cyclone Clamp Gasket components for oilfield solid control equipment. Our gaskets are precision-molded from NBR or Viton elastomers, delivering high-pressure resistance up to 600 PSI and corrosion protection in harsh drilling environments. These sealing components ensure leak-proof interface connections between cyclone bodies and manifolds, protecting your desander and desilter equipment from premature wear. Certified under ISO 9001/14001/45001 and approved by TÜV, BV, and HSE systems, our factory produces over 200 sets of solid control systems annually with customizable dimensions and materials to match your specific operational requirements.
Your solid control system's reliability depends on every sealing interface.
Our products serves as the critical barrier between your hydrocyclone separator components and process fluids. When drilling fluids circulate through desanders and desilters at high velocity, standard seals fail under abrasive particle impact and pressure fluctuations.
This specialized gasket addresses three operational challenges you face daily. First, it prevents fluid bypass that reduces separation efficiency. Second, it absorbs mechanical vibrations that would otherwise crack rigid seal materials. Third, it maintains consistent compression even when equipment undergoes repeated assembly during maintenance cycles.
The pressure-responsive geometry works with your system rather than against it. As internal fluid pressure increases, the seal energizes more tightly against coupling walls. This self-adjusting characteristic eliminates the common problem of blow-out failures during pressure surges.
Understanding the engineering behind your sealing components helps you make informed maintenance decisions.
| Parameter | Specification |
|---|---|
| Base Material Options | NBR (Nitrile), Viton (FKM), Polyurethane (PU) |
| Hardness Range | 70-80 Shore A |
| Temperature Tolerance | -20°C to 120°C |
| Pressure Rating | Up to 600 PSI |
| Profile Styles | C-style, T-style, Lip-seal |
| Compliance Standards | ASTM D2000, ISO 9001 |
| Chemical Resistance | Oil, chemical additives, drilling fluids |
| Color Options | Black (NBR), Brown/Green (Viton) |

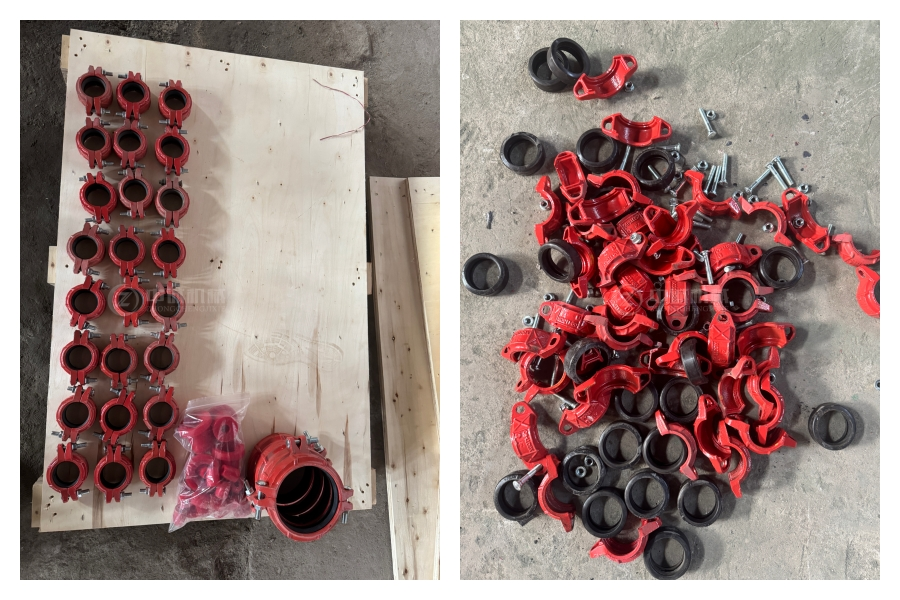

NBR (Nitrile Rubber) provides excellent resistance to petroleum-based drilling muds and hydraulic fluids. Your equipment operating with water-based fluids and mild chemical exposure benefits from NBR's cost-effectiveness and reliable performance in temperatures ranging from -20°C to 100°C.
Viton (FKM) delivers superior chemical resistance when your operation handles aggressive additives or high-temperature applications. This fluoroelastomer maintains seal integrity up to 120°C and resists degradation from aromatic hydrocarbons that would destroy standard rubber compounds.
Polyurethane (PU) offers exceptional abrasion resistance for applications where solid particles continuously scour the seal surface. Your high-concentration slurry systems experience 3-5 times longer service life compared to conventional elastomers.
Each material maintains its elastic memory through thousands of compression cycles. The optimized durometer rating prevents extrusion through metal-to-metal gaps while ensuring sufficient flexibility for proper seating during installation.
Your hydrocyclone equipment represents significant capital investment requiring protection from avoidable failures.
The internal geometry of our Cyclone Clamp Gasket creates a self-energizing effect. As system pressure increases, the seal cross-section deforms slightly, increasing contact stress against the sealing surfaces. This dynamic response maintains leak-proof performance across your full operating pressure range without requiring excessive bolt torque.
Abrasive particles in drilling fluids concentrate at seal interfaces, creating cutting forces that rapidly degrade inferior gaskets. Our formulation includes reinforcing agents that dramatically increase tear propagation resistance. You'll observe the material's ability to withstand nicks and surface damage without initiating catastrophic seal failure.
The carefully controlled hardness prevents the gasket from extruding into clearance gaps under pressure. This resistance to "nibbling" extends service intervals and reduces your maintenance frequency.
Centrifugal equipment generates substantial mechanical vibration during operation. Standard rigid seals transmit these forces directly to flange surfaces, causing fretting wear and eventual leakage paths. Our elastomeric compounds absorb vibration energy, protecting both the gasket and your expensive cyclone housing from accelerated wear patterns.

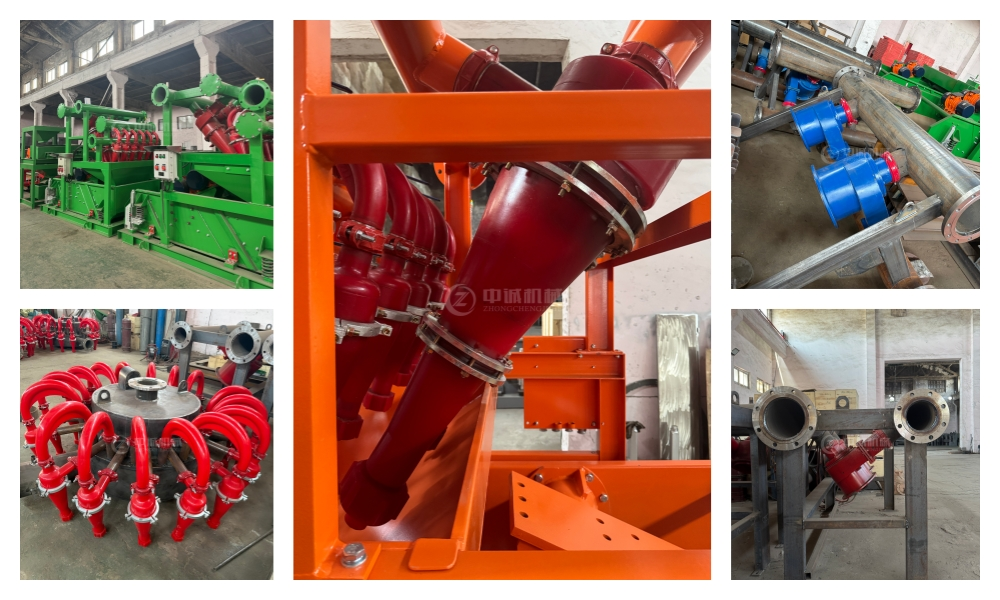

Surface drilling operations in cold climates and deep wellbore applications create extreme temperature variations. Our gaskets maintain sealing force and flexibility from arctic conditions down to -20°C through geothermal environments reaching 120°C. This thermal range ensures consistent performance regardless of your operational environment.
Your operation's specific conditions determine the ideal gasket configuration.
In drilling mud circulation systems, our products seals the connection between hydrocyclone cones and their manifold assemblies. The seal withstands continuous exposure to weighted drilling fluids containing barite, bentonite, and drill cuttings. Your desander typically operates at 75-125 PSI feed pressure, while desilters function at 100-150 PSI.
The gasket's abrasion resistance becomes critical here. Solid particles accelerate through the cyclone entry at high velocity, creating erosive conditions at every interface. Standard gaskets fail within weeks, but our oil-resistant elastomer formulations deliver 3-6 months of service life in heavy slurry applications.
Hydrocyclone clusters in ore processing facilities handle extremely abrasive slurries containing silica, mineral ores, and tailings. Your equipment processes hundreds of gallons per minute, creating demanding conditions for every seal component. Our FKM and PU options specifically address the combined challenges of abrasion and chemical exposure from flotation reagents.
Flowback and produced water treatment systems use hydrocyclones to remove proppant sand and formation solids. These applications involve exposure to hydrocarbons, completion chemicals, and formation brines. The Cyclone Clamp Gasket provides chemical-resistant sealing that maintains integrity despite this aggressive fluid chemistry.
Your water treatment cyclones require sealing components that resist degradation from organic compounds, chlorine, and pH extremes. Our EPDM and NBR options deliver reliable service in these aqueous environments while meeting regulatory requirements for non-contaminating materials.

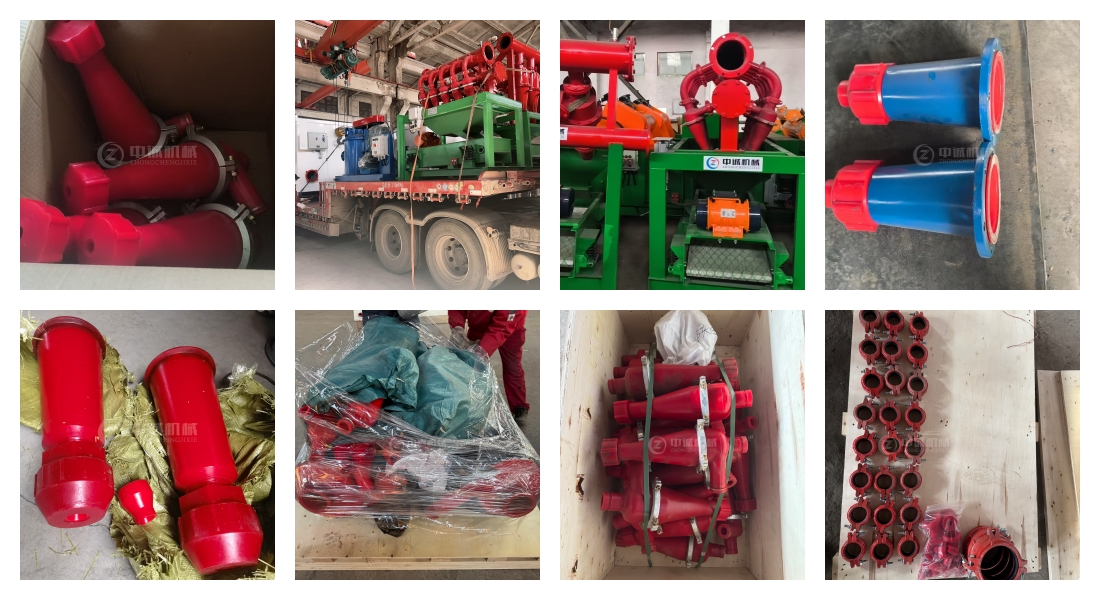

Your equipment configuration may require specific gasket dimensions or material properties.
Zhongcheng Machinery offers comprehensive customization to match your exact requirements. We modify gasket inner diameter, outer diameter, and cross-section thickness to fit proprietary cyclone designs or legacy equipment no longer supported by original manufacturers.
Material selection guidance comes from our engineering team with over 30 years of machinery manufacturing experience. You provide your fluid composition, operating temperature range, and pressure parameters. We recommend the optimal elastomer compound and hardness specification for maximum service life.
Our factory-direct supply model eliminates distributor markups while maintaining quality control throughout production. You receive components manufactured to your specifications with full material traceability and batch documentation.
Standard dimension gaskets ship within 3 days from our Xingping City production facility. Custom orders complete manufacturing and quality verification within 15 days. Our logistics partnerships provide efficient container loading at Tianjin and Shanghai ports for international shipments.
Each order includes engineering drawings showing exact dimensions and tolerances. You receive installation guidelines specifying proper surface preparation, lubricant recommendations, and torque specifications for your clamp hardware. Operation and maintenance manuals detail inspection intervals and replacement criteria.
Our one-year warranty covers material defects and manufacturing issues. Technical support remains available throughout your gasket's service life for troubleshooting guidance and performance optimization recommendations.
Q: How do I select between NBR and Viton materials for my application?
A: NBR suits water-based drilling fluids and petroleum products up to 100°C with cost-effective performance. Choose Viton when your operation involves aromatic hydrocarbons, chemical additives above 100°C, or requires extended chemical resistance. Contact oliver@zcgukong.com with your fluid composition for specific recommendations.
Q: What causes premature gasket failure in cyclone applications?
A: The three primary failure modes are improper installation torque, material incompatibility with process fluids, and abrasive particle erosion. Ensure your clamp bolts meet manufacturer torque specifications. Verify the gasket material matches your fluid chemistry. Inspect for visible extrusion at clamp edges or permanent deformation indicating hardness mismatch.
Q: Can your gaskets withstand steam sterilization cycles?
A: Standard NBR and Viton formulations tolerate temperatures to 120°C suitable for hot water cleaning. For steam sterilization applications reaching 150°C, we offer specialized high-temperature elastomer compounds. Specify your sterilization protocol during ordering for proper material selection.
Q: How often should I replace Cyclone Clamp Gasket components?
A: Replacement intervals depend on fluid abrasiveness and operating pressure. Heavy slurry applications typically require replacement every 3-6 months. Clean fluid systems may achieve 12+ months service life. Monitor for visible cracking, loss of elasticity, or leakage as replacement indicators rather than fixed time schedules.
Q: Do you provide installation training for maintenance personnel?
A: Yes, our technical support package includes industry training covering proper surface preparation, gasket positioning, and torque procedures. We provide remote guidance for standard installations and can arrange on-site training for large equipment commissioning projects.
Q: Are your gaskets compatible with existing competitor equipment?
A: We manufacture gaskets to fit major hydrocyclone brands and can reverse-engineer dimensions from your existing components. Send us a sample gasket or detailed measurements for custom manufacturing that ensures perfect fitment with your current equipment.
Your operation requires sealing components that meet international quality standards.
Every gasket undergoes dimensional accuracy verification using coordinate measuring equipment per ASTM D1414 standards. We confirm hardness consistency across each production batch through ASTM D2240 testing protocols. Tensile strength and elongation properties receive verification under ASTM D412 procedures.
Compression set testing per ASTM D395 simulates long-term pressure exposure. This evaluation ensures the gasket recovers its original dimensions after compression, maintaining seal effectiveness throughout its service life. Samples exposed to 70 hours at elevated temperature demonstrate less than 25% permanent deformation.
Chemical compatibility receives verification through fluid immersion testing. We expose gasket samples to your specific process fluids at operating temperature for extended periods. Post-immersion measurements document any dimensional changes, hardness variations, or visual degradation.
Our manufacturing facility maintains ISO 9001 quality management certification, ensuring consistent production processes. ISO 14001 environmental management and ISO 45001 occupational health and safety certifications demonstrate our commitment to sustainable and responsible manufacturing practices.
Third-party verification from TÜV and Bureau Veritas provides independent confirmation of our quality systems. HSE (Health, Safety, and Environment) approval qualifies our products for demanding oilfield applications where equipment reliability directly impacts personnel safety.
Ready to improve your solid control system's reliability with properly engineered Cyclone Clamp Gasket sealing solutions？Contact oliver@zcgukong.com for technical specifications, custom quotations, and material selection guidance. Our team responds within 24 hours with practical solutions for your sealing challenges.
