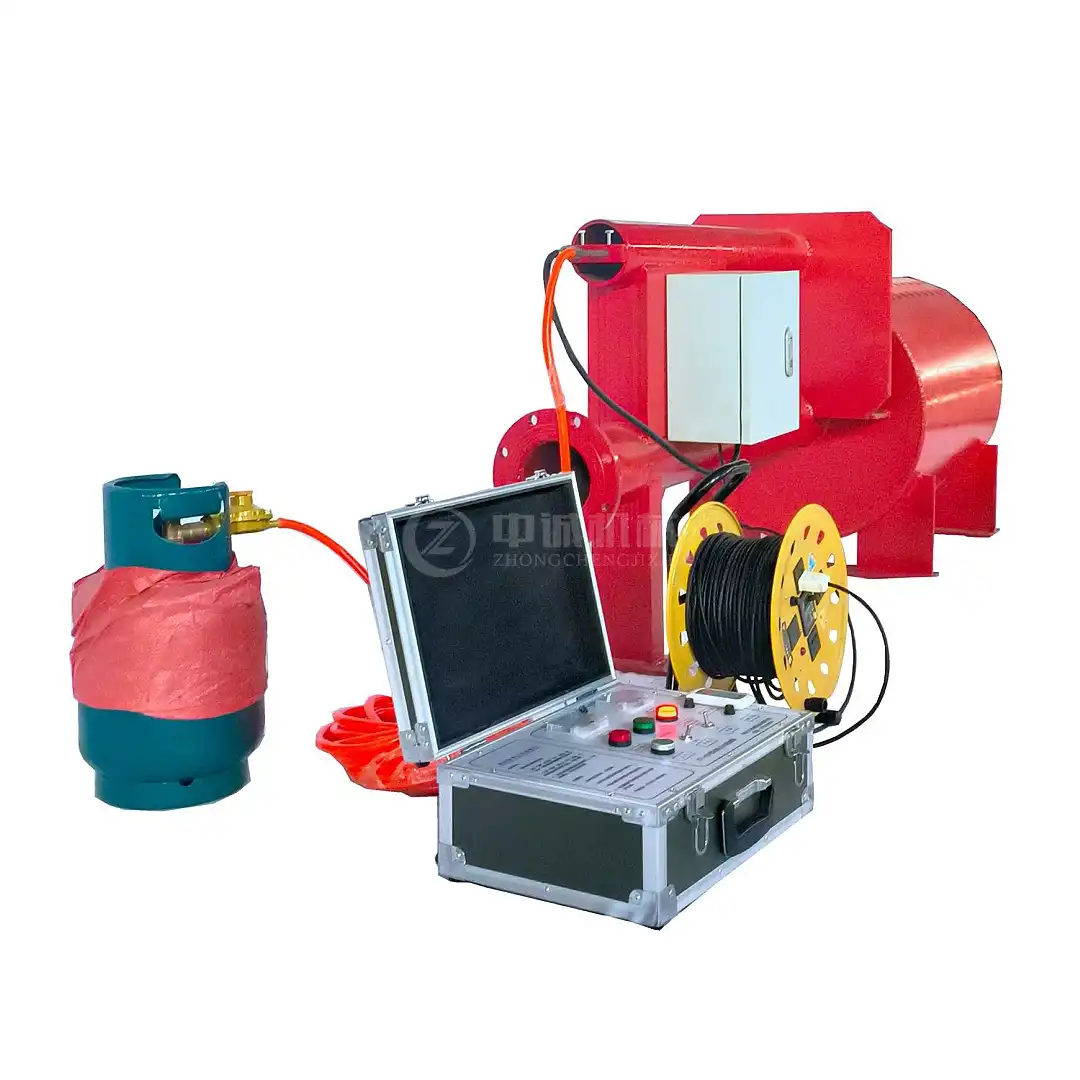

When managing gas discharge on active drilling sites, controlling combustion safely and efficiently is non-negotiable. The electronic flare ignition device - horizontal is purpose-built for exactly this challenge. Paired directly with mud gas separators, it handles waste gas discharged during drilling operations on open land sites and during long-cycle venting tests for high-yield gas wells. With torch diameters of 150mm and 200mm and lengths of 2.5m and 3m, this device delivers controlled ignition where vertical configurations simply cannot match the terrain or transport demands.

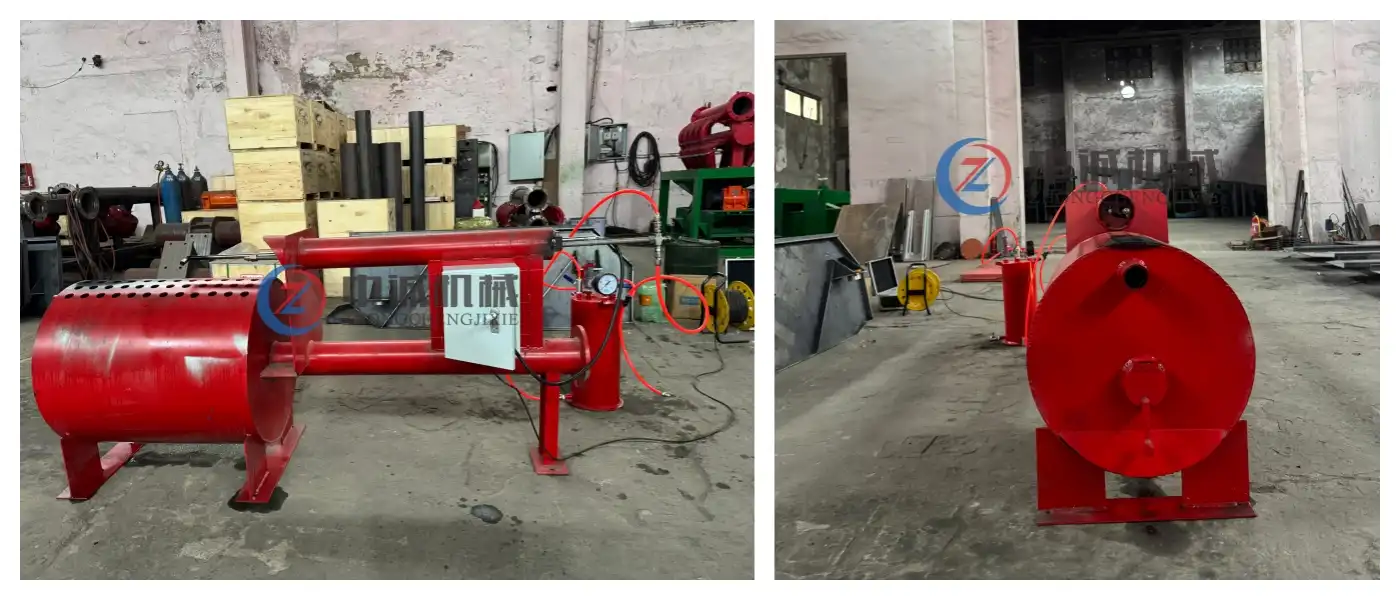

The horizontal flare igniter works by getting flammable gas from the mud gas splitter and lighting it on fire at the torch tip with a high-voltage electrical spark. This keeps gases that haven't been burned, like H2S, from building up at ground level. A closed gas-handling loop is made when the system is connected directly to the separator exit. This keeps the wellsite safe during pressure spikes and well tests.
One useful thing about this design is that it has both remote and manual starting modes built in. People can start the fire from a safe distance with remote operation, so they aren't directly exposed to the flare's heat and harmful gas. When wireless systems get messed up, manual backup makes sure that starting can still be done. This design with two modes works well in remote shale gas and high-yield natural gas sites where conditions change quickly.
The electronic flare ignition device - horizontal has an electrical protection rating of at least IP55, providing protection against dust and water jets in demanding field environments. The electronic flare ignition device - horizontal is also supported by HSE, TÜV, BV, ISO 9001, ISO 14001, and ISO 45001 certifications. These qualifications are important during procurement evaluations because they provide documented evidence of quality management, environmental management, and occupational health and safety practices. For major oilfield operators and EPC companies, selecting an electronic flare ignition device - horizontal with appropriate certifications can simplify supplier qualification and compliance checks. Verifying the scope and validity of the certifications associated with the electronic flare ignition device - horizontal can also help procurement teams confirm that the equipment meets the requirements of the intended application.
Each unit comes with full installation instructions and help from ZHONGCHENGJIXIE's technical team during commissioning. Field engineers are given step-by-step instructions on how to line the horizontal torch body with the mud gas separator outlet, support it, and check the electrical connections before the first ignition. Since the horizontal configuration is low to the ground, heavy cranes or special lifting rigs are not needed for installation. This greatly reduces the time needed to prepare the site.
The gadget should be set up so that the torch hole faces away from people and sensitive equipment while it is in use. Operators keep an eye on the flow of gas from the separator and start the ignition, either by hand or remotely, when the flow of gas stabilizes. The horizontal body's low center of gravity keeps it from tipping over in the wind, which is a clear safety benefit over vertical torch units on open plain-area drilling sites.
As part of regular maintenance, the ignition wires should be checked, the high-voltage link should be confirmed to be solid, and any carbon buildup on the torch tip should be removed. In places where there is a lot of H2S, it is best to check the electrodes once a year to find sulfur-induced rust early. The device comes with a full one-year warranty, and spare parts can still be bought through ZHONGCHENGJIXIE's supply chain, which ensures long-term operations.

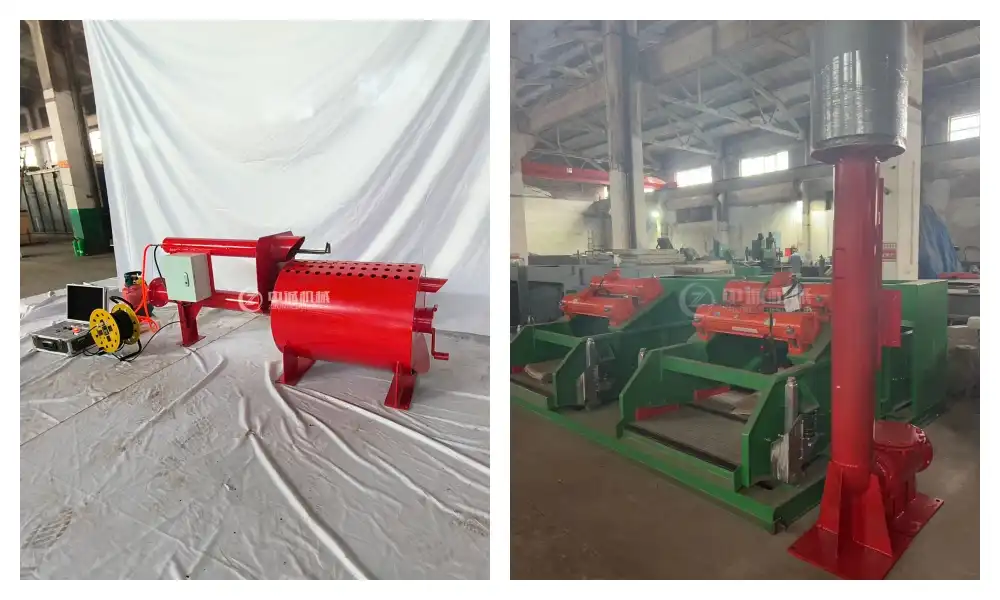

Whether to use a horizontal or vertical configuration depends on site conditions, equipment transportation requirements, available installation space, and safety considerations. Both configurations perform the same basic function of igniting and controlledly burning waste gases, but an electronic flare ignition device - horizontal is designed to operate differently from a vertical configuration in the field. The electronic flare ignition device - horizontal can be suitable for sites where a horizontal layout provides practical installation or maintenance advantages. When evaluating an electronic flare ignition device - horizontal, operators should consider the available space, mounting arrangement, gas discharge system, and overall safety requirements. Selecting the appropriate electronic flare ignition device - horizontal configuration can help ensure that the ignition system is properly matched to the specific drilling site and operating conditions.
Here is a straight comparison of the most important factors that buying teams look at when making decisions:
The center of gravity and the wind resistance are: The horizontal unit has a center of gravity that is a lot lower. On open fields where wind speeds regularly reach 15 m/s, the horizontal body is better at keeping the torch from moving side to side than a tall vertical torch stack, which can sway or need extra hardware to keep it in place.
Space Limits and How to Use the Platform: When there isn't much room to move up or down, like near power lines or inside buildings, the horizontal arrangement is the best option. There isn't always enough vertical room for vertical units, which they need.
The price depends on the torch's diameter (150mm or 200mm), body length (2.5m or 3m), material grade, the complexity of the ignition control system, and the requirements for certification. Units with full TÜV and BV approval, IP55+ protection, and dual ignition modes cost more than basic models. However, over a three- to five-year operating cycle, the certified version usually has a lower total cost of ownership because it needs less maintenance and the warranty covers it better.
Within three days of receiving an order, ZHONGCHENGJIXIE can ship an in-stock electronic flare ignition device - horizontal that is ready for dispatch. Custom configurations, such as modified torch sizes or motor specifications designed to match specific rig models such as ZJ50 or ZJ70, are usually shipped within 15 days. Each electronic flare ignition device - horizontal is protected with plastic film, rainproof tarps, and secure ties during transportation, while pallets or wooden crates can be added when required by the order. For international procurement, the electronic flare ignition device - horizontal can also be prepared according to the customer's packaging and shipping requirements. With the factory located close to both Tianjin and Shanghai ports, ZHONGCHENGJIXIE can facilitate convenient international freight arrangements for each electronic flare ignition device - horizontal order.
Procurement teams should check that sellers of horizontal flare ignition devices have the right ISO certifications, HSE compliance paperwork, electrical protection grade ratings, and the ability to provide support after the sale. Direct makers with their own engineering teams can make custom drawings, operation instructions, and installation flowcharts. These are the kinds of documents that EPC contractors and project managers need for project handover packages.
Large-scale drilling projects on plains and open land have specific needs, such as quick mobilization of equipment, reliable gas combustion during long venting tests, and the lowest possible risk to personnel. All of these needs are immediately met by the horizontal flare firing device. Its low-profile design makes it easy to load onto regular vehicles without the need for special lifting equipment. This lowers the cost of mobilization. During high-pressure gas bursts or well testing, it controls the burning so that poisonous gases don't build up at ground level. This keeps crew members and the environment safe from H2S exposure and VOC release.
The device helps meet HSE standards for environmental compliance by swapping manual ignition with an electronic system that can be managed from a distance. This is in line with the stricter rules that oilfield workers in the US and other countries have to follow now to handle flammable gases and keep emissions in check.
Within three days of receiving an order, ZHONGCHENGJIXIE can ship an in-stock electronic flare ignition device - horizontal that is ready for dispatch. Custom configurations, such as modified torch sizes or motor specifications designed to match specific rig models such as ZJ50 or ZJ70, are usually shipped within 15 days. Each electronic flare ignition device - horizontal is protected with plastic film, rainproof tarps, and secure ties during transportation, while pallets or wooden crates can be added when required by the order. For international procurement, the electronic flare ignition device - horizontal can also be prepared according to the customer's packaging and shipping requirements. With the factory located close to both Tianjin and Shanghai ports, ZHONGCHENGJIXIE can facilitate convenient international freight arrangements for each electronic flare ignition device - horizontal order.
The machine handles flammable waste gases like methane and hydrogen sulfide (H2S) that come out of mud gas separators. Its controlled ignition keeps toxic gas from building up on the surface of the well.
Yes. With an electrical protection grade of at least IP55, the ignition head and control parts keep out rain and spray, so they can be used continuously in wet field conditions.
The torch is directly hooked up to the mud gas separator's gas exit. ZHONGCHENGJIXIE gives installation plans and finishing instructions to make sure they work with current rig designs, such as ZJ30 through ZJ90 setups.
There is a one-year guarantee on every unit that covers both manufacturing flaws and broken parts. Through ZHONGCHENGJIXIE's supply network, spare parts can still be bought after the protection period is over.
In-stock items are sent out within three days. Custom combinations are made based on torch sizes or lengths, and they are sent out within 15 days.

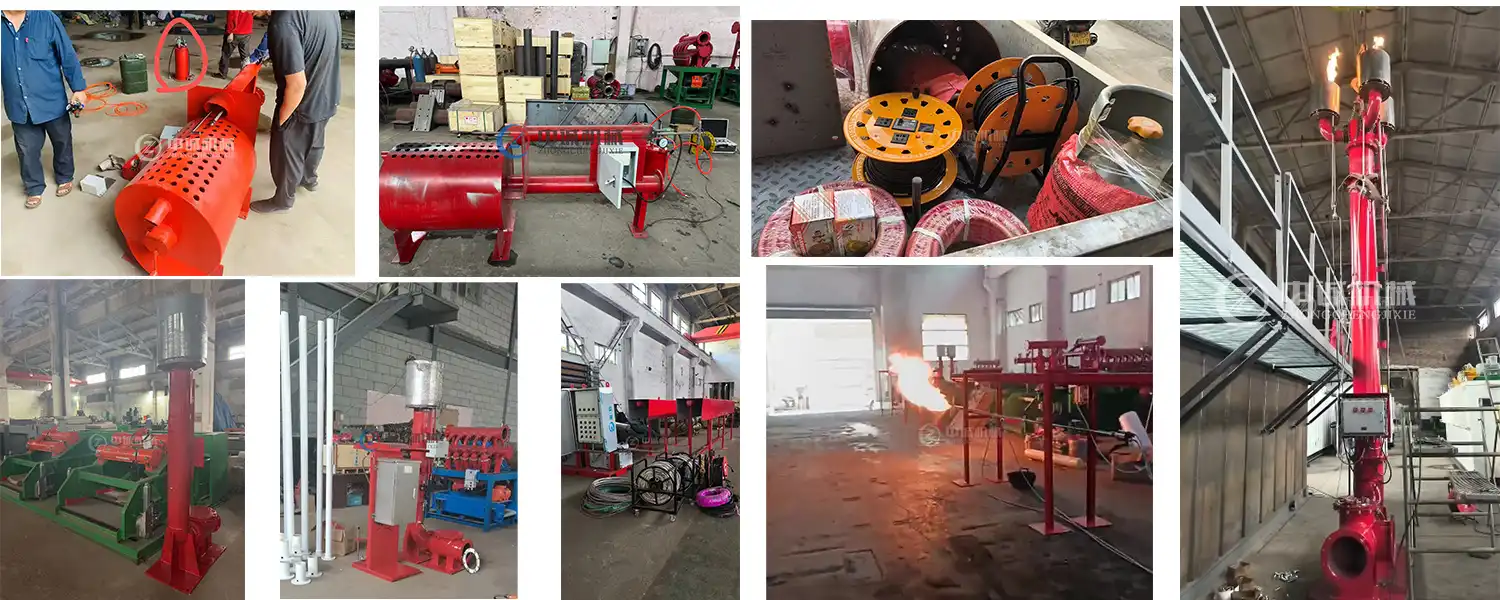

The electric horizontal flare ignition device is made and sent directly from ZHONGCHENGJIXIE's 6,300 m² factory in Shaanxi Province, China. We help buying teams in the U.S. and around the world buy oilfield supplies. Our products are certified by ISO, TÜV, BV, and HSE, and we deliver them in three days with all the necessary technical paperwork. You can email us at oliver@zcgukong.com or go to zcsolidscontrol.com right now to get specs, unique quotes, or project advice.
1. American Petroleum Institute. API RP 521: Pressure-Relieving and Depressuring Systems. 6th ed. API Publishing Services, 2014.
2. U.S. Environmental Protection Agency. Air Emissions from Oil and Natural Gas Production and Processing. EPA Office of Air Quality Planning and Standards, 2020.
3. Society of Petroleum Engineers. SPE Journal: Wellsite Gas Flaring and Combustion Safety Practices in Onshore Drilling Operations. SPE International, 2019.
4. International Organization for Standardization. ISO 45001: Occupational Health and Safety Management Systems — Requirements. ISO, 2018.
5. Energy Institute. Guidelines for the Management of Flare Systems on Petroleum Production Installations. Energy Institute, London, 2021.
6. National Fire Protection Association. NFPA 54: National Fuel Gas Code. NFPA, 2021.
