Oct 26, 2026

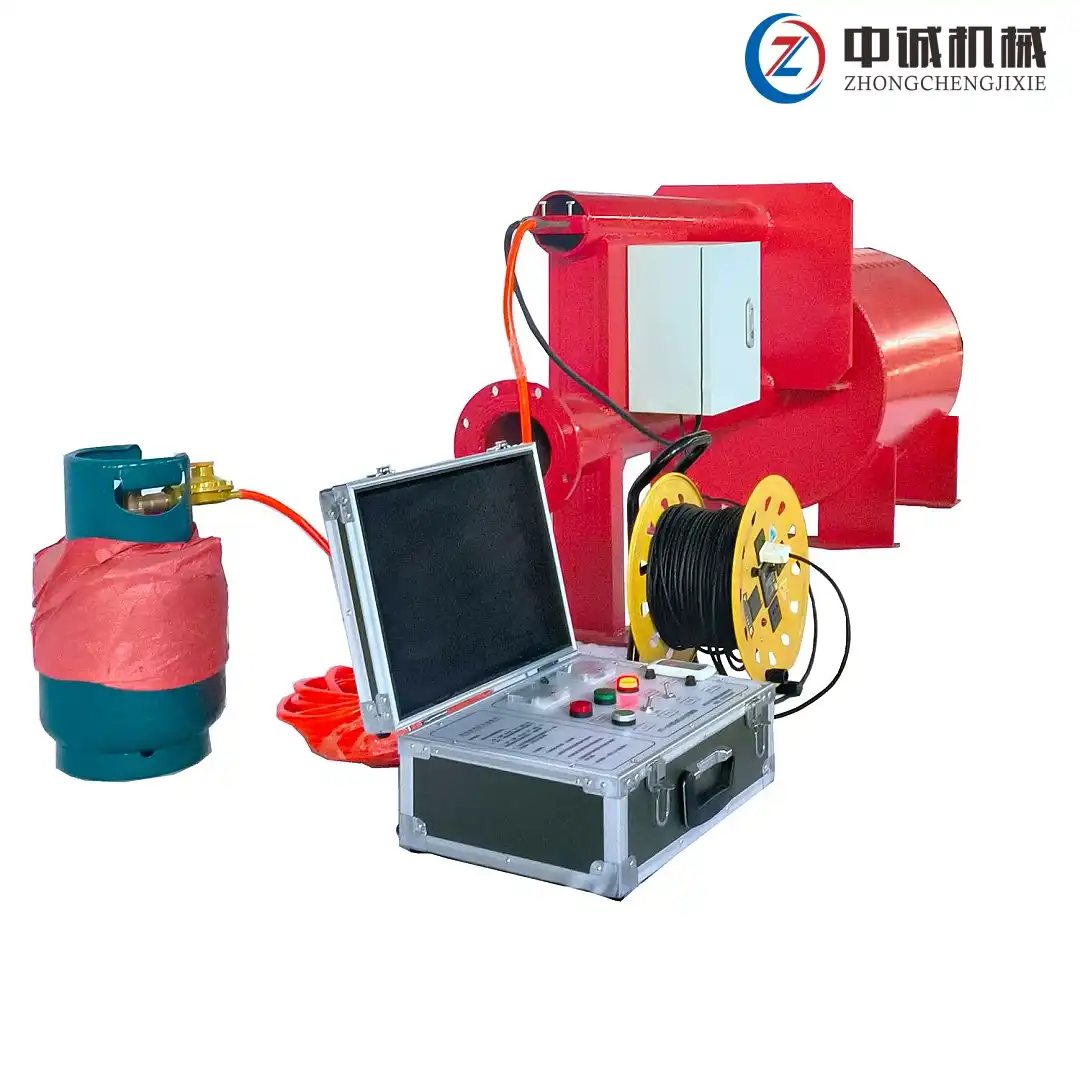

When oilfield operations encounter pressure surges or well-testing phases, controlled gas combustion is not optional — it is a safety requirement. The Electronic Flare Ignition Device - Horizontal addresses this need directly. Designed as a key supporting component for mud gas separators, this device handles waste gas discharged during drilling and safely ignites it at the flare point. Its horizontal configuration makes it especially well-suited for open land drilling sites, plain-area operations, and long-cycle venting tests on high-yield gas wells — situations where vertical units simply fall short.
At the output exit of a mud gas separator, a horizontal flare ignition device creates a high-voltage electrical spark that sets toxic hydrogen sulfide (H2S) and other flammable gases on fire. When set up horizontally, the torch is aligned along a side-to-side axis, which keeps the flames away from the rig's structures. This shape works well for flare pits on the ground and open land, where installing vertical stacks would be hard to do or could cause the structure to become shaky.
The horizontal igniter from ZHONGCHENGJIXIE comes with two torch diameters: 150 mm and 200 mm. The torch lengths are either 2.5 m or 3 m. The level of electrical protection is at least IP55, which protects the internal parts from dust and water jets. These standards cover a wide range of drilling conditions and can be used for both normal gas venting and emergency depressurization.
The device is certified by ISO 9001, ISO 14001, and ISO 45001. It is also approved by TÜV and BV and meets HSE standards. This framework for certification makes sure that the product meets widely accepted standards for quality, environmental responsibility, and worker safety. These are all things that procurement managers and health and safety officers always look at when they are qualifying suppliers.
In terms of performance, the horizontal flare igniter is better than vertical types in a number of ways. In the real world, these are the main benefits that make this device stand out:
These benefits directly lead to lower site risk, faster movement, and lower operational costs. These are all important goals that every EPC project team and drilling operations manager knows about.
ZHONGCHENGJIXIE provides full installation instructions and helps with commissioning on-site. Anchoring the torch assembly to a ready base, connecting the gas inlet to the mud gas separator discharge line, and wiring the ignition control panel are all parts of mounting. The horizontal alignment needs a flat surface, which can be found at most open-land drilling sites without any extra work.
Most of the time, an ignition failure is caused by electrode wear, moisture getting into the ignition tip, or a weak high-voltage signal. The IP55 rating of the housing greatly lowers breakdowns caused by moisture. During routine maintenance, the condition of the electrode should be checked. This is especially important in places with a lot of hydrogen sulfide (H2S), where sulfur deposits speed up the wear and tear on the tip.
As part of routine maintenance, the electrodes are checked, the connections are made sure to be solid, and the enclosure seal is confirmed. When used in normal settings, electrodes work effectively for a long time before they need to be replaced. The device comes with a full 1-year guarantee, and ZHONGCHENGJIXIE's expert team is always available for remote diagnostics and to provide extra parts for the product.
It is important for buyers to make sure that the torch's width and length match the rig's gas volume and separation outlet size. The 200mm diameter torch can handle higher gas flow rates, so it can be used in high-yield gas wells or with bigger separators. The 150mm model works well for normal drilling jobs where the amount of gas released is average.
The Electronic Flare Ignition Device - Horizontal is made to work with standard mud gas separator types found on all ZJ-series drilling rigs. Power supply configurations can be changed to work with AC or DC sources that are offered on the page. For sites that are far away and don't have reliable grid access, find out about backup power options that can keep the ignition ready when the grid goes down.
Configurations that are in stock ship within 3 days. Orders that aren't standard, like torches with different sizes or control panels with different patterns, are provided within 15 days. Structured pricing is used for bulk purchases, and all packages are safely packed with plastic film, rainproof tarps, and strapping. Depending on the size of the equipment, boxes or wooden crates may also be used.
The name of Shaanxi Xixian New District Zhongcheng Machinery Manufacturing Co., Ltd. is based on years of direct manufacturing experience. The company has more than a dozen unique patents and can make 200 sets of petroleum machinery and solid control systems every year. Before leaving the plant, each flare lighting device goes through a multistage quality check that meets ISO and HSE standards.
The product has been approved by third parties, including TÜV and BV. These are certifications that foreign procurement teams and EPC companies look for when they are choosing suppliers. The ISO 9001 quality management and ISO 45001 workplace safety certifications show that production controls are carried out in a planned way, not just checking each product individually.
ZHONGCHENGJIXIE helps clients with engineering drawings, system flowcharts, operation guides, and hands-on training from the first study of the specifications to the commissioning of the system after installation. This full-cycle service approach lowers project risk for procurement managers who deal with complicated packages of oilfield equipment. Clients in both domestic and international gas fields have consistently praised the product's durability in the field and the speed with which the technical support team responded to their needs.
Controlled gas burning at the well site is necessary for safety and the environment. This can be done with ZHONGCHENGJIXIE's Electronic Flare Ignition Device - Horizontal, which has a design that has been tried and tested in the field. It is low-profile, so it is easy to carry, has two ignition modes for safety, and is approved to international standards that procurement teams trust. This device works well without being too complicated, whether you are setting up a new drilling pad, replacing old equipment, or getting supplies for a multi-rig project.
Under normal cutting settings, electrodes work reliably for two to three years. In places with a lot of hydrogen sulfide, it is best to check the tips once a year because sulfur buildup can speed up the rusting process. You can get replacement electrodes through ZHONGCHENGJIXIE's channel for supplying spare parts.
Because the IP55 rating means that the enclosure keeps out moisture and dust, the device can be used in harsh conditions. For offshore deck-level flaring uses that will be exposed to more salt spray, please call our engineering team to talk about configuration choices that will work in marine conditions.
Remote ignition lets the operator start the fire from a safe distance, keeping people away from the area where the gas is released. This is a direct replacement for the manual flare-gun method, which puts workers at risk of being close to an open flame and doesn't meet current HSE standards.
We ship standard units that are in stock within 3 days. ZHONGCHENGJIXIE has its own production facility, which helps them make and deliver customized setups within 15 days. These can include torch diameters that aren't standard or control panels that aren't designed to work with the machine.
Yes. The gadget has ISO 9001, 14001, and 45001 certifications, as well as TÜV, BV, and HSE approvals. These qualifications are accepted around the world and are in line with the rules that apply to oilfield activities in the US.
Every order from ZHONGCHENGJIXIE for an Electronic Flare Ignition Device - Horizontal comes with full technical documentation, direct manufacturer pricing, and custom production within 15 days. Our team is ready to look over your needs and make a custom plan, whether you need a single unit or a bulk supply deal for several rigs. To get a price and talk to our expert team directly, email us at oliver@zcgukong.com or visit zcsolidscontrol.com right now.
1. American Petroleum Institute. API Standard 537: Flare Details for General Refinery and Petrochemical Service. API Publishing Services, 2021.
2. Society of Petroleum Engineers. HSE Management in Drilling Operations: Field Practice and Regulatory Compliance. SPE International, 2020.
3. International Association of Oil & Gas Producers. Flare and Vent Emissions from Upstream Oil and Gas Operations. IOGP Report No. 632, 2022.
4. Health and Safety Executive (HSE). Guidance on the Safe Operation of Flare Systems in the Petroleum Industry. HSE Books, 2019.
5. Energy Institute. Model Code of Safe Practice: Part 15 — Area Classification Code for Petroleum Installations. Energy Institute, 2020.
6. National Fire Protection Association. NFPA 85: Boiler and Combustion Systems Hazards Code. NFPA, 2023.
