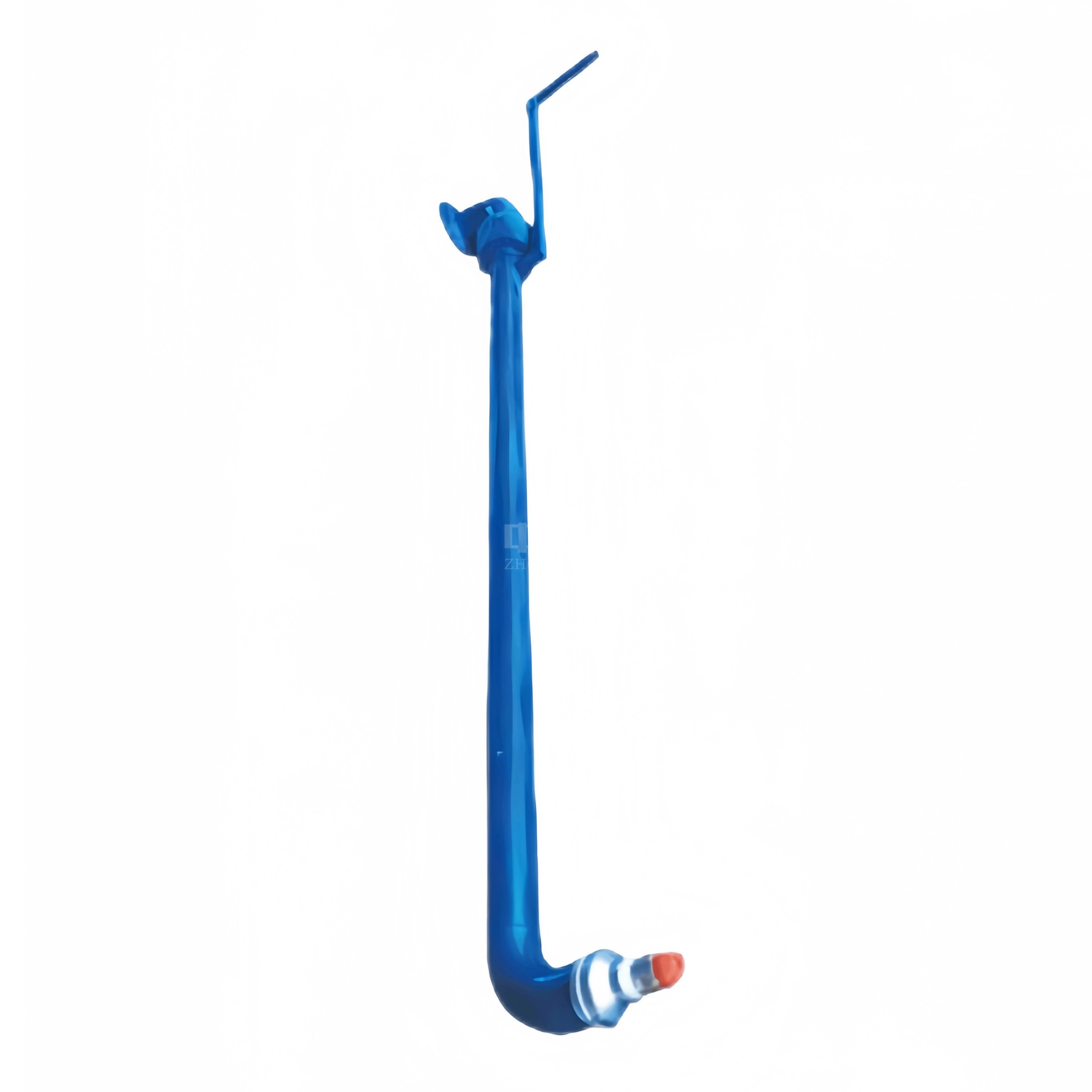

ZC delivers enterprise-grade Mud gun solutions engineered to eliminate dead spots and prevent solids buildup in drilling fluid systems. Our specialized cleaning equipment features nominal nozzle diameters of 50mm and 80mm, operating at working pressures of 3.2MPa and 6.4MPa. These high-performance tools ensure optimal circulation in large-capacity mud tank farms and high-pressure drilling fluid transfer operations. Our equipment has outstanding anti-erosion performance and maintains stable spray flow patterns since it is made of wear-resistant materials. Each machine comes with a 1-year guarantee, complete installation support, and ISO 9001/14001/45001 certifications, TÜV and BV approvals, and HSE compliance.
Understanding your equipment parameters helps you make informed purchasing decisions. Our products are designed with precision engineering to meet demanding oilfield conditions.
| Model | ZCNJQ/G6.4-50 | ZCNJQ/3.2-50 | ZCNJQ/G6.4-80 | ZCNJQ/3.2-80 |
| Nominal Nozzle Diameter (mm) | 50 | 50 | 80 | 80 |
| Working Pressure (MPa) | 6.4 | 3.2 | 6.4 | 3.2 |
| Nozzles Qty (piece) | 3 | 2 | 3 | 2 |
| Nozzle Bore (mm) | 15/20 | 15/20 | 20/25 | 20/25 |
| Rotation Angle (°) | Fixed | 270 | Fixed | 270 |
Your drilling operations face unique challenges. This equipment addresses critical operational needs across multiple drilling environments.
Dead Angle Cleaning in Large-Capacity Mud Tank Farms: When mechanical agitators cannot reach tank corners, solids accumulate and compromise fluid quality. Our system delivers high-velocity jets to these inaccessible zones. This prevents barite settling and maintains consistent mud weight throughout your circulation system.
High-Pressure Circulation and Transfer of Drilling Fluids: Reliable equipment that can handle costly synthetic-based muds is essential for deepwater offshore drilling. Under high pressure, the rotary nozzle design guarantees total fluid homogeneity.
Horizontal Directional Drilling (HDD) Projects: Effective debris management is necessary for compact mud recycling systems. Our equipment works effortlessly with your existing system. It controls high-viscosity fluids necessary for tunneling operations while maintaining clear suction lines.
Geothermal Well Construction: In high-temperature environments where motor-driven agitators may fail, this hydraulic alternative provides continuous operation. You get reliable performance in harsh conditions without mechanical breakdown risks.
Your investment should deliver measurable operational benefits. Here's what sets our Mud gun manufacturing approach apart from standard market offerings.
Powerful Jet Performance: Strong jet power creates uniform mud spraying patterns throughout your tank. This thorough agitation prevents solid sedimentation and fluid stratification. Your drilling operations maintain consistent rheological properties essential for wellbore stability.
Wear & Corrosion Resistance: We manufacture each unit from durable anti-corrosion materials specifically selected for oilfield conditions. The construction maintains stable performance during extended deployment periods. Your maintenance costs decrease while operational uptime increases.
Flexible Installation & Compatibility: Simple installation procedures reduce commissioning time. The manual rotary adjustment mechanism allows quick positioning changes. You can adapt the spray direction without specialized tools or extended downtime.
Dual Nozzle Configuration Options: Choose between fixed nozzles for consistent directional flow or rotary types for comprehensive coverage. The simple structure minimizes failure points. Your operators can perform field adjustments without technical support.
Superior Anti-Erosion Performance: Tungsten carbide inserts and wear-resistant coatings extend service life in abrasive drilling mud environments. The stable spray flow maintains hydraulic efficiency throughout the operational lifecycle.
We implement rigorous inspection protocols that exceed industry baseline requirements. Your equipment undergoes comprehensive testing before shipment.
Hydrostatic Pressure Testing: Without leaking, each assembly can tolerate 1.5 times the rated working pressure. Under the highest operational stress, structural integrity is guaranteed by this verification.
Non-Destructive Testing (NDT): Swivel joint welds are examined using magnetic particle and ultrasonic inspection. By doing this, fatigue breakdowns that can jeopardize safety during high-pressure operations are avoided.
Nozzle Hardness Verification: Tungsten carbide inserts meet Rockwell C scale requirements. Your equipment maintains spray patterns despite continuous exposure to abrasive solids.
Rotation Torque Analysis: Swivel mechanisms operate smoothly under full pressure conditions. This testing guarantees operational longevity and reduces field maintenance requirements.
Our manufacturing facility holds ISO 9001 Quality Management, ISO 14001 Environmental Management, and ISO 45001 Occupational Health and Safety certifications. TÜV and BV third-party audits validate our compliance with international standards.
Your equipment arrives ready for immediate deployment. We understand that transportation damage creates costly project delays.

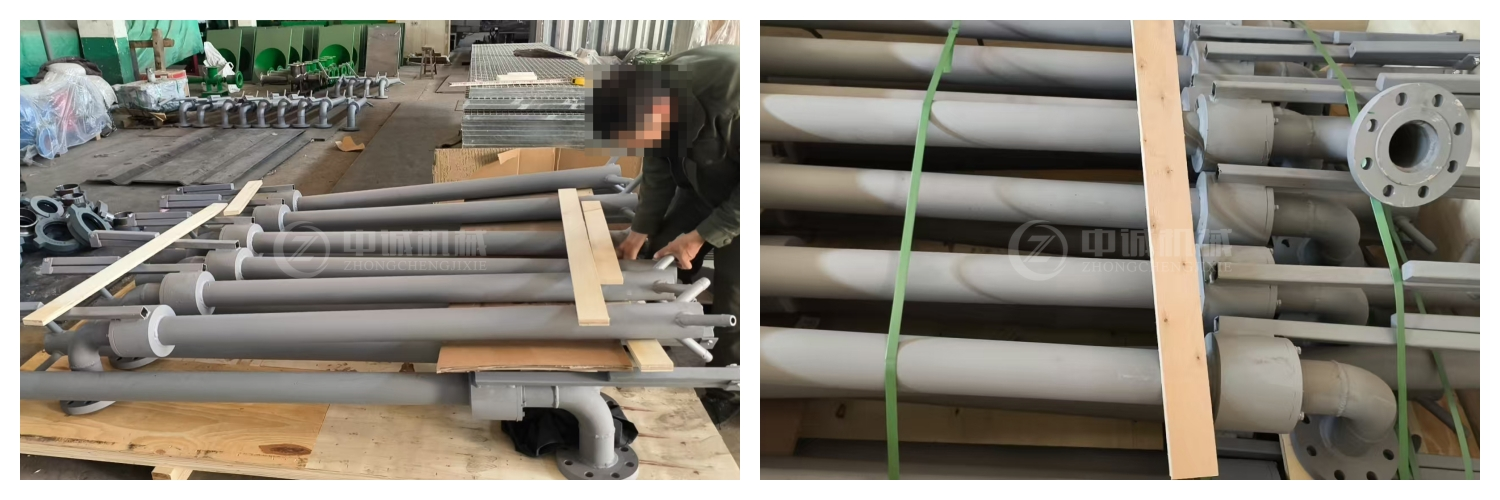

Transport-Safe Packaging: Multi-layer protection includes industrial-grade plastic film, rainproof tarpaulins, and heavy-duty strapping. Optional pallets or wooden crates accommodate specific equipment dimensions and shipping requirements.
Efficient Logistics Network: Our strategic location near Tianjin and Shanghai ports accelerates international shipping. In-stock products ship within 3 days. Customized orders deliver within 15 days.
Comprehensive Installation Support: Our technical team provides detailed engineering drawings, component diagrams, and operation manuals. Installation guidance and commissioning services ensure proper system integration.
Technical Documentation Package: You receive complete flowcharts for system integration planning. Maintenance manuals include troubleshooting procedures and spare parts specifications. This documentation reduces operational learning curves.
Your long-term operational success depends on reliable manufacturer support. We provide comprehensive post-purchase assistance.
1-Year Comprehensive Warranty: Full coverage protects against manufacturing defects and material failures. Replacement components ship promptly to minimize downtime.
Industry Training Programs: Our technical specialists offer operational training for your crew. This Knowledge transfer improves equipment utilization and extends service life.
Ongoing Technical Guidance: Field questions receive prompt responses from experienced engineers. We provide complete project solutions tailored to your specific drilling challenges.
Frequently Asked Questions
Q: What is the difference between high-pressure and low-pressure models?
A: High-pressure models operating up to 6.4MPa are designed for aggressive mixing and breaking down solids accumulation. Low-pressure versions handle general circulation needs in less demanding applications.
Q: How often should the nozzle be replaced?
A: Replacement frequency depends on mud abrasiveness and operating hours. Industry best practices suggest inspection every 500 operating hours for wear-induced flow rate changes.
Q: Can this equipment replace mechanical agitators?
A: While superior for cleaning tank corners and dead zones, it works best as a supplement to mechanical agitators. Combined deployment provides comprehensive tank mixing coverage.
Q: What causes swivel joint leaks?
A: Most leaks result from seal degradation due to chemical incompatibility or abrasive particle bypass. Using appropriate Viton or Nitrile seals matched to your fluid chemistry prevents this issue.
Q: How do I choose the correct nozzle size?
A: Nozzle selection depends on your mud pump's discharge capacity and required jetting velocity. Calculate the distance to your farthest tank corner to determine optimal specifications.
Need assistance selecting the right Mud gun configuration for your drilling operation?? Our engineering team is ready to help. Contact Us at oliver@zcgukong.com for technical specifications, pricing, and delivery timelines.
