How Does a Mud Agitator Keep Drilling Fluid Uniform?

A mud agitator keeps drilling fluid uniform by using a motor-driven impeller to continuously stir the contents of a mud tank, preventing solid particles such as barite and drill cuttings from settling to the bottom. Mounted on top of the tank, the agitator transmits torque through an industrial gear reducer to a submerged impeller, generating axial and radial flow patterns that suspend weighting agents and maintain consistent fluid density, viscosity, and rheological properties throughout the entire active mud system — a non-negotiable requirement for stable, efficient downhole operations.

Why Uniform Drilling Fluid Is a Real Operational Problem

If you go to any busy rig site, you'll quickly understand why fluid stability is important. Drilling fluid, or "mud," brings drill cuttings to the surface, keeps the wellbore stable, and manages the pressure inside the hole. When that fluid stops being uniform, there are immediate and measurable effects.

Gravity makes solids, especially thick weighing agents like barite, settle down quickly. A study in the Journal of Petroleum Science and Engineering showed that barite sag in high-angle wells can move density windows by up to 0.3 SG in just a few hours after the flow stops. This kind of layering causes differences in the hydrostatic pressure, raises the risk of well control events, and speeds up the wear on solids control equipment further downstream, such as shale crushers and centrifuges.

The Root Causes Behind Fluid Instability

Changes in temperature, long times of stillness during pipe hookups, and the shape of the tank can all cause sedimentation. Large mud tanks, like the ones on ZJ50 to ZJ90 drilling rigs, get dead spots where the fluid can't move around enough. Adding to the problem is chemical stratification, which makes it hard to treat drilling fluid additives consistently and get accurate readings of viscosity. Engineers lose control over one of their most important process variables when there isn't continuous mechanical agitation.

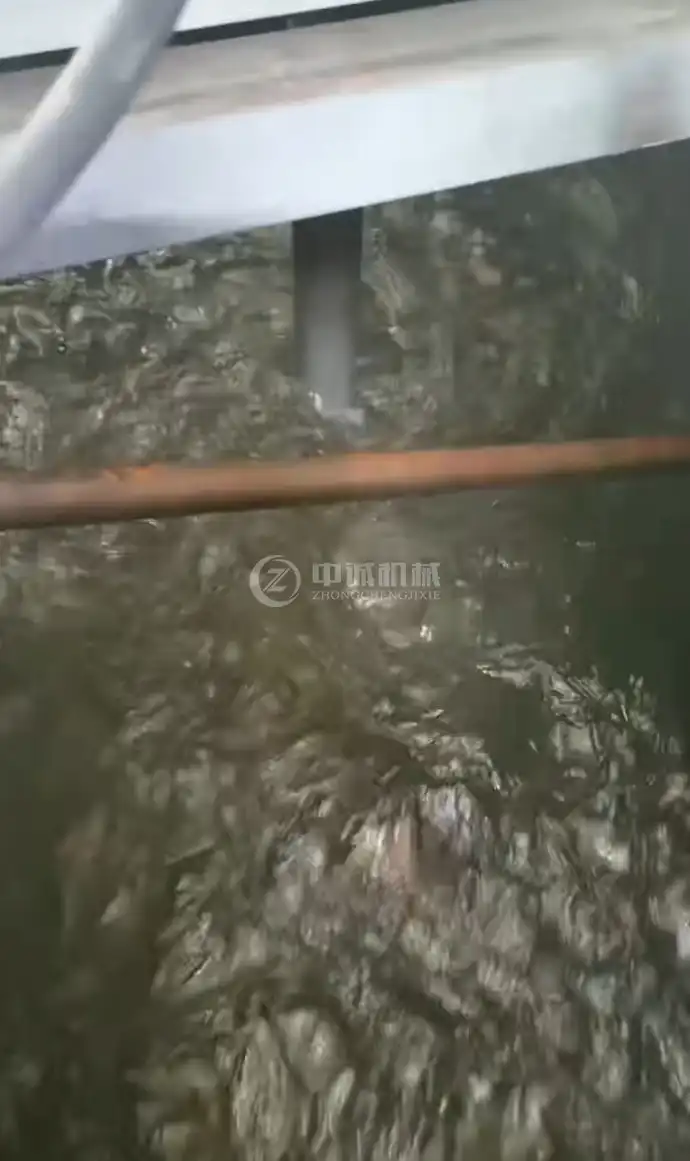

How a Mud Agitator Works to Keep Drilling Fluid Uniform

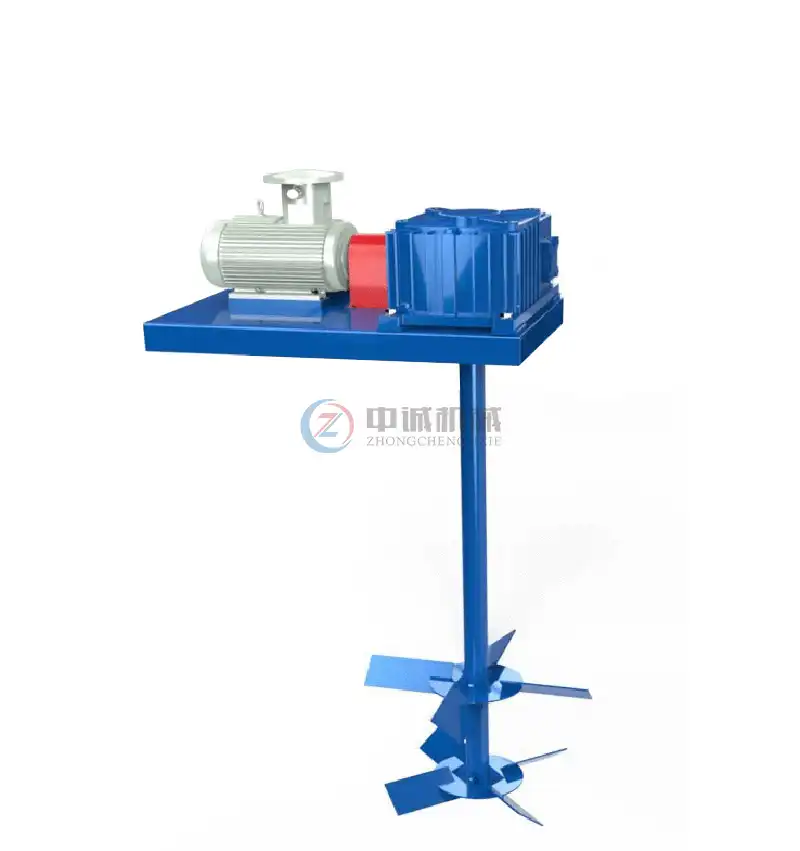

The idea behind how it works is simple, but the tech behind it is very exact. A motor sends rotational energy to a vertical shaft that turns a submerged impeller. This energy goes through a gear reducer, which can be a worm gear or a helical-bevel gear set. The propeller blades, which are designed with precise pitch angles, push fluid both down and outward. This makes a full-tank circulation loop that stirs solids that have settled back into suspension.

Impeller Design and Gear Reducer Selection

The mixing radius and flow speed are directly related to the impeller width. Zhongcheng's Mud Agitator line has impellers with widths from 600 mm to 1,100 mm and motors with power outputs from 3 kW to 22 kW. These motors can work with tanks of all sizes, from small HDD mud pits to big active systems on deep-drilling rigs. Helical gear reducers are more mechanically efficient than worm gear options, producing less heat and needing less maintenance. Dynamic balancing of each shaft and impeller assembly is done according to ISO 1940 standards. This keeps vibrations to a minimum and keeps the gearbox from getting worn out.

Material Integrity Under Harsh Conditions

When drilling, equipment is exposed to rocks that are rough, brines that are acidic, and fluids that contain hydrogen sulfide. High-wear, corrosion-resistant metals are used to make Mud Agitator parts that don't lose their surface integrity as quickly as carbon steel versions. When put at a thickness of at least 250 to 300 microns, marine-grade epoxy coats offer extra defense against salty and acidic liquids. This attention to detail is what makes the difference between equipment that lasts three months and equipment that works well for years.

Technical Design Principles and Maintenance Best Practices

When buying teams know what keeps a tank stirrer working at its best, they can look at the total cost of ownership instead of just the purchase price. Long-term dependability is based on the following scientific factors:

• Impeller submergence depth: Putting the impeller about a third of the height of the fluid from the bottom of the tank improves axial flow and stops surface vortexing, which mixes air and makes the mixing patterns less stable. One of the main reasons people complain about shaft vibrations in the field is incorrect submergence.
• Explosion-proof motor compliance: All Mud Agitators used on oil and gas drilling sites must have explosion-proof grades that are good for Class I, Division 1, or Zone 1 hazardous area classes. The units made by Zhongcheng meet the standards set by ATEX and CNEX. They protect people and property in places where gas is likely to be present.
• Gearbox oil maintenance schedule: The oil in a gearbox should be changed every 2,500 hours of operation. The output shaft seals should also be inspected and gear backlash should be measured on a regular basis to find wear before it causes a surprise failure.

These technical needs are not bonuses that can be chosen, they are the minimum standards for safety and performance for any professional drilling job. Ignoring them speeds up unexpected downtime and makes servicing costs go up.

Selecting the Right Agitation Solution for Your Application

There are differences between a Mud Agitator and a Mud Mixer. A Mud Mixer adds new chemicals or weighted materials to a system, while a Mud Agitator keeps the suspension even in a fluid volume that is already there. When the two roles are mixed up, equipment that is too small and bad fluid management happen.

Matching Equipment to Drilling Application

Zhongcheng's Mud Agitators are mostly used in three main situations. They keep barite suspended and stop density stratification in working and backup tanks in oil and gas drilling fluid circulation systems. They control thick bentonite slurries in trenchless HDD mud storage tanks so that sediment doesn't build up and clog pipes during long-distance pulls. In geothermal and water well drilling, they support thermal drilling fluids that need to stay chemically stable even when the temperature outside is high.

Energy Efficiency and Noise Considerations

On a live rig, equipment that is in continuous operation uses power 24 hours a day. Over the course of a project's many years, operating costs are directly affected by how well the motors work and how much mechanical transmission loss there is. Zhongcheng's gear-driven Mud Agitators make little noise and use less energy than other drive systems. This lowers both the noise level at the well site and the load on the rig's electrical system.

Procurement Guide: Evaluating a Mud Agitator Supplier

It takes more than comparing catalog specs to find the right mixing equipment. A trustworthy company that makes Mud Agitators should have certified quality control, field performance records that can be checked, and the ability to adapt their products to different rig setups.

Zhongcheng's Mud Agitators have been certified with ISO 9001, ISO 14001, and ISO 45001, as well as HSE compliance and third-party approvals from TÜV and BV. This set of certifications meets the needs of major international oilfield operators and EPC contractors. In-stock units are shipped within three days, and customized configurations, such as different motor brands, shaft lengths that are changed, and impeller diameters that are not standard, are made and delivered within fifteen days.

Transport packaging includes plastic film, rainproof tarps, and reinforced strapping, with pallets or wooden crates used depending on equipment size. Every unit comes with full installation instructions, help with setup, and a one-year guarantee that covers everything.

Conclusion

Being careful to keep the drilling fluid uniform is not a side issue; it is essential for safe and cost-effective drilling operations. A well-designed Mud Agitator stops sedimentation, keeps the fluid's density and consistency, and lowers the chemical and mechanical costs that come with mud systems that aren't handled well. Drilling teams can be sure of the stability they need in tough field conditions if they choose equipment with strong gear transmission, dynamically balanced rotating assemblies, corrosion-resistant materials, and approved explosion-proof protection.

FAQ

What is the difference between a mud agitator and a mud mixer?

To keep solids from settling and maintain uniformity, a Mud Agitator constantly stirs the fluid volume in a tank. It is the job of the Mud Mixer to mix in new chemicals, weighting agents, or additives. Both are important parts of a solids control system, but they are usually used together.

How often should gearbox oil be changed on a drilling agitator?

It is standard practice in the business to change the oil every 2,500 hours of use. At regular maintenance times, the output shaft seals should also be checked for leaks, and the backlash of the gears should be checked to find internal wear before it breaks the machine.

Can these units be customized for different rig sizes?

Yes. Zhongcheng makes Mud Agitators that can be used with drilling rigs from ZJ30 to ZJ90. The blade sizes can be changed from 600 to 1,100 mm, and the motor power can be 3–22 kW. Within a 15-day production window, you can get custom shaft lengths, non-standard configurations, and your choice of motor makers.

Are these agitators suitable for hazardous environments?

It is required that all professional-grade units have motors that are safe for Zone 1 or Class I, Division 1 places. Zhongcheng's Mud Agitators are safe to use in drilling environments that are likely to have gas leaks because they meet ATEX and CNEX standards.

Partner With Zhongcheng for Proven Mud Agitation Equipment

Zhongcheng Machinery makes Mud Agitators that are designed to work in tough field conditions. They have dynamically balanced parts, industrial-grade gear reducers, construction that doesn't rust, and they meet all licensing requirements. We offer reasonable prices, 3-day shipping on stocked units, and full expert support from installation to operation as a straight Mud Agitator maker with over 30 years of experience. Contact our team today at oliver@zcgukong.com or visit zcsolidscontrol.com to request a quote or discuss a customized configuration.
