When drilling operations generate waste, a cuttings box is the first line of defense against contamination. These sealed, heavy-duty containers are purpose-built to collect, store, and transfer drill cuttings, residual mud, and contaminated solids from the rig floor to the disposal site — without spilling a drop. Whether you operate on an offshore platform or a sensitive onshore location, the right drilling waste container directly affects your environmental compliance record, your crew's safety, and your total operational cost.
Drill bits are not useless waste. They carry heavy metals, volatile compounds, and mud that is made from oil or synthetic materials. The U.S. Environmental Protection Agency says that poor handling of oilfield wastes, such as drill cuttings, can pollute land and groundwater, which makes the federal government responsible under RCRA rules. This risk is taken care of at its source by a properly designed Cuttings Box.

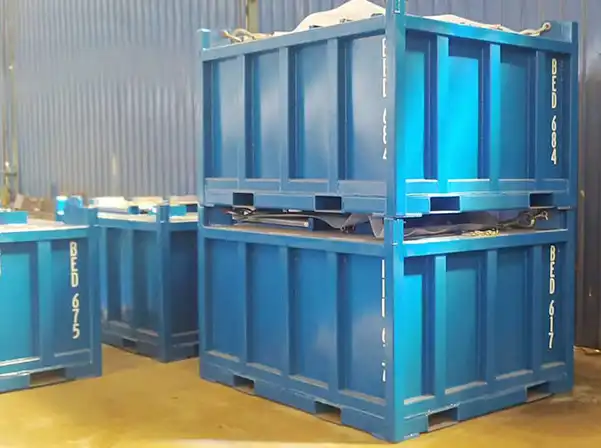

A Cuttings Box is a container made of heavy-duty carbon steel, usually S235JR or S355J2 grade, that is completely contained and has strong supports. It's made to take drill cuttings straight from shale shakers, store them in a sealed area, and move them to a transport vessel or waste treatment unit by crane or truck. In general, it can hold between 2.7 m³ and 3.0 m³ of space, and it can hold up to 10,000 kg of gross weight.
A regular open-top skip doesn't guarantee enclosure. Oil-resistant nitrile or neoprene gaskets are used to make a vacuum-tight lid seal on a drilling waste box. This stops volatile organic compound (VOC) emissions and fluid leakage during crane lifts at sea. For operations in the ocean that are controlled by MARPOL Annex V or EPA offshore discharge rules, this difference can't be ignored.
After the shale shaker, desander, and desilter have broken down the mud, the drilling waste bin is at the end of the solid control chain. It holds the separated solids safely until they are transported or treated. It does this before the solids can damage the drill site. ZHONGCHENGJIXIE makes its Cuttings Boxes to work directly with full solid control systems, so they don't need to be changed in any way to be integrated.
Not every container can be used on a drilling site because of the rules and regulations there. When purchasing things without a clear technical checklist, things often go wrong with the tools, damage to the environment, or failed third-party reports.
For offshore use, the minimum requirement for a Cuttings Box is that the structure be made of carbon steel and meet ISO 12944 C5-M anti-corrosion coating standards. The protection system needs to be able to stand up to salt spray, hydrogen sulfide, and the wear and tear of wet cuts. ZHONGCHENGJIXIE uses marine-grade materials and protective coating systems that are rated for the toughest working conditions abroad. With proper upkeep, the Cuttings Box is expected to last 8 to 12 years.
Whether or not your container is a zero-discharge solution depends on the quality of the gasket. Nitrile rubber gaskets keep their sealing strength over a wide range of service temperatures and don't break down when oil-based mud chemicals come in contact with them. Ask for proof-load test certificates for the lid locking device and make sure it has been tested to at least 2.5 times the MGW during the review of the procurement.
Before you buy, here are the main factors you should think about:
These things will tell you if the container can be moved safely and quickly in your current working conditions. If you do this wrong, it will take longer to handle, and there is a higher chance that the load will fall off.
Just as important as the technology itself is how it is used. A well-made drilling waste bucket won't work as well if it's not put in the right place, is too full, or isn't maintained regularly.

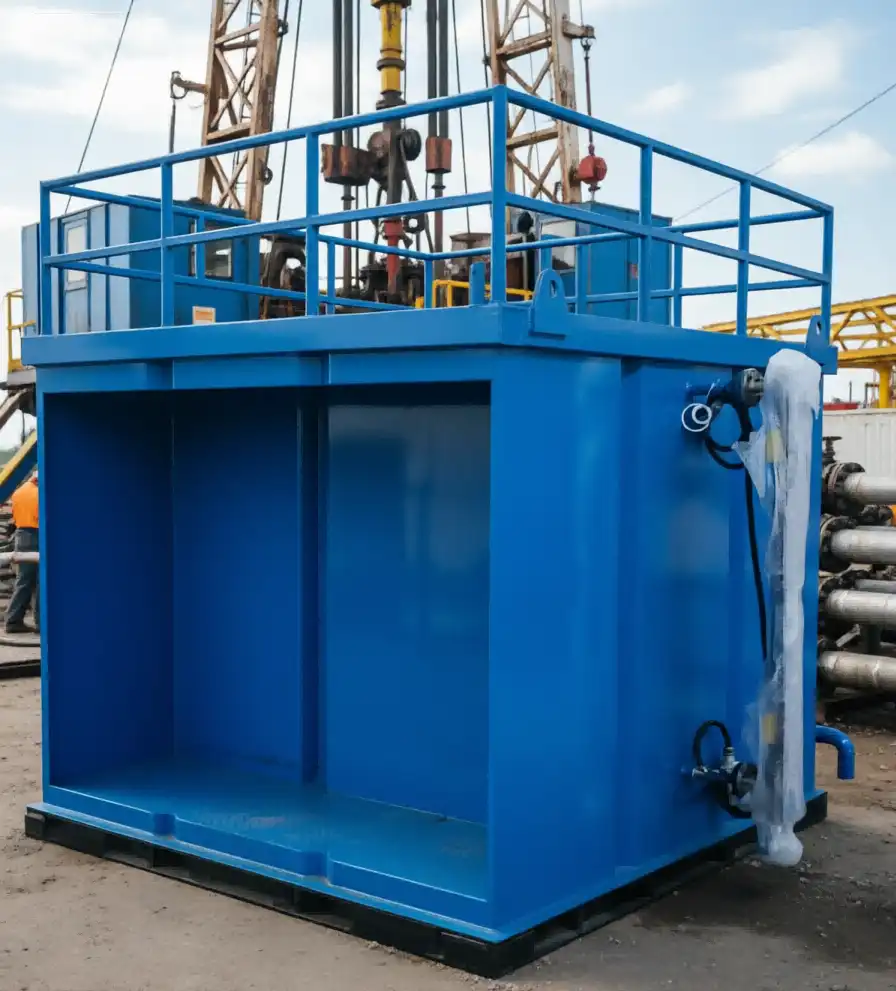

Place the container right below or next to the point where the shale shaker discharges to reduce the amount of manual transfer. Before you put the unit down, make sure that the ground or deck can handle the weight. Fill to no more than 90% full to keep safe lifting weight limits. To keep rainwater out and smells inside, keep the lid closed when it's not being loaded.
Check the seals on the lid before and after every shipping run. Oily mud residues speed up the breakdown of gaskets. In normal use, gaskets should be replaced every 12 to 18 months. If surface cracking or compression set is visible, they should be replaced sooner. As part of its spare parts support program, ZHONGCHENGJIXIE offers new gasket kits, which can be sent out quickly from regular stock for each Cuttings Box.
Use high-pressure water or a mechanical wash device to clean the inside of the Cuttings Box after each emptying run. Visually check the weld lines every 20 lift cycles, and once a year, set up an official Magnetic Particle Inspection (MPI) and a Dye Penetrant Inspection (DPI). Fix any damage to the covering right away to stop rust of the base metal from spreading. Keeping a written record of maintenance helps third-party checks go more smoothly and increases the unit's certified service life.
In waste management, operational efficiency is a result that can be measured, not an idea that you want to reach. A properly chosen and well-kept drilling waste bin cuts down on crane cycle time, lowers dumping costs by concentrating waste volume, and makes sure your site stays in line with zero-discharge rules.
Cuttings Boxes from ZHONGCHENGJIXIE are made to work directly with the rest of the company's solid control systems, such as shale crushers, vacuum degassers, and centrifuges. So, the trash that is collected by the shaker can go through a fully recorded chain of custody, from the collection box to transport to treatment, without having to change containers or handle equipment.
Closed-loop cuttings transport gets rid of the need to store waste in open pits, which is becoming more and more limited by officials in U.S. shale areas. The sealed design meets EPA guidelines for onshore discharge and helps offshore operators follow MARPOL rules. Sites that keep records of their waste containment chain usually get their permits faster and have fewer inspection findings.
The total cost of owning a high-quality drilling waste Cuttings Box container is less than what most operators think it will be. There is a measurable return because there is less mud loss during shipping, less risk of cleanup, and longer machine life due to proper coating and gasket upkeep. The International Association of Drilling Contractors publishes data on the business that says proper solid waste containment can cut site cleanup costs by 15% to 30% during long-term drilling programs.
Check to see if the maker has the latest ISO 9001, ISO 14001, and ISO 45001 certifications for quality management, environmental management, and workplace health. For applications that will be used abroad, you should ask for BV, TÜV, or similar third-party certification approval paperwork. ZHONGCHENGJIXIE has all of these certifications and can give full paperwork packages for checks of customer qualifications.
Standard sizes don't always work for how rigs are set up. If the provider really knows how to do engineering, they can change the size of the box, the distance between forklift pockets, the type of lid mechanism, and the finish on the outside to fit your unique rig and transport needs. For custom designs, ZHONGCHENGJIXIE offers factory-direct customization. The normal wait time is 15 days, and standard units that are in stock ship within 3 days for every Cuttings Box order.
Long-term ties with suppliers rely on being able to get parts and getting technical help quickly. Check to see if gasket kits, lifting hardware, and coating repair materials are in stock and can be bought right away. After the first year of service, a provider that can't help with field repair is seen as a liability.
A Cuttings Box is not a common item to buy; it is an important safety-critical piece of waste management equipment. Your drilling waste container's structural integrity, seal performance, and how it's designed to be handled all have a direct effect on how well it meets environmental standards, how long it can be used, and your financial liability. Buying choices should be based on approved specs, a supplier's proven ability, and a full understanding of the cost over the whole lifecycle. The Cuttings Boxes that ZHONGCHENGJIXIE makes have been approved and tried in the field. They are made for both offshore and high-standard onshore uses, and they can be customized to fit your needs. You can also get direct factory prices.
Sizes range from 2.7 m³ to 3.0 m³, and the MGW can be up to 10,000 kg. ZHONGCHENGJIXIE lets you change the sizes of its volumes to fit different rig setups and transport needs.
After each shipping run, the gaskets should be checked. Every 12 to 18 months is a good time to change it under normal conditions. This time may be shorter if you are exposed to high-aromatic oil-based mud.
Check for ISO 9001, ISO 14001, ISO 45001, and structural approvals from third parties like BV, TÜV, or DNV 2.7-1 / EN 12079. These show that both quality management and structure stability have been met.
Yes. Containers with marine-grade coating systems that meet ISO 12944 C5-M standards, 4-point approved lifting lugs, and vacuum-tested lid seals can be used for activities on the deck of an offshore vessel or to move from a rig to another vessel.
With regular coating maintenance and a yearly NDT check, an offshore unit that was properly described should last between 8 and 12 years.
ZHONGCHENGJIXIE sells Cuttings Boxes that are ISO-certified straight from the factory. Standard units can be shipped in 3 days, and custom configurations take 15 days. Our engineering team gives you all the technical information you need, like drawings, proof of load testing, and upkeep guides. Get in touch with us right away at oliver@zcgukong.com or visit zcsolidscontrol.com to talk about your project needs and get a direct factory quote.
1. U.S. Environmental Protection Agency. Management of Wastes from the Exploration, Development, and Production of Crude Oil, Natural Gas, and Geothermal Energy. EPA, 2019.
2. International Association of Drilling Contractors (IADC). Drilling Waste Management: Technology, Policy, and Regulation. IADC, 2021.
3. International Maritime Organization. MARPOL Annex V: Regulations for the Prevention of Pollution by Garbage from Ships. IMO, 2013 (amended 2018).
4. DNV GL. Offshore Containers: DNV 2.7-1 Standard for Certification of Offshore Containers. DNV GL, 2020.
5. ISO. ISO 12944-6: Paints and Varnishes — Corrosion Protection of Steel Structures by Protective Paint Systems. ISO, 2018.
6. Society of Petroleum Engineers (SPE). Drill Cuttings Management and Disposal: Field Practices and Environmental Considerations. SPE Journal, 2020.
