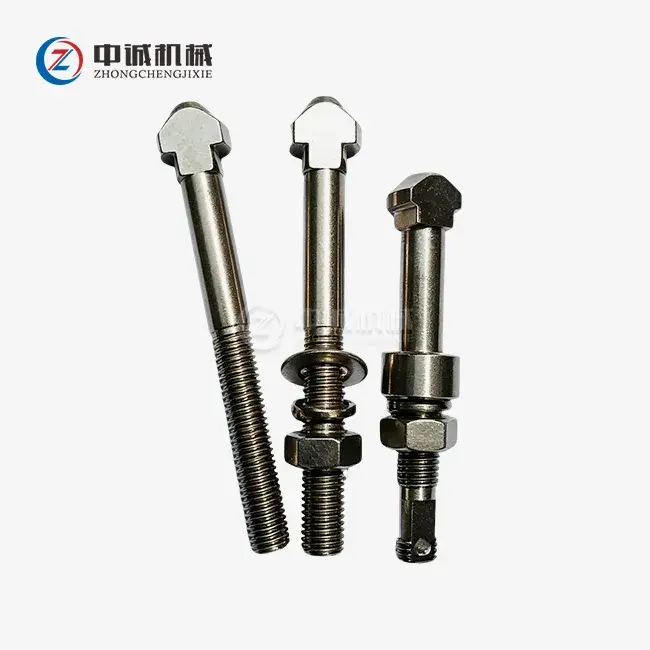

The Shaker Tensioning Bolt and Nut Assembly from Zhongcheng Machinery is a specialized safety fastener engineered to lock shale shaker baskets and bases during transit, hoisting, and storage. Designed for oil and gas drilling operations, this rigid bolt system eliminates displacement, protects critical spring components, and prevents structural collision damage. Our assembly features high-strength alloy construction with precise thread design, delivering outstanding tensile strength and anti-loosening performance.
Manufactured under ISO 9001/14001/45001 certification and approved by HSE, TÜV, and BV, each unit undergoes rigorous quality control. With over 30 years of machinery manufacturing expertise and an annual production capacity of 200 sets, we provide factory-direct pricing and customization support for onshore and offshore shale shakers across global drilling sites.
A Shaker Tensioning Bolt and Nut Assembly is a precision-engineered fastening system specifically designed to secure vibrating screen components in industrial solid control equipment. Unlike standard fasteners, this assembly withstands continuous high-frequency harmonic vibrations and extreme G-forces generated during drilling operations.
This specialized hardware solves critical industry challenges. Screen blinding, premature cloth tearing, and hardware loosening cause catastrophic equipment downtime. Our assembly provides constant, uniform clamping force that ensures optimal energy transfer from the shaker motor to the screen surface.
You'll maximize throughput in solids control processes. The system maintains proper tension during operation while allowing safe equipment movement during transportation and maintenance.

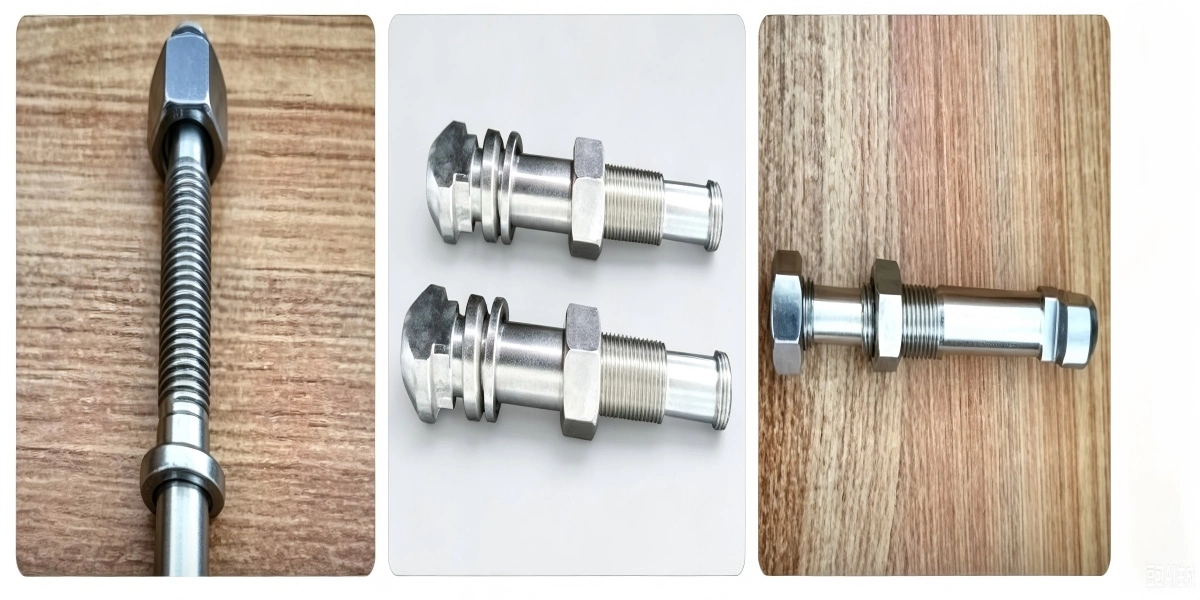

Our productsfeatures high-tensile steel construction with material grades ranging from 8.8 to 12.9. For corrosive drilling environments, we offer 304/316 stainless steel variants that resist chemical exposure from drilling fluids.
The assembly showcases specialized thread profiles. Both UNC and Metric configurations resist stripping under dynamic loads. Thread precision ensures perfect fit with corresponding nuts, preventing slippage during high-vibration operations.
Self-locking mechanisms include nylon inserts and all-metal prevailing torque nuts. These features prevent rotational loosening during continuous shaker operation. Surface treatments like hot-dip galvanizing and zinc plating deliver superior salt-spray resistance.
| Parameter | Specification |
|---|---|
| Material Grade | 8.8 to 12.9 high-tensile steel / 304/316 stainless steel |
| Thread Type | UNC / Metric precision threads |
| Tensile Strength | High-strength alloy with superior load capacity |
| Surface Treatment | Hot-dip galvanizing / Zinc plating / PTFE coating |
| Locking Mechanism | Nylon insert / Prevailing torque / Split-pin configuration |
| Corrosion Resistance | Salt-spray tested, suitable for offshore applications |
| Fatigue Resistance | Designed for cyclic loads and continuous vibration |
| Temperature Range | Suitable for standard to high-temperature environments |
| Certifications | ISO 9001/14001/45001, HSE, TÜV, BV approved |

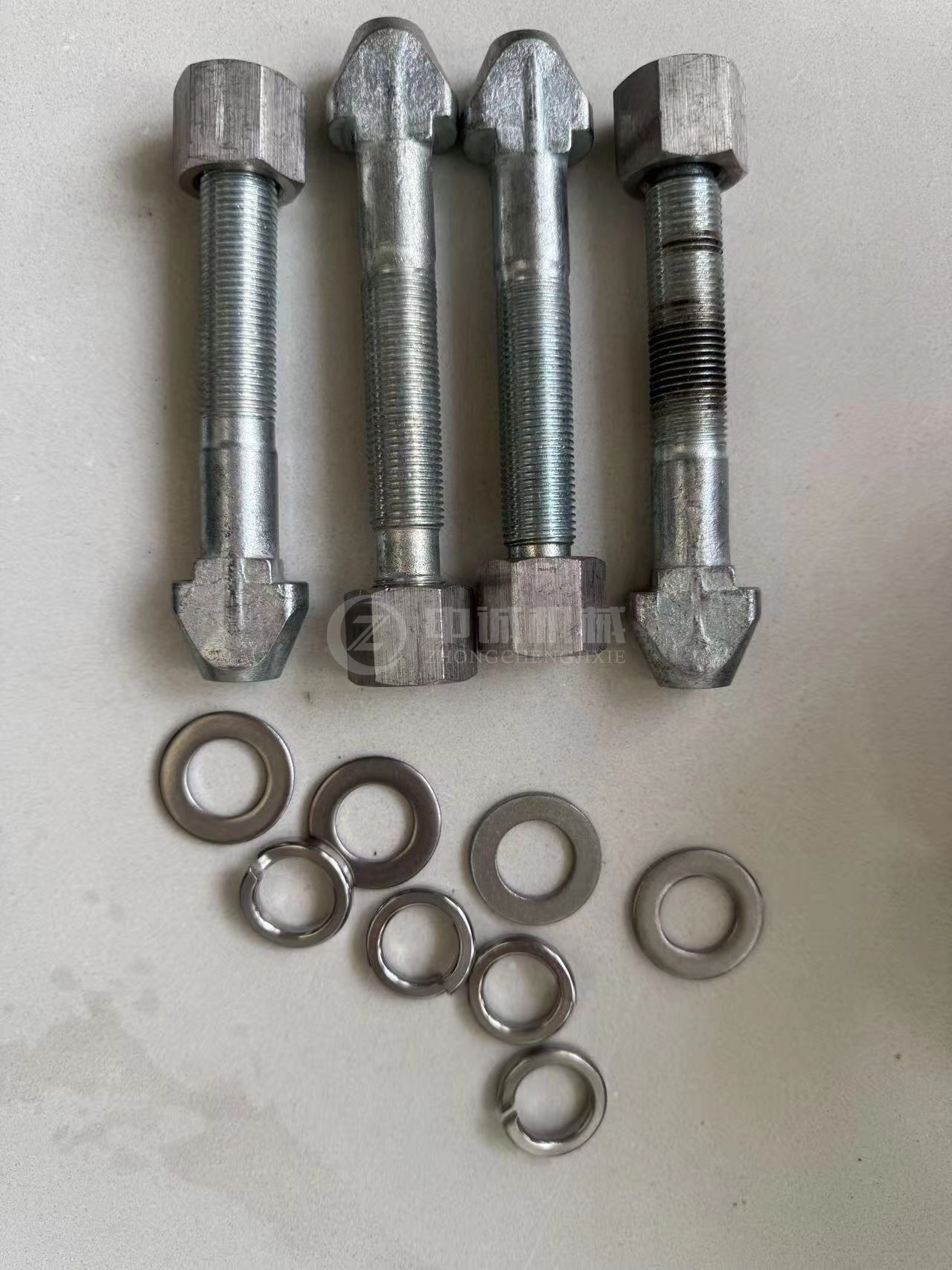

You get exceptional durability from our high-strength alloy material. The tensile strength firmly locks solid control equipment components even under extreme drilling conditions. Wear resistance extends service life significantly compared to standard fasteners.
Precision Thread Design with Anti-Loosening Technology
Our precise thread engineering delivers steady clamping force throughout operation. You won't experience loosening during high-frequency vibration cycles. Outstanding corrosion resistance protects threads from drilling mud and chemicals.
Compact Structure for Easy Installation
The compact design simplifies mounting and dismantling procedures. You'll appreciate the perfect compatibility with various shale shaker models including ZJ90, ZJ70, ZJ50, and XJ-series equipment. Installation requires minimal tools and technical expertise.
Zero-Damage Transportation Guarantee
These assemblies serve as mandatory safety components before equipment movement. You can relocate shakers during factory shipment, site relocation, and maintenance with confidence. The system ensures "zero damage" during complex handling conditions.
Oil & Gas Drilling Operations
Your shale shaker screens require secure fastening in Solids Control Systems. The Shaker Tensioning Bolt and Nut Assembly endures constant exposure to abrasive drilling fluids and high-gravity vibrations. It maintains screen tension during continuous operation on both onshore and offshore drilling platforms.
Mining and Aggregate Processing
Heavy-duty manganese and polyurethane screens depend on reliable tension systems. Our assembly manages massive material weight and impact loads in high-frequency sizers. You'll achieve consistent screening performance in demanding mineral processing environments.
Industrial Waste Management
Dewatering vibrating decks face high humidity and chemical exposure. Our bolt assembly maintains structural integrity despite localized oxidation risks. You benefit from reliable performance under continuous cyclic stress in waste treatment facilities.
Equipment Transportation and Storage
Factory shipment and site relocation require rigid component locking. You protect expensive spring systems and prevent basket displacement during transit. The assembly ensures your shale shaker arrives in perfect operational condition.
Determine Your Load Requirements
Calculate the pre-tightening force and axial load capacity needed for your specific shaker model. Consider the vibration intensity and screen weight your equipment generates during operation.
Match Thread Specifications
Select thread specifications and bolt length that match your connected parts. Verify compatibility with existing nut configurations and installation space constraints.
Evaluate Environmental Factors
Assess your working environment for corrosion potential, temperature extremes, and vibration intensity. Choose material grades accordingly—standard high-tensile steel for onshore operations or stainless steel for offshore and corrosive environments.
Customization Services Available
We support size customization for unique equipment configurations. You can specify material preferences, thread types, and surface treatments. Our factory-direct supply includes complete technical documentation and engineering support.
With 15-day delivery for customized orders and 3-day shipping for in-stock items, you'll minimize equipment downtime. Our 6,300-square-meter production facility in Xingping City ensures quality control throughout manufacturing.
Why does my Shaker Tensioning Bolt and Nut Assembly keep loosening?
Vibration-induced rotation causes most loosening issues. Ensure you're using prevailing torque nuts or specialized locking washers. Check that installation torque meets specifications for your bolt grade.
What is the recommended torque for a 3/4-inch tensioning bolt?
Torque varies by grade and lubrication. A Grade 8 bolt typically requires 260-380 ft-lbs depending on friction factors. Always consult torque charts specific to your bolt material and coating.
Can I reuse the nut in the assembly?
Reusing lock-nuts with nylon inserts is highly discouraged. Locking torque diminishes significantly after first use. Replace nylon-insert nuts with each disassembly to maintain proper clamping force.
How do I prevent thread galling on stainless steel assemblies?
Always apply anti-seize lubricant before installation. We recommend molybdenum disulfide-coated hardware for stainless steel applications. This prevents thread damage during high-torque tightening.
How often should these assemblies be inspected?
In high-G shaker applications, perform visual inspection during every screen change. Check for bolt stretch, rust streaks, or loosening every 12 hours of continuous operation. Replace any fasteners showing wear or deformation.
What makes your assembly different from standard bolts?
Our assembly is specifically engineered for vibration resistance. Standard bolts lack the fatigue strength and locking mechanisms required for continuous shaker operation. You get specialized thread profiles and surface treatments designed for drilling environments.
We provide comprehensive solutions beyond product supply. Your purchase includes engineering drawings, component diagrams, and detailed operation manuals. Our professional service team delivers complete project solutions from design to commissioning.
You receive one-year warranty coverage on all assemblies. Industry training and technical guidance help your maintenance team perform proper installation and torque adjustment. On-site support is available for complex installations.
Our 24-hour after-sales support resolves troubleshooting issues quickly. With efficient logistics partnerships and convenient access to Tianjin and Shanghai ports, global delivery reaches your location reliably.
Spare parts supply ensures long-term operational continuity. We maintain inventory of matching nuts, washers, and replacement bolts for immediate dispatch.
Ready to protect your shale shaker investment with reliable Shaker Tensioning Bolt and Nut Assembly? Contact our team at oliver@zcgukong.com for customized solutions, technical specifications, and competitive factory-direct pricing today.
