In oilfield solid control and mud circulation systems, reliable pipeline connections determine operational safety and efficiency. The Knock-On Hammer Seal Union from Zhongcheng Machinery delivers enterprise-grade performance through its inflatable rubber sealing structure and high-strength corrosion-resistant alloy body. Manufactured in our ISO 9001/14001/45001 certified facility with over 30 years of industry expertise, our unions provide excellent pressure resistance up to 15,000 PSI. With HSE, TÜV, and BV approvals, these quick-connect fittings ensure tight, leak-free sealing for onshore and offshore drilling applications. Direct factory supply enables competitive pricing and delivery within 3-15 days, supported by comprehensive technical documentation and one-year warranty coverage.

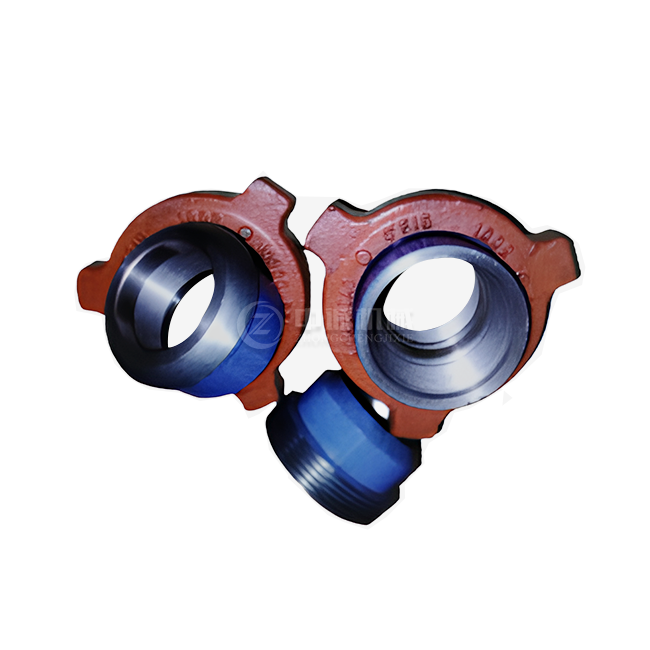

A Knock-On Hammer Seal Union is a specialized high-pressure flowline connector designed for rapid, secure connections in demanding oilfield environments. The assembly consists of a male sub, female sub, threaded wing nut, and critical elastomeric seal ring.
The "knock-on" method uses a standard sledgehammer to strike the wing nut lugs. This generates sufficient torque to compress the seal against mating surfaces. You eliminate the need for complex hydraulic wrenches or multiple bolt tightening procedures.
This technology addresses critical operational challenges. It prevents fluid loss during high-pressure operations. It reduces downtime caused by traditional flanged connections. The design maintains sealing integrity under severe mechanical vibration and extreme thermal cycling conditions.
| Parameter | Specification |
|---|---|
| Connection Type | Quick-connect hammer union |
| Sealing Structure | Dual-seal: Metal-to-metal + elastomeric rubber |
| Body Material | High-strength corrosion-resistant alloy steel |
| Pressure Rating | Up to 15,000 PSI (Fig 1502) |
| Thread Type | ACME thread profile |
| Seal Material Options | NBR (standard), HNBR, Viton (H2S service) |
| Temperature Range | -50°F to 250°F (with appropriate seal selection) |
| Standards Compliance | API 6A, NACE MR0175 (sour service models) |
| Finish | Heat-treated forging with optional coating |
| Certifications | ISO 9001/14001/45001, HSE, TÜV, BV |
| No. | Item | Specification |
|---|---|---|
| 1 | Rated Pressure | 6.4 MPa |
| 2 | Applicable Media | Drilling mud, clean water, sewage |
| 3 | Working Temperature | 0℃ ~ 80℃; Ambient Temperature: -40℃ ~ +55℃ |
| 4 | Executive Standard | SY/T 5257, API 16C |
Traditional flanged connections require multiple bolts and specialized tools. Our union design simplifies field operations dramatically. You complete connections by rotating and striking a single wing nut with a standard sledgehammer.
This approach reduces labor costs significantly. Pipeline moves during drilling and fracking operations happen faster. No hydraulic wrenches or complex equipment are needed on site.
The dual-seal design combines metal-to-metal primary sealing with elastomeric rubber backup sealing. This configuration ensures zero leakage even under pressure surges and severe vibration conditions.
Many of our male subs feature self-aligning spherical structures. This allows for slight angular misalignment during connection while maintaining seal integrity. You gain installation flexibility without compromising performance.
We manufacture unions from high-strength alloy steel through precision forging processes. Rigorous heat treatment ensures the body withstands a wide range of operating pressures.
For H2S environments, we supply NACE MR0175 compliant models. These specialized units effectively prevent stress corrosion cracking in sour service conditions. Your operations maintain safety standards in the most challenging environments.
Our products follow industry-recognized "Figure" standards. This ensures dimensional compatibility across equipment from various manufacturers. You simplify spare parts inventory and reduce maintenance complexity.
Standard color-coding on wing nuts enables quick pressure rating identification. Fig 1502 units feature red markings for 15,000 PSI rating recognition in the field.

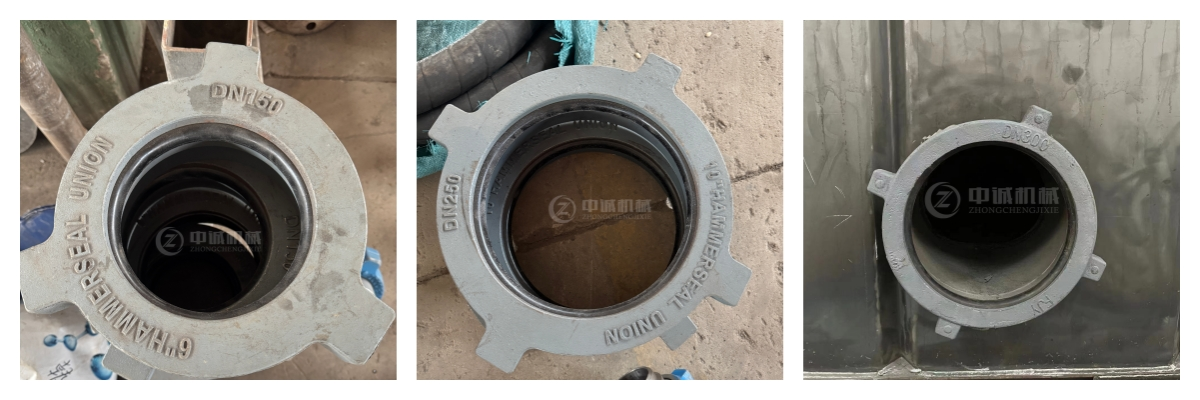

In high-pressure pumping manifolds, our Knock-On Hammer Seal Union withstands 15,000 PSI pressures typical of shale gas extraction. The robust connection resists vibration-induced loosening during extreme abrasive flows.
Rapid setup and teardown capabilities reduce rig-up time between stages. You maintain operational tempo while ensuring safety under the most demanding pressure conditions.
Mobile cement units require frequent equipment reconfiguration. Our unions enable quick connections that maintain vacuum-tight environments during chemical mixing operations.
The seal integrity ensures consistent performance during high-pressure injection phases. You prevent contamination and maintain precise cement placement control.
Saltwater environments demand superior corrosion resistance. Our alloy construction and specialized coatings protect against marine deterioration.
The unions function reliably in mud circulation lines and choke-and-kill manifolds. They maintain sealing performance despite constant dynamic loads and platform motion characteristic of offshore operations.
For drilling mud circulation systems, our unions connect shale shakers, desanders, desilters, and mud cleaners efficiently. The quick-disconnect feature facilitates rapid equipment maintenance and system reconfiguration.
You maintain circulation system integrity while minimizing downtime during solids removal equipment servicing.
Professional quality assurance focuses on five critical inspection pillars:
Material Verification: Spectrographic analysis confirms alloy composition meets API grade requirements. This ensures predictable mechanical properties under field conditions.
Dimensional Inspection: Precision GO/NO-GO gauges verify seal groove and ACME thread profiles. This prevents galling and ensures 100% fit compatibility.
Hardness Testing: Brinell or Rockwell testing validates heat treatment processes. Proper hardness prevents brittle failure while maintaining ductility.
Seal Integrity Testing: Compression set and tensile strength tests ensure elastomers maintain memory under pressure cycling. Your seals perform consistently throughout service life.
Hydrostatic Pressure Testing: Each assembly undergoes testing at 1.5 times rated Cold Working Pressure. This confirms safety margins before field deployment.
We offer flexible customization for your specific requirements. Dimension modifications, configuration adjustments, and motor brand selections accommodate both domestic and international preferences.
Our technical support package includes:
Fast delivery timelines keep your operations moving. In-stock products ship within 3 days. Custom orders deliver within 15 days from our Xianyang production facility.
Strong logistics partnerships provide efficient access to Tianjin and Shanghai ports. You receive reliable international shipping with transparent tracking.
Q1: How do I identify the correct Figure number for a Knock-On Hammer Seal Union?
Identification uses standard industry color-coding and stamping on the wing nut. Fig 1502 typically features red coloring and clear PSI rating stamps. Always verify markings against your system specifications before installation.
Q2: When should a Hammer Seal Union be replaced?
Replace components when threads show more than 10% wear. Retire units if the seal pocket develops pitting or corrosion. Seal rings require replacement when showing permanent deformation, compression set, or visible cracking.
Q3: Can I use a standard NBR seal in H2S service?
No. H2S environments require HNBR or Viton seals specifically rated for sour service. The metal components must meet NACE MR0175 standards to prevent hydrogen embrittlement and stress corrosion cracking.
Q4: Why does my union leak after proper tightening?
Leakage typically indicates damaged seal rings or debris in seal grooves. Mismatched components from different manufacturers can cause improper seal compression. Always use complete sets from the same supplier to ensure dimensional compatibility.
Q5: What impact do low temperatures have on seal performance?
Standard elastomers become brittle at their glass transition temperature. Arctic operations require specialized low-temperature seals tested per API 6A classifications. Specify seals rated for your minimum operating temperature, such as -50°F for extreme cold environments.
