The Drilling Rig Shifting Slideway manufactured by ZC represents a precision-engineered auxiliary system that enables horizontal rig movement between wellheads without dismantling. Our solution delivers customizable pushing force ranging from 1000kN to 3000kN, with step strokes of 0.8-1.5m and operational capability from -20℃ to +55℃.
This modular system ensures accurate rig positioning during cluster well operations. Certified under ISO 9001/14001/45001 and approved by HSE, TÜV, and BV authorities, our slideway reduces relocation time from days to hours. You gain enhanced operational efficiency while maintaining wellhead alignment precision critical for pad drilling operations.
A rig shifting slideway serves as the mechanical interface between your drilling rig substructure and the well site foundation. This precision-engineered component facilitates smooth horizontal movement of complete drilling assemblies across multi-well pads.
Traditional rig relocation involves complete tear-down and reassembly. This process consumes valuable time and labor resources. Our products eliminates these inefficiencies entirely.
The system allows you to transition rigs in hours rather than days. You maintain precise wellhead alignment throughout the process. This capability significantly increases the net present value of your unconventional oil and gas assets.
Our rig relocation slideways are engineered with high-strength structural steel, typically Q355B grade. The material provides exceptional load-bearing capacity and environmental resilience.
| Parameter | Specification |
|---|---|
| Pushing Force | 1000kN - 3000kN (Customizable) |
| Step Stroke | 0.8m - 1.5m |
| Working Temperature | -20℃ to +55℃ |
| Static Load Capacity | Up to 1,500 tons |
| Friction Coefficient | <0.1 (PTFE-based wear plates) |
| Flatness Tolerance | ±1mm over 10 meters |
| Material | High-strength steel Q355B |
| Surface Treatment | Heavy-duty anti-corrosion coating (C5-M) |
| Design Life | 15-20 years |
The system features integrated low-friction wear plates utilizing PTFE-based composites. This reduces the coefficient of friction to below 0.1. You experience smooth, consistent movement even under heavy loads.
Our sliding surfaces undergo heavy-duty anti-corrosion treatment meeting C5-M standards. This protects against salt spray and chemical exposure in harsh drilling environments.

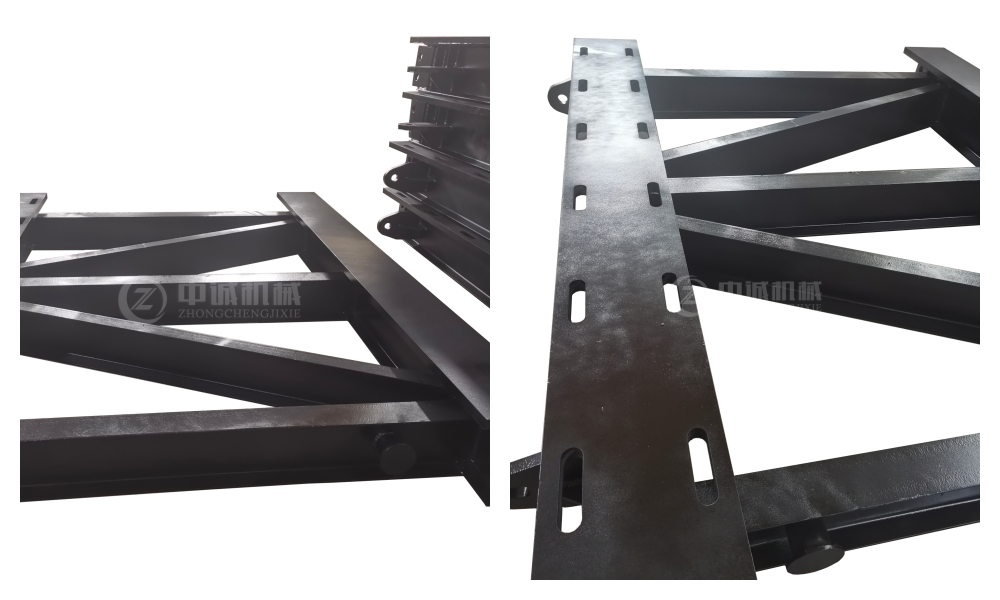

Our Drilling Rig Shifting Slideway employs multi-section modular construction. You can freely combine sections according to your well site space and rig specifications.
The compact layout saves valuable well site area. This proves especially beneficial for cluster well operations and narrow space environments like artificial islands.
You can quickly assemble and disassemble the system without large hoisting equipment. This significantly improves your deployment efficiency on site.
We tailor length, width, and load-bearing capacity to your specific requirements. Whether you operate a 7000m module rig or a 5000m artificial island rig, our system matches perfectly.
The slideway dimensions align precisely with your rig base size and wellhead spacing layout. This ensures smooth displacement processes throughout your operations.
You receive a solution that fits your exact operational parameters. No compromise on performance or safety occurs.

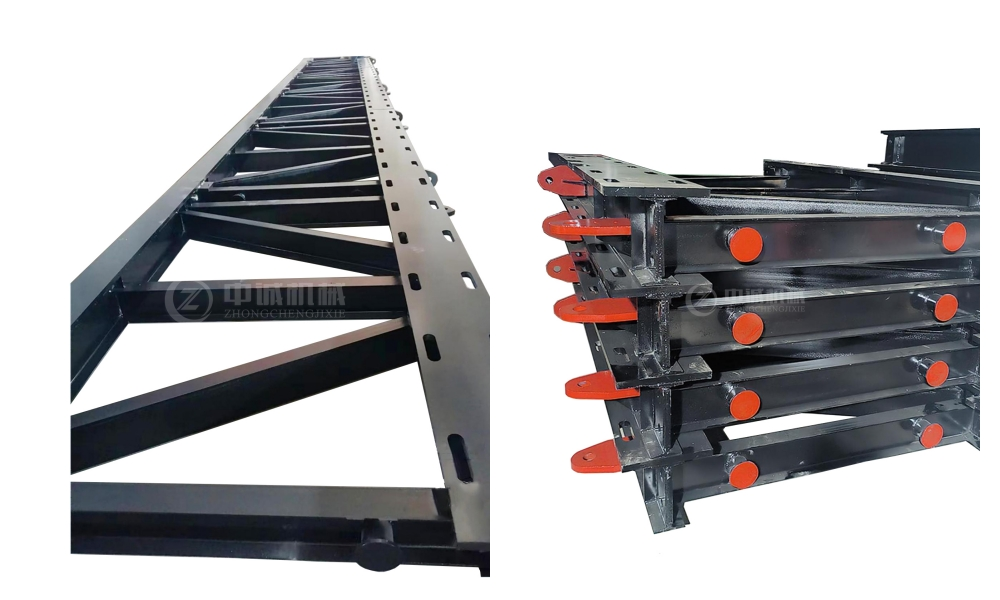

Our system incorporates a dual-layer sliding guide rail structure. The upper and lower layers work cooperatively to stabilize rig movement in both horizontal and vertical directions.
The closely fitted guide rails effectively prevent deviation and vibration during displacement. Your rig achieves "zero" disassembly movement capability.
This structural integrity maintains operational stability even under dynamic loading conditions. You experience consistent performance across all movement operations.
Each slideway includes a mechanical self-locking device. This automatically engages after your rig reaches the designated position.
In the harsh vibration environment typical of drilling sites, accidental sliding becomes impossible. Your rig remains secure during both operation and displacement transitions.
This safety feature protects your equipment investment. You maintain crew safety throughout all operations.
Our system integrates seamlessly with hydraulic cylinder drive mechanisms. The pawl seat linkage provides intuitive control through a centralized control box.
You synchronously control dual hydraulic cylinders for stable, uniform rig displacement. Simple operation completes one movement stroke efficiently.
Continuous displacement becomes possible by splicing additional slideway sections. Your operational flexibility increases dramatically.
Scale markings and position indicators provide real-time displacement feedback. You can visually judge rig movement distance and position instantly.
This visibility facilitates accurate wellhead positioning. Your cluster well batch drilling efficiency improves measurably.
Operators require minimal training to achieve proficient system operation. You reduce human error and increase productivity.
Our rig movement systems excel in unconventional shale gas pad drilling environments. You can rapidly walk rigs across 10-20 closely spaced wellheads.
This capability proves invaluable in mountainous or restricted-space terrains. Your operational continuity remains uninterrupted regardless of geographical challenges.
The system adapts to various rig types including ZJ90, ZJ70, ZJ50, ZJ40, ZJ30, ZJ20, XJ750, XJ650, XJ550, XJ450, and XJ350 models.
Specialized sand-sealed guide rails and heavy-duty tracks enable operation across shifting sands. You maintain functionality in soft soil foundations where traditional infrastructure doesn't exist.
The system ensures 24/7 operational continuity in extreme temperatures. Your drilling schedule remains on target despite environmental challenges.
Remote operations benefit from reduced logistical complexity. You minimize equipment transport requirements between wellheads.
Artificial islands and cluster well platforms demand compact, efficient rig movement solutions. Our modular design maximizes space utilization in these constrained environments.
You achieve rapid well-to-well transitions without extensive equipment mobilization. This directly reduces non-productive time and associated costs.
The system supports your aggressive drilling schedules in high-density wellhead configurations.
Zhongcheng Machinery maintains ISO 9001, ISO 14001, and ISO 45001 certifications. Our manufacturing processes follow API Spec 4F and AWS D1.1 standards rigorously.
Every slideway undergoes 100% non-destructive testing. We employ ultrasonic testing (UT) and magnetic particle inspection (MPI) on all load-bearing weldments.
You receive products that meet international quality benchmarks. Our commitment to excellence ensures reliable performance.
We conduct load deflection testing at 1.25x to 1.5x rated static load capacity. This verifies elastic recovery and structural integrity under extreme conditions.
Laser tracking confirms parallelism and straightness of tracks. This precision prevents hydraulic system jams and operational failures.
Hardness testing verifies Brinell hardness of sliding surfaces. You benefit from superior wear resistance throughout the product lifecycle.
Full Material Test Reports (MTR) document chemical and mechanical properties of steel batches. This provides complete traceability for quality assurance purposes.
We source high-grade materials exclusively from certified suppliers. Your investment receives the protection of documented material integrity.

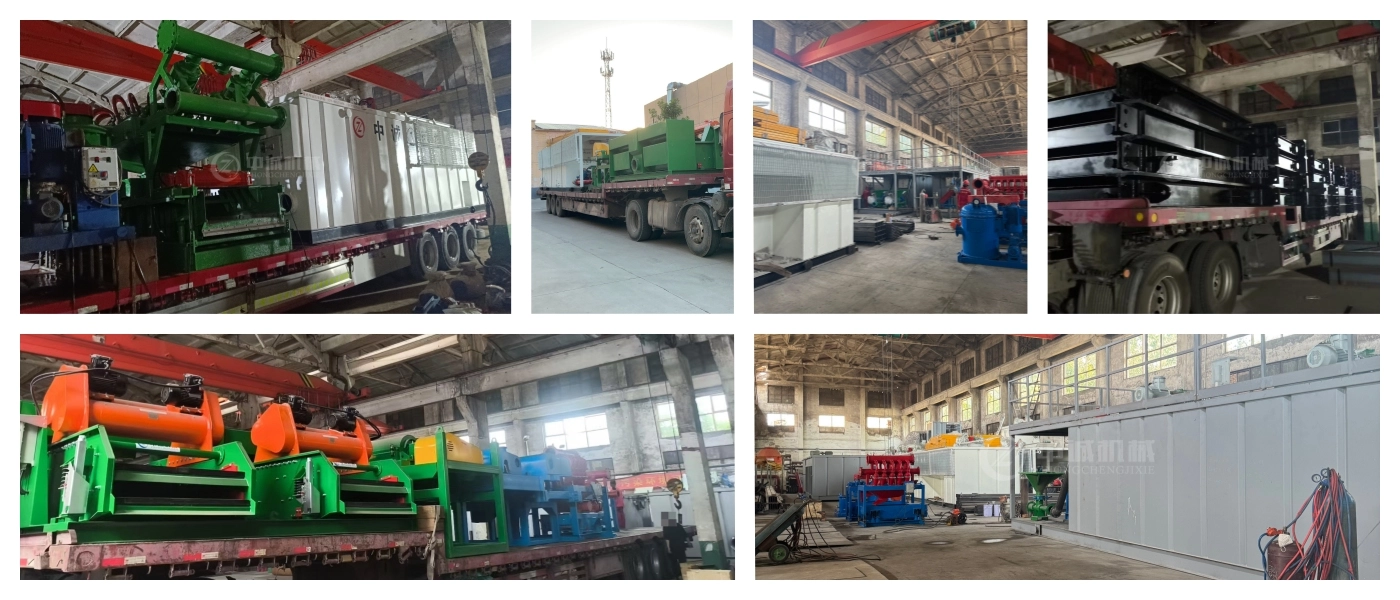

Our technical team works directly with you to customize slideway specifications. We consider your rig tonnage, wellhead spacing, and site conditions comprehensively.
You receive engineering drawings, flowcharts, and component diagrams specific to your configuration. This documentation supports installation and long-term maintenance.
Flexible customization extends to motor brands and control systems. You choose between domestic and international component options based on your preferences.
Zhongcheng Machinery provides professional installation guidance from experienced technicians. We ensure proper system integration with your existing equipment.
Our one-year warranty covers manufacturing defects and material failures. You receive responsive support throughout the warranty period and beyond.
Industry training programs equip your operators with essential skills. We deliver complete project solutions from concept through commissioning.

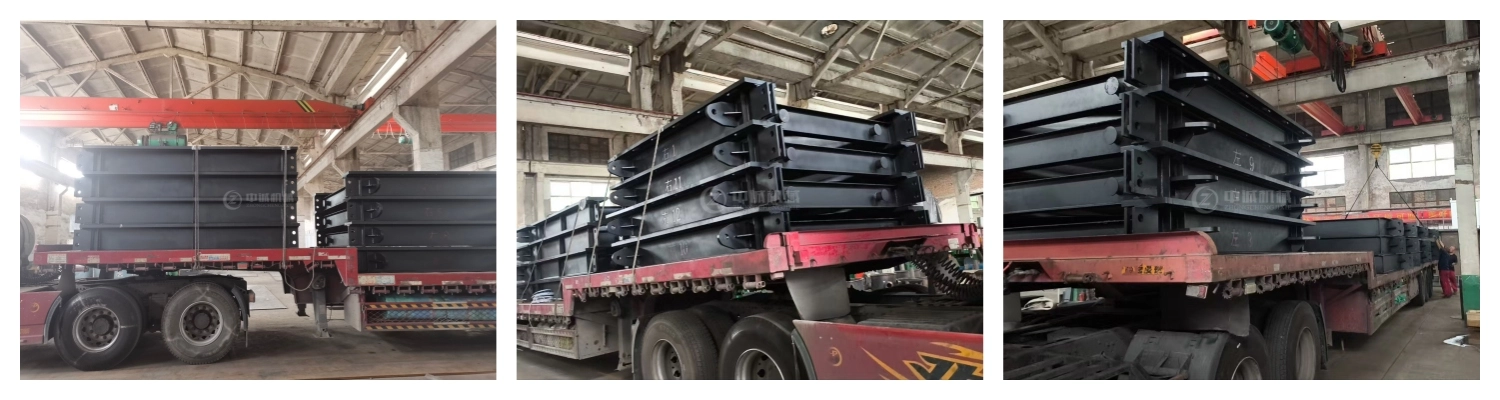

In-stock standard configurations ship within 3 days of order confirmation. Custom orders deliver within 15 days, maintaining your project timelines.
Our strategic partnerships with logistics providers ensure reliable transportation. Convenient access to Tianjin and Shanghai ports facilitates international shipping.
You experience minimal lead times from order to operational deployment. This supports your aggressive drilling schedules effectively.
Q: How does the slideway system compensate for uneven ground conditions?
A: Our design incorporates adjustable leveling jacks and spherical bearings. These components compensate for minor terrain deviations automatically. The load remains properly distributed across the sliding surface regardless of slight ground settlement.
Q: What maintenance does your rig shifting system require?
A: Periodic inspection of wear plates for thinning represents the primary maintenance activity. Ensure tracks remain free of debris and contaminants. Most modern systems include semi-automated lubrication ports that minimize manual intervention requirements.
Q: Can you accommodate different rig weight classes?
A: Absolutely. Our modular systems scale from light workover rigs to ultra-heavy 3,000HP deep-drilling rigs. We engineer each solution to match your specific tonnage requirements precisely.
Q: How do you prevent stick-slip motion during rig movement?
A: We utilize high-performance low-friction liners combined with specialized hydraulic synchronization valves. This ensures smooth, continuous motion throughout the displacement cycle. You experience consistent movement without jerking or hesitation.
Q: What is the expected operational lifespan?
A: With proper lubrication and wear plate maintenance, the main structural components typically achieve 15-20 years of service life. This represents excellent return on your capital investment.
Q: Does the system work in extreme temperature environments?
A: Yes. Our slideways operate reliably from -20℃ to +55℃. Low-temperature impact toughness makes the system suitable for arctic operations. Heat-resistant coatings protect components in high-temperature desert environments.
Ready to enhance your rig relocation efficiency via our professional Drilling Rig Shifting Slideway solution? Contact our team at oliver@zcgukong.com for customized solutions tailored to your operational requirements. We deliver results-driven systems backed by 30 years of manufacturing expertise.
