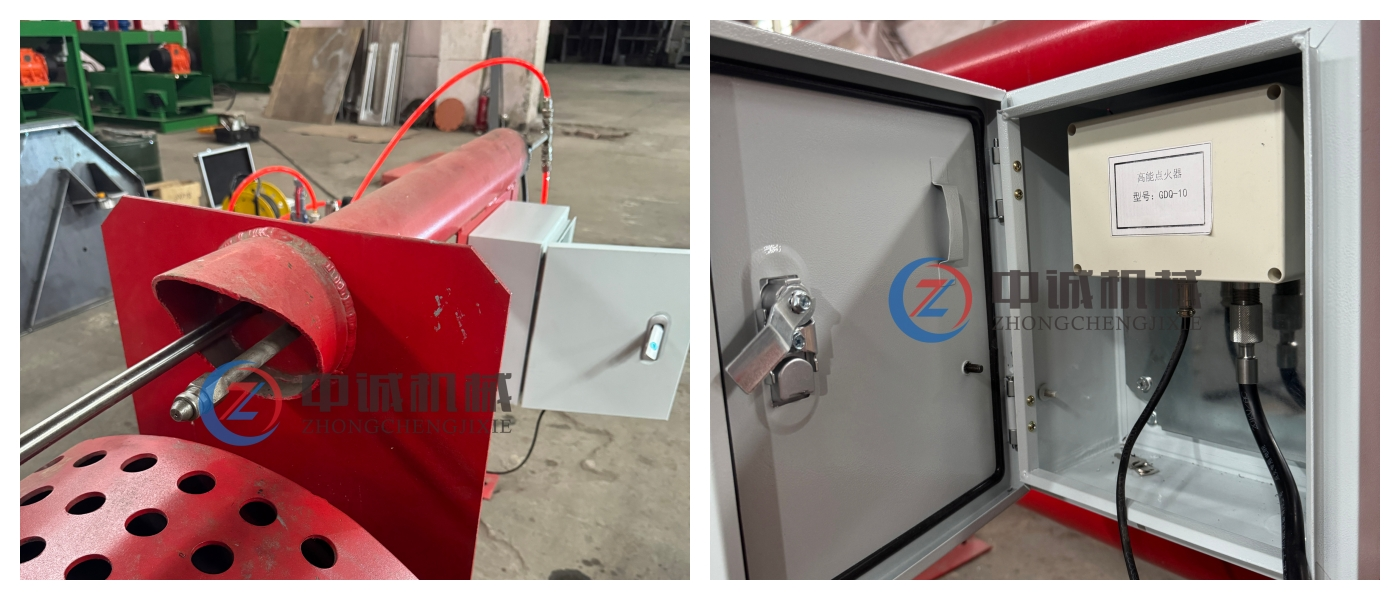

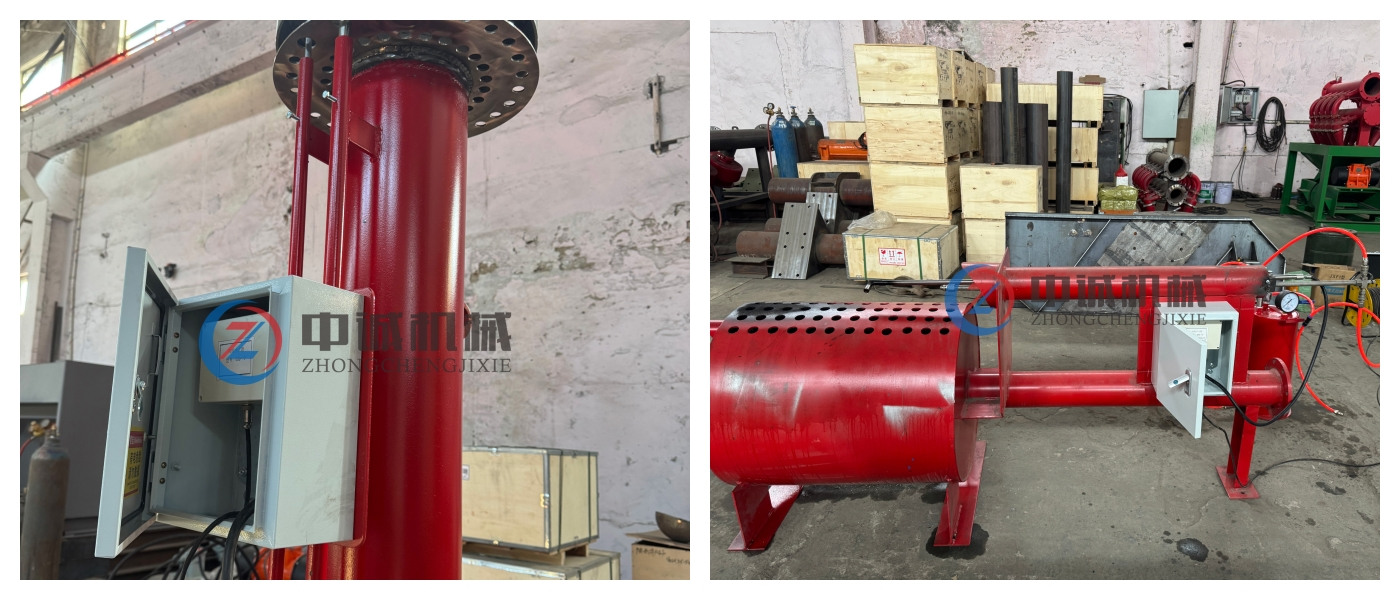

The main power component of remote igniting systems for flammable oil and gas working sites is the Explosion-proof High-energy Igniter, manufactured by Shaanxi Xixian New Area Zhongcheng Machinery Manufacturing Co., Ltd. With a standard power source of 220VAC, 50Hz, this industrial-grade igniter operates dependably at ambient temperatures between -40°C and 80°C.
With an ignition energy between 12 and 20 J, it generates a powerful spark discharge that can pierce carbon deposits, sludge, and water mist. The method effectively lowers the risk of secondary explosions at drilling sites by attaining high explosion-proof ratings (Ex d IIB/IIC T4/T6). Its consistent, reliable ignite performance guarantees continued field operating safety. It was designed specifically for flare venting igniting in oil drilling and natural gas extraction.
You may choose the best ignition option for your unique operational needs by being aware of the technical criteria.
| Parameter | Specification |
|---|---|
| Ignition Energy | 12J – 20J (customizable) |
| Power Supply | 220VAC, 50Hz (customizable upon request) |
| Output Voltage | 2500V |
| Control Terminal | Remote control device (handheld/wall-mounted) |
| Ambient Temperature | -40°C to +80°C |
| Ignition Frequency | 8 – 16 Hz |
| Arc Energy | 3J |
| Igniter Head Temperature Resistance | 1300°C (Long-term) |
| Explosion-proof Rating | Ex d IIB/IIC T4/T6 Gb |
| Hazardous Area Rating | Zone 1 and Zone 2 |
| Protection Level | IP66/IP67 |
| Enclosure Material | Cast aluminum alloy or stainless steel (304/316L) |
| Service Life | >100,000 ignitions |
| Remote Control Range | Up to 100 meters (standard); 300 meters (optional) |
| Igniter Dimensions and Installation Dimensions (mm) | Overall Dimensions: 140×130×85 Installation Dimensions: 130×135 (Mounting Hole: Φ4.0) |
Your operational safety and efficiency depend on reliable ignition equipment. Here's why this system stands out in hazardous environments.
High-intensity sparks with an energy output of 12–20 J are produced by the igniter. The target medium is instantly ignited by this strong discharge, even in the presence of moisture or carbon deposits on the electrode surfaces. Electrode contamination will not cause ignition failures for you.
The enclosure is made of stainless steel or cast aluminum alloy and is certified Ex d IIB/IIC T4/T6 explosion-proof. It has a full rating for use in hazardous zones 1 and 2. Secondary explosion dangers at your operating sites are eliminated by this design.
The high-energy sparks possess a unique "self-cleaning" characteristic. They burn off contaminants and deposits on the electrodes automatically. This feature significantly reduces your maintenance frequency and operational downtime.
Electrodes made of certain alloys are resistant to corrosion and high temperatures. Usually, the mechanism goes through more than 100,000 ignition cycles. Your operations will have better long-term dependability and less replacement costs as a result of this durability.
This Explosion-proof High-energy Igniter serves multiple critical functions across oil and gas operations where safety cannot be compromised.
In oil field operations, waste gas venting requires immediate and reliable ignition. The igniter ensures safe combustion of flammable gases during drilling operations. It maintains consistent performance regardless of environmental conditions.
Gas extraction facilities demand dependable ignition systems for flare stacks and emergency venting. This equipment provides the primary ignition source for natural gas combustion. It operates reliably in high wind and heavy rain conditions.
Refinery flare systems benefit from the igniter's ability to function in Zone 1 hazardous environments. The system handles continuous operation requirements with minimal maintenance. Your plant safety protocols remain uncompromised.
When rapid pressure relief is necessary, this igniter responds instantly. Remote control capability allows operators to maintain safe distances. The system guarantees ignition success when it matters most.
Investing in quality ignition equipment delivers measurable value to your operations. Here's what you can expect.
Stable ignition performance removes hidden dangers associated with ignition system malfunctions. Your field operations continue without interruption. This reliability protects both personnel and equipment.
The self-cleaning electrode technology minimizes routine maintenance needs. You'll spend less time on equipment servicing and more time on productive operations. Maintenance costs decrease significantly over the equipment lifecycle.
High explosion-proof grades prevent secondary explosions at hazardous sites. Your safety protocols gain an additional layer of protection. Compliance with international safety standards becomes straightforward.
Operating temperature range from -40°C to 80°C accommodates extreme environments. Whether in Arctic drilling operations or desert oil fields, the igniter performs consistently. Environmental challenges don't compromise functionality.
Quality assurance is fundamental to hazardous area equipment. Our certifications demonstrate compliance with international standards.
The Explosion-proof High-energy Igniter holds complete domestic Ex certification along with IECEx and ATEX approvals. These certifications verify the equipment meets rigorous safety requirements for explosive atmospheres.
Our quality management, environmental management, and occupational health and safety systems are covered by ISO 9001, ISO 14001, and ISO 45001 certifications. Our production standards are verified independently by TÜV, BV, and HSE auditing authorities.
Strict quality control is maintained throughout the manufacturing process at our production site in Xi'an. Before being shipped, each unit is put through extensive testing. International performance standards are met or surpassed by the equipment you receive.
Q: How far can the remote control function operate?
A: Standard models allow remote control up to 100 meters. For sites needing longer transmission distance, we can equip high-gain antennas to extend the effective distance to 300 meters; the actual working range will be affected by obstacles on site.
Q: Can this igniter work for heavy fuel oil combustion scenarios?
A: Definitely. Its 20J high-energy spark output is specifically made to ignite diesel and atomized heavy fuel oil. While our device provides steady and dependable ignition performance, conventional low-energy spark plugs often fail to light these fuels.
Q: What is the service lifespan of the electrode?
A: Under regular working conditions, the semiconductor ignition electrode can sustain roughly 100,000 to 200,000 ignition sparks. Its real service life will differ according to fuel composition and on-site working environment.
Q: Is it possible to connect this system to existing control equipment?
A: Most configurations come with dry contact terminals, enabling easy connection to DCS or PLC centralized control systems of the whole plant. The igniter can directly interact with your current automatic control framework.
Q: Which hazardous area grades is this product applicable to?
A: The igniter is suitable for Zone 1 and Zone 2 hazardous locations, complying with Ex d IIC T6 Gb explosion-proof standard, which fits most common working conditions in oil and gas industries.
