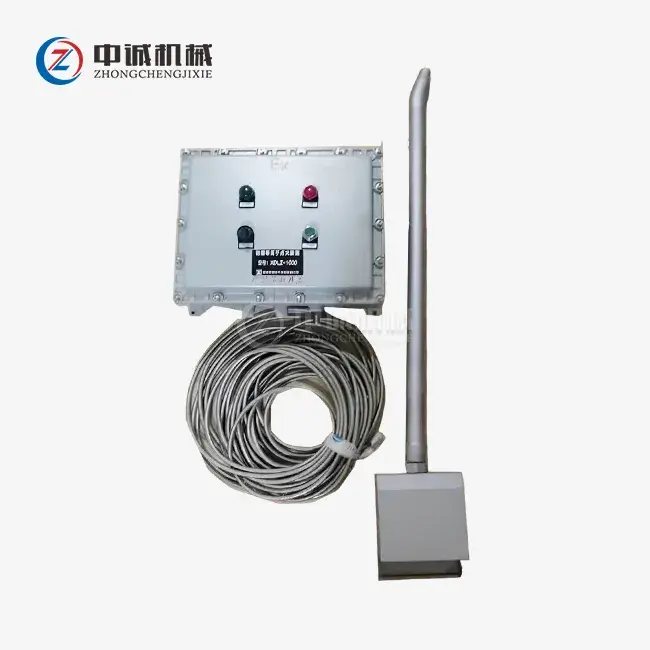

Industrial-grade explosion-proof plasma igniters designed especially for flammable and explosive working circumstances are supplied by Shaanxi Xixian New Area Zhongcheng Machinery Manufacturing. With an output voltage of 10KV and spark energy of 1000J, this high-safety ignition core equipment uses high-energy plasma arc technology to produce dependable ignition.
Both manual and automatic operation modes are supported by our system, which has a 1KW power rating. The flameless ignition ensures reliable performance even in extremely dangerous conditions by removing the inherent detonation threats associated with conventional open-flame igniters. This solution reflects more than 30 years of manufacturing experience and is certified to ISO, ATEX, IECEx, HSE, TÜV, and BV requirements.
With carefully designed parts and strict quality control, our products provides enterprise-level performance.
| Parameter | Specification |
|---|---|
| Output Voltage | 10KV |
| Spark Energy | 1000J |
| Power Rating | 1KW |
| Operation Mode | Manual / Automatic |
| Discharge Frequency | 10-20Hz |
| Ignition Rod Tip | Temperature resistance up to 1200°C |
| Input Voltage | 220VAC / 24VDC |
| Enclosure Material | 304/316L Stainless Steel |
| Ignition Rod Tip | Ceramic-Metal Composite |
| Ignition Rod Length (mm) | Customizable based on site conditions |
| Ignition Rod Diameter (mm) | φ45; Available in straight or curved tip configurations (Customizable based on site conditions) |
| Plasma Igniter Control Box Dimensions (Approx.) | 300×400×200 |
| Protection Level | Ex d (Flameproof) |
| Wind Resistance | Up to 30m/s |
| Ignition Success Rate | >99.5% |
| Service Life | >200,000 cycles |
The insulating resistance of the high-voltage components is higher than twice the operating voltage. Ceramic tip integrity is verified by thermal stress testing under fast temperature cycling from 1000°C to room temperature.
Your operations demand ignition systems that eliminate risk while maximizing reliability. Our plasma-based technology solves critical safety challenges.
Flameless Operation: No open flames are produced when the plasma arc exceeds 4000–12000K. In explosive atmospheres, this removes the main source of ignition hazard. The explosion concerns associated with traditional spark or pilot flame systems are eliminated
Remote Ignition Capability: From a safe distance, operators can start an ignition. During startup operations, this keeps workers out of high-temperature and high-pressure areas. Human exposure is further decreased by automated control integration.
Self-Diagnostic Systems: Integrated monitoring finds arc irregularities, voltage swings, and electrode deterioration. Before an ignition failure happens, real-time alarms alert you about possible problems. This lowers unscheduled shutdowns and increases operational efficiency.
Sturdy Design: The flameproof casing made of 304/316L stainless steel can bear internal explosion pressure without transmitting flames. Structural integrity is confirmed by hydrostatic testing. In harsh conditions, ceramic-metal composite tips withstand thermal shock and chemical corrosion.
Environmental Resilience: Performance in offshore and coastal facilities is verified by salt spray testing. Industrial turbine mounting circumstances are simulated through vibration testing. After more than 100,000 ignition cycles, your system continues to generate spark energy consistently.
The Explosion-proof Plasma Igniter serves critical functions across high-risk industries where traditional ignition methods fail.
Oil & Gas Operations: Flare stack systems require reliable ignition under high-wind conditions and variable pressure. Our plasma technology ignites waste gases consistently in hazardous zones. Process heaters benefit from flameless startup, reducing auxiliary fuel consumption during commissioning.
Chemical Industry: Gasifier ignition systems handle low-calorific-value fuels and associated gas streams. The high-energy plasma arc overcomes moisture content and inconsistent fuel quality. You achieve stable ignition regardless of air-to-fuel ratios.
Metallurgy Applications: Blast furnace gas (BFG) and coke oven gas present ignition challenges due to low calorific values. Reheating furnaces require dependable startup in volatile atmospheres. Our system's 1000J spark energy directly ionizes difficult-to-burn fuel mixtures.
Thermal Power Generation: Pulverized coal burners and heavy oil burners demand oil-free ignition during boiler startup. This reduces support fuel costs to 15-20% of traditional methods. The plasma arc maintains flame stability during low-load operation, preventing furnace explosions.
Pulverized Coal Boilers: Cold start ignition of lean coal and bituminous coal with volatile matter >10%. The plasma kernel creates localized ultra-high-temperature zones that reliably ignite solid fuel particles.
Your facility gains measurable advantages through advanced plasma ignition technology.
Cost Reduction: Oil-free boiler ignition eliminates expensive pilot fuel consumption. Operating costs drop to 15-20% of conventional oil-fired systems. The long service life of ignition rods exceeds 200,000 cycles, minimizing replacement expenses.
Enhanced Safety: Personnel remain outside hazardous zones during ignition procedures. Automated FSSS (Furnace Safety Protection System) integration enables remote operation. You eliminate open-flame risks while maintaining compliance with ATEX Zone 1/2 and IEC 60079-0/1 standards.
Process Reliability: The >99.5% ignition success rate reduces startup delays. Self-cleaning arc mechanisms prevent electrode fouling. Modular design supports rapid on-site component replacement, minimizing downtime.
Fuel Flexibility: Direct-to-fuel ignition capability handles variable fuel quality. The system ignites coke oven gas, biogas, and other low-CV fuels without pilot gas infrastructure. Oxygen-enriched configurations expand adaptability across coal types.
Intelligent Control: FSSS linkage provides automatic ignition sequencing and flame monitoring. Diagnostic alarms detect voltage drops, arc instability, and electrode wear. You maintain process control through real-time system feedback.

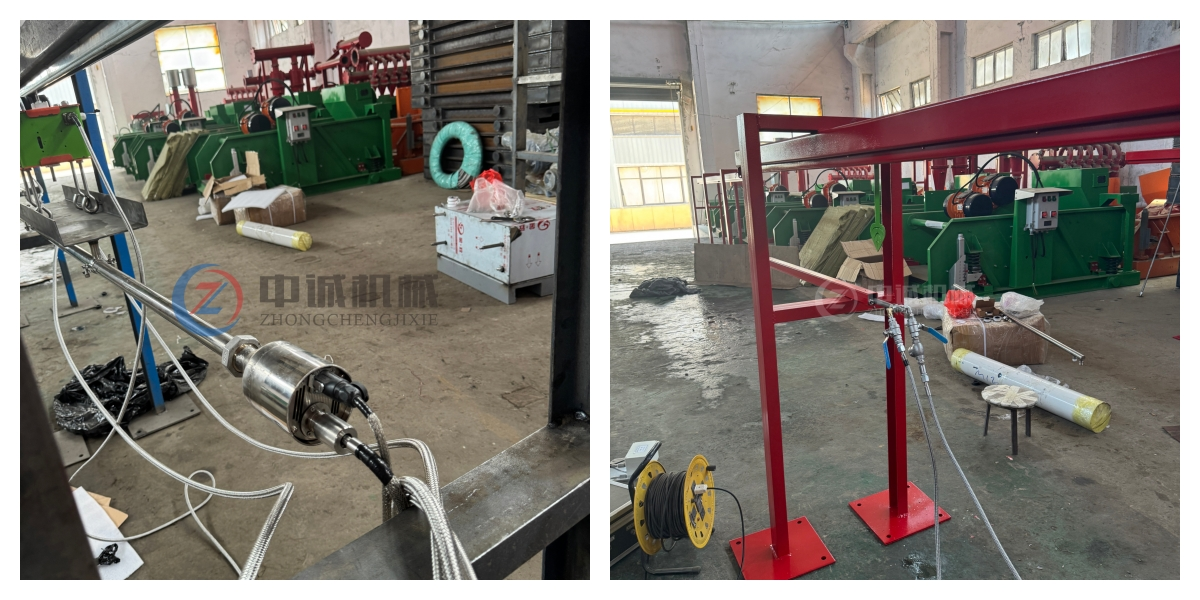

Zhongcheng Machinery implements comprehensive verification protocols for every Explosion-proof Plasma Igniter unit.
Inspection Standards: Flameproof shell hydrostatic testing confirms pressure containment. Dielectric strength verification ensures high-voltage component integrity. Calorimetric measurement validates consistent spark energy across operational cycles.
Certification Compliance: ISO 9001, ISO 14001, and ISO 45001 certifications govern manufacturing processes. ATEX, IECEx, HSE, TÜV, and BV approvals confirm zone classification suitability. Products meet Class I Division 1/2 requirements for global installations.
Customization Services: Non-standard configurations adapt to specific well site layouts. You select front-end orientations (straight or bent), installation thread types, and cable lengths. Domestic and international motor brand options accommodate regional service networks.
Technical Documentation: Complete engineering packages include flowcharts, component diagrams, and operation manuals. Installation guidance covers mounting specifications for turbine and burner applications. Maintenance protocols detail electrode inspection intervals and replacement procedures.
Delivery Performance: In-stock standard units ship within 3 days. Custom configurations deliver within 15 days from order confirmation. Strong logistics partnerships ensure efficient transport to Tianjin and Shanghai ports for global distribution.
Q: How does plasma ignition differ from traditional spark igniters?
A: Instead of producing a straightforward spark, plasma systems produce a high-temperature ionized arc (4000–12000K). This produces a bigger, more stable flame kernel that ignites challenging fuels under unfavorable circumstances. Plasma electrodes, in contrast to spark plugs, self-clean by arc action, avoiding fouling and carbonization.
Q: What fuel types can the system ignite?
A: Pulverized coal (volatile matter >10%), natural gas, heavy oil, blast furnace gas, coke oven gas, biogas, and other low-calorific-value fuels are ignited by the 1000J spark energy. Compatibility with extremely lean fuel mixes is increased by oxygen-enriched designs.
Q: Is the system suitable for offshore installations?
A: Yes. Salt spray testing for marine settings is passed by the 316L stainless steel casing. Offshore platform explosion safety regulations are satisfied by the flameproof design. Reliable operation in coastal circumstances is ensured by wind resistance up to 30 m/s.
Q: What maintenance does the ignition system require?
A: Quick electrode replacement without system disassembly is made possible by modular design. Check for erosion on ignition tips every 50,000 cycles. Every year, check the insulation of high-voltage cables. Before a component fails, the self-diagnostic system warns you of its deterioration.
Q: Can the igniter integrate with existing control systems?
A: Definitely. For flexible PLC integration, the unit takes 220VAC or 24VDC input. Automatic sequencing with burner management systems is made possible by FSSS connectivity. For centralized monitoring, alarm outputs are connected to your facility's SCADA.
Q: What certifications validate explosion-proof performance?
A: Our units hold ATEX, IECEx, and local Ex certifications for use in Zone 1/2 hazardous areas. IEC 60079-0/1 compliance confirms flameproof enclosure design. TÜV and BV third-party testing validates safety performance under internal explosion conditions.
Q: How quickly can custom configurations be delivered?
A: Standard lead time for customized dimensions, thread connections, or cable lengths is 15 days. In-stock standard models ship within 3 days. Rush orders receive priority scheduling based on production capacity availability.
Secure your operations with proven plasma ignition technology from our Explosion-proof Plasma Igniter. Request technical specifications and quotations today.
