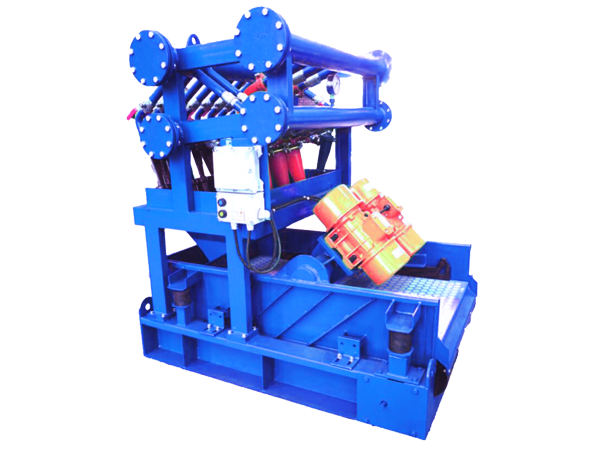

Mud Cleaner
Mud Cleaner
Drilling fluid cleaner is a kind of solid control equipment for drilling fluid, which integrates sand cleaner, mud cleaner and vibrating screen. It has the advantages of small space occupation, convenient installation and so on. It is very popular in the drilling market. The cleaner and vibrating screen can be used separately.
model | ZCQJ/200×2-100×8 | ZCQJ/250×2-100×12 | ZCQJ/250×3-100×20 | |||
Hydrocyclone mm | DN200×2 | DN100×8 | DN250×2 | DN100×12 | DN250×3 | DN100×20 |
working pressure MPa | 0.2～0.45 | |||||
Separation point μm | 40-74 | |||||
Treatment capacity m3/h | 120 | 240 | 320 | |||
Inlet pipe diameter mm | DN125 | DN125 | DN150 | DN150 | DN200 | DN200 |
Outlet pipe diameter mm | DN150 | DN150 | DN200 | DN200 | DN250 | DN250 |
Vibrating screen model | ZCZS/Z700-2 | ZCZS/Z700-2 | ZCZS/Z585-1 | |||
Theoretical weight Kg | 1150 | 1350 | 2450 | |||
Dimensions mm | 1850×1350×1850 | 1850×1350×1850 | 2450×2150×2150 | |||
